Availability: | |
---|---|
Quantity: | |
GT6 GT9
GRS or OEM
8456110090

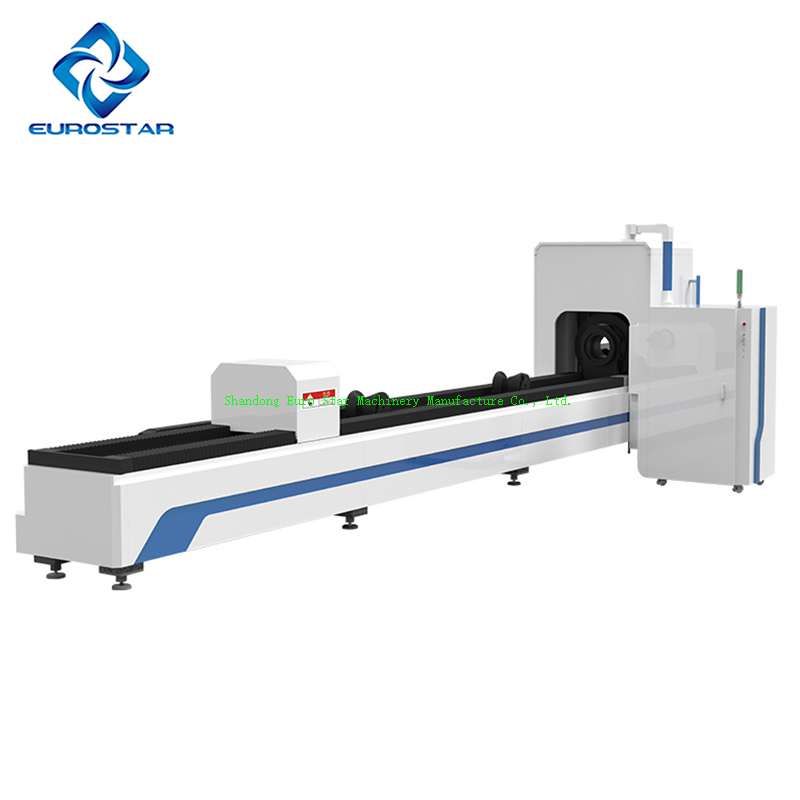

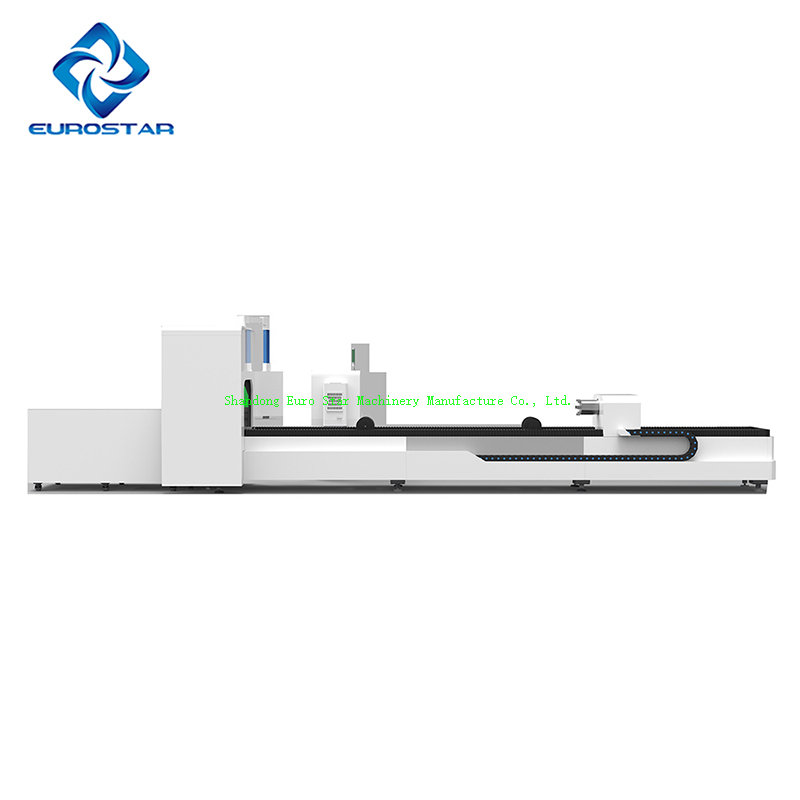

GT Fiber Laser Cutting Equipment
Fiber Laser Cutting Machine Product Advantage:
Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.
Functions:
1) Auxiliary feeding mechansism
2) Intelligent travel protection
3) Automatic lubrication
4) Global real-time feedback
5) A new generation of safety following module
6) Intelligent alarm system
7) Auxiliary gas low pressure alarm fuction
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Parameter&configration List:
Parameter & configration List | |||||||
Item | Subitem | GT6-A | GT6-Semi | GT6 | GT9-A | GT9-Semi | GT9 |
Basic parameter | tube cross-sectional shape | Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes (Please ask product manager for other cross-section shapes) | Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes (Please ask product manager for other cross-section shapes) | Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes (Please ask product manager for other cross-section shapes) | Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes (Please ask product manager for other cross-section shapes) | Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes (Please ask product manager for other cross-section shapes) | Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes (Please ask product manager for other cross-section shapes) |
tube size range | Round tube Φ20-Φ220mm Square tube 20 - 150mm Rectangular tube: 150mm≥Side length≥20mm, Circumscribed circle diameter≤220mm | Round tube Φ20-Φ220mm Square tube 20 - 150mm Rectangular tube: 150mm≥Side length≥20mm, Circumscribed circle diameter≤220mm | Round tube Φ20-Φ220mm Square tube 20 - 150mm Rectangular tube: 150mm≥Side length≥20mm, Circumscribed circle diameter≤220mm | Round tube Φ20-Φ220mm Square tube 20 - 150mm Rectangular tube: 150mm≥Side length≥20mm, Circumscribed circle diameter≤220mm | Round tube Φ20-Φ220mm Square tube 20 - 150mm Rectangular tube: 150mm≥Side length≥20mm, Circumscribed circle diameter≤220mm | Round tube Φ20-Φ220mm Square tube 20 - 150mm Rectangular tube: 150mm≥Side length≥20mm, Circumscribed circle diameter≤220mm | |
Requirements for tubes | Diameter<φ50mm thickness≥1.2mm; Diameter≥φ50mm Wall thickness≥2.5% of Diameters of tubes | Diameter<φ50mm thickness≥1.2mm; Diameter≥φ50mm Wall thickness≥2.5% of Diameters of tubes | Diameter<φ50mm thickness≥1.2mm; Diameter≥φ50mm Wall thickness≥2.6% of Diameters of tubes | Diameter<φ50mm thickness≥1.2mm; Diameter≥φ50mm Wall thickness≥2.7% of Diameters of tubes | Diameter<φ50mm thickness≥1.2mm; Diameter≥φ50mm Wall thickness≥2.7% of Diameters of tubes | Diameter<φ50mm thickness≥1.2mm; Diameter≥φ50mm Wall thickness≥2.8% of Diameters of tubes | |
Maximum machinable tube length | 6500mm | 6500mm | 6500mm | 9200mm | 9200mm | 9200mm | |
Maximum tube weight | 100Kg 16.6Kg/m | 100Kg 16.6Kg/m | 100Kg 16.6Kg/m | 200Kg 21.7Kg/m | 200Kg 21.7Kg/m | 200Kg 21.7Kg/m | |
Maximum blanking length | 4500mm | 4500mm | 4500mm | 4500mm | 4500mm | 4500mm | |
Shortest remaining material | 100 mm | 100mm | 100mm | 400mm | 400mm | 400mm | |
Dimensions | 13500mm x 6500mm x 2500mm | 13500mm x 6500mm x 2500mm | 13500No configuration required3200No configuration required2500mm | 16000mm x 6500mm x 2500mm | 16000mm x 6500mm x 2500mm | 16000No configuration required3200No configuration required2500mm | |
Machine weight | 6900kg | 6900kg | 5400kg | 13500kg | 13500kg | 6400kg | |
Operation parameter | Positioning accuracy | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm |
Repositioning accuracy | 0.03mm | 6900kg | 0.03mm | 0.03mm | 0.03mm | 0.03mm | |
Max. Chuck rotating speed | 120r/min | 120r/min | 120r/min | 120r/min | 120r/min | 120r/min | |
X axis maximum speed | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | |
Y axis maximum speed | 95m/min | 95m/min | 95m/min | 95m/min | 95m/min | 95m/min | |
X maximum acceleration | 1G | 1G | 1G | 1G | 1G | 1G | |
Y maximum acceleration | 1G | 1G | 1G | 1G | 1G | 1G | |
Z axis maximum speed | ≥60m/min | ≥60m/min | ≥60m/min | ≥60m/min | ≥60m/min | ≥60m/min | |
Processing precision(38mm stainless steel square tube) | Φ20mm roundness | ≤0.15mm | ≤0.15mm | ≤0.15mm | ≤0.15mm | ≤0.15mm | ≤0.15mm |
20mm square diagonal size difference | ≤0.20mm | ≤0.20mm | ≤0.20mm | ≤0.20mm | ≤0.20mm | ≤0.20mm | |
20mm square position size difference | ≤0.15mm(3m) ≤0.40mm(6m) | ≤0.15mm(3m) ≤0.40mm(6m) | ≤0.15mm(3m) ≤0.40mm(6m) | ≤0.15mm(3m) ≤0.40mm(6m) | ≤0.15mm(3m) ≤0.40mm(6m) | ≤0.15mm(3m) ≤0.40mm(6m) | |
Optical system | Laser source | MAX/IPG Raycus/GW | MAX/IPG Raycus/GW | MAX/IPG Raycus/GW | MAX/IPG Raycus/GW | MAX/IPG Raycus/GW | MAX/IPG Raycus/GW |
laser head | Raytools | Raytools | Raytools | Raytools | Raytools | Raytools | |
Automatic focusing function of laser head | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Multi-stage perforation Technology | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
smooth cutting technology | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Anti-slag protection function of double cyclones | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
mechanical system | Chuck | Fully automatic self centering four jaw chuck | Fully automatic self centering four jaw chuck | Fully automatic self centering four jaw chuck | Fully automatic self centering eight jaw chuck | Fully automatic self centering eight jaw chuck | Fully automatic self centering eight jaw chuck |
X-axis,Y-axis,Z-axis,A-axis Servo motor and driver | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | |
Jaw position control | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | |
Servo feeding rack | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | |
Standard blanking rack | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Servo snail idler | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | |
Standard snail roller | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Slideway | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | |
Rack | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | Made in Taiwan | |
Automatic lubrication function | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Intelligent control system | Control system | Tubepro | Tubepro | Tubepro | Tubepro | Tubepro | Tubepro |
Cutting Angle Steel and Channel Steel | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Automatic tube inspection | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | |
Display size | 21.5 inches | 21.5 inches | 21.5 inches | 21.5 inches | 21.5 inches | 21.5 inches | |
WIFI wireless control | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Automatic tube inspection | four sides edge-seeking | four sides edge-seeking | four sides edge-seeking | four sides edge-seeking | four sides edge-seeking | four sides edge-seeking | |
Laser cutting technology database | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Auxiliary gas low pressure alarm function | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Cutting gas automatic pressure regulation function | O2 | O2 | O2 | O2 | O2 | O2 | |
Breaker | France Schneide | France Schneide | France Schneide | France Schneide | France Schneide | France Schneide | |
Relay | France Schneide | France Schneide | France Schneide | France Schneide | France Schneide | France Schneide | |
Electrical proportional valve | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | |
O2 Cutting gas control valve | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | |
N2 Cutting gas control valve | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | Germany AVENTICS | |
System identification file format | IGS | IGS | IGS | IGS | IGS | IGS | |
Safety protection system | Open Door Protection | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration |
Rear chuck and roller anti-collision | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Laser abnormal alarm | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Cutting abnormal alarm | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Gas low pressure alarm | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Water cooler abnormal alarm | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Laser protective glasses | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | |
Peripheral system | Water cooler | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration | standard configuration |
Dust removal | Centrifugal fan | Centrifugal fan | Centrifugal fan | Centrifugal fan | Centrifugal fan | Centrifugal fan | |
Other parameters configuration | Total power/current with 6KW source | 54kw/126A | 54kw/126A | 42kW/98A | 54kw/126A | 54kw/126A | 42kW/98A |
Total power/current with 3KW source | 43kw/102A | 43kw/102A | 31kW/75A | 43kw/102A | 43kw/102A | 31kW/75A | |
Total power/current with 2KW source | 39KW/92A | 39KW/92A | 27kW/66A | 39KW/92A | 39KW/92A | 27kW/66A | |
Total power/current with 1.5KW source | 37kw/88A | 37kw/88A | 25kW/61A | 37kw/88A | 37kw/88A | 25kW/61A | |
Total power/current with 1KW source | 36kw/85A | 36kw/85A | 24kW/58A | 36kw/85A | 36kw/85A | 24kW/58A | |
Automatic material loading system | Automatic loading tube types | Round tube, square tube, rectangular tube (difference between length and short side > 20mm) | No configuration required | No configuration required | Round tube, square tube, rectangular tube (difference between length and short side > 20mm) | No configuration required | No configuration required |
tube size range | Round tube Φ20-Φ230mm Square tube 20 - 160mm Rectangular tube: 170mm≥Side length≥20mm, Circumscribed circle diameter≤230mm | No configuration required | No configuration required | Round tube Φ20-Φ230mm Square tube 20 - 160mm Rectangular tube: 170mm≥Side length≥20mm, Circumscribed circle diameter≤230mm | No configuration required | No configuration required | |
Maximum tube weight | 200Kg 30Kg/m | No configuration required | No configuration required | 200Kg 30Kg/m | No configuration required | No configuration required | |
Tube loading length range | 2000mm-6500mm | No configuration required | No configuration required | 2000mm-9200mm | No configuration required | No configuration required | |
Maximum load capacity of storage bin | 1.5t | No configuration required | No configuration required | 1.5t | No configuration required | No configuration required | |
Maximum diameter of bundle | 750mm | No configuration required | No configuration required | 750mm | No configuration required | No configuration required | |
Manual self - contained control mode | standard configuration | No configuration required | No configuration required | standard configuration | No configuration required | No configuration required | |
Variable frequency control of feeding speed | standard configuration | No configuration required | No configuration required | standard configuration | No configuration required | No configuration required | |
Servo choice | standard configuration | No configuration required | No configuration required | standard configuration | No configuration required | No configuration required | |
Automatic positioning | standard configuration | No configuration required | No configuration required | standard configuration | No configuration required | No configuration required | |
Abnormity warning | standard configuration | No configuration required | No configuration required | standard configuration | No configuration required | No configuration required | |
Pipe quick center positioning | standard configuration | No configuration required | No configuration required | standard configuration | No configuration required | No configuration required | |
Loading and unloading | standard configuration | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | |
Auxiliary feeding device | Tube types | No configuration required | Round tube, square tube, rectangular tube | No configuration required | No configuration required | ,, Round tube, square tube, rectangular tube | No configuration required |
tube size range | No configuration required | Round tube Φ20-Φ200mm Square tube 20 - 160mm Rectangular tube: 170mm≥Side length≥20mm, Circumscribed circle diameter≤230mm | No configuration required | No configuration required | Round tube Φ20-Φ200mm Square tube 20 - 160mm Rectangular tube: 170mm≥Side length≥20mm, Circumscribed circle diameter≤230mm | No configuration required | |
Maximum machinable tube length | No configuration required | 6500mm | No configuration required | No configuration required | 9200mm | No configuration required | |
Maximum load capacity of storage bin | No configuration required | 1.5t | No configuration required | No configuration required | 1.5t | No configuration required | |
Location number | No configuration required | 6 | No configuration required | No configuration required | 6 | No configuration required | |
Option | Laser fume filter | 1 set | 1 set | 1 set | 1 set | 1 set | 1 set |
laser fume filter(America Donaldson) | DFOE4-1 set | DFOE4-1 set | DFOE4-1 set | DFOE4-1 set | DFOE4-1 set | DFOE4-1 set | |
Security light curtains Generally, 1 set, large equipment or have special requirements, and other non-standard.(CE and ETL certification standard) | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | |
electron microscope | optional configuration | optional configuration | optional configuration | No configuration required | No configuration required | No configuration required | |
Integrated compressed air system | optional configuration | optional configuration | optional configuration | No configuration required | No configuration required | No configuration required | |
Voltage regulator | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | |
Laser case plus air conditioner Generally no air conditioning is required, and it is optional in the tropics. | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | |
Electric cabinet with air conditioner | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | |
Weld identification | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | |
Automatic chip eliminator | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | No configuration required | |
Tubest Typesetting software | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | |
Lantek nesting software | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | |
Compliance with CE or North American Standards | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration | optional configuration |
