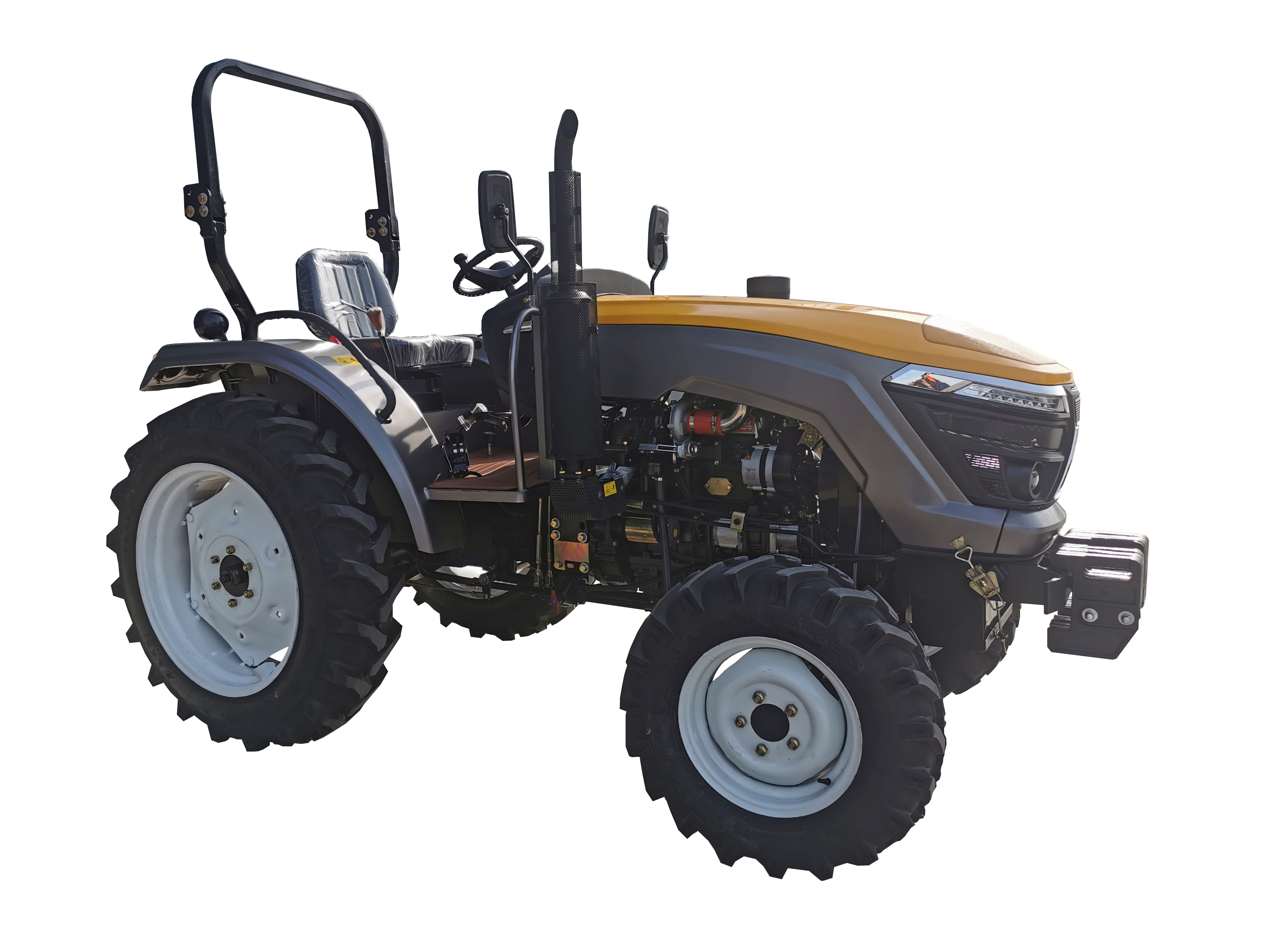

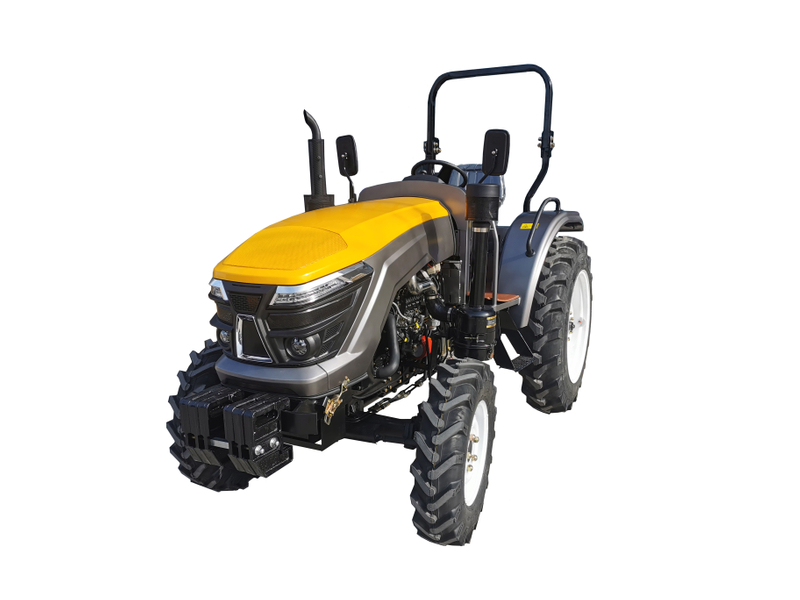

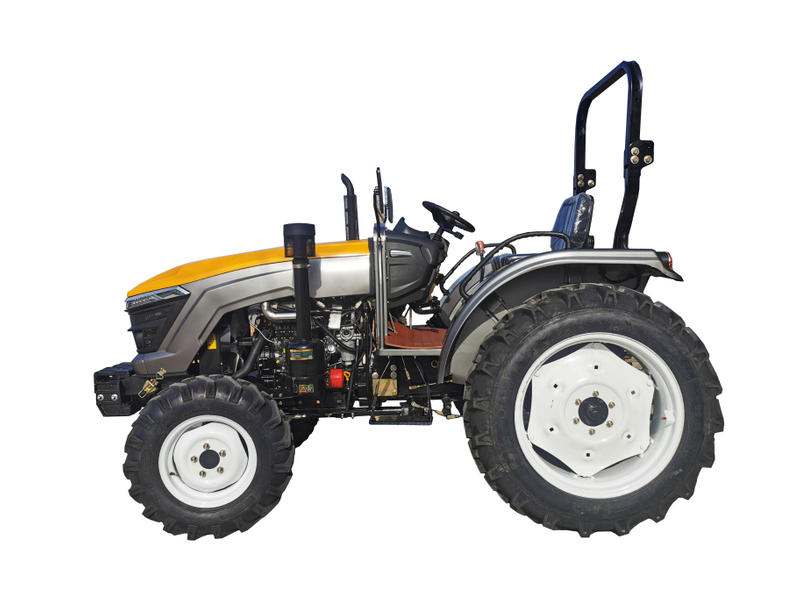

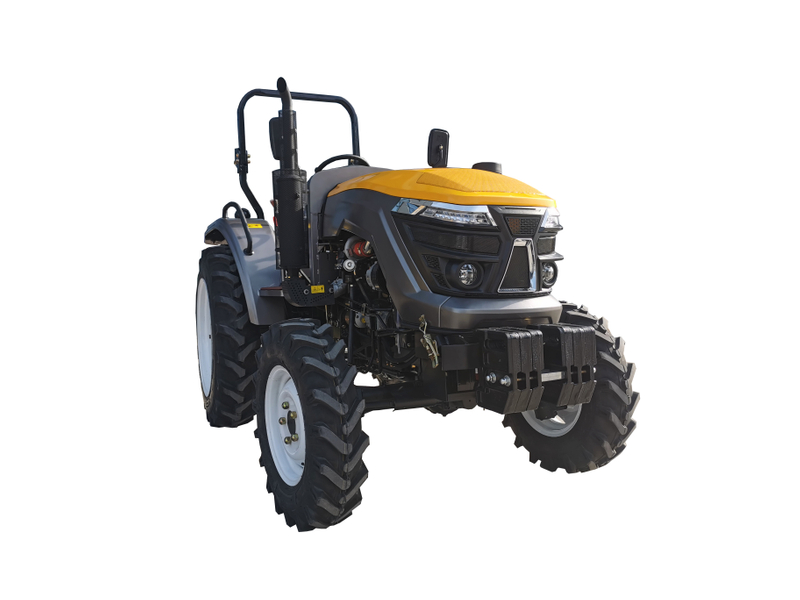

TE-P 25-50HP Flat floor Tractor

TE-P Series small tractor adopts Flat floor, has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.

Availability:

Quantity:



Inquire

Model:
TE254-P TE354-P TE404-P TE454-P TE504-P TE604-P
Brand:
EUROSTAR
Code:
8701911000

TE-P series small Flat floor garden tractor

TE-p Series small Flat floor Tractor Product Description

^{TE-P Series small tractor adopts Flat floor}^{, has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.}
_{Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.}

TE-p Series small Flat floor Tractor Product Selling Points

^{1.TE-P series of multifunctional Flat floor tractors, its power cover 25-60 horsepower. Optional Rotary Tiller, Lawn Mower, Baler, Sprayer, etc farm implements.
2. Standard configuration: 8F+2R gears, optional: 8F+8R/16F+4R gears. Synchronizer shuttle-type gear is also an optional configuration which is energy saving, reliable and comfortable.}
^{3.Dry brake is the standard configuration, and oil bath type wet brake is optional which has great breaking force and long service life.}

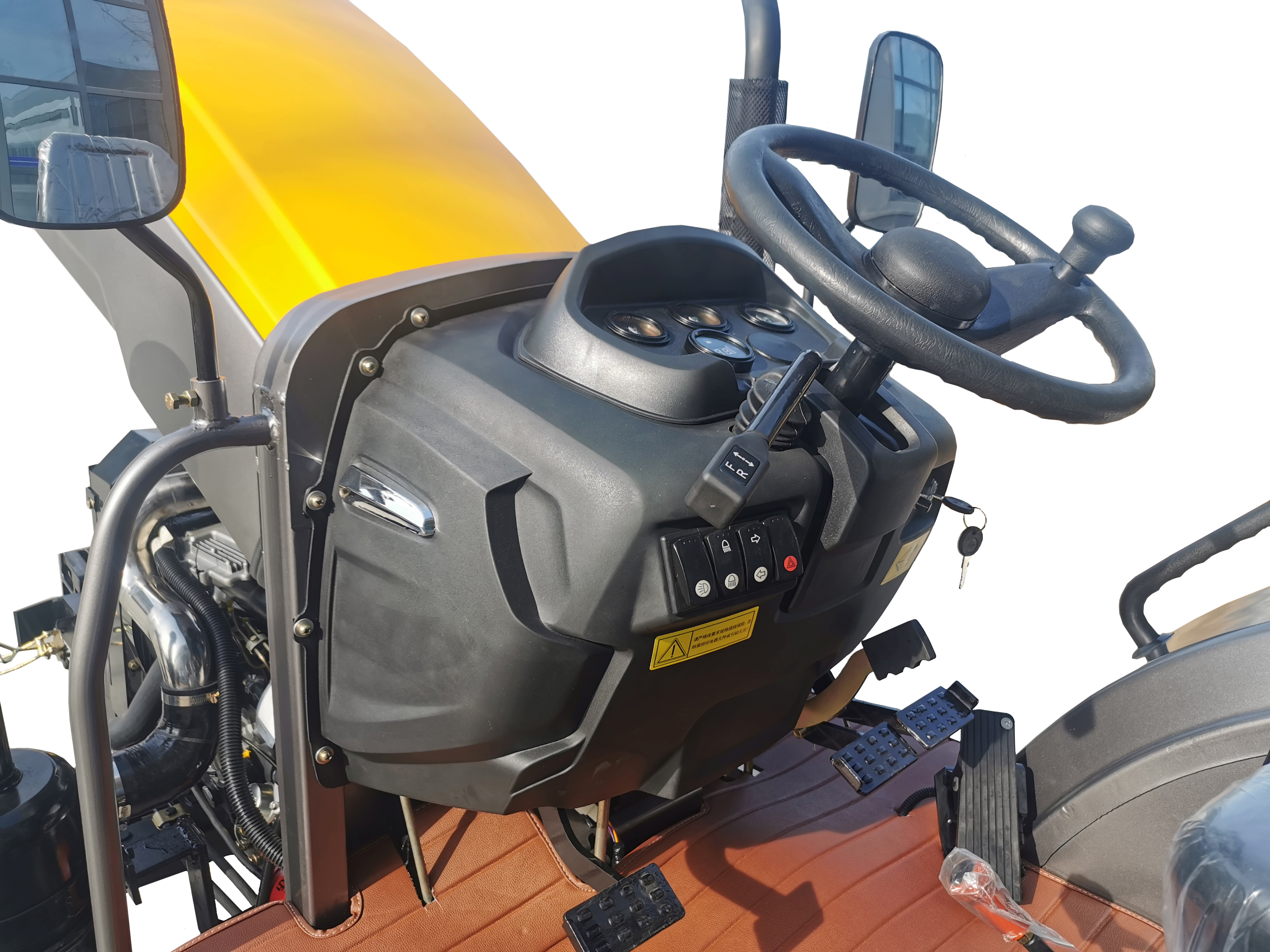

^{4.Flat floor structure and side-placed operating lever satisfy the man-machine engineering.}
^{5. Farmland tires, grassland tires and engineering tires are optional to satisfy various operations.
6.Four driving standard configuration mid steering cylinder front drive axle has the maximum gap from the ground of 335mm.}
^{7.Suspension seat is the standard configuration which can effectively reduce 40% of vibration.}

TE-P series small Flat floor tractor product technical parameters

Model	TE254-P	TE354-P	TE404-P	TE454-P	TE504-P	TE604-P
engine power (HP)	25	35	40	45	50	60
Type	4WD；optional: 2WD			4WD；optional: 2WD
Overall Size(mm)	3200×1550×16800			3200×1550×16800
long (Front weight to suspension point) mm	3200			3200
wide(Drive shaft side) mm	1550			1550
High (Silencer top) mm	1870			1870
High (Steering wheel top) mm	1680			1680
wheel base (mm)	1850			1850
front wheel tread (mm)	1225–1425			1225–1425
rear wheel tread (mm)	1160–1300			1160–1300
Engine Ratial Speed（r/min）	2400			2400
Gear box( F/R)	8F+2R，optional: 8F+8R/16F+4R gears			8F+2R，optional: 8F+8R/16F+4R gears
Min Ground clearance（mm）	390			390
rear wheel tyre(front/rear)	F600-16/R9.5-24，optional: F650-16/R11.2-24；F750-16/R11.2-28；F750-20/R13.6-28；
clutch	single piece,dry-type,single-action ,Constant combination
Lifting adjustment method	Comprehensive adjustment of force and position
brake system	Mechanical shoe type
Steering system	Hydraulic steering
PTO Standard speed (r/min)	540/760
PTO shaft type	Postposition non-independent type/ 35 Rectangular Splines/ 6 tooth
Central drive type (front/rear)	Spiral bevel gear pair/spiral bevel gear pair
Differential type (front/rear)	Two-planet gear closed/two-planet gear closed
differential lock	Tooth type
Final transmission type (front/rear)	Bevel gear/built-in single-stage straight cylindrical gear
Shunting box type	spur gear/Meshing sleeve shift
(mpa)System relief valve adjustment pressure	(mpa)System relief valv22.5±0.5e adjustment pressure
hydraulic out flow	33.6/min
hydraulic lift Systemmaximumlifting force (kn)	6.64
traction	U type hook
Three-point suspension	Class II suspension
Min Operating Weight（kg）	1350-1750
Optional configuration and price	2WD；Air brake；Safety rack awning；Detachable cab type；Flat bottom；Side joystick；Side fuel tank；double acting clutch；8F+8R；strong pressure lifter；Two way hydraulic output；Three way hydraulic output； F650-16/R11.2-24；F750-16/R11.2-28；F750-20/R13.6-28；SKD iron frame packaging.
