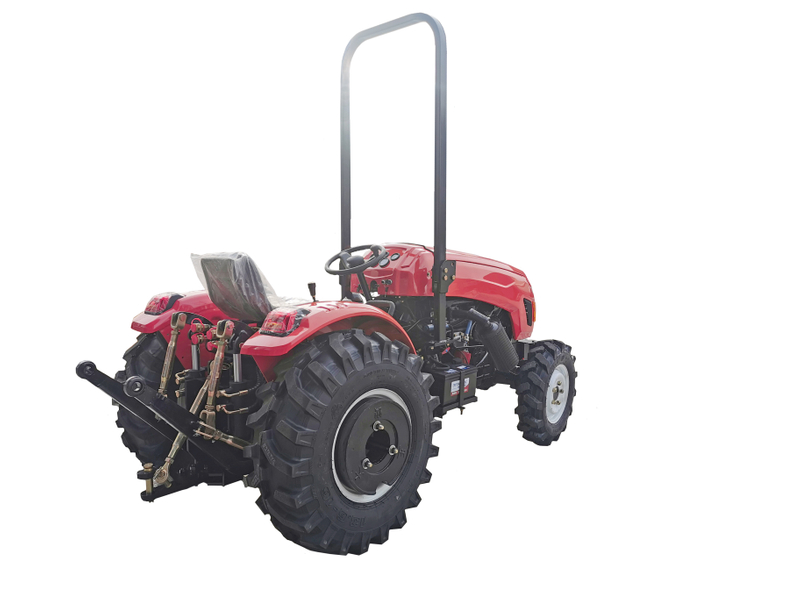

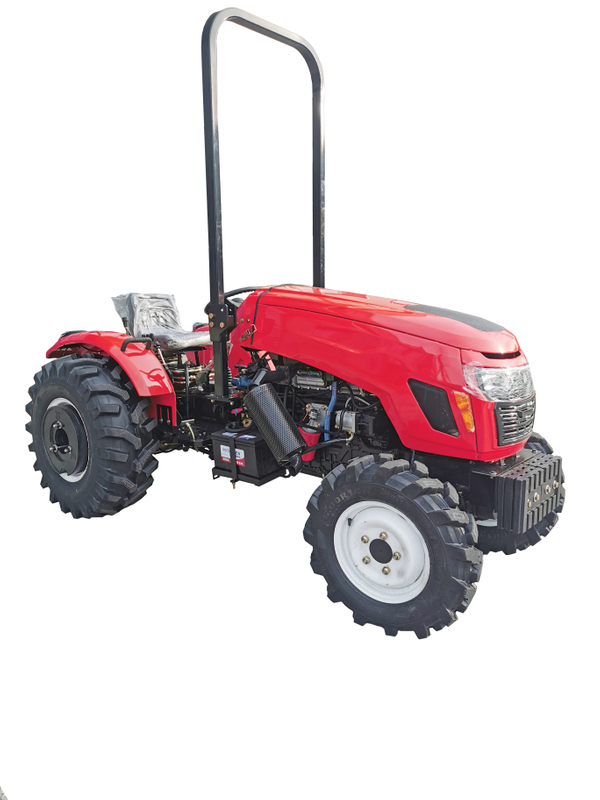

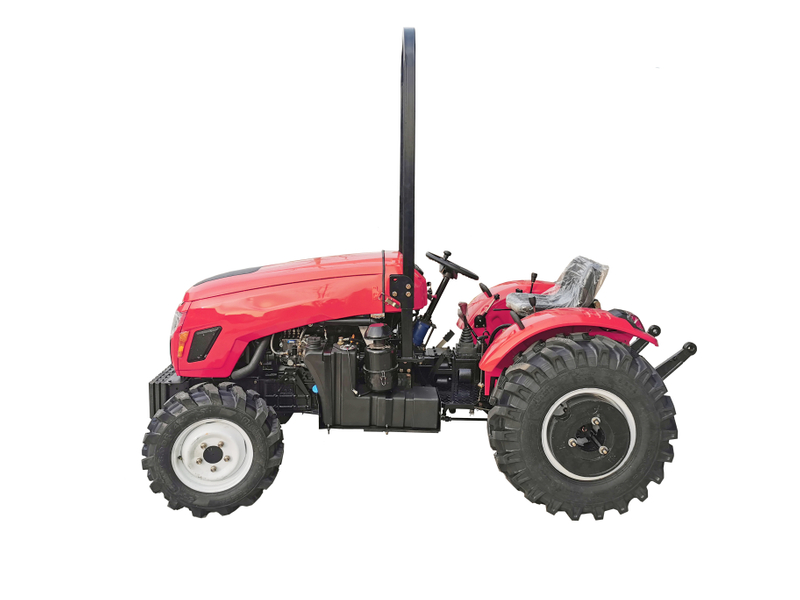

TE-C 25-50HP Side Fuel Tank Tractor

TE-C Series small tractor adopts side fuel tank, the whole machine structure is more reasonable. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.
Availability:
Quantity:
TE-C 25-50HP Side Fuel Tank Tractor
TE-C 25-50HP Side Fuel Tank Tractor
TE-C 25-50HP Side Fuel Tank Tractor
TE-C 25-50HP Side Fuel Tank Tractor
TE-C 25-50HP Side Fuel Tank Tractor
TE-C 25-50HP Side Fuel Tank Tractor
  • TE254-C TE354-C TE404-C TE454-C TE504-C TE604-C

  • EUROSTAR

  • 8701911000

TE-C series small side fuel tank garden tractor

TE-C Series small side fuel tank Tractor Product Description

TE-C Series small tractor adopts side fuel tank, the whole machine structure is more reasonable. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.


 TE-C Series small side fuel tank Tractor Product Selling Points

1.TE-C series of multifunctional tractor adopts side fuel tank, its power cover 25-50 horsepower. Optional Rotary Tiller, Lawn Mower, Baler, Sprayer, etc farm implements.
 2. Standard configuration: 8F+2R gears, optional: 8F+8R/16F+4R gears. Synchronizer shuttle-type gear is also an optional configuration which is energy saving, reliable and comfortable.
3.Dry brake is the standard configuration, and oil bath type wet brake is optional which has great breaking force and long service life.
 4.Flat floor structure and side-placed operating lever satisfy the man-machine engineering.
5. Farmland tires, grassland tires and engineering tires are optional to satisfy various operations.
6.Four driving standard configuration mid steering cylinder front drive axle has the maximum gap from the ground of 335mm.

7.Suspension seat is the standard configuration which can effectively reduce 40% of vibration.


TE-C series small side fuel tank tractor product technical parameters

Model

TE254-C

TE354-C

TE404-C

TE454-C

TE504-C

TE604-C

engine power (HP)

25

35

40

45

50

60

Type

4WDoptional: 2WD

4WDoptional: 2WD

Overall Size(mm)

3200×1550×16800

3200×1550×16800

long (Front weight to suspension point) mm

3200

3200

wide(Drive shaft side) mm

1550

1550

High (Silencer top) mm

1870

1870

High (Steering wheel top) mm

1680

1680

wheel base (mm)

1850

1850

front wheel tread (mm)

1225–1425

1225–1425

rear wheel tread (mm)

1160–1300

1160–1300

Engine Ratial Speedr/min

2400

2400

Gear box( F/R)

8F+2Roptional: 8F+8R/16F+4R gears

8F+2Roptional: 8F+8R/16F+4R gears

Min Ground clearancemm

390

390

rear wheel tyre(front/rear)

F600-16/R9.5-24optional: F650-16/R11.2-24F750-16/R11.2-28F750-20/R13.6-28

clutch

single piece,dry-type,single-action ,Constant combination

Lifting adjustment method

Comprehensive adjustment of force and position

brake system

Mechanical shoe type

Steering system

Hydraulic steering

PTO Standard speed (r/min)

540/760

PTO shaft type

Postposition non-independent type/ 35 Rectangular Splines/ 6 tooth

Central drive type (front/rear)

Spiral bevel gear pair/spiral bevel gear pair

Differential type (front/rear)

Two-planet gear closed/two-planet gear closed

differential lock

Tooth type

Final transmission type (front/rear)

Bevel gear/built-in single-stage straight cylindrical gear

Shunting box type

spur gear/Meshing sleeve shift

(mpa)System relief valve adjustment pressure

(mpa)System relief valv22.5±0.5e adjustment pressure

hydraulic out flow

33.6/min

hydraulic lift Systemmaximumlifting force (kn)

6.64

traction

U type hook

Three-point suspension

Class II suspension

Min Operating Weightkg

1350-1750

Optional configuration and price

2WDAir brakeSafety rack awningDetachable cab typeFlat bottomSide joystickSide fuel tankdouble acting clutch8F+8Rstrong pressure lifterTwo way hydraulic outputThree way hydraulic output F650-16/R11.2-24F750-16/R11.2-28F750-20/R13.6-28SKD iron frame packaging.



TE-C series small side fuel tank tractor on display

7

TE-P series small Flat floortractor details show

5

6

TE-J series small Cab type tractor details show

1

2

TE series small tractor on display

TE双作用普通-2


TE series smalltractor SKD packaging and CBU packaging display
8TE Series smallTractor Container Display
9
