TL 20-40HP tractor

TL new platform upgrading product, has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations

Main sales territory: regions like Europe, America, Ukraine, South America and Australia
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.

Quantity:
  • TL250/TL254/TL300/TL304/TL350/TL354/TL400/TL404
  • EUROSTAR
  • 87019011

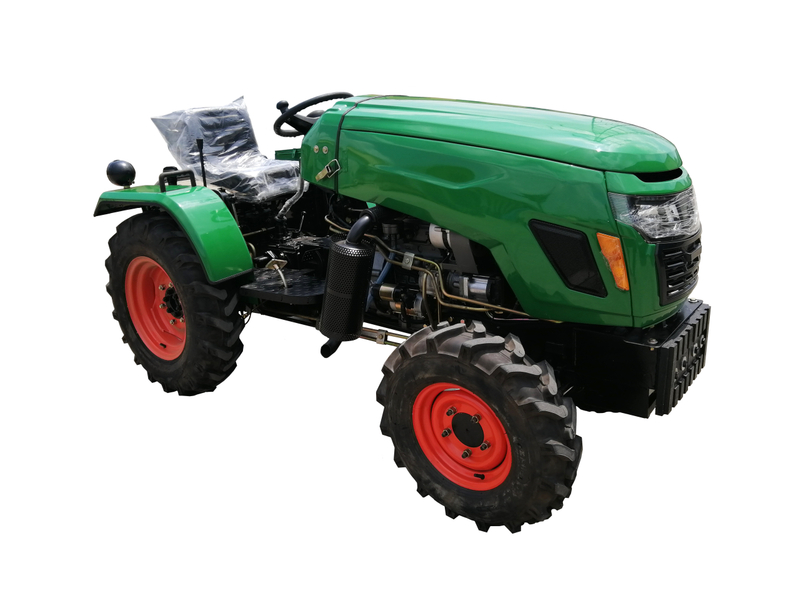

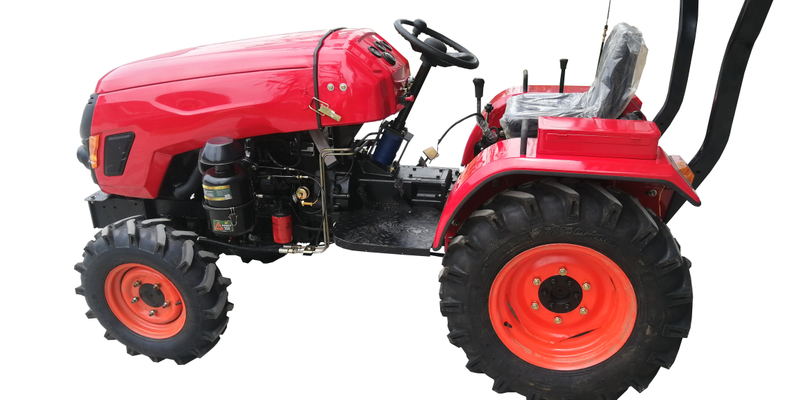

TL series Mini garden tractor

TL Series Mini Tractor Product Description

TL new platform upgrading product, has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations

Main sales territory: regions like Europe, America, Ukraine, South America and Australia
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.


 TL Series Mini Tractor Product Selling Points

1.TL series of multifunctional tractors, its power cover 20-40 horsepower. Optional Rotary Tiller, Lawn Mower, Baler, Sprayer, etc farm implements
 2. Standard configuration: 6F+1R gears,Can achieve reverse walking. It is the only tractor in China that operates in reverse.
3.Dry brake is the standard configuration, and oil bath type wet brake is optional which has great breaking force and long service life.
4. Farmland tires, grassland tires and engineering tires are optional to satisfy various operations.
5.Four driving standard configuration mid steering cylinder front drive axle has the maximum gap from the ground of 300mm.


TL series Mini tractor product technical parameters

Model

TL204

TL254

TL304

TL354

TL404

engine power (HP)

20

25

30

35

40

Type

4WDoptional: 2WD

engine rate (r/min)

2350

outline dimension (mm)

2400*1140*1200

2450*1140*1200

wheel base (mm)

1500—1550

front wheel tread (mm)

940—1100

rear wheel tread (mm)

960—1140

front wheel tyre

450-14

450-14

450-14

rear wheel tyre

750-16

750-16

750-16

Minimum ground gap (mm)

260

335

380

architecture weight (kg)

930

960

Gearbox

6F+1R Gearbox

clutch

single piece,dry-type,single-action ,Constant combination

brake system

Mechanical shoe type

Central drive type (front/rear)

spiral bevel

differential lock

Tooth type

Final transmission type (front/rear)

Outer meshing spur gear

Shunting box type

spur gear/Meshing sleeve shift

Steering type

Full hydraulic steering

traction

U type hook

PTO shaft type

Postposition non-independent type/ 35 Rectangular Splines/ 6 tooth

PTO Standard speed (r/min)

540

hydraulic out flow

33.6/min

Optional configuration and price

2WDAir brakeSafety rack awningTwo way hydraulic outputF600-16/R9.5-24Track drive wheelsSKD iron frame packaging.

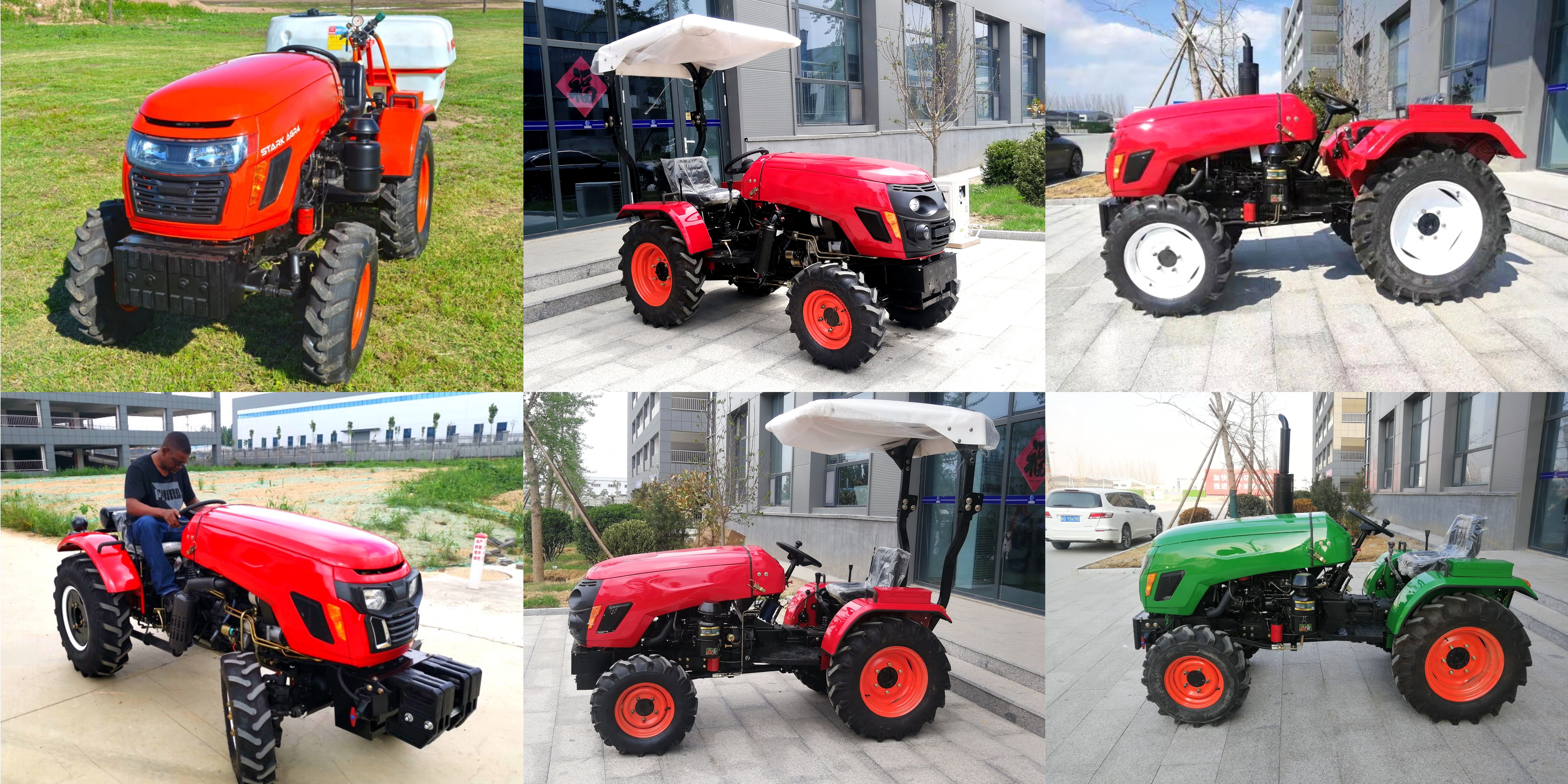

TL series tire-driven Mini tractor on display
6

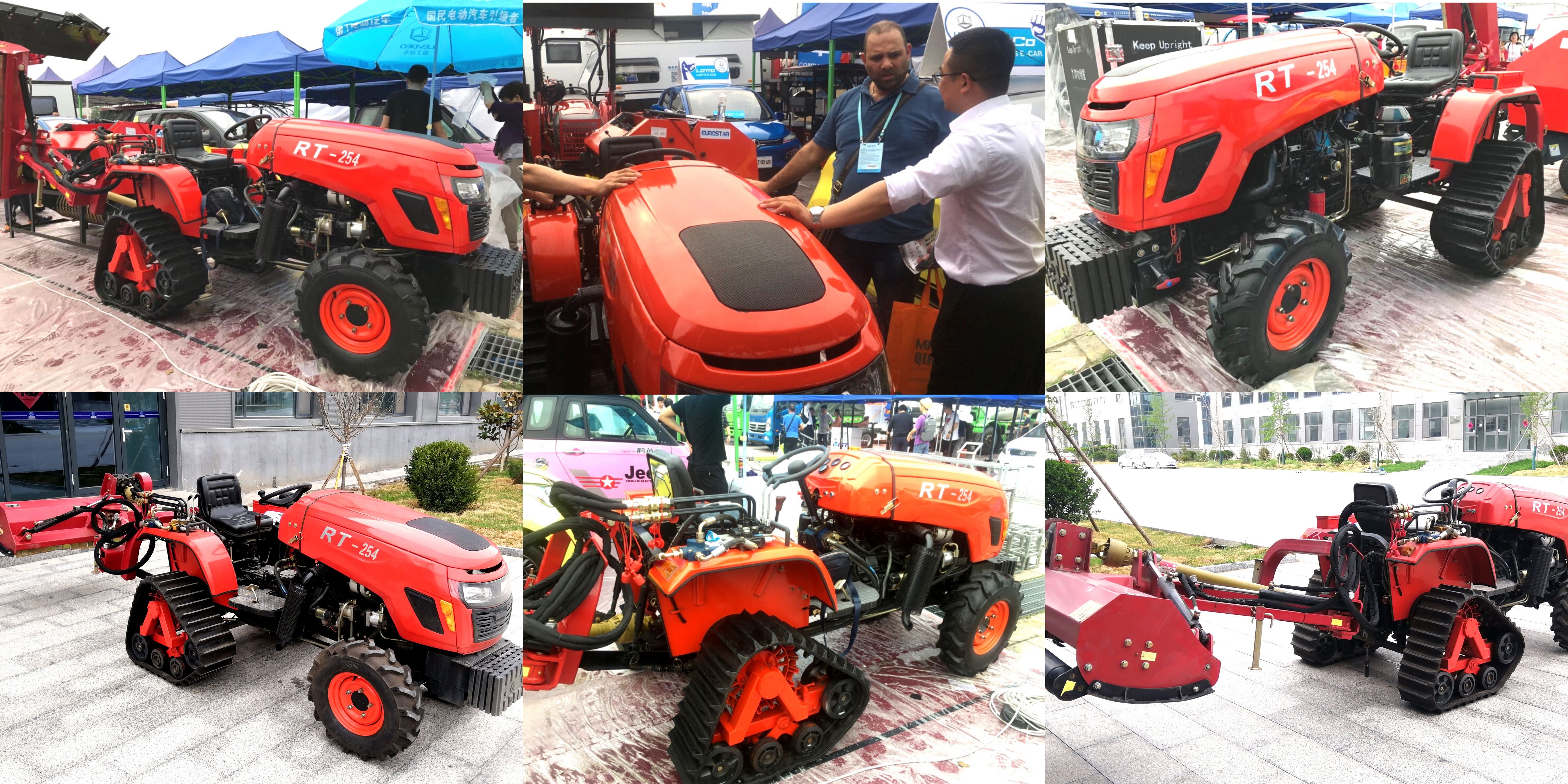

TL Series Track Drive Mini Tractor Show
7

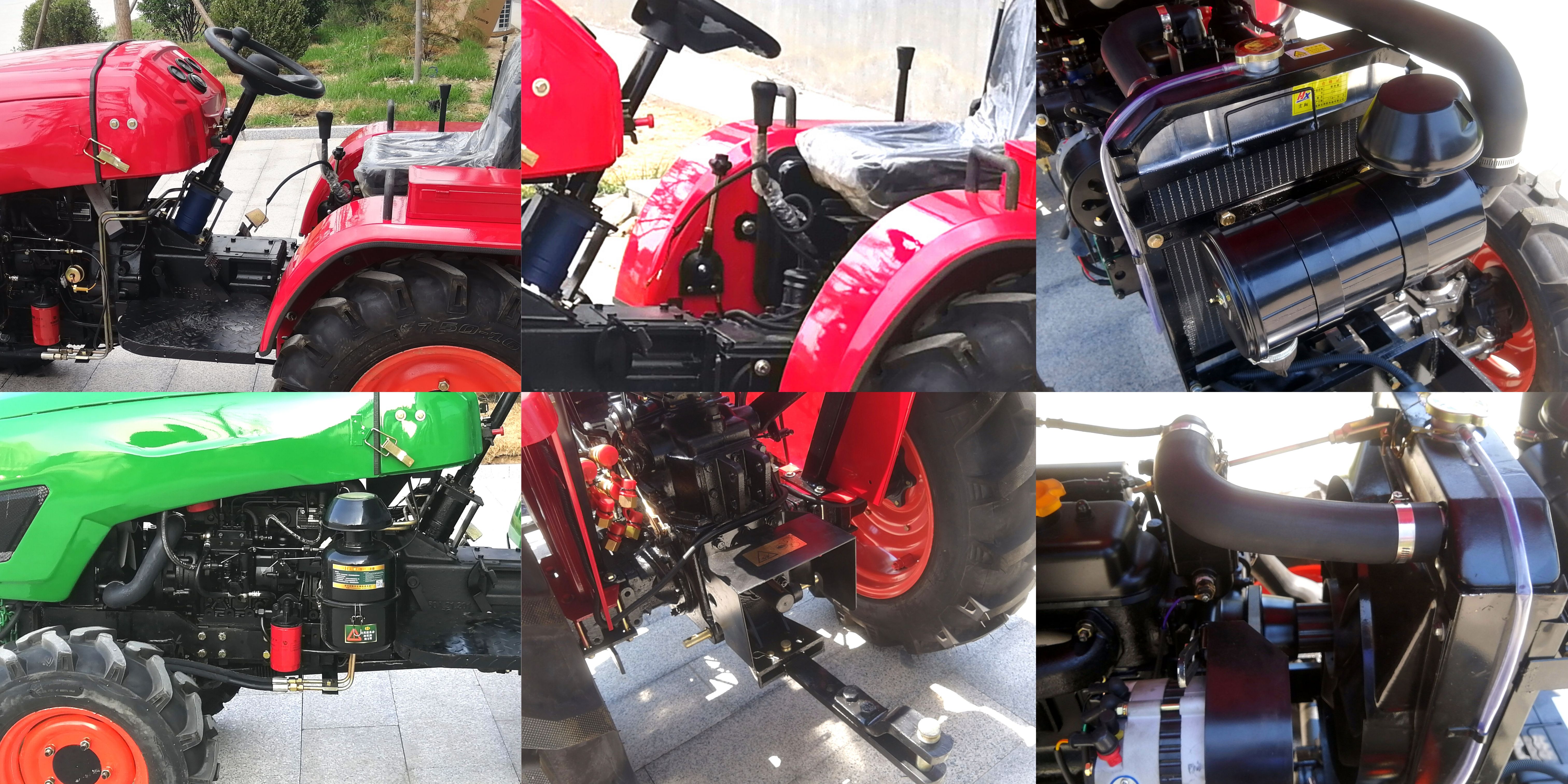

TL series Mini tractor details show
3

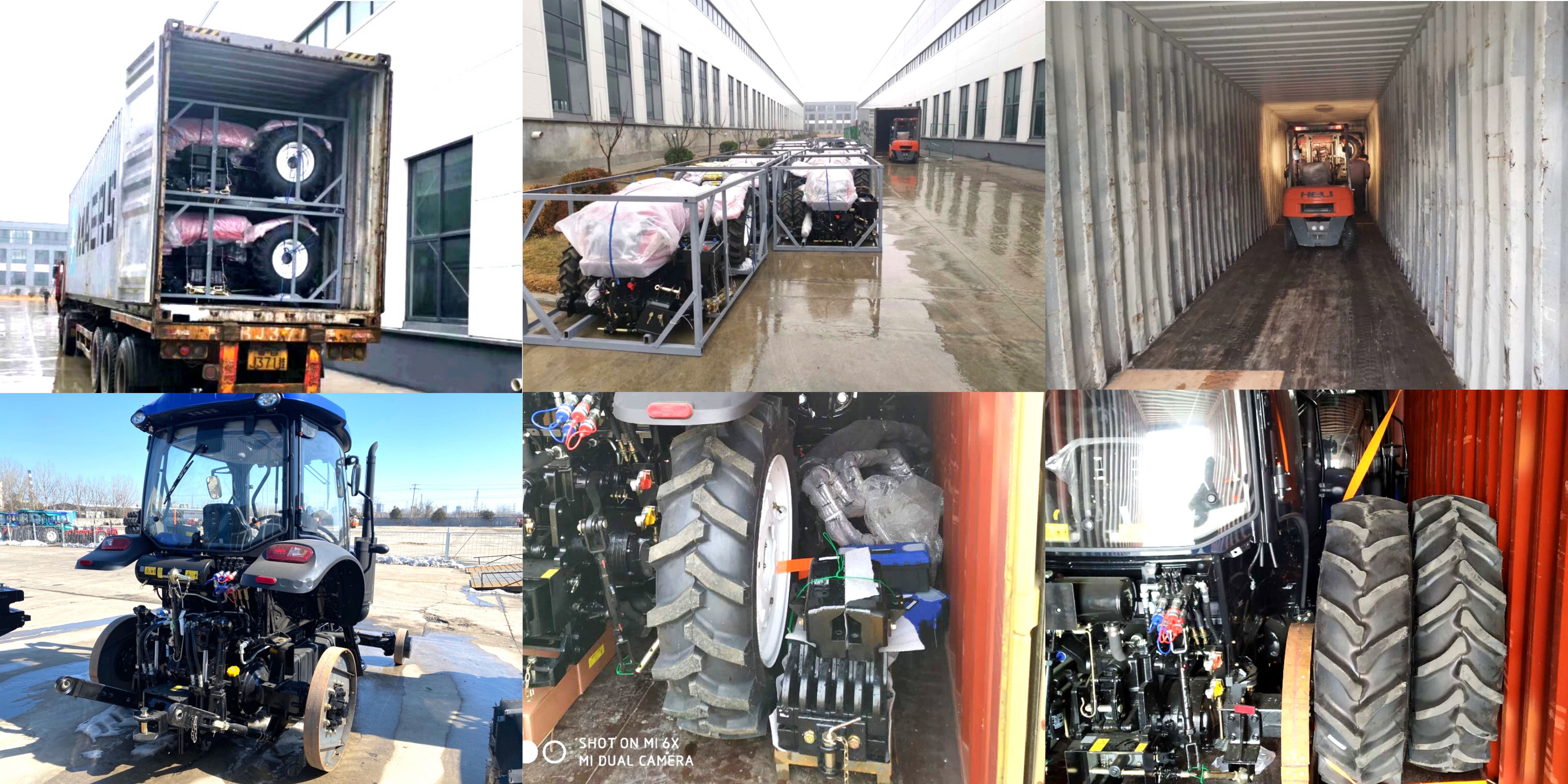

TL series Mini tractor SKD packaging and CBU packaging display

8TL Series Mini Tractor Container Display
9
