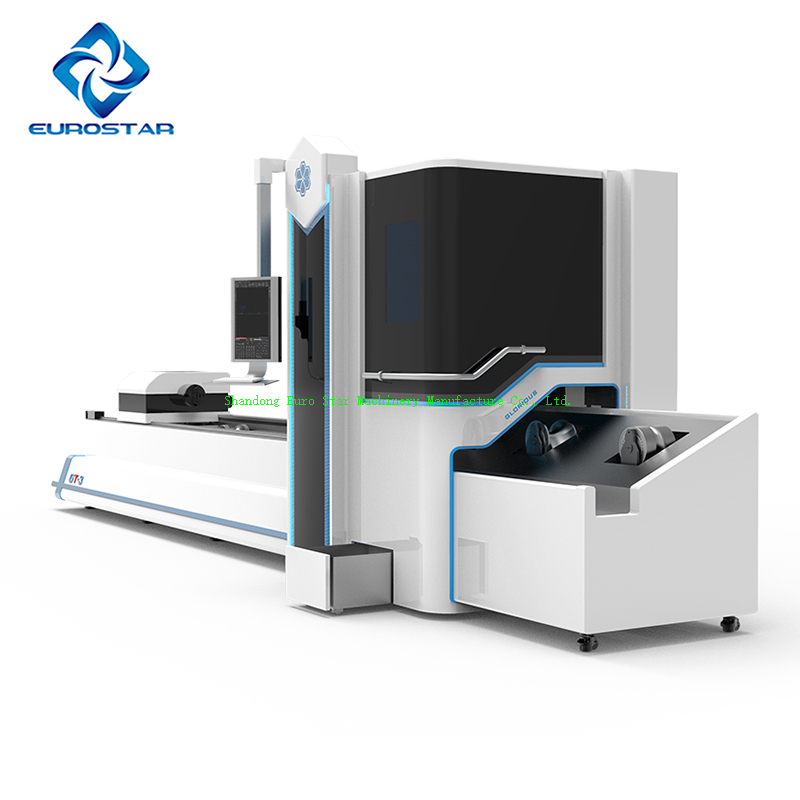

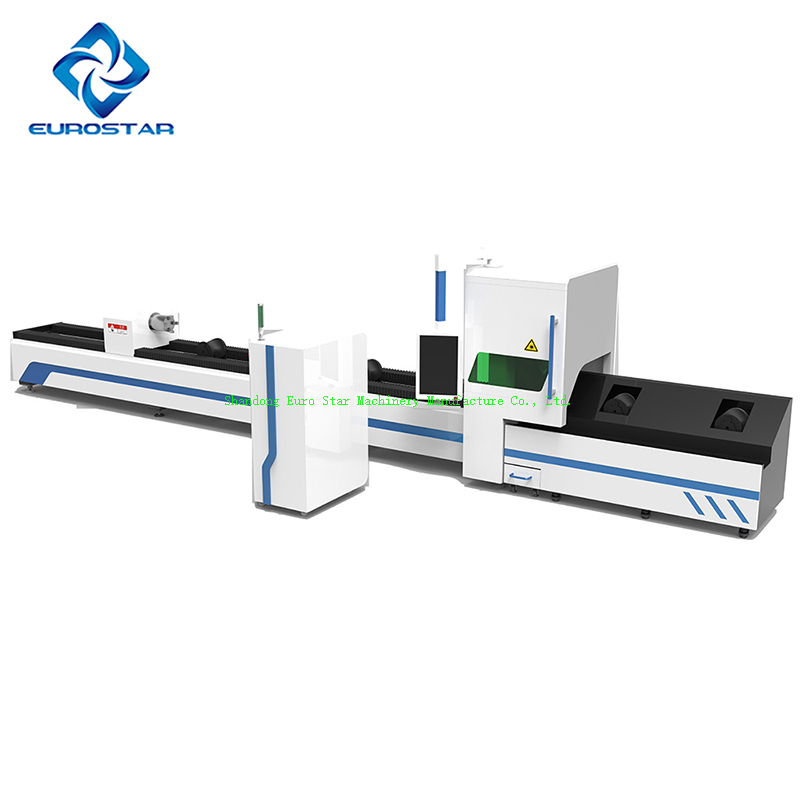

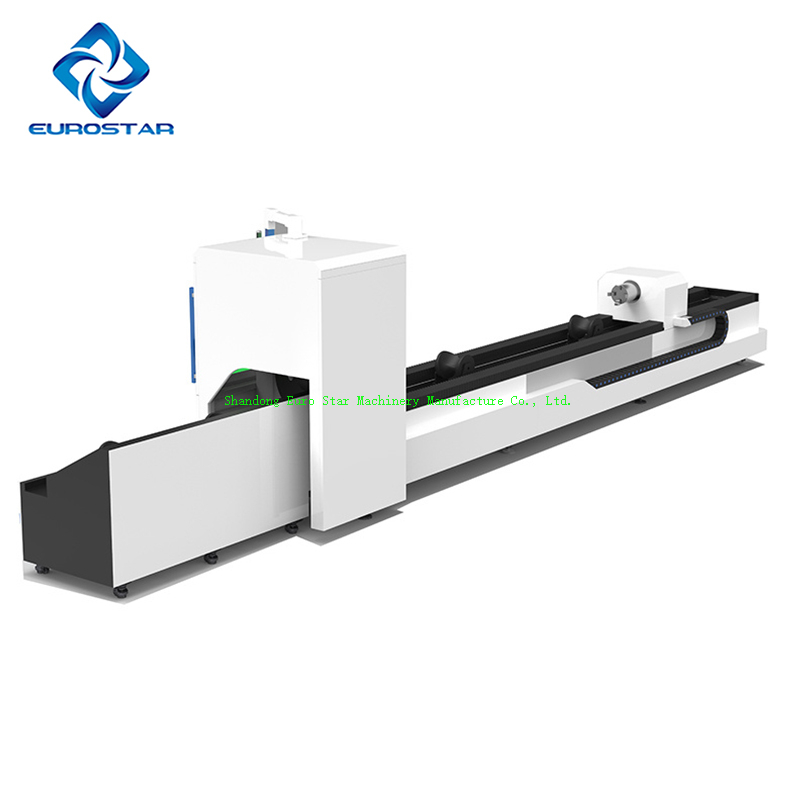

GT CNC Metal Laser Cutter

GT CNC Metal Laser Cutter
Fiber Laser Cutting Machine Product Advantage:
Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.
Functions:
1) Auxiliary feeding mechansism
2) Intelligent travel protection
3) Automatic lubrication
4) Global real-time feedback
5) A new generation of safety following module
6) Intelligent alarm system
7) Auxiliary gas low pressure alarm fuction
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
  • GT6 GT9
  • GRS or OEM
  • 8456110090

GT CNC Metal Laser Cutter

Fiber Laser Cutting Machine Product Advantage:

Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.

Functions:

1) Auxiliary feeding mechansism

2) Intelligent travel protection

3) Automatic lubrication

4) Global real-time feedback

5) A new generation of safety following module

6) Intelligent alarm system

7) Auxiliary gas low pressure alarm fuction

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.


Parameter&configration List:


Parameter & configration List
ItemSubitemGT6-AGT6-SemiGT6GT9-AGT9-SemiGT9
Basic parametertube cross-sectional shapeRound pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes
(Please ask product manager for other cross-section shapes)
Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes
(Please ask product manager for other cross-section shapes)
Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes
(Please ask product manager for other cross-section shapes)
Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes
(Please ask product manager for other cross-section shapes)
Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes
(Please ask product manager for other cross-section shapes)
Round pipe, square pipe, rectangular pipe, oval pipe, long round pipe (runway round), angle steel, channel steel and other pipes
(Please ask product manager for other cross-section shapes)
tube size rangeRound tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤220mm
Round tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤220mm
Round tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤220mm
Round tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤220mm
Round tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤220mm
Round tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤220mm
Requirements for tubes Diameter<φ50mm thickness≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Diameter<φ50mm thickness≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Diameter<φ50mm thickness≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.6% of Diameters of tubes
Diameter<φ50mm thickness≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.7% of Diameters of tubes
Diameter<φ50mm thickness≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.7% of Diameters of tubes
Diameter<φ50mm thickness≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.8% of Diameters of tubes
Maximum machinable tube length6500mm6500mm6500mm9200mm9200mm9200mm
Maximum tube weight100Kg  16.6Kg/m100Kg  16.6Kg/m100Kg  16.6Kg/m200Kg  21.7Kg/m200Kg  21.7Kg/m200Kg  21.7Kg/m
Maximum blanking length4500mm4500mm4500mm4500mm4500mm4500mm
Shortest remaining material100 mm100mm100mm400mm400mm400mm
Dimensions13500mm x 6500mm x 2500mm 13500mm x 6500mm x 2500mm 13500No configuration required3200No configuration required2500mm   16000mm x 6500mm x 2500mm 16000mm x 6500mm x 2500mm 16000No configuration required3200No configuration required2500mm
Machine weight6900kg6900kg5400kg13500kg13500kg6400kg
Operation parameterPositioning accuracy0.05mm0.05mm0.05mm0.05mm0.05mm0.05mm
Repositioning accuracy0.03mm6900kg0.03mm0.03mm0.03mm0.03mm
Max. Chuck rotating speed120r/min120r/min120r/min120r/min120r/min120r/min
X axis maximum speed100m/min100m/min100m/min100m/min100m/min100m/min
Y axis maximum speed95m/min95m/min95m/min95m/min95m/min95m/min
X maximum acceleration1G1G1G1G1G1G
Y maximum acceleration1G1G1G1G1G1G
Z axis maximum speed≥60m/min≥60m/min≥60m/min≥60m/min≥60m/min≥60m/min
Processing precision(38mm stainless steel square tube)Φ20mm roundness≤0.15mm≤0.15mm≤0.15mm≤0.15mm≤0.15mm≤0.15mm
20mm square diagonal size difference≤0.20mm≤0.20mm≤0.20mm≤0.20mm≤0.20mm≤0.20mm
20mm square position size difference≤0.15mm(3m)
≤0.40mm(6m)
≤0.15mm(3m)
≤0.40mm(6m)
≤0.15mm(3m)
≤0.40mm(6m)
≤0.15mm(3m)
≤0.40mm(6m)
≤0.15mm(3m)
≤0.40mm(6m)
≤0.15mm(3m)
≤0.40mm(6m)
Optical systemLaser sourceMAX/IPG
Raycus/GW
MAX/IPG
Raycus/GW
MAX/IPG
Raycus/GW
MAX/IPG
Raycus/GW
MAX/IPG
Raycus/GW
MAX/IPG
Raycus/GW
laser head RaytoolsRaytoolsRaytoolsRaytoolsRaytoolsRaytools
Automatic focusing function of laser headstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Multi-stage perforation Technologystandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
smooth cutting technologystandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Anti-slag protection function of double cyclonesstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
mechanical systemChuck Fully automatic self centering four jaw chuckFully automatic self centering four jaw chuckFully automatic self centering four jaw chuckFully automatic self centering eight jaw chuckFully automatic self centering eight jaw chuckFully automatic self centering eight jaw chuck
X-axis,Y-axis,Z-axis,A-axis
Servo motor and driver
Japan YaskawaJapan YaskawaJapan YaskawaJapan YaskawaJapan YaskawaJapan Yaskawa
Jaw position controlNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Servo feeding rackNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Standard blanking rackstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Servo snail idlerNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Standard snail rollerstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
SlidewayMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in Taiwan
RackMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in Taiwan
Automatic lubrication functionstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Intelligent control system

Control systemTubeproTubeproTubeproTubeproTubeproTubepro
Cutting Angle Steel and Channel Steelstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Automatic tube inspectionNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Display size21.5 inches21.5 inches21.5 inches21.5 inches21.5 inches21.5 inches
WIFI wireless controlstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Automatic tube inspectionfour sides edge-seekingfour sides edge-seekingfour sides edge-seekingfour sides edge-seekingfour sides edge-seekingfour sides edge-seeking
Laser cutting technology databasestandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Auxiliary gas low pressure alarm functionstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Cutting gas automatic pressure regulation functionO2O2O2O2O2O2
BreakerFrance SchneideFrance SchneideFrance SchneideFrance SchneideFrance SchneideFrance Schneide
RelayFrance SchneideFrance SchneideFrance SchneideFrance SchneideFrance SchneideFrance Schneide
Electrical proportional valveGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICS
O2 Cutting gas control valveGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICS
N2 Cutting gas control valveGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICS
System identification file formatIGSIGSIGSIGSIGSIGS
Safety protection systemOpen Door Protectionstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Rear chuck and roller anti-collisionstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Laser abnormal alarmstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Cutting abnormal alarmstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Gas low pressure alarmstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Water cooler abnormal alarmstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
 Laser protective glassesstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Peripheral systemWater coolerstandard configurationstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Dust removalCentrifugal fanCentrifugal fanCentrifugal fanCentrifugal fanCentrifugal fanCentrifugal fan
Other parameters configurationTotal power/current with 6KW source54kw/126A54kw/126A42kW/98A54kw/126A54kw/126A42kW/98A
Total power/current with 3KW source43kw/102A43kw/102A31kW/75A43kw/102A43kw/102A31kW/75A
Total power/current with 2KW source39KW/92A39KW/92A27kW/66A39KW/92A39KW/92A27kW/66A
Total power/current with 1.5KW source37kw/88A37kw/88A25kW/61A37kw/88A37kw/88A25kW/61A
Total power/current with 1KW source36kw/85A36kw/85A24kW/58A36kw/85A36kw/85A24kW/58A
Automatic material loading systemAutomatic loading tube typesRound tube, square tube, rectangular tube (difference between length and short side > 20mm)No configuration requiredNo configuration requiredRound tube, square tube, rectangular tube (difference between length and short side > 20mm)No configuration requiredNo configuration required
tube size rangeRound tube    Φ20-Φ230mm
Square tube   20 - 160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm
No configuration requiredNo configuration requiredRound tube    Φ20-Φ230mm
Square tube   20 - 160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm
No configuration requiredNo configuration required
Maximum tube weight200Kg  30Kg/mNo configuration requiredNo configuration required200Kg  30Kg/mNo configuration requiredNo configuration required
Tube loading length range2000mm-6500mmNo configuration requiredNo configuration required2000mm-9200mmNo configuration requiredNo configuration required
Maximum load capacity of storage bin1.5tNo configuration requiredNo configuration required1.5tNo configuration requiredNo configuration required
Maximum diameter of bundle750mmNo configuration requiredNo configuration required750mmNo configuration requiredNo configuration required
Manual self - contained control modestandard configurationNo configuration requiredNo configuration requiredstandard configurationNo configuration requiredNo configuration required
Variable frequency control of feeding speedstandard configurationNo configuration requiredNo configuration requiredstandard configurationNo configuration requiredNo configuration required
Servo choicestandard configurationNo configuration requiredNo configuration requiredstandard configurationNo configuration requiredNo configuration required
Automatic positioningstandard configurationNo configuration requiredNo configuration requiredstandard configurationNo configuration requiredNo configuration required
Abnormity warningstandard configurationNo configuration requiredNo configuration requiredstandard configurationNo configuration requiredNo configuration required
Pipe quick center positioningstandard configurationNo configuration requiredNo configuration requiredstandard configurationNo configuration requiredNo configuration required
Loading and unloadingstandard configurationNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Auxiliary feeding deviceTube typesNo configuration requiredRound tube, square tube, rectangular tube No configuration requiredNo configuration required,,
Round tube, square tube, rectangular tube
No configuration required
tube size rangeNo configuration requiredRound tube  Φ20-Φ200mm
Square tube   20 - 160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm
No configuration requiredNo configuration requiredRound tube  Φ20-Φ200mm
Square tube   20 - 160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm
No configuration required
Maximum machinable tube lengthNo configuration required6500mmNo configuration requiredNo configuration required9200mmNo configuration required
Maximum load capacity of storage binNo configuration required1.5tNo configuration requiredNo configuration required1.5tNo configuration required
Location numberNo configuration required6No configuration requiredNo configuration required6No configuration required
OptionLaser fume filter1 set1 set1 set1 set1 set1 set
laser fume filter(America Donaldson)DFOE4-1 setDFOE4-1 setDFOE4-1 setDFOE4-1 setDFOE4-1 setDFOE4-1 set
 Security light curtains
Generally, 1 set, large equipment or have special requirements, and other non-standard.(CE and ETL certification standard)
optional configurationoptional configurationoptional configurationoptional configurationoptional configurationoptional configuration
 electron microscopeoptional configurationoptional configurationoptional configurationNo configuration requiredNo configuration requiredNo configuration required
Integrated compressed air systemoptional configurationoptional configurationoptional configurationNo configuration requiredNo configuration requiredNo configuration required
Voltage regulatoroptional configurationoptional configurationoptional configurationoptional configurationoptional configurationoptional configuration
Laser case plus air conditioner
Generally no air conditioning is required, and it is optional in the tropics.
optional configurationoptional configurationoptional configurationoptional configurationoptional configurationoptional configuration
Electric cabinet with air conditioneroptional configurationoptional configurationoptional configurationoptional configurationoptional configurationoptional configuration
Weld identificationNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Automatic chip eliminatorNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Tubest Typesetting softwareoptional configurationoptional configurationoptional configurationoptional configurationoptional configurationoptional configuration
Lantek nesting softwareoptional configurationoptional configurationoptional configurationoptional configurationoptional configurationoptional configuration
Compliance with CE or North American Standardsoptional configurationoptional configurationoptional configurationoptional configurationoptional configurationoptional configuration

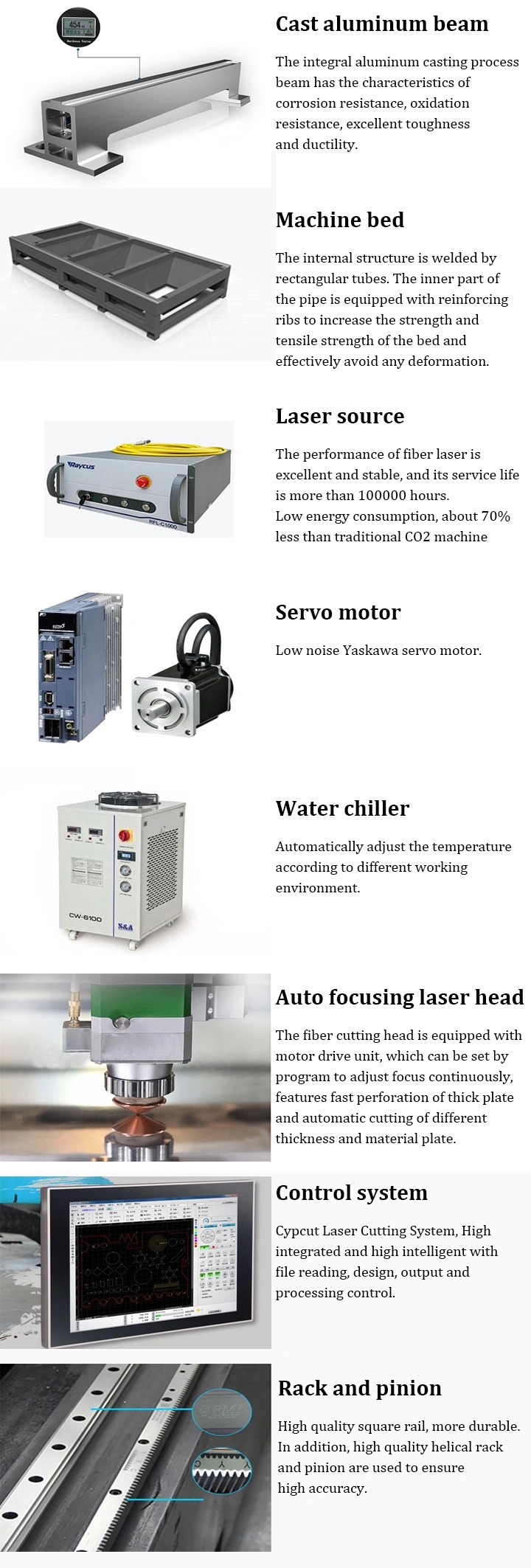

Fiber Laser Cutting Machine display

GRS -1kw-1-5kw-2kw-3kw-Aluminum-Copper-Carbon-Steel-Stainless-Steel-Sheet-Fiber-Laser-Cutter.webp

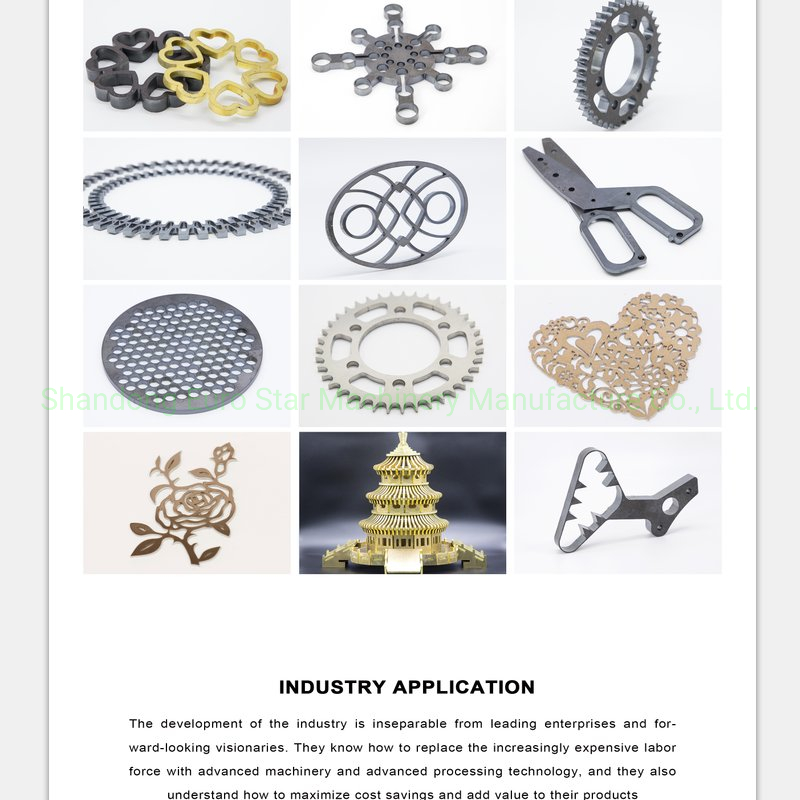

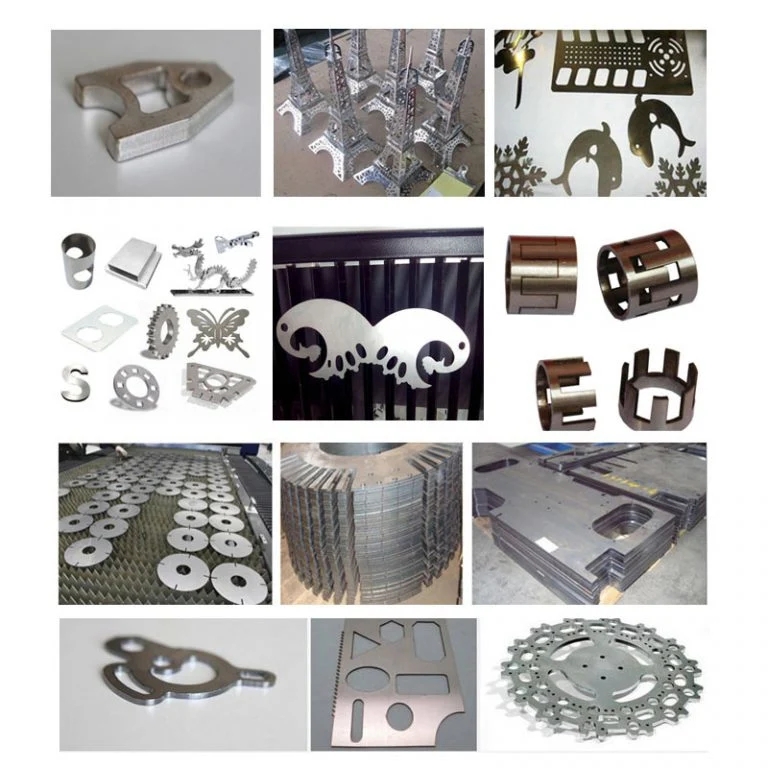

Application:

GRS fiber laser cutting machines are widely used in manufacturing Billboard, Advertising,Signs,Signage,Metal Letters,LED Letters,Kitchen Ware,Advertising Letters, Sheet Metal Processing,Metals Components and Parts,Ironware,Chassis,Racks & Cabinets Processing,Metal Crafts,Metal Art Ware,Elevator Panel Cutting,Hardware, Auto Parts,Glasses Frame,Electronic Parts,Nameplates,etc.

GRS 1kw-1-5kw-2kw-3kw-Aluminum-Copper-Carbon-Steel-Stainless-Steel-Sheet-Fiber-Laser-Cutter.webp (1)

GRS fiber laser cutting machine

Production flow chart

Production flow chart

Production flow chart-2

Certification



certification

Activity Customer

Activity Customer

Packaging details

packing details

Factory introduction

GLORIOUS ,AKA, "GRS", represents the ultimate pursuit of Gorgeous Reliable and Smart. GLORIOUS Laser is a high-tech enterprise specializing in the R&D, manufacturing and marketing of intelligent laser equipment. GLORIOUS laser, driven by technology source power, adheres to the innovation development strategy; attach importance to talent cultivation so as to provide advanced technology and reliable products.GLORIOUS has obtained more than 100 R & D patents including Reddot Award and IF Award, GLORIOUS owns 208 professional R & D personnel and a production base covering an area of 100,000 square meters, and strictly executes the product quality control process. With "advanced technology and reliable products", GLORIOUS laser brings long-term and stable benefits to customers.
P4: Company Tenet - Fast Fast" is one of our business tenets. GLORIOUS will respond positively to and meet customers' needs immediately, and dedicated to solve problems for customers with enough patience as soon as possible.


Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.


1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified


2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;


4) Technical Support
The whole process Technology support covers on sale and after-sale service.

5) Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:

Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.


Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com

EUROSTAR CUSTOMERS ALL OVER THE WORLD

Our company produces other agricultural machinery display

downLoadImg (7)

downLoadImg (8)

downLoadImg (9)

downLoadImg (10)

downLoadImg (11)

Get In Touch

We look forward to establishing long-term business relationship
with customers both home and abroad , or learn more about us,get in touch!
 Address
198 Chang Ning Street ,Weifang City, Shandong, Province,P.R.C.
 E-mail
duke@eurostar-hm.com
 Phone
86-536-766 2277 / 86 18606366000 / 86 13863646513
Contact us for details!
 Copyrights 2020 Eurostar All rights reserved.     Sitemap
