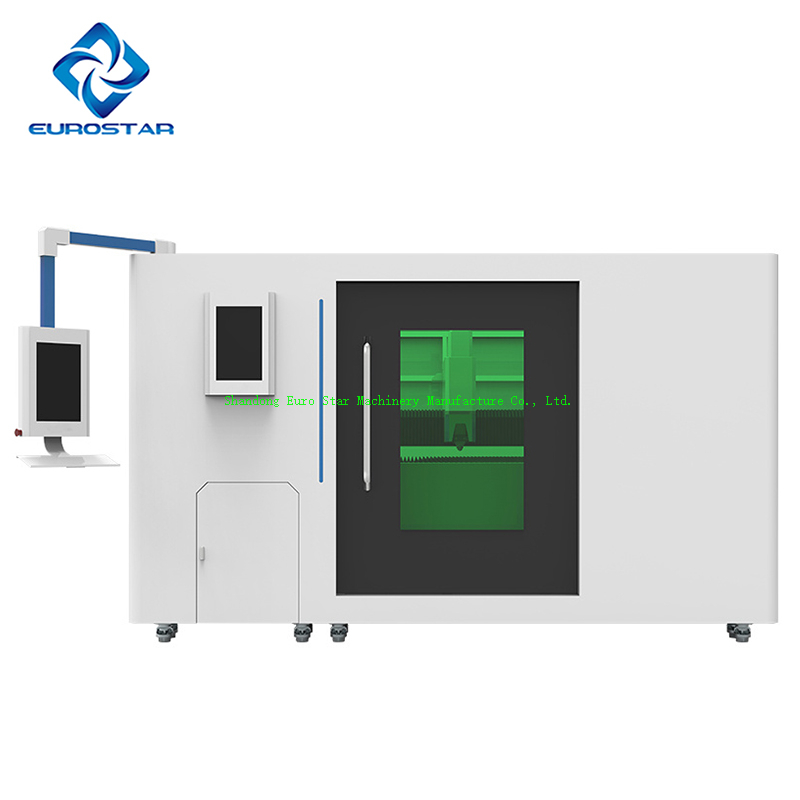

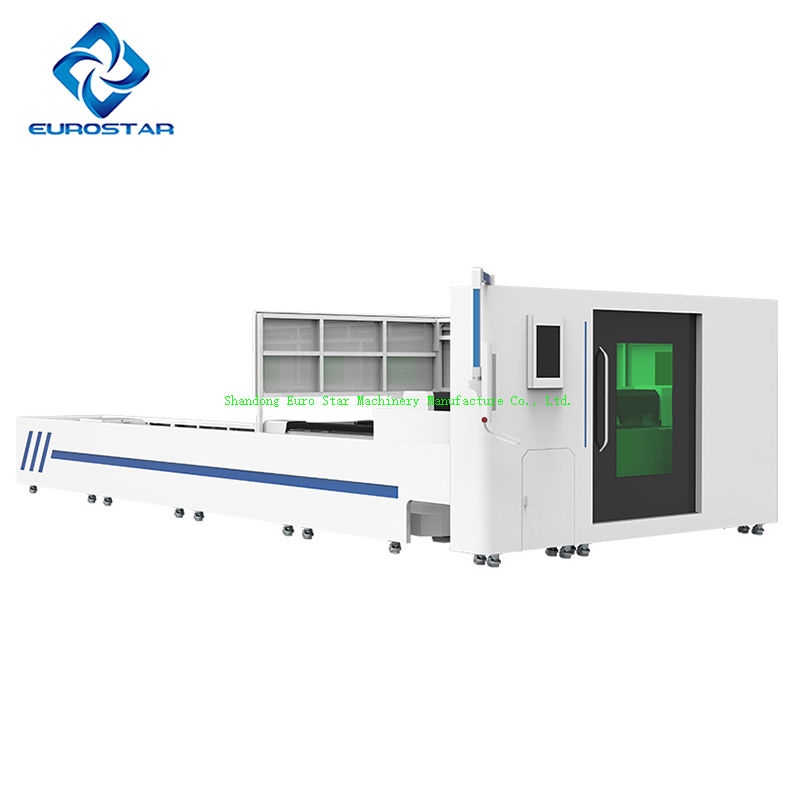

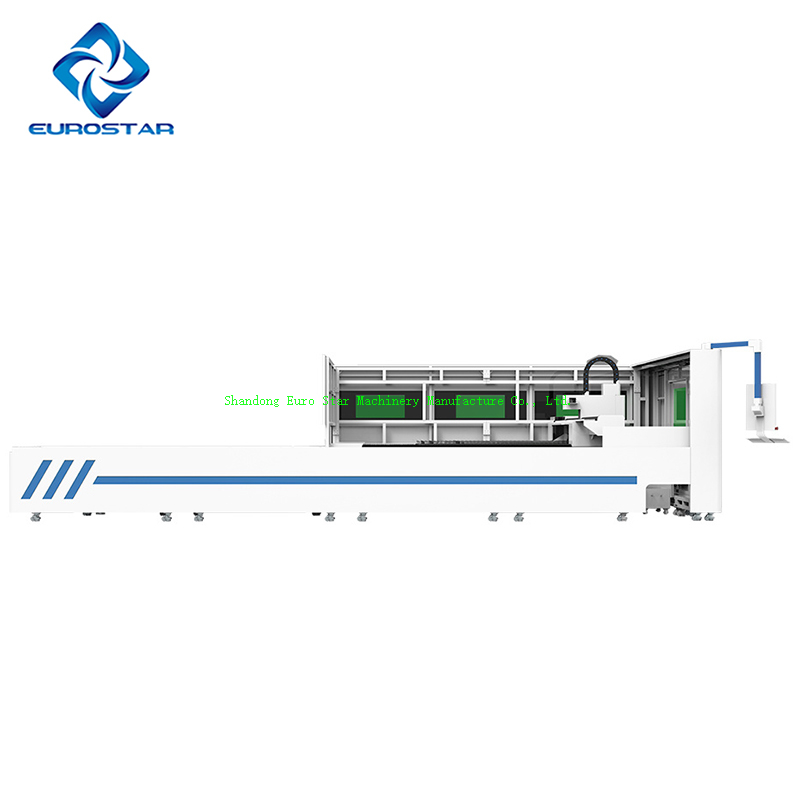

GP-T Series Fiber Laser Cutting Machine

GP-T Series Fiber Laser Cutting Machine
Fiber Laser Cutting Machine Product Advantage:
Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.
Functions:
1) Auxiliary feeding mechansism
2) Intelligent travel protection
3) Automatic lubrication
4) Global real-time feedback
5) A new generation of safety following module
6) Intelligent alarm system
7) Auxiliary gas low pressure alarm fuction
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
  • GP3015T GP4020T
  • GRS or OEM
  • 8456110090
GP-T Series Fiber Laser Cutting Machine

Fiber Laser Cutting Machine

Fiber Laser Cutting Machine Product Advantage:

Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.

Functions:

1) Auxiliary feeding mechansism

2) Intelligent travel protection

3) Automatic lubrication

4) Global real-time feedback

5) A new generation of safety following module

6) Intelligent alarm system

7) Auxiliary gas low pressure alarm fuction

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.


Parameter&configration List:

ItemSubitemGP4020TGP3015T
Basic parameterWorking   area4000mm*2000mm3000mm*1500mm
Table load bearing1600kg900kg
Machine overall dimensions12000*4500*2300mm9500*4500*2300mm
Machine weightP-T3:13400kg
    P-T6:14000KG
P-T3:10700   kg
    P-T6:11300 kg
Z axis travel315mm315mm
Fastest exchange time of platforms10S10S
Operation parameterMax.   linkage speed100m/min100m/min
Max. acceleration1.0G1G
Positioning accuracy0.05mm0.05mm
Repositioning accuracy0.03mm0.03mm
processing precision
    (1mm Original box carbon steel plate)
Φ30mm   roundness≤0.1mm≤0.1mm
□30mm adjacent side dimension difference≤0.04mm≤0.04mm
□190mm adjacent side dimension difference≤0.06mm≤0.06mm
□190mm diagonal size difference≤0.07mm≤0.07mm
Processing precision
    (□38mm stainless steel square tube)
Φ20mm   roundness≤0.15mm≤0.15mm
□20mm square diagonal size difference≤0.20mm≤0.20mm
□20mm square position size difference≤0.20mm(3m)
    ≤0.50mm(6m)
≤0.20mm(3m)
    ≤0.50mm(6m)
Optical systemLaser   sourceMAX/IPGMAX/IPG
laser headRaytoolsRaytools
Automatic focusing function of laser head
Multi-stage perforation Technology
smooth cutting technology
Anti-slag protection function of double   cyclones
Mechanical systemmachine   bedCast   iron bedCast   iron bed
X-axis、Y-axis、Z-axis、U-axis、W-axis
    Servo motor and driver
Japan   YaskawaJapan   Yaskawa
SlidewayMade   in TaiwanMade   in Taiwan
RackMade   in TaiwanMade   in Taiwan
Closed protection enclosure
Automatic lubrication function
Countertop locking function
Intelligent control systemControl   systemCypcutCypcut
Display size32   inches32   inches
WIFI wireless control
Process monitoring
Active obstacle avoidance function
Laser cutting technology database
Auxiliary gas low pressure alarm function
Cutting gas automatic pressure regulation   functionO2O2
BreakerFrance   SchneideFrance   Schneide
RelayFrance   SchneideFrance   Schneide
Electrical proportional valveGermany   AVENTICSGermany   AVENTICS
O2 Cutting gas control valveGermany   AVENTICSGermany   AVENTICS
N2 Cutting gas control valveGermany   AVENTICSGermany   AVENTICS
Plate cutting part system identification file   formatG   file、DXF、DWG、PLT、ENGG   file、DXF、DWG、PLT、ENG
Part of pipe cutting system identification file   formatIGSIGS
Tube processing parameterTube   size rangeRound   tube  Φ20-Φ220mm
    Square tube □20 - □150mm
    Rectangular tube:
    150mm≥Side length≥20mm,
    Circumscribed circle diameter≤220mm

Round   tube  Φ20-Φ220mm
    Square tube □20 - □150mm
    Rectangular tube:
    150mm≥Side length≥20mm,
    Circumscribed circle diameter≤221mm

Requirements for tubes Diameter<φ50mm
    Wall thickness of tubes≥1.2mm;
    Diameter≥φ50mm
    Wall thickness≥2.5% of Diameters of tubes

Diameter<φ50mm
    Wall thickness of tubes≥1.2mm;
    Diameter≥φ50mm
    Wall thickness≥2.5% of Diameters of tubes

Max. length of tube

F-T3/6   tube maximum length 3m and 6mF-T3/6   tube maximum length 3m and 6m
Cutting function of angle steel and channel   steel
Min. tube material surplus250mm250mm
Chuck drive typespneumatic   chuckpneumatic   chuck
Electric chuck maximum load100kg  16kg/m100kg  16kg/m
W axis rotation angleUnlimited   n*360Unlimited n*360
Max. rotational speed of W axis75RPM75RPM
F-T3U axis positioning accuracy0.03mm0.03mm
F-T3U axis repositioning accuracy0.02mm0.02mm
F-T6U axis positioning accuracy0.05mm0.05mm
F-T6U axis repositioning accuracy0.03mm0.03mm
U axis maximum moving speed30m/min30m/min
Safety protection system

Large   Enclosure Open Door Protection
Laser abnormal alarm
Cutting abnormal alarm
Gas low pressure alarm
Water cooler abnormal alarm
 Laser   protective glasses
Peripheral systemWater   cooler
Dust removalCentrifugal   fanCentrifugal   fan
Other parameter configurationTotal   power/current with 6KW source×43.95kw/100.2A
Total power/current with 3KW source×31.55kW/75A
Total power/current with 2KW source×27.85kW/66.2A
Total power/current with 1.5KW source×25.85kW/61.4A
Total power/current with 1KW source×24.65kW/58.6A

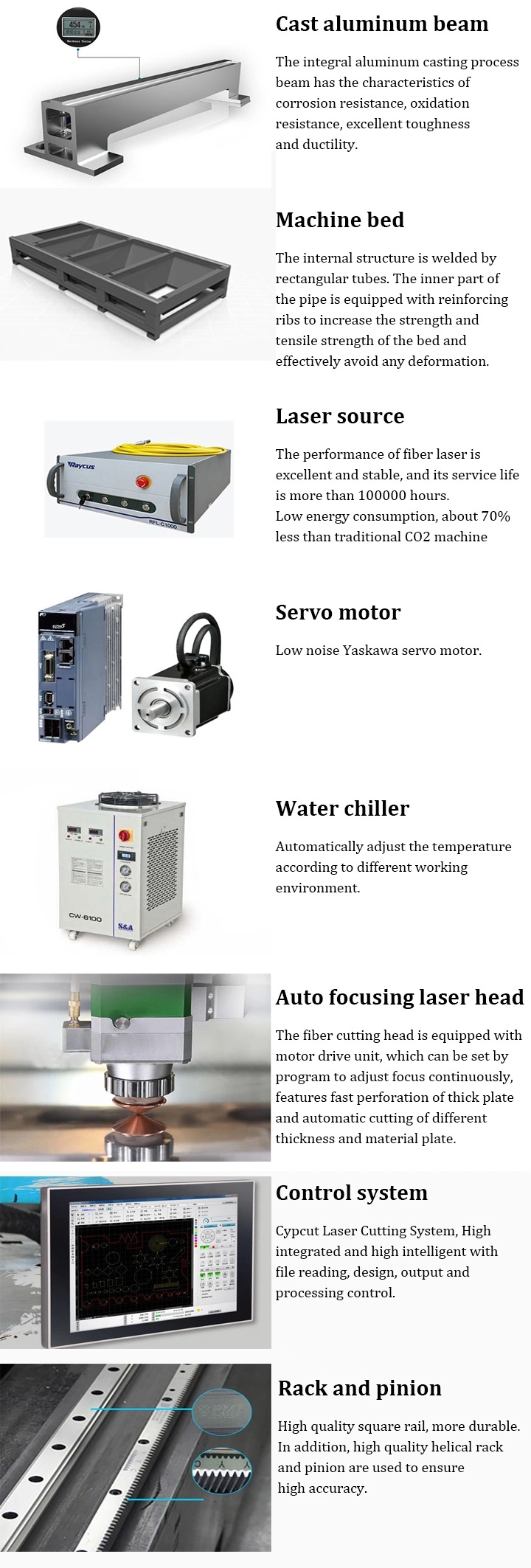

Fiber Laser Cutting Machine display

Fiber Laser Cutting Machine

Cast Iron Bed

1) Clone

Mold pouring, clone production;integrally formed, reject splicing

2) Durable

Using flake graphite cast iron, the lowest tensile strength of which is200MPa. High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.


Laser Cutting Machine

GW Laser Source

GW LaserTech, originated from the U.S., has been providing reliable and competitive industrial lasers since its inception in 2014, as well as professional laser application services and industrial laser solutions for customers around the world. GW LaserTech believes in WIIE (Win-win, Integrity, Innovation and Excellence). With the determined pursuit of cutting edge laser technology, GW LaserTech is well positioned to provide our customers the innovative industrial laser products for advanced anufacturing including aerospace.Auto focus laser head

Auto focus laser head


1)Auto - focus

Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.

2)Free

Free your hands, focal length is controlled by operating system. We don't need to do manual regulation, which effectively avoids errors or faults caused by manual operation.

3)Efficient

When replacing different materials or different thicknesses sheet, manual focus laser head needs to adjust focal length manually, very inefficient; auto focus laser head can read system storage parameters automatically, very efficient;

4)Accuracy

Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting


Production flow chart
