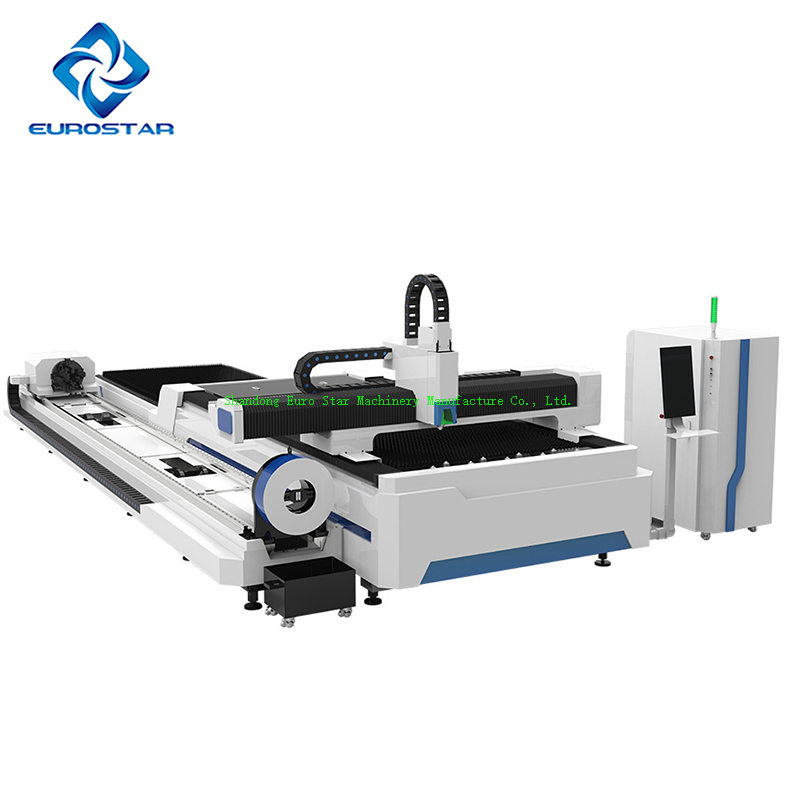

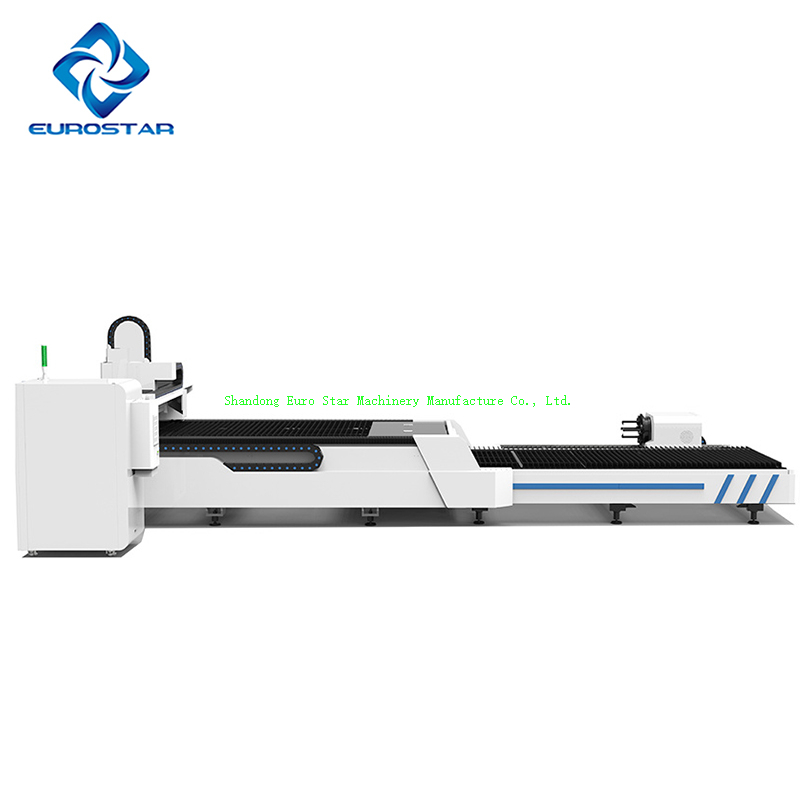

GE-T Laser Cutting Equipment

Laser Cutting Equipment Product Advantage:
Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.
Functions:
1) Auxiliary feeding mechansism
2) Intelligent travel protection
3) Automatic lubrication
4) Global real-time feedback
5) A new generation of safety following module
6) Intelligent alarm system
7) Auxiliary gas low pressure alarm fuction
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
  • GE3015T GE4020T GE6015T GE6020T

  • GRS or OEM

  • 8456110090

GE-T Laser Cutting Equipment


Fiber Laser Cutting Machine Product Advantage:

Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.

Functions:

1) Auxiliary feeding mechansism

2) Intelligent travel protection

3) Automatic lubrication

4) Global real-time feedback

5) A new generation of safety following module

6) Intelligent alarm system

7) Auxiliary gas low pressure alarm fuction

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.


Parameter&configration List:

Parameter & configration List
ItemSubitemGE6020TGE4020TGE3015T
Basic parameterWorking area6100mm*2000mm4000mm*2000mm3000mm*1500mm
Table load bearing2400kg1600kg900kg
Machine overall dimensions15100*4100*2000mm10200*4100*2000mm9350*3300*2000mm
Machine weightE-T3:18400 kg
E-T6:19000 kg
E-T3:13400kg
E-T6:14000KG
E-T3:8300kg
E-T6:8900kg
Z axis travel315mm315mm315mm
Fastest exchange time of platforms30S10S10S
Operation parameterMax. linkage speed100m/min100m/min100m/min
Max. acceleration1G1G1G
Positioning accuracy0.05mm0.05mm0.05mm
Repositioning accuracy0.03mm0.03mm0.03mm
processing precision
(1mm Original box carbon steel plate)
Φ30mm roundness≤0.1mm≤0.1mm≤0.1mm
30mm adjacent side dimension difference≤0.04mm≤0.04mm≤0.04mm
190mm adjacent side dimension difference≤0.06mm≤0.06mm≤0.06mm
190mm diagonal size difference≤0.07mm≤0.07mm≤0.07mm
Processing precision
(38mm stainless steel square tube)
Φ20mm roundness≤0.15mm≤0.15mm≤0.15mm
20mm square diagonal size difference≤0.20mm≤0.20mm≤0.20mm
20mm square position size difference≤0.20mm(3m)
≤0.50mm(6m)
≤0.20mm(3m)
≤0.50mm(6m)
≤0.20mm(3m)
≤0.50mm(6m)
Optical systemLaser sourceMAX/IPGMAX/IPGMAX/IPG
laser headRaytoolsRaytoolsRaytools
Automatic focusing function of laser headstandard configurationstandard configurationstandard configuration
Multi-stage perforation Technologystandard configurationstandard configurationstandard configuration
smooth cutting technologystandard configurationstandard configurationstandard configuration
Anti-slag protection function of double cyclonesstandard configurationstandard configurationstandard configuration
Mechanical systemmachine bedCast iron bedCast iron bedCast iron bed
X-axis,Y-axis,Z-axis,U-axis,W-axis
Servo motor and driver
Japan YaskawaJapan YaskawaJapan Yaskawa
SlidewayMade in TaiwanMade in TaiwanMade in Taiwan
RackMade in TaiwanMade in TaiwanMade in Taiwan
Closed protection enclosureNo configuration requiredNo configuration requiredNo configuration required
Automatic lubrication functionstandard configurationstandard configurationstandard configuration
Countertop locking functionstandard configurationstandard configurationstandard configuration
Intelligent control system

Control systemCypcutCypcutCypcut
Display size21.5 inches21.5 inches21.5 inches
WIFI wireless controlstandard configurationstandard configurationstandard configuration
Process monitoringNo configuration requiredNo configuration requiredNo configuration required
Active obstacle avoidance functionstandard configurationstandard configurationstandard configuration
Laser cutting technology databasestandard configurationstandard configurationstandard configuration
Auxiliary gas low pressure alarm functionstandard configurationstandard configurationstandard configuration
Cutting gas automatic pressure regulation functionO2O2O2
BreakerFrance Schneid eFrance Schneid eFrance Schneid e
RelayFrance Schneid eFrance Schneid eFrance Schneid e
Electrical proportional valveGermany AVENTICSGermany AVENTICSGermany AVENTICS
O2 Cutting gas control valveGermany AVENTICSGermany AVENTICSGermany AVENTICS
N2 Cutting gas control valveGermany AVENTICSGermany AVENTICSGermany AVENTICS
Plate cutting part system identification file formatG file,DXF,DWG,PLT,ENGG file,DXF,DWG,PLT,ENGG file,DXF,DWG,PLT,ENG
Part of pipe cutting system identification file formatIGSIGSIGS
Tube processing parameterTube size rangeRound tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤222mm
Round tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤223mm
Round tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤224mm
Requirements for tubes Diameter<φ50mm
Wall thickness of tubes≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Diameter<φ50mm
Wall thickness of tubes≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Diameter<φ50mm
Wall thickness of tubes≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Max. length of tubeF-T3/6 tube maximum length 3m and 6mF-T3/6 tube maximum length 3m and 6mF-T3/6 tube maximum length 3m and 6m
Cutting function of angle steel and channel steelstandard configurationstandard configurationstandard configuration
Min. tube material surplus250mm250mm250mm
Chuck drive typespneumatic chuckpneumatic chuckpneumatic chuck
Electric chuck maximum load100kg  16kg/m100kg  16kg/m100kg  16kg/m
W axis rotation angleUnlimited n*360Unlimited n*360Unlimited n*360
Max. rotational speed of W axis75RPM75RPM75RPM
F-T3U axis positioning accuracy0.03mm0.03mm0.03mm
F-T3U axis repositioning accuracy0.02mm0.02mm0.02mm
F-T6U axis positioning accuracy0.05mm0.05mm0.05mm
F-T6U axis repositioning accuracy0.03mm0.03mm0.03mm
U axis maximum moving speed30m/min30m/min30m/min
Safety protection systemLarge Enclosure Open Door ProtectionNo configuration requiredNo configuration requiredNo configuration required
Laser abnormal alarmstandard configurationstandard configurationstandard configuration
Cutting abnormal alarmstandard configurationstandard configurationstandard configuration
Gas low pressure alarmstandard configurationstandard configurationstandard configuration
Water cooler abnormal alarmstandard configurationstandard configurationstandard configuration
 Laser protective glassesstandard configurationstandard configurationstandard configuration
Peripheral systemWater coolerstandard configurationstandard configurationstandard configuration
Dust removalCentrifugal fanCentrifugal fanCentrifugal fan
Other parameter configurationTotal power/current with 6KW source44.9kw/102.4A36.6kW/82.7A35.15kW/89.3A
Total power/current with 3KW source32.5kW/77.2A24.2kW/57.5A22.75kW/54.1
Total power/current with 2KW source28.8kW/68.4A20.5kW/48.7A19.05kW/45.3
Total power/current with 1.5KW source26.8kW/63.7A18.5kW/44A17.05kW/40.5
Total power/current with 1KW source25.6kW/60.8A17.3kW/41.1A15.85kW/37.7

laser fume filter(Made in China)1plantforms1plantforms1plantforms
laser fume filter(America Donaldson)DFOE6-1plantformsDFOE6-1plantformsDFOE4-1plantforms
 security light curtains
Generally, 1 set, large equipment or have special requirements, and other non-standard.(CE and ETL certification standard)
optional configurationoptional configurationoptional configuration
 electron microscopeoptional configurationoptional configurationoptional configuration
Pin-lift auxiliary loading module
It is used for auxiliary loading of the backboard and can be equipped with 1 set for each equipment.
No configuration requiredNo configuration requiredoptional configuration
Integrated compressed air systemoptional configurationoptional configurationoptional configuration
Voltage regulatoroptional configurationoptional configurationoptional configuration
Laser case plus air conditioner
Generally no air conditioning is required, and it is optional in the tropics.
optional configurationoptional configurationoptional configuration
6KW Equipped with Gemany Precitec Laser Headoptional configurationoptional configurationoptional configuration
Compliance with CE or North American Standards
They have TUV CE certificate and ETL North American certificate respectively. They are only applicable overseas.
No configuration requiredNo configuration requiredNo configuration required
Blanking support (Pipe)optional configurationoptional configurationoptional configuration


Fiber Laser Cutting Machine display

Fiber Laser Cutting Machine

Cast Iron Bed

1) Clone

Mold pouring, clone production;integrally formed, reject splicing

2) Durable

Using flake graphite cast iron, the lowest tensile strength of which is200MPa. High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.


Laser Cutting Machine

GW Laser Source

GW LaserTech, originated from the U.S., has been providing reliable and competitive industrial lasers since its inception in 2014, as well as professional laser application services and industrial laser solutions for customers around the world. GW LaserTech believes in WIIE (Win-win, Integrity, Innovation and Excellence). With the determined pursuit of cutting edge laser technology, GW LaserTech is well positioned to provide our customers the innovative industrial laser products for advanced anufacturing including aerospace.Auto focus laser head

Auto focus laser head


1)Auto - focus

Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.

2)Free

Free your hands, focal length is controlled by operating system. We don't need to do manual regulation, which effectively avoids errors or faults caused by manual operation.

3)Efficient

When replacing different materials or different thicknesses sheet, manual focus laser head needs to adjust focal length manually, very inefficient; auto focus laser head can read system storage parameters automatically, very efficient;

4)Accuracy

Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting


Production flow chart

Production flow chart

Production flow chart-2

Certification



certification

Activity Customer

Activity Customer

Packaging details

packing details

Factory introduction

GLORIOUS ,AKA, "GRS", represents the ultimate pursuit of Gorgeous Reliable and Smart. GLORIOUS Laser is a high-tech enterprise specializing in the R&D, manufacturing and marketing of intelligent laser equipment. GLORIOUS laser, driven by technology source power, adheres to the innovation development strategy; attach importance to talent cultivation so as to provide advanced technology and reliable products.GLORIOUS has obtained more than 100 R & D patents including Reddot Award and IF Award, GLORIOUS owns 208 professional R & D personnel and a production base covering an area of 100,000 square meters, and strictly executes the product quality control process. With "advanced technology and reliable products", GLORIOUS laser brings long-term and stable benefits to customers.
P4: Company Tenet - Fast Fast" is one of our business tenets. GLORIOUS will respond positively to and meet customers' needs immediately, and dedicated to solve problems for customers with enough patience as soon as possible.


Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.


1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified


2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;


4) Technical Support
The whole process Technology support covers on sale and after-sale service.

Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:

Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com

EUROSTAR CUSTOMERS ALL OVER THE WORLD


Our company produces other agricultural machinery display

downLoadImg (7)

downLoadImg (8)

downLoadImg (9)

downLoadImg (10)

downLoadImg (11)

Previous:
Next:

Get In Touch

We look forward to establishing long-term business relationship
with customers both home and abroad , or learn more about us,get in touch!
 Address
198 Chang Ning Street ,Weifang City, Shandong, Province,P.R.C.
 E-mail
duke@eurostar-hm.com
 Phone
86-536-766 2277 / 86 18606366000 / 86 13863646513
Contact us for details!
 Copyrights 2020 Eurostar All rights reserved.     Sitemap
