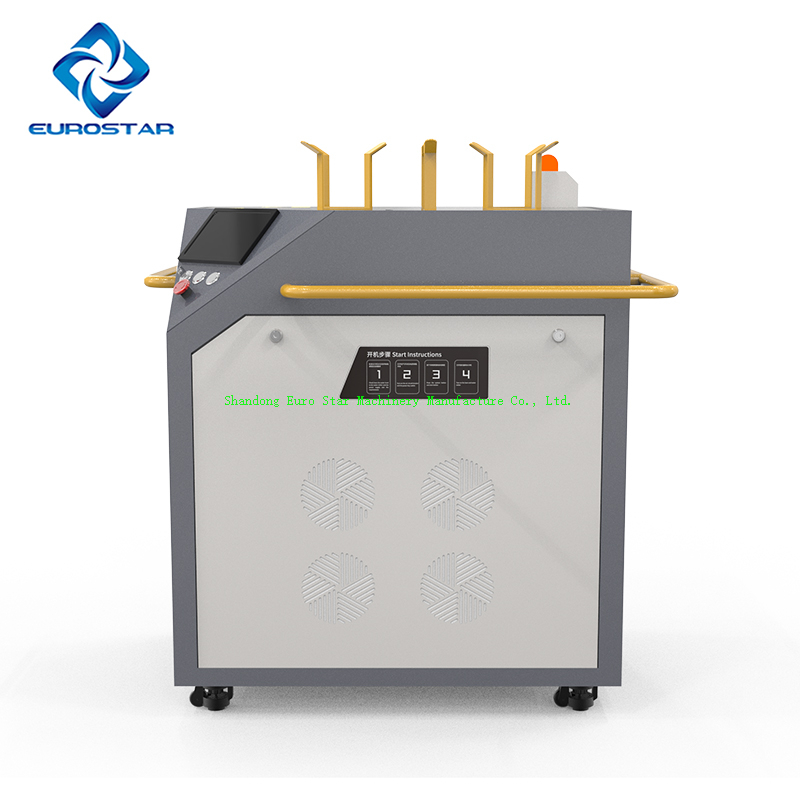

1500W Laser Welder

Laser Welders
1) Excellent Operating System
Welding system supports process library storage at the same time, it has nine languages: Chinese, English, Korean, Japanese, Russian,Traditional Chinese, French,Spanish and Israel. The system monitors was running status from time to time,monitors and collects was running status of the laser, chiller and control panel.
2) Various Welding Heads
Double pendulum welding supports 6 welding modes and the welding width is adjustable.
3) Super Convenient Wire Feeder
The dual-drive wire feeder is equipped with multiple functions such as wire feeding delay, whithdrawal speed and withdrawal time. Easy operate.
4) Dual Temperature and Dual Control Chiller
The chiller adopts industrial laser dedicated chiller, with dual temperature dual control mode, which can manually set the water temperature or switch to the intelligent temperature control working mode.
5) The Most Advanced Laser
Single-mode continuous fiber laser, using 976nm pump technology, electro-optical conersion efficiency up to 42%, brand-new optical structure design, more integrated, smaller size, easier to integrate and maintain.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
1500W Laser Welder
1500W Laser Welder
1500W Laser Welder
1500W Laser Welder
1500W Laser Welder
1500W Laser Welder
  • GWLS-1500W

  • GRS or OEM

  • 8515809090

Laser Welding Machine

1) Excellent Operating System
Welding system supports process library storage at the same time, it has nine languages: Chinese, English, Korean, Japanese, Russian,Traditional Chinese, French,Spanish and Israel. The system monitors was running status from time to time,monitors and collects was running status of the laser, chiller and control panel.
2) Various Welding Heads
Double pendulum welding supports 6 welding modes and the welding width is adjustable.
3) Super Convenient Wire Feeder
The dual-drive wire feeder is equipped with multiple functions such as wire feeding delay, whithdrawal speed and withdrawal time. Easy operate.
4) Dual Temperature and Dual Control Chiller
The chiller adopts industrial laser dedicated chiller, with dual temperature dual control mode, which can manually set the water temperature or switch to the intelligent temperature control working mode.
5) The Most Advanced Laser
Single-mode continuous fiber laser, using 976nm pump technology, electro-optical conersion efficiency up to 42%, brand-new optical structure design, more integrated, smaller size, easier to integrate and maintain.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

Welding Object

MaterialThe output powerThe maximum penetration
Stainless steel5001.5
Stainless steel10002.5
Stainless steel15003.5
Stainless steel20004.2
Carbon steel5001.5
Carbon steel10002.5
Carbon steel15003.5
Carbon steel20004.2
Aluminum alloy10001.5
Aluminum alloy15002
Aluminum alloy20003


Laser welding machine technical parameters


ModelGWLS-1000WGWLS-1000WGWLS-1000W
Max. laser power(W)100015002000
Laser typeFiber laser
Laser wavelength(nm)1070±5
Move modecontinuous
Adjust frequency(HZ)10-5000
Max. penetration of laser welding(mm)2.5(Carbon Steel)3.5(Carbon Steel)4.2(Carbon Steel)
Fiber core diameter(um)50-100
Fiber length5m(Customizable)
Light typeCW
Aiming and positioning systemRed light
Max. power of the whole machine(KW)4.76.89
Package dimensions(mm*mm*mm)1050*950*1700
Cooling typeWater cooling
Electricity demand220V±5V 50Hz/40A(Customizable)

Laser Welders display


details

Laser Welders details

Laser Welders details

Laser Welders details (1)

Laser Welders details (2)

Laser Welders details (4)

33Laser Welders detailsLaser Welders details (5)

Laser Welders details (6)

Laser Welders details (7)Laser Welders details (8)



Factory introduction

GLORIOUS ,AKA, "GRS", represents the ultimate pursuit of Gorgeous Reliable and Smart. GLORIOUS Laser is a high-tech enterprise specializing in the R&D, manufacturing and marketing of intelligent laser equipment. GLORIOUS laser, driven by technology source power, adheres to the innovation development strategy; attach importance to talent cultivation so as to provide advanced technology and reliable products.GLORIOUS has obtained more than 100 R & D patents including Reddot Award and IF Award, GLORIOUS owns 208 professional R & D personnel and a production base covering an area of 100,000 square meters, and strictly executes the product quality control process. With "advanced technology and reliable products", GLORIOUS laser brings long-term and stable benefits to customers.
P4: Company Tenet - Fast Fast" is one of our business tenets. GLORIOUS will respond positively to and meet customers' needs immediately, and dedicated to solve problems for customers with enough patience as soon as possible.


Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.


1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified


2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;


4) Technical Support
The whole process Technology support covers on sale and after-sale service.

Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:

Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
