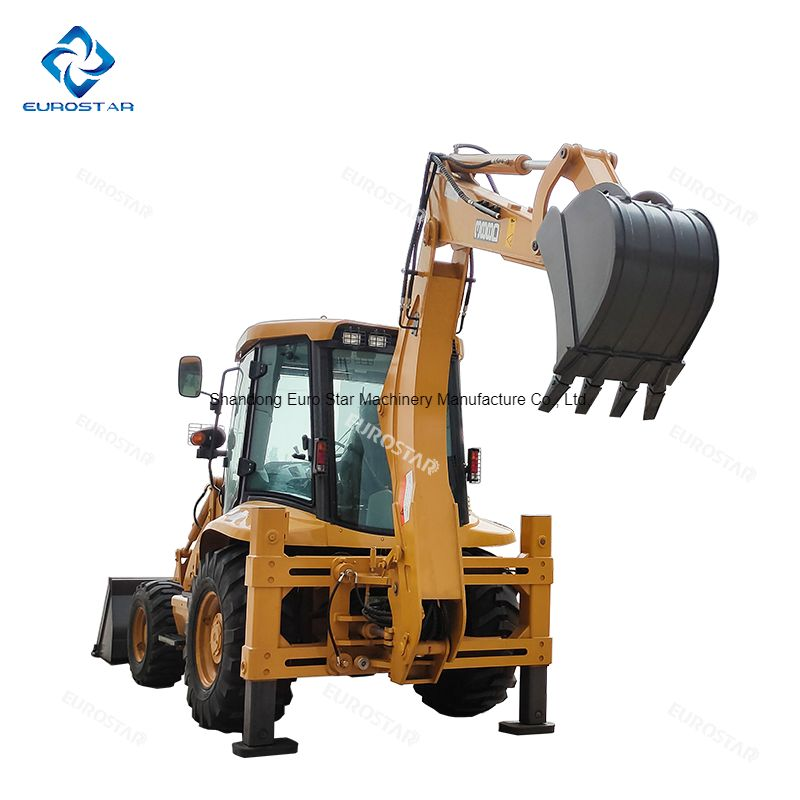

ES388T, ES388K-K
EUROSTAR OEM
84295100
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
ES388T series backhoe loader product selling points
1) Work for digging projects, landscaping, moving materials and more
2) Performance with economy: one machine can do two kinds of work, dig and load.
3) Hydraulic joystick, A/C and Reverse camera are standard spec
4) The relatively small frame size and versatility our backhoe loaders improve construction productivity and lower your machine operating costs.
5) Improve the steering pressure, steering easier and quick.
6) High reliability of the transmission system.
7) Enhanced working device.
8) Enhanced transmission shaft.
9) Cycle time is short.
10) The pivotal point sealing dust.
11) The main parts quality assurance for a year.
ES388T Series backhoe loader product technical parameters
ES388T Model Backhoe Loader Configuration | ||||||
Machine Information | ES388T-1 | ES388T-2 | ||||
1 | Overall Operating Weight (KG) | 8200 | 8200 | |||
2 | L*W*H (mm*mm*mm) | 6230×2365×3752 | 6230×2365×3752 | |||
3 | Wheel Base (mm) | 2280 | 2280 | |||
4 | Min. Ground Clearance (mm) | 300mm | 300 | |||
Load Main Technical Parameter | ||||||
1 | Bucket Capacity (m³) | 1 | 1 | |||
2 | Breakout Force (KN) | 60 | 60 | |||
3 | Loading Lifting Capacity (KG) | 2500 | 2500 | |||
Digging Main Technical Parameters | ||||||
1 | Bucket Dumping Height (mm) | 2650 | 2650 | |||
2 | Bucket Dumping Distance (mm) | 1025 | 1025 | |||
3 | Digging Depth (mm) | 52 | 52 | |||
4 | Backhoe Capacity (m3) | 0.3 | 0.3 | |||
5 | Max. Digging Depth (mm) | 4082 | 4082 | |||
6 | Swing Angle of Excavator Grab | 190o | 190o | |||
7 | Max. Pulling Force (KN) | 65 | 65 | |||
Engine | ||||||
1 | Model | WEICHAI WP4G95E221 | YC4A105Z-T20 | |||
2 | Type | In Line Direct injection Four-Stroke and Injection | In Line Direct injection Four-Stroke and Injection Combustion Chamber | |||
3 | Cylinder-Inside Diameter*Stroke | 4-105×130 | 4-108×132 | |||
4 | Rated Power (KW) | 70 | 75 | |||
5 | Rated Speed (r/min) | 2200 | 2200 | |||
6 | Min. Fuel Consumption (g/km.h) | ≤230 | ≤230 | |||
7 | Max.Torque | 380 N.m / 1400-1600 rpm | 400 N.m / 1400-1600 rpm | |||
8 | Displacement (L) | 4.5 | 4.837 | |||
Steering System | ||||||
1 | Model of Steering Device | BZZ5-250 | BZZ5-250 | |||
2 | Steering Angle | ±36 o | ±36 o | |||
3 | Min. turning radius (mm) | 6581 | 6581 | |||
4 | Pressure of the system (Mpa) | 12 | 12 | |||
Axle | ||||||
1 | Manufacturer | Yunyu | Xugong | |||
2 | Main Transmission Type | Double Reduction | Double Reduction | |||
3 | Final Reducer | Single Stage Final Reducer | Single Stage Final Reducer | |||
4 | Rated dynamic / static load of front axle (T) | 7.5 / 18.75 | 7.5 / 18.75 | |||
5 | Rated dynamic / static load of rear axle | 9 T / 22.5T | 9 T / 22.5T | |||
Torque Converter | ||||||
1 | Torque Converter | Model | YJ290 | |||
2 | Cooling type | Pressure oil circulating | Pressure oil circulating | |||
Gearbox | ||||||
1 | Model | LM15S | MYF 1101V | |||
2 | Type | Fixed Shaft Power Transmission | Synchromesh mechanical shift | |||
3 | Gears | Two forward, Two reverse gears | 4F, 3R | |||
4 | Max.Speed (Km/h) | 38 | 33K | |||
Tyre | ||||||
1 | Model | 14-17.5/19.5L-24 | 12.5/80-18-16PR/19.5L-24-14PR | |||
2 | Pressure of Front wheel (Mpa) | 0.3 | 0.3 | |||
3 | Pressure of Back Wheel (Mpa) | 0.223 | 0.223 | |||
Brake System | ||||||
1 | Service Brake | Wet, Internal,Self-regulation, Self-balance | Wet, Internal,Self-regulation, Self-balance | |||
2 | Emergency Brake | Hydraulic terminating brake | Hydraulic terminating brake | |||
Hydraulic System | ||||||
1 | Digging Power of Excavator Grab (KN) | 60 | 60 | |||
2 | Digging Power of Dipper (KN) | 31 | 31 | |||
3 | Bucket Lifting Time (S) | 6.7 | 6.8 | |||
4 | Bucket Lowering Time (S) | 3.2 | 3.1 | |||
5 | Bucket Discharge Time (S) | 2.1 | 2.1 | |||
Optional equipment | ||||||
1 | Configure | |||||
2 | Cummin s Engine (China II) | |||||
3 | Front end: Hydraulic Quick hitch device | |||||
4 | Front end: triple-valve and pipe | |||||
5 | Front end: Grass Forks | |||||
6 | Front end: four in one bucket (additional three valves must be added) | |||||
7 | Front loading end match: Six in one bucket (additional Triple valve must be added) | |||||
8 | Front loading end match: A type log grab (additional triple valves must be added) | |||||
9 | Front loading end match: Forks (additional triple valves must be added) | |||||
10 | Front loading end match: Snow blade (additional triple valves must be added) | |||||
11 | Front loading end match: bulldozer blade | |||||
12 | Front loading end match: Quick hitch bucket | |||||
13 | Front loading end match: standard bucket | |||||
14 | Front loading end match: Grab bucket (Replace this bucket, Markup) | |||||
15 | Backhoe end match: Quick hitch (mechanical /hydraulic) | |||||
16 | Rear excavation end match | Backhoe Auger(Length 1.5m, diameter 30cm) | ||||
Backhoe Auger(Length 2m,diameter 60cm) | ||||||
17 | Backhoe end match: Hydraulic breaker (JISAN) / (TOFFEN) | |||||
19 | Rear excavation end: telescopic boom | |||||
20 | Rear excavation end match: Log grab | |||||
21 | Excavator bucket:300\400\600MM | |||||
22 | Excavator bucket:800\900\1200MM(Grading bucket, no warranty) | |||||
23 | Oil filter | |||||
2000 hours maintenance accessories | ||||||
Name | Qty (set) | |||||
1 | Hydraulic oil filter | 5 | ||||
2 | Diesel filter | 5 | ||||
3 | Oil filter | 5 | ||||
4 | Air filter | 5 | ||||
5 | Six-in-one bucket shovel teeth | 2 | ||||
6 | Digging Bucket Teeth | 2 |
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
ES388T series backhoe loader product selling points
1) Work for digging projects, landscaping, moving materials and more
2) Performance with economy: one machine can do two kinds of work, dig and load.
3) Hydraulic joystick, A/C and Reverse camera are standard spec
4) The relatively small frame size and versatility our backhoe loaders improve construction productivity and lower your machine operating costs.
5) Improve the steering pressure, steering easier and quick.
6) High reliability of the transmission system.
7) Enhanced working device.
8) Enhanced transmission shaft.
9) Cycle time is short.
10) The pivotal point sealing dust.
11) The main parts quality assurance for a year.
ES388T Series backhoe loader product technical parameters
ES388T Model Backhoe Loader Configuration | ||||||
Machine Information | ES388T-1 | ES388T-2 | ||||
1 | Overall Operating Weight (KG) | 8200 | 8200 | |||
2 | L*W*H (mm*mm*mm) | 6230×2365×3752 | 6230×2365×3752 | |||
3 | Wheel Base (mm) | 2280 | 2280 | |||
4 | Min. Ground Clearance (mm) | 300mm | 300 | |||
Load Main Technical Parameter | ||||||
1 | Bucket Capacity (m³) | 1 | 1 | |||
2 | Breakout Force (KN) | 60 | 60 | |||
3 | Loading Lifting Capacity (KG) | 2500 | 2500 | |||
Digging Main Technical Parameters | ||||||
1 | Bucket Dumping Height (mm) | 2650 | 2650 | |||
2 | Bucket Dumping Distance (mm) | 1025 | 1025 | |||
3 | Digging Depth (mm) | 52 | 52 | |||
4 | Backhoe Capacity (m3) | 0.3 | 0.3 | |||
5 | Max. Digging Depth (mm) | 4082 | 4082 | |||
6 | Swing Angle of Excavator Grab | 190o | 190o | |||
7 | Max. Pulling Force (KN) | 65 | 65 | |||
Engine | ||||||
1 | Model | WEICHAI WP4G95E221 | YC4A105Z-T20 | |||
2 | Type | In Line Direct injection Four-Stroke and Injection | In Line Direct injection Four-Stroke and Injection Combustion Chamber | |||
3 | Cylinder-Inside Diameter*Stroke | 4-105×130 | 4-108×132 | |||
4 | Rated Power (KW) | 70 | 75 | |||
5 | Rated Speed (r/min) | 2200 | 2200 | |||
6 | Min. Fuel Consumption (g/km.h) | ≤230 | ≤230 | |||
7 | Max.Torque | 380 N.m / 1400-1600 rpm | 400 N.m / 1400-1600 rpm | |||
8 | Displacement (L) | 4.5 | 4.837 | |||
Steering System | ||||||
1 | Model of Steering Device | BZZ5-250 | BZZ5-250 | |||
2 | Steering Angle | ±36 o | ±36 o | |||
3 | Min. turning radius (mm) | 6581 | 6581 | |||
4 | Pressure of the system (Mpa) | 12 | 12 | |||
Axle | ||||||
1 | Manufacturer | Yunyu | Xugong | |||
2 | Main Transmission Type | Double Reduction | Double Reduction | |||
3 | Final Reducer | Single Stage Final Reducer | Single Stage Final Reducer | |||
4 | Rated dynamic / static load of front axle (T) | 7.5 / 18.75 | 7.5 / 18.75 | |||
5 | Rated dynamic / static load of rear axle | 9 T / 22.5T | 9 T / 22.5T | |||
Torque Converter | ||||||
1 | Torque Converter | Model | YJ290 | |||
2 | Cooling type | Pressure oil circulating | Pressure oil circulating | |||
Gearbox | ||||||
1 | Model | LM15S | MYF 1101V | |||
2 | Type | Fixed Shaft Power Transmission | Synchromesh mechanical shift | |||
3 | Gears | Two forward, Two reverse gears | 4F, 3R | |||
4 | Max.Speed (Km/h) | 38 | 33K | |||
Tyre | ||||||
1 | Model | 14-17.5/19.5L-24 | 12.5/80-18-16PR/19.5L-24-14PR | |||
2 | Pressure of Front wheel (Mpa) | 0.3 | 0.3 | |||
3 | Pressure of Back Wheel (Mpa) | 0.223 | 0.223 | |||
Brake System | ||||||
1 | Service Brake | Wet, Internal,Self-regulation, Self-balance | Wet, Internal,Self-regulation, Self-balance | |||
2 | Emergency Brake | Hydraulic terminating brake | Hydraulic terminating brake | |||
Hydraulic System | ||||||
1 | Digging Power of Excavator Grab (KN) | 60 | 60 | |||
2 | Digging Power of Dipper (KN) | 31 | 31 | |||
3 | Bucket Lifting Time (S) | 6.7 | 6.8 | |||
4 | Bucket Lowering Time (S) | 3.2 | 3.1 | |||
5 | Bucket Discharge Time (S) | 2.1 | 2.1 | |||
Optional equipment | ||||||
1 | Configure | |||||
2 | Cummin s Engine (China II) | |||||
3 | Front end: Hydraulic Quick hitch device | |||||
4 | Front end: triple-valve and pipe | |||||
5 | Front end: Grass Forks | |||||
6 | Front end: four in one bucket (additional three valves must be added) | |||||
7 | Front loading end match: Six in one bucket (additional Triple valve must be added) | |||||
8 | Front loading end match: A type log grab (additional triple valves must be added) | |||||
9 | Front loading end match: Forks (additional triple valves must be added) | |||||
10 | Front loading end match: Snow blade (additional triple valves must be added) | |||||
11 | Front loading end match: bulldozer blade | |||||
12 | Front loading end match: Quick hitch bucket | |||||
13 | Front loading end match: standard bucket | |||||
14 | Front loading end match: Grab bucket (Replace this bucket, Markup) | |||||
15 | Backhoe end match: Quick hitch (mechanical /hydraulic) | |||||
16 | Rear excavation end match | Backhoe Auger(Length 1.5m, diameter 30cm) | ||||
Backhoe Auger(Length 2m,diameter 60cm) | ||||||
17 | Backhoe end match: Hydraulic breaker (JISAN) / (TOFFEN) | |||||
19 | Rear excavation end: telescopic boom | |||||
20 | Rear excavation end match: Log grab | |||||
21 | Excavator bucket:300\400\600MM | |||||
22 | Excavator bucket:800\900\1200MM(Grading bucket, no warranty) | |||||
23 | Oil filter | |||||
2000 hours maintenance accessories | ||||||
Name | Qty (set) | |||||
1 | Hydraulic oil filter | 5 | ||||
2 | Diesel filter | 5 | ||||
3 | Oil filter | 5 | ||||
4 | Air filter | 5 | ||||
5 | Six-in-one bucket shovel teeth | 2 | ||||
6 | Digging Bucket Teeth | 2 |

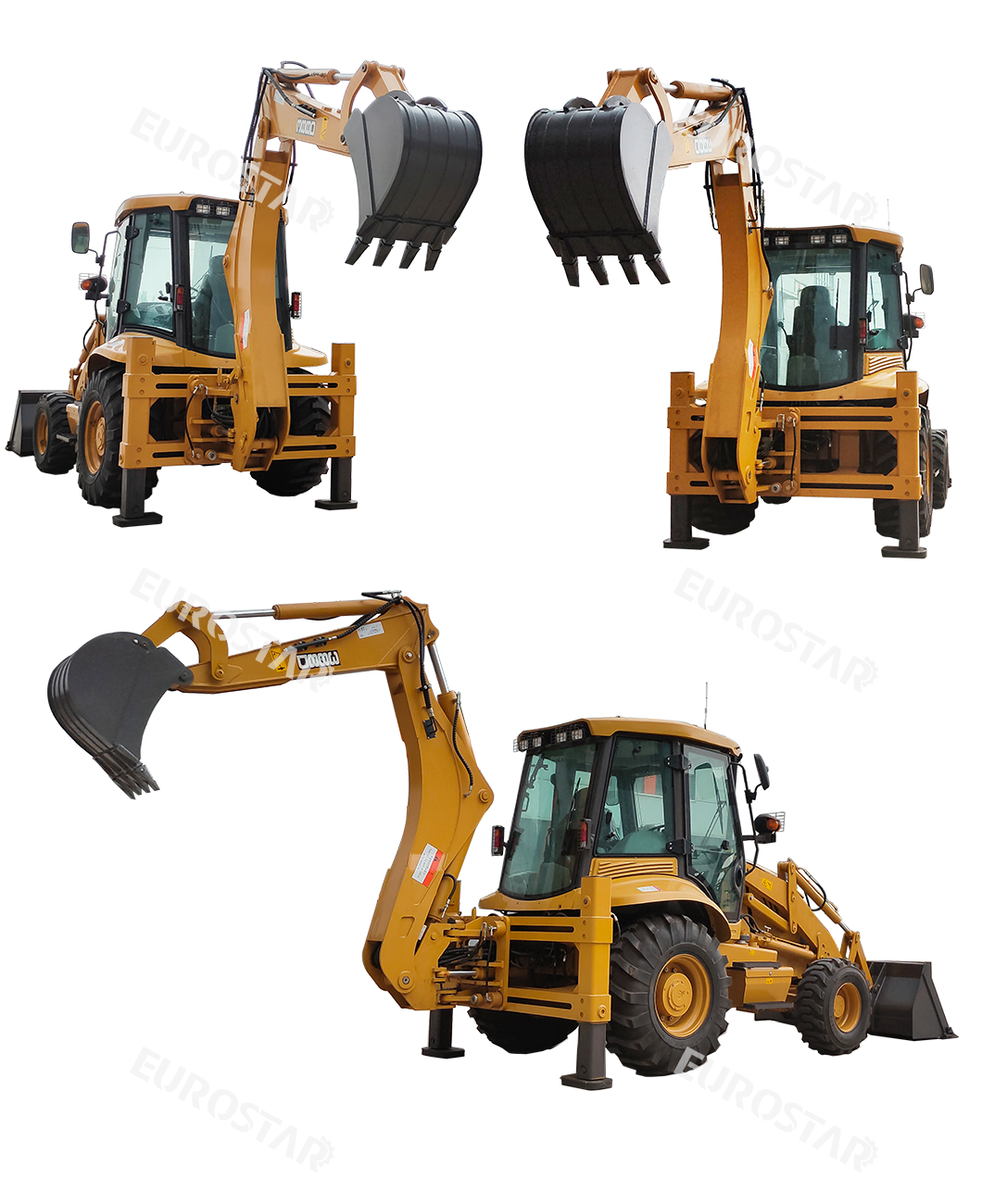

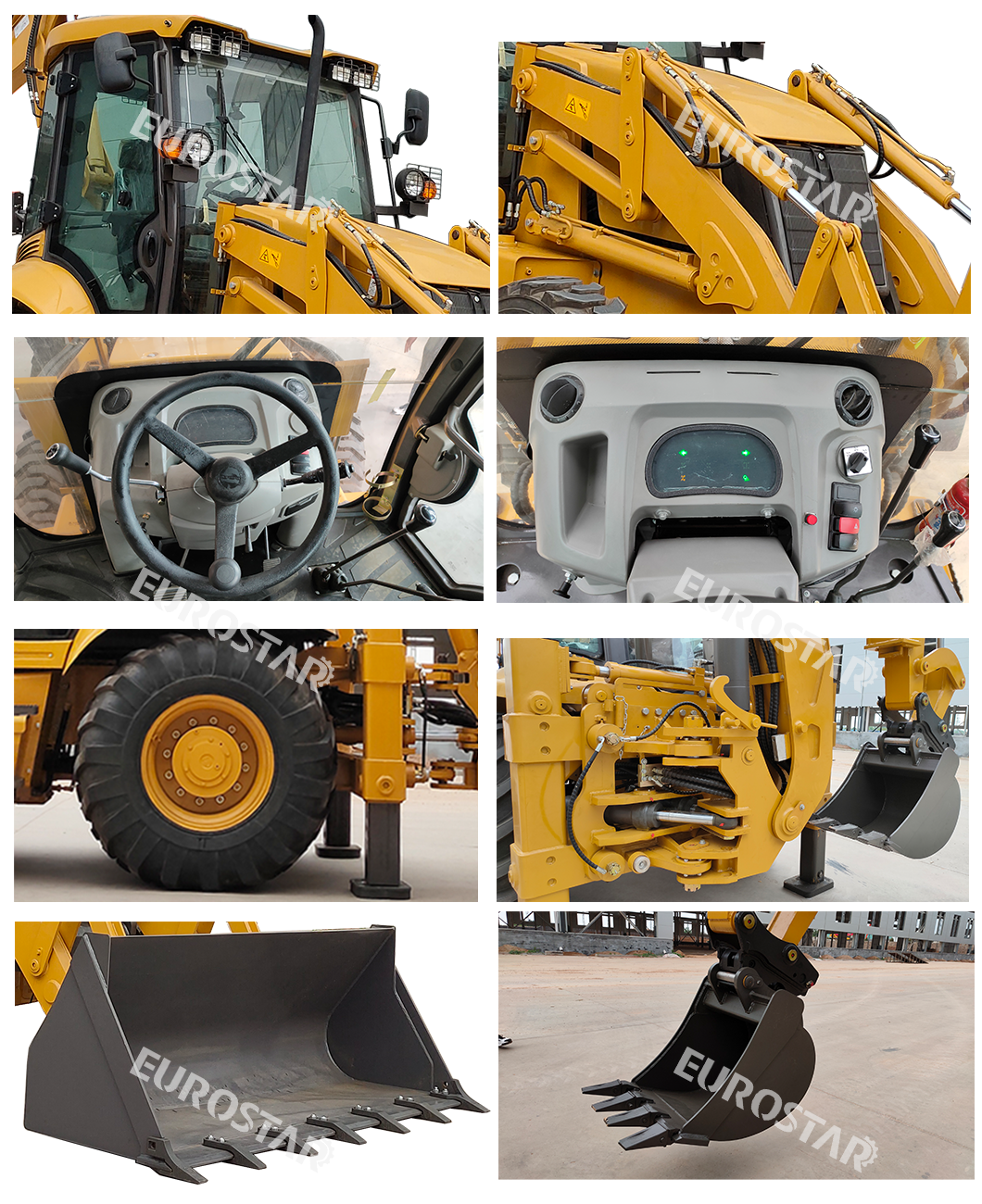

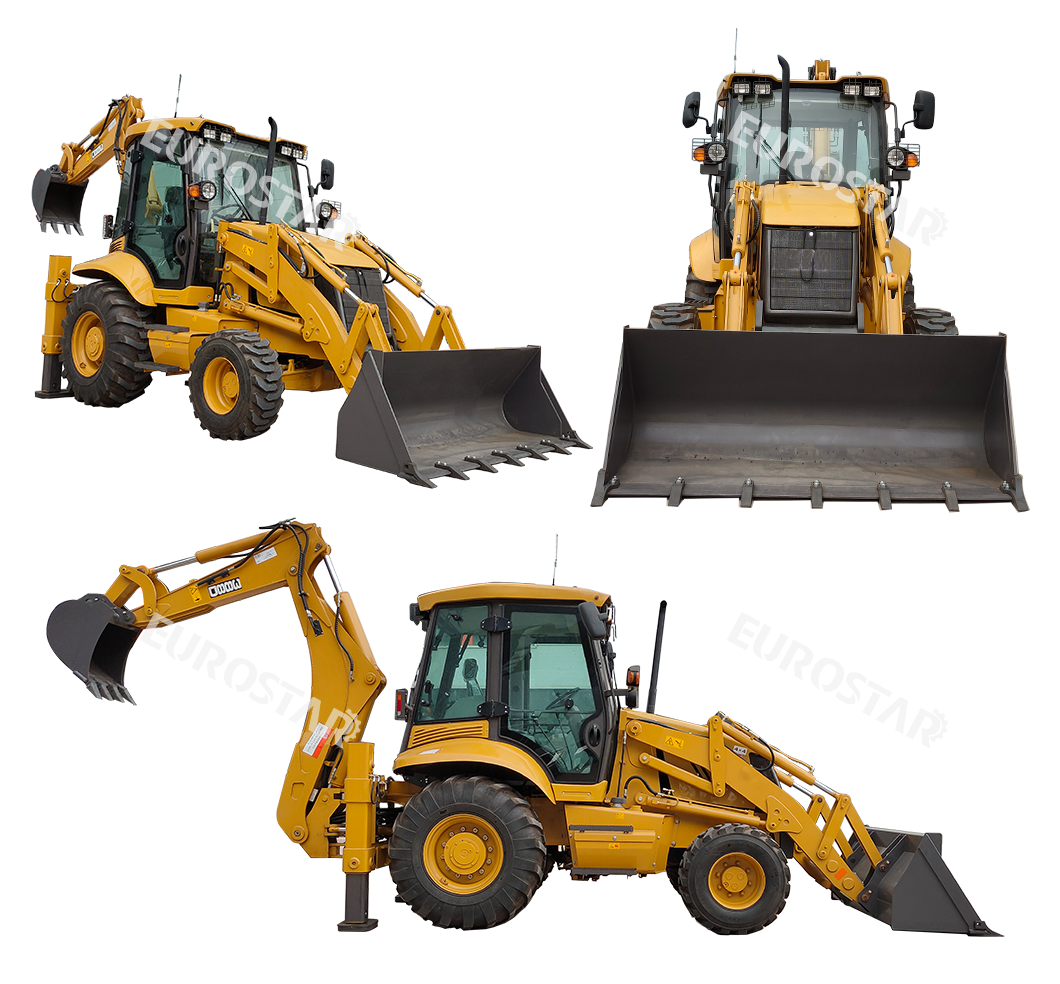

ES388T backhoe loader details picture display

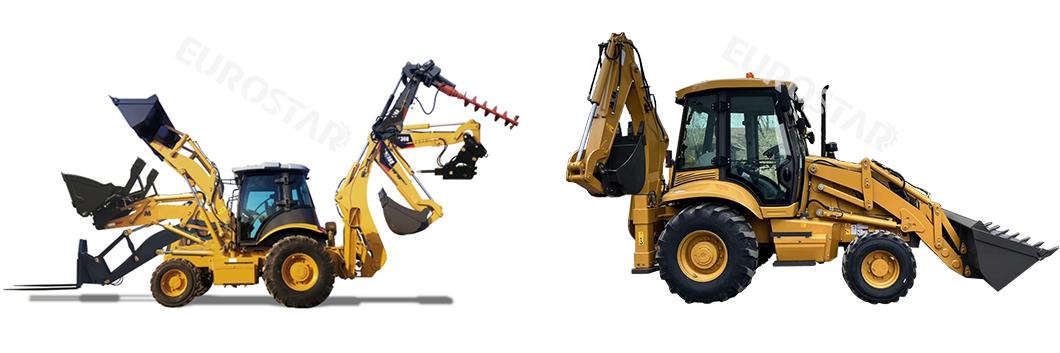

ES Series backhoe loader tooling attachments

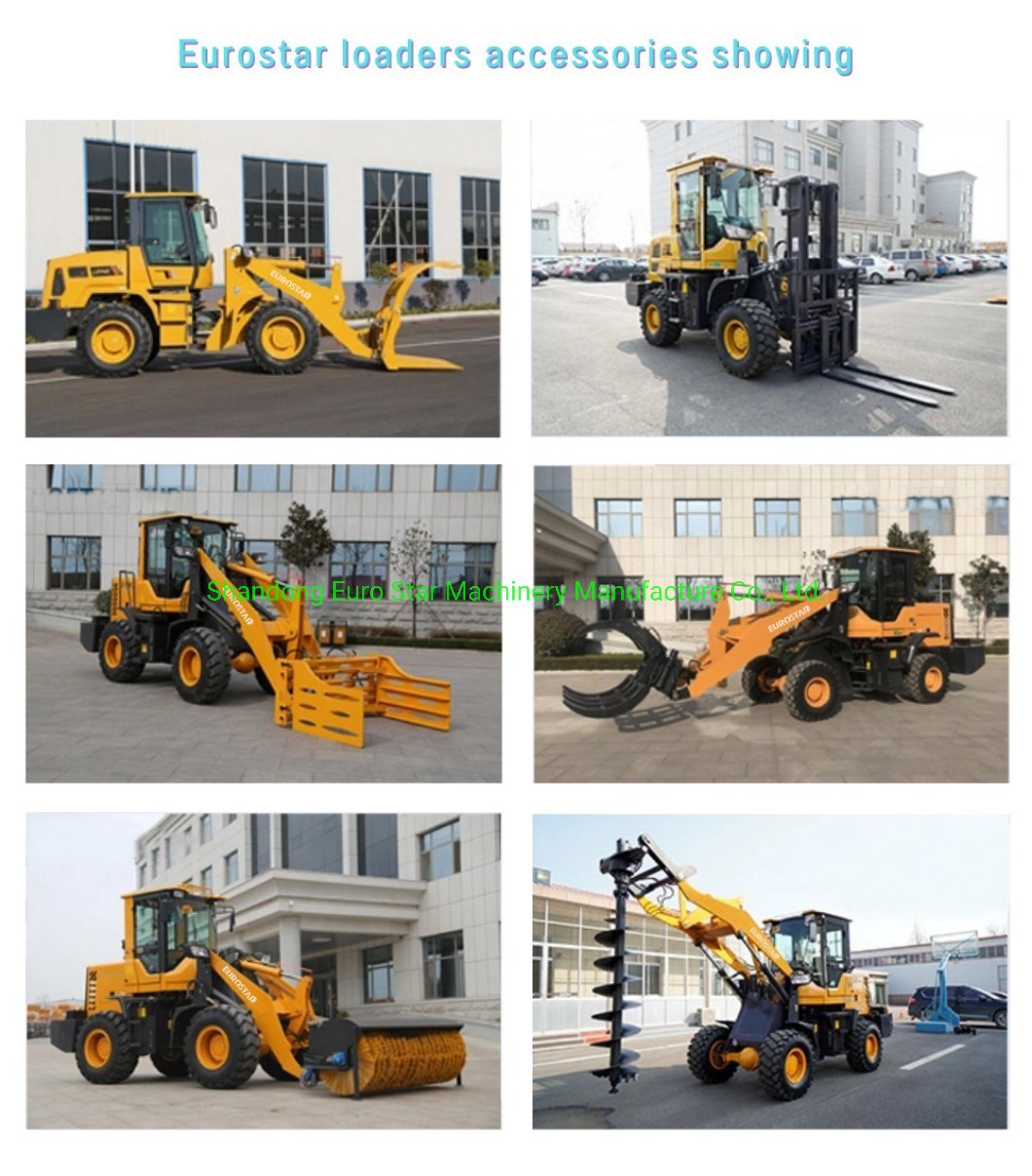

Wheel loader supporting installation attachments display
Other construction machinery products
Rubber track small excavator product display
Metal crawler small excavator product display
Wheel loader packaging and shipping display
ES388T backhoe loader details picture display
ES Series backhoe loader tooling attachments
Wheel loader supporting installation attachments display
Other construction machinery products
Rubber track small excavator product display
Metal crawler small excavator product display
Wheel loader packaging and shipping display
Factory introduction:
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Factory and production equipment display
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
Factory introduction:
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Factory and production equipment display
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
