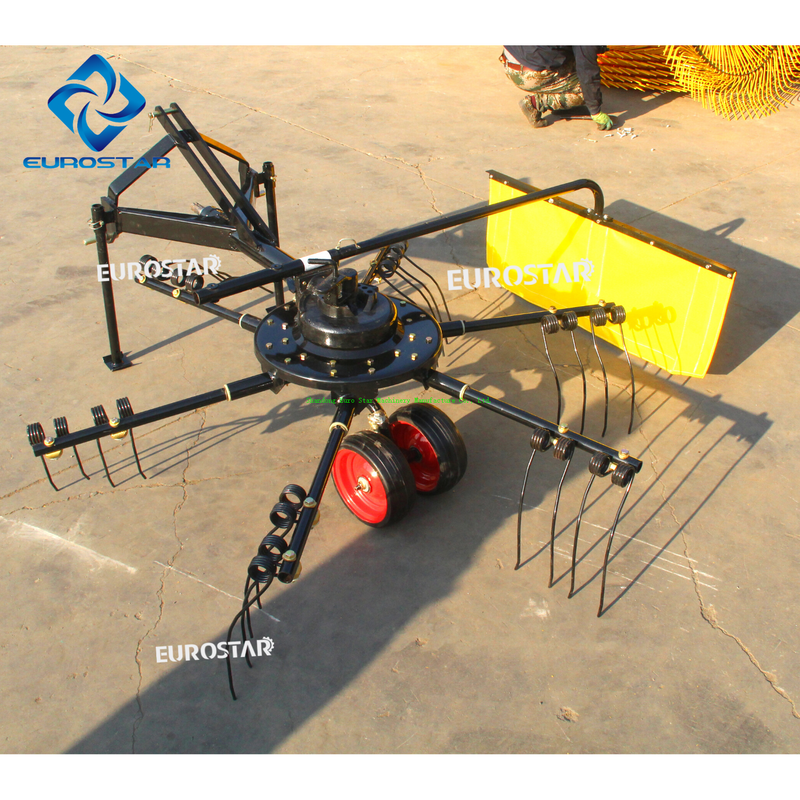

Width 3.5m Finger Plate Disc Rotary Hay Rake

9LD and 9LZ Series  rotary rake can spread, turn over, and finally rake the large area of scattered grass into strips, so that they can be fully dried before binding. which can be used by the baler to pick up and bale, so as to improve the pick-up cleanliness and operation efficiency.
rotary rake can make the harvested alfalfa and other crops dry before baling.operation width can be adjusted in multiple sections, and the operation is simple.Raking grass is even and clean, with a wide range of supporting power.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
  • 9LZ-4T/9LZ-4 /9LZ-6 /9LZ-8 9LZ-10 /9LZ-12

  • Eurostar or OEM

  • 8433400000

Rotary Hay Rake Product Description
9LD and 9LZ Series  rotary rake can spread, turn over, and finally rake the large area of scattered grass into strips, so that they can be fully dried before binding. which can be used by the baler to pick up and bale, so as to improve the pick-up cleanliness and operation efficiency.
rotary rake can make the harvested alfalfa and other crops dry before baling.operation width can be adjusted in multiple sections, and the operation is simple.Raking grass is even and clean, with a wide range of supporting power.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.


Rotary Hay Rake Product Selling Points
1. The power obtained from the tractor is transmitted to the bevel gear swivel through the coupling, and then to the rake arm, which drives the rake tooth spring for operation.
2. it can spread and flip the green-cut materials and withdraws, for drying evenly,Spread, swath or windrow so crops dry down faster.
3. Tailor your tedding operations to a variety of crops and conditions by varying PTO speed or tine position.
4. Rotor tilt can be adjusted easily with a convenient crank for maximum crop handling.
5. Torque limiting clutch on the heavy-duty PTO provides overload protection. PTO speed is variable, so you can match ground speed to crop and field conditions.
6. Vertical tines pick up fewer stones and less debris than horizontal tines for cleaner tedding and raking.
7. Cam track adjustment allows you to quickly tailor tedding/raking action to varying crops and conditions without tools.
8. Wide range of applications, suitable for picking and collecting various straws and pastures such as mulching film, straw, wheat straw, corn stalks, etc.
9. Use 65MN spring stee tine for durable use in work.

9LD Series Double Disc Traction Rotary Hay Rake Product Technical Parameters

Model9LD-2.59LD-3.59LD-4.09LD--5.0
Working width(mm)2500350040005000
No.of wheel(pcs)1112
Matched Power(hp)25-4030-5040-6050-80
Dimensions(mm)2100*2500*9503100*3500*10004010*3550*12003500*5000*950
Weight(kg)160200300650
Operating speed(km/h)6-126-126-126-12
Structure typespiralspiralspiralspiral
LinkageThree-point suspensionTraction
Working control modeThree-point suspensionhydraulic oil cylinder


9LD Series Double Disc Traction Rotary Hay Rake Pictures show

9LD Series Rotary Hay Rake

9LD Series Rotary Hay Rake1

9LZ Series Rotary Hay Rake product technical parameters

Model 9LZ-4T 9LZ-4 9LZ-6 9LZ-8 9LZ-10 9LZ-12
working width(mm) 3000 3000 4200 5500 6500 7500
weight(kg) 265 375 680 820 900 1000
matched power(hp) 20-30 20-30 30-50 40-80 80-100 90-120
No.of wheel(pcs) 4 4 6 8 10 12
Linkage Three-point suspension Traction Traction Traction Traction Traction
Width of grass strips  (mm) 800-1000 800-1000 800-1200 800-1500 1500-2000 1500-2000
Dimensions(mm) 2500*3000*1500 3500*3000*1500 5200*4200*1500 6000*5500*1500 7000*6500*1500 8000*7500*1500
Structure type spiral spiral spiral Finger plate Finger plate Finger plate
working speed(Km/h) 5-15 5-15 10-15 10-15 15-25 15-25
productivity(Hm²/h) 1-3 1-3 2-5 4-6 6-8 8-12
Working control mode Three-point suspension Hydraulic oil cylinder



9LZ Series Rotary Hay Rake Pictures show

9LZ Series Disc Hay Rake1
