Grass Collecting Machine Agricultural Machinery

9LD and 9LZ Series  rotary rake can spread, turn over, and finally rake the large area of scattered grass into strips, so that they can be fully dried before binding. which can be used by the baler to pick up and bale, so as to improve the pick-up cleanliness and operation efficiency.
rotary rake can make the harvested alfalfa and other crops dry before baling.operation width can be adjusted in multiple sections, and the operation is simple.Raking grass is even and clean, with a wide range of supporting power.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
Grass Collecting Machine Agricultural Machinery
Grass Collecting Machine Agricultural Machinery
Grass Collecting Machine Agricultural Machinery
Grass Collecting Machine Agricultural Machinery
Grass Collecting Machine Agricultural Machinery
Grass Collecting Machine Agricultural Machinery
  • 9LZ-4T/9LZ-4 /9LZ-6 /9LZ-8 9LZ-10 /9LZ-12

  • Eurostar or OEM

  • 8433400000

Rotary Hay Rake Product Description
9LD and 9LZ Series  rotary rake can spread, turn over, and finally rake the large area of scattered grass into strips, so that they can be fully dried before binding. which can be used by the baler to pick up and bale, so as to improve the pick-up cleanliness and operation efficiency.
rotary rake can make the harvested alfalfa and other crops dry before baling.operation width can be adjusted in multiple sections, and the operation is simple.Raking grass is even and clean, with a wide range of supporting power.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.


Rotary Hay Rake Product Selling Points
1. The power obtained from the tractor is transmitted to the bevel gear swivel through the coupling, and then to the rake arm, which drives the rake tooth spring for operation.
2. it can spread and flip the green-cut materials and withdraws, for drying evenly,Spread, swath or windrow so crops dry down faster.
3. Tailor your tedding operations to a variety of crops and conditions by varying PTO speed or tine position.
4. Rotor tilt can be adjusted easily with a convenient crank for maximum crop handling.
5. Torque limiting clutch on the heavy-duty PTO provides overload protection. PTO speed is variable, so you can match ground speed to crop and field conditions.
6. Vertical tines pick up fewer stones and less debris than horizontal tines for cleaner tedding and raking.
7. Cam track adjustment allows you to quickly tailor tedding/raking action to varying crops and conditions without tools.
8. Wide range of applications, suitable for picking and collecting various straws and pastures such as mulching film, straw, wheat straw, corn stalks, etc.
9. Use 65MN spring stee tine for durable use in work.

9LD Series Double Disc Traction Rotary Hay Rake Product Technical Parameters

Model9LD-2.59LD-3.59LD-4.09LD--5.0
Working width(mm)2500350040005000
No.of wheel(pcs)1112
Matched Power(hp)25-4030-5040-6050-80
Dimensions(mm)2100*2500*9503100*3500*10004010*3550*12003500*5000*950
Weight(kg)160200300650
Operating speed(km/h)6-126-126-126-12
Structure typespiralspiralspiralspiral
LinkageThree-point suspensionTraction
Working control modeThree-point suspensionhydraulic oil cylinder

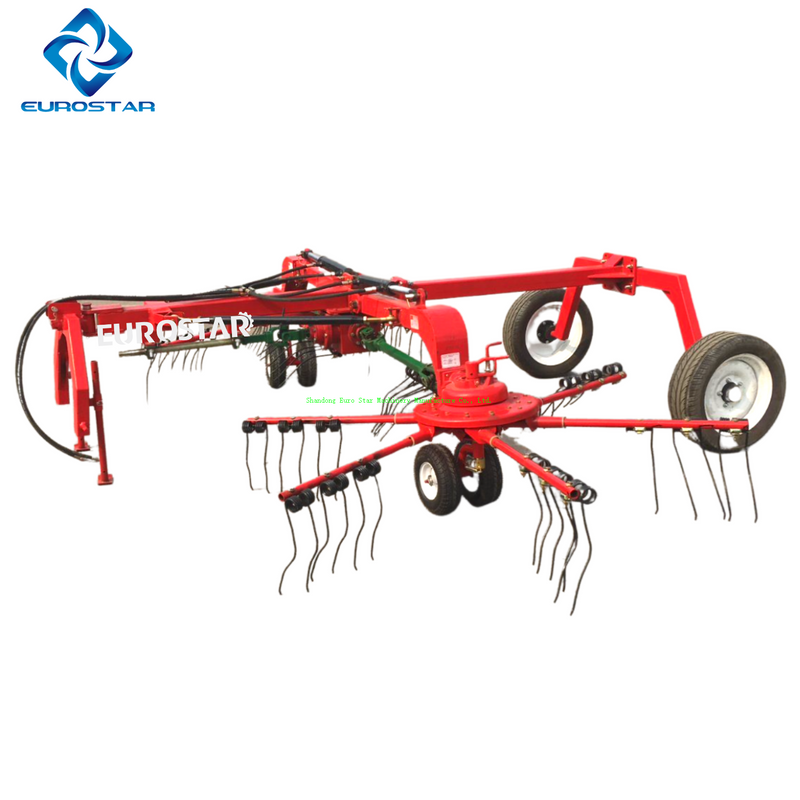

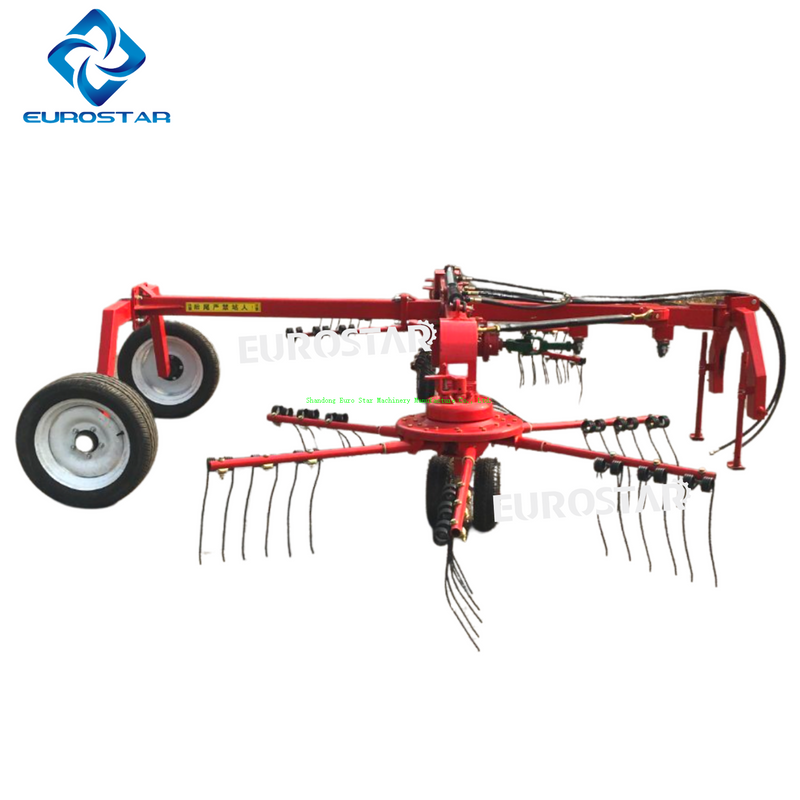

9LD Series Double Disc Traction Rotary Hay Rake Pictures show

9LD Series Rotary Hay Rake

9LD Series Rotary Hay Rake1

9LZ Series Rotary Hay Rake product technical parameters

Model 9LZ-4T 9LZ-4 9LZ-6 9LZ-8 9LZ-10 9LZ-12
working width(mm) 3000 3000 4200 5500 6500 7500
weight(kg) 265 375 680 820 900 1000
matched power(hp) 20-30 20-30 30-50 40-80 80-100 90-120
No.of wheel(pcs) 4 4 6 8 10 12
Linkage Three-point suspension Traction Traction Traction Traction Traction
Width of grass strips  (mm) 800-1000 800-1000 800-1200 800-1500 1500-2000 1500-2000
Dimensions(mm) 2500*3000*1500 3500*3000*1500 5200*4200*1500 6000*5500*1500 7000*6500*1500 8000*7500*1500
Structure type spiral spiral spiral Finger plate Finger plate Finger plate
working speed(Km/h) 5-15 5-15 10-15 10-15 15-25 15-25
productivity(Hm²/h) 1-3 1-3 2-5 4-6 6-8 8-12
Working control mode Three-point suspension Hydraulic oil cylinder



9LZ Series Rotary Hay Rake Pictures show

9LZ Series Disc Hay Rake1

Baler and packaging machine product combination display

Baler and packaging machine product combination display

Farm tools production site display


Farm tools production site displayPacking and shipping link display

Trencher packing and shipping link display

Full range of tractor products display

Full range of tractor products display

Full range of tractor products display2

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop display

Tractor production workshop display

Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.


1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.


3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;

Remote online network training;

4) Technical Support
The whole process Technology support covers on sale and after-sale service.

Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight

4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
