9LG-4.0D,9LG-8.0S
Eurostar or OEM
8433400000

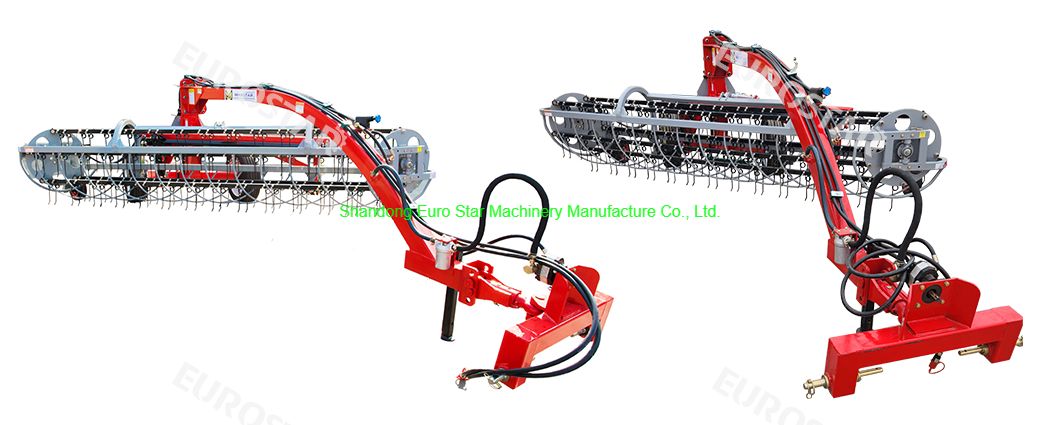

9LG Series Drum Rake
The 9LG series drum rake is designed and produced for the global high-end market demand and use habits,and can be used with 30-100HP tractors. The product can choose two working modes of single drum and double drum,and the hydraulic system can freely adjust the working width and working Angle according to the farm ground conditions. During the operation process,the drum drives all spring teeth to run and rotate at the same time,which can more effectively turn and ridge the grass, effectively reduce the soil content in the grass,and make the grass more fluffy and uniform. Faster drying time while reducing wear on spring teeth and improving efficiency. In addition,the drum rake is equipped with rubber tires,and the hydraulic system is used to fold the large drum vertically and rotate it to the rear of the tractor during transportation, quickly realizing transportation convenience and changing site operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
9LG series drum rake product technical parameters
| Model | 9LG-4.0D | 9LG-8.0S | ||||||||
| Structural Style | drum-type | drum-type | ||||||||
| Hooking Method | Traction type | Traction type | ||||||||
| External dimensions(mm) | 5300×1600×3500 | 5450×2200×1860 | ||||||||
| Weight(kg) | 1000 | 1850 | ||||||||
| Number of rake teeth(pcs) | 135 | 270(2×135) | ||||||||
| Cuddle width(m) | 4.0(adjustable) | 5-8(adjustable) | ||||||||
| Number of drums(pcs | 1 | 2 | ||||||||
| Drum drive | Hydraulic motor | Hydraulic motor | ||||||||
| Drum speed(r/min) | 100-240 | 100-240 | ||||||||
| Length of raking tooth rack (mm) | 3400 | 3400 | ||||||||
| Number of rake teeth(pcs) | 5 | 5×2(Gear rack×roller) | ||||||||
| Matching PTO speed(r/min) | 540 | 540 | ||||||||
| Supporting power range(kw) | 22~75 | ≥37.5 | ||||||||
| Operating speed range(km/h) | 4-15 | 4-15 | ||||||||
| Control System | / | Manual +remote contro | ||||||||
| Electronic control voltage(V) | 12 | |||||||||
| Form grass strip width(m) | 1-2(adjustable) | |||||||||

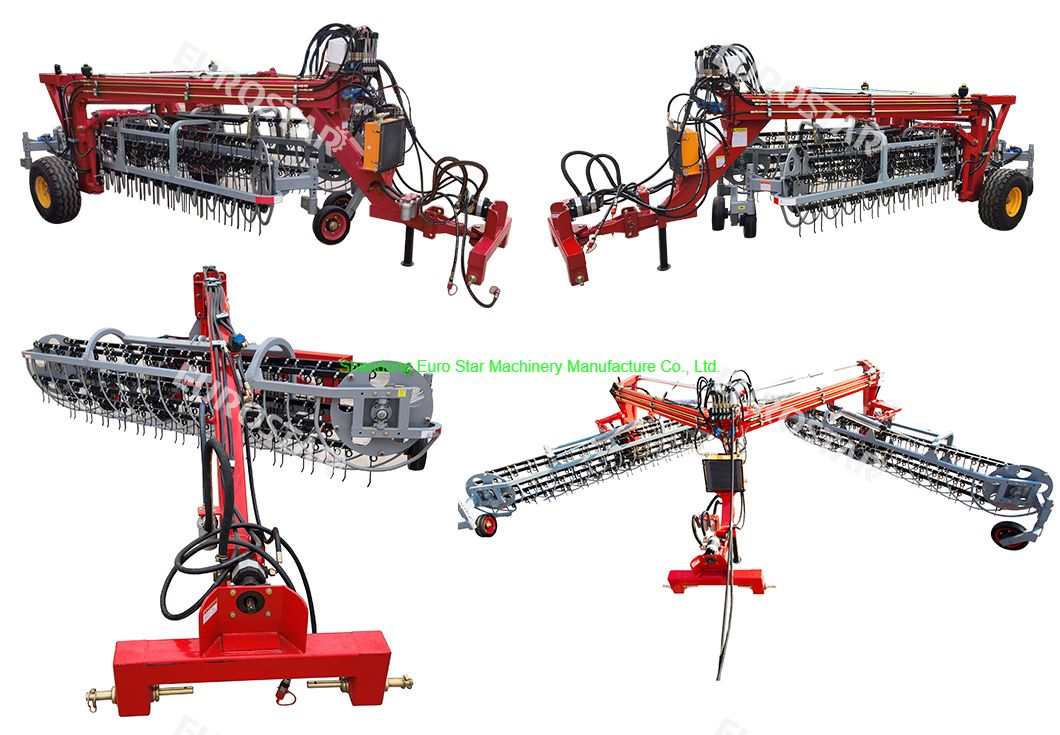

9LG Series Drum Rake
The 9LG series drum rake is designed and produced for the global high-end market demand and use habits,and can be used with 30-100HP tractors. The product can choose two working modes of single drum and double drum,and the hydraulic system can freely adjust the working width and working Angle according to the farm ground conditions. During the operation process,the drum drives all spring teeth to run and rotate at the same time,which can more effectively turn and ridge the grass, effectively reduce the soil content in the grass,and make the grass more fluffy and uniform. Faster drying time while reducing wear on spring teeth and improving efficiency. In addition,the drum rake is equipped with rubber tires,and the hydraulic system is used to fold the large drum vertically and rotate it to the rear of the tractor during transportation, quickly realizing transportation convenience and changing site operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
9LG series drum rake product technical parameters
| Model | 9LG-4.0D | 9LG-8.0S | ||||||||
| Structural Style | drum-type | drum-type | ||||||||
| Hooking Method | Traction type | Traction type | ||||||||
| External dimensions(mm) | 5300×1600×3500 | 5450×2200×1860 | ||||||||
| Weight(kg) | 1000 | 1850 | ||||||||
| Number of rake teeth(pcs) | 135 | 270(2×135) | ||||||||
| Cuddle width(m) | 4.0(adjustable) | 5-8(adjustable) | ||||||||
| Number of drums(pcs | 1 | 2 | ||||||||
| Drum drive | Hydraulic motor | Hydraulic motor | ||||||||
| Drum speed(r/min) | 100-240 | 100-240 | ||||||||
| Length of raking tooth rack (mm) | 3400 | 3400 | ||||||||
| Number of rake teeth(pcs) | 5 | 5×2(Gear rack×roller) | ||||||||
| Matching PTO speed(r/min) | 540 | 540 | ||||||||
| Supporting power range(kw) | 22~75 | ≥37.5 | ||||||||
| Operating speed range(km/h) | 4-15 | 4-15 | ||||||||
| Control System | / | Manual +remote contro | ||||||||
| Electronic control voltage(V) | 12 | |||||||||
| Form grass strip width(m) | 1-2(adjustable) | |||||||||
