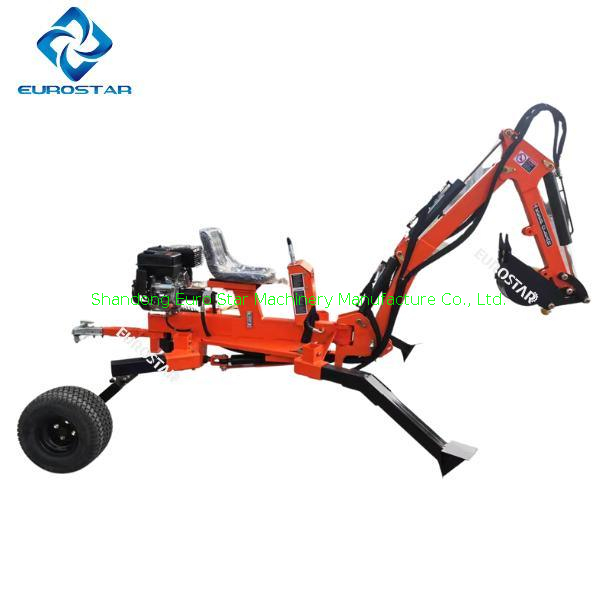

Wheel Digging Backhoe

 ATV series Backhoe Digger for all types of Groundwork in confined Spaces. This little unit has the capacity to handle much more than you'd think it would. The backhoe digger digs 2050mm deep, with a serrated digger bucket 220mm in width.
ATV seriesbackhoe digger with its own power source in the form of a 9 hp petrol motor with recoil starter, Two-lever hydraulic valve for simple and flexible excavation. Wheels for moving with an ATV or another vehicle with a 50 mm ball coupling.When the machine has to be moved, the wheels are fitted to the back making it easy to transport; when excavating, the wheels are fitted at the front with the stabilizers at the back and the machine is then moved by dragging it backward or forwards using the first boom and outer boom.
Main sales territory: regions Europe, the United States, Russia, Canada,Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
Wheel Digging Backhoe
Wheel Digging Backhoe
Wheel Digging Backhoe
Wheel Digging Backhoe
Wheel Digging Backhoe
Wheel Digging Backhoe
  • ATV-9

  • EUROSTAR OEM

  • 842952190

ATV series wheel backhoe product description
ATV series Backhoe Digger for all types of Groundwork in confined Spaces. This little unit has the capacity to handle much more than you'd think it would. The backhoe digger digs 2050mm deep, with a serrated digger bucket 220mm in width.
ATV seriesbackhoe digger with its own power source in the form of a 9 hp petrol motor with recoil starter, Two-lever hydraulic valve for simple and flexible excavation. Wheels for moving with an ATV or another vehicle with a 50 mm ball coupling.When the machine has to be moved, the wheels are fitted to the back making it easy to transport; when excavating, the wheels are fitted at the front with the stabilizers at the back and the machine is then moved by dragging it backward or forwards using the first boom and outer boom.
Main sales territory: regions Europe, the United States, Russia, Canada,Ukraine, South America, Africa, southeast Asia and Australia.
ATV series wheel backhoe product selling points
1. It is used for dicthing in farms and grazing lands, trenching,digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
2. Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.
3. Hydraulic feeding system,with free flow valve,easy to control feeding rate,featured with compact structure.
4. Bucket size can be chosen, 200mm, 300mm, 400mm, 500mm, 600mm wide extra buckets.V type bucket,thumb,ditching finger also be availible.
5. backhoe loader can be towable by ATV,UTV eg,easy tranport,which is use for small digging and construction work.
6. Different engine opotion,9-15hp gasoline or diesel engine.
7. Various attachments,220mm.300mm,400mm,500mm,600mm,V type bucket,thumb,ditching finger also be availible.
8. CE approved,reliable quality.

ATV series wheel backhoe product technical parameters

ModelATV-9
Product Name9HP gasoline engine
Bucket Swings 120° For real maneuverability
DeepthDigs 7FT. Deep with 8FT. Reach
DumpsDumps at 3½FT
Bucket Size12''(300mm)bucket
UsingBucket action pulls it around jobsite
CapacityTows easily on 3500-LB
Coupler Size2"ball for easy towing
Package Size48.03"×40.55"/224×99×84cm
G.W.1176.21LB/534KGS
N.W.982.38LB/446KGS

ATV series wheel backhoe details showATV Series Wheel Backhoe details showATV Series Wheel Backhoe details show2ATV Series Wheel Backhoe details show3

LW series backhoe product technical parameters

Model LW-4  LW-6  LW-7  LW-8  LW-9
 Specification Inch Metric  Inch  Metric  Inch  Metric  Inch  Metric  Inch  Metric
 Tractor HP 20-30hp  30-40HP  30-45HP 45-60HP  60-80HP
 3-point Linkage  Cat-1  Cat-1 Cat-1  CAT-1&2 CAT-1&2
 Structure Weight 771lb 350kg  1060lb  480kg  1100lb   500kg 1280lb  580kg  1370lb  620kg
 A  Digging Depth(two foot flat bottom) 4' 1200mm  5.74'  1750mm  6.4'  1950mm 7.38'  2250mm 8.36'  2550mm
 B  Reach from center line of Swing pivot 7.55' 2300mm  8.53'  2600mm  9.51'  2900mm 10.5'  3200mm  11.8' 3600mm
 C  Loading Height(bucket at 60°)

 5.64'  1720mm  6.03'  1840mm   3.66'  1930mm  7.25'  2210mm
 D  Transport Height(maximum) 4.1' 1250mm  6.03'  1840mm   6.75'  2060mm 6.98' 2130mm 8.13'  2480mm
 E  Extend Height 4' 1200mm  9.41'  2870mm  10.2'  3110mm 10.62' 3240mm  11.77' 3590mm
 F  Loading Reach(bucket at 60°)

 3.11'  950mm  3.87'  1180mm  3.74' 1140mm   4.46'  1360mm
 G  Transport Overhang

 3.54'  1080mm  3.64'  1110mm 4' 1220mm 4.16' 1270mm
 H  Undercut

 2.4'  730mm  2.72'  830mm 1.54' 470mm 1.7' 520mm
 I   Bucket Rotation

 180°  180°  180°  180°
 J  Stabilizer Spread(up position)

 4.3'  1310mm   4.3'  1310mm 4.3'  1310mm   4.3'  1310mm
 K  Stabilizer Spread(down position) 6.23' 1900mm  4.3'  2100mm  6.9'  2100mm 7.67' 2340m  7.67' 2340mm
 L  Swing Arc  180°  180°  180°  180°  180°
M Bucket width 250mm 300mm 400mm 450mm 500mm
N Bucket cubage 0.028 0.036 0.045 0.052 0.063

LW series Backhoe details showLW series Backhoe details show

TZ series front end loader details displayTZ series front end loader details display

Front end loader and backhoe container shipping link displayFront end loader and backhoe container shipping link display
