Wavy Coulter Blades

Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional company of designing and manufacturing disc blade and spare parts.We can produce any sizes of disc blade. We have 3 production line, We use the world advanced technology and equipment in disc blades production,  Yuntai company produce disc blades with 65Mn and Boron Steel. 65Mn steel disc blade hardness is HRC40-44 and Boron Steel disc blades hardness is 48-52HRC.
Euro Star are the largest manufacturer in China.We also can supply other products according to customer's drawing and samples.
Being in plough disc,harrow disc production and exporting business for more than 15 years, Euro Star company produce hundreds models disc blades,Nearly every size and style of agricultural disc is available from SHANDONG Euro Star Our exclusive use of 65Mn /Boron steel provides long wear life and resistance to breakage.
Availability:
Quantity:
  • ES
  • EUROSTAR OEM
  • 8432900000

ES series disc blade Product Description
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional company of designing and manufacturing disc blade and spare parts.We can produce any sizes of disc blade. We have 3 production line, We use the world advanced technology and equipment in disc blades production,  Yuntai company produce disc blades with 65Mn and Boron Steel. 65Mn steel disc blade hardness is HRC40-44 and Boron Steel disc blades hardness is 48-52HRC.
Euro Star are the largest manufacturer in China.We also can supply other products according to customer's drawing and samples.
Being in plough disc,harrow disc production and exporting business for more than 15 years, Euro Star company produce hundreds models disc blades,Nearly every size and style of agricultural disc is available from SHANDONG Euro Star Our exclusive use of 65Mn /Boron steel provides long wear life and resistance to breakage.

ES series disc blade product parameters
DiameterThicknessWeight PlainWeight Notched
MMINCHMMINCHKGLBSKGLBS
300mm12"31/8"1.63.51.12.4
330mm13"31/8"1.841.22.6
360mm14"31/8"2.34.91.94.1
410mm16"31/8"3.272.75.9
460mm18"31/8"4.39.53.88.4
460mm18"3.51/7"4.610.24.19
510mm20"3.51/7"5.812.75.611.5
510mm20"42/13"6.514.45.812.7
560mm22"42/13"8.1187.516.5
560mm22"4.52/11"9208.518.7
560mm22"51/5"9.521.6919.8
560mm22"615/64"1226.51124.2
610mm24"51/5"11.32510.523.1
610mm24"615/64"14.231.51328.6
660mm26"51/5"14.1311328.6
660mm26"615/64"1737.515.834.8
660mm26"79/32"2043.518.540.7
660mm26"85/16"23512146
710mm28"615/64"204418.540.7
710mm28"79/32"2350.621.546
710mm28"85/16"2657.22452.1
760mm30"85/16"29642861.5
760mm30"103/8"357733.573.7
810mm32"85/16"35773375
810mm32"103/8"43954068
910mm36"121/2"6815060132
960mm38"121/2"7717070154
1016mm40"121/2"8218077169.4
1116mm44"121/2"8919684184.8

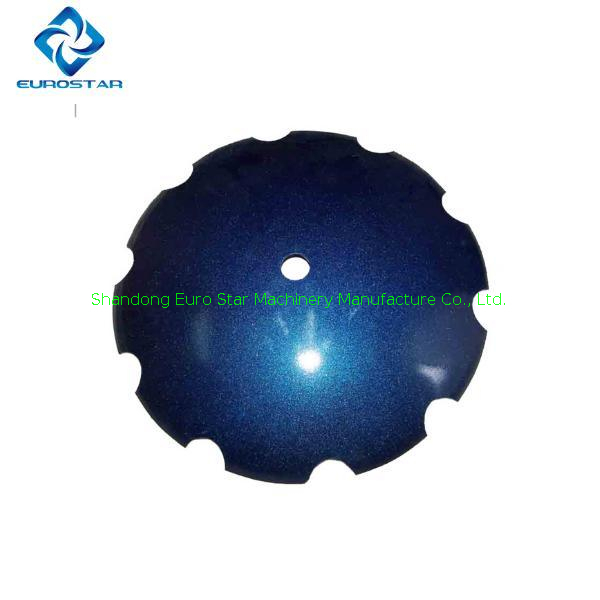

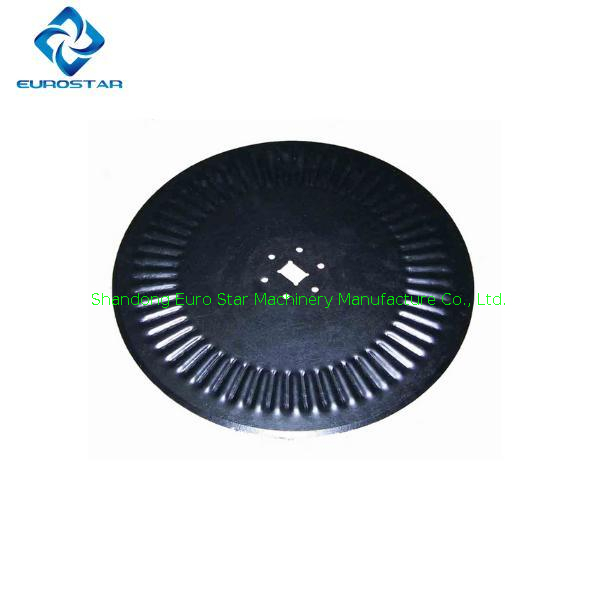

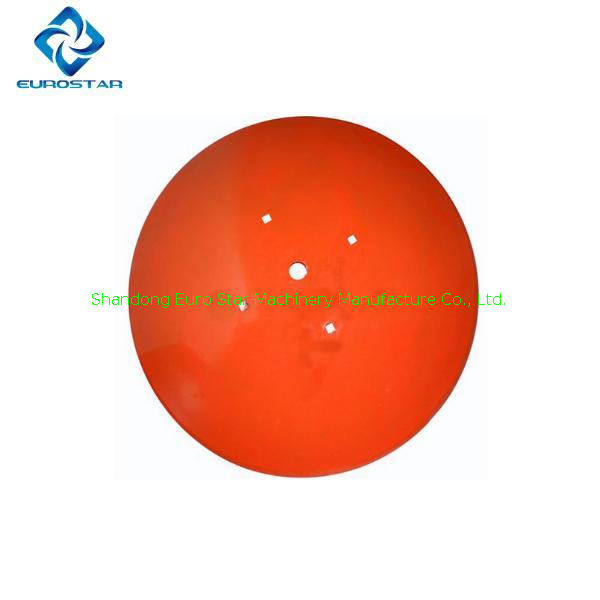

Disc blade picture displayDisc blade picture displayDisc blade picture display2

Disc blade picture display3

Full range of disc harrow picture displayFull range of disc harrow picture display

Disc harrow and disc blade packaging and transportation display

Disc harrow, disc plough packing and shipping


Full range of tractor products display

Full range of tractor products display1Full range of tractor products display2

Our company produces other agricultural machinery display

Our company produces other agricultural machinery displayOur company produces other agricultural machinery display1Our company produces other agricultural machinery display2Our company produces other agricultural machinery display3

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop displayAgricultural machinery factory production equipment display
