Availability: | |
---|---|
Quantity: | |
Ex8010
EUROSTAR or OEM
8429521200
Mini excavator product description:
EX8010 mini excavator is a compact, lightweight, economic and multi-purpose excavator. has the advantages of flexible and practical, high configuration, high performance,low oil consumption, beautiful appearance and wide application. It is also called compact excavator or small excavator. Mini excavators are flexible in narrow spaces. They are widely used for material handling, light demolition jobs, stump removal, ditching, construction projects, landscaping, road building, small projects, farmland,in garden, municipal works,vegetable greenhouse, digging trench. home garden use and so on.The turning radius is small and the steering is flexible; suitable for operating in tight spaces.Oscillating rear axle keeps four-wheel drive engaged for superior off-road mobility. One-stop maintenance: engine, fan, radiator and hydraulic hoses can be serviced from ground level.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Mini excavator product selling points :
1. Excavators with compact dimensions can easily drive through narrow passages and doors.
2. Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
3. Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.
EX8010 mini excavator product technical parameters:
Model | EX8010 | |
Standard configuration | Weight | 1.0 T |
Track length | 1300 mm | |
Ground clearance | 380 mm | |
Chssis width | 970 mm | |
Track width | 180 mm | |
Total length | 2450 mm | |
Total height | 2200 mm | |
Bucket capacity | 0.02 m³ | |
Max. digging radius | 2400 mm | |
Max. digging depth | 1600 mm | |
Max. digging height | 2850 mm | |
Max. dump height | 2000 mm | |
Rated Power | 7.5 KW | |
Engine | Changchai | |
Bucket width | 300mm | |
Shipment quantity 40HQ | 13 Unit/19 Unit | |
Optional | Kubota engine | Kubota |
YANMAR engine | YANMAR | |
guide system | guide system | |
bucket | 200mm | |
bucket | 300mm | |
bucket | 600mm | |
Quick change device | Quick change device | |
Plow groove | Plow groove | |
Catch | Catch | |
Spiral drill | Spiral drill | |
Dumping hopper side | Dumping hopper side |
Mini excavator product description:
EX8010 mini excavator is a compact, lightweight, economic and multi-purpose excavator. has the advantages of flexible and practical, high configuration, high performance,low oil consumption, beautiful appearance and wide application. It is also called compact excavator or small excavator. Mini excavators are flexible in narrow spaces. They are widely used for material handling, light demolition jobs, stump removal, ditching, construction projects, landscaping, road building, small projects, farmland,in garden, municipal works,vegetable greenhouse, digging trench. home garden use and so on.The turning radius is small and the steering is flexible; suitable for operating in tight spaces.Oscillating rear axle keeps four-wheel drive engaged for superior off-road mobility. One-stop maintenance: engine, fan, radiator and hydraulic hoses can be serviced from ground level.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Mini excavator product selling points :
1. Excavators with compact dimensions can easily drive through narrow passages and doors.
2. Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
3. Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.
EX8010 mini excavator product technical parameters:
Model | EX8010 | |
Standard configuration | Weight | 1.0 T |
Track length | 1300 mm | |
Ground clearance | 380 mm | |
Chssis width | 970 mm | |
Track width | 180 mm | |
Total length | 2450 mm | |
Total height | 2200 mm | |
Bucket capacity | 0.02 m³ | |
Max. digging radius | 2400 mm | |
Max. digging depth | 1600 mm | |
Max. digging height | 2850 mm | |
Max. dump height | 2000 mm | |
Rated Power | 7.5 KW | |
Engine | Changchai | |
Bucket width | 300mm | |
Shipment quantity 40HQ | 13 Unit/19 Unit | |
Optional | Kubota engine | Kubota |
YANMAR engine | YANMAR | |
guide system | guide system | |
bucket | 200mm | |
bucket | 300mm | |
bucket | 600mm | |
Quick change device | Quick change device | |
Plow groove | Plow groove | |
Catch | Catch | |
Spiral drill | Spiral drill | |
Dumping hopper side | Dumping hopper side |

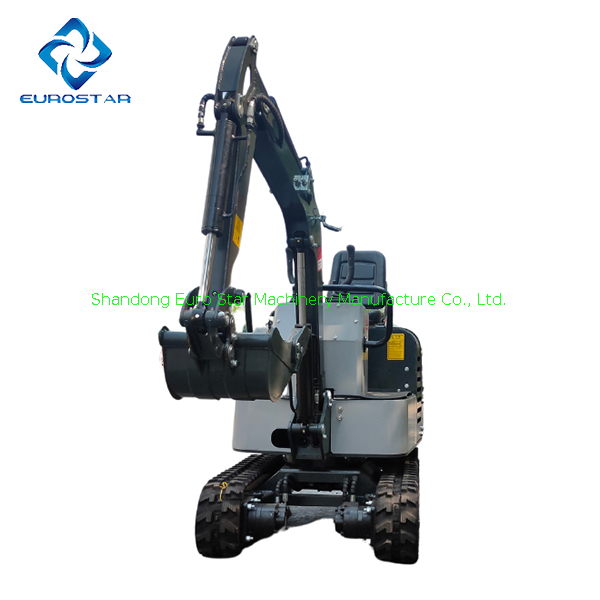

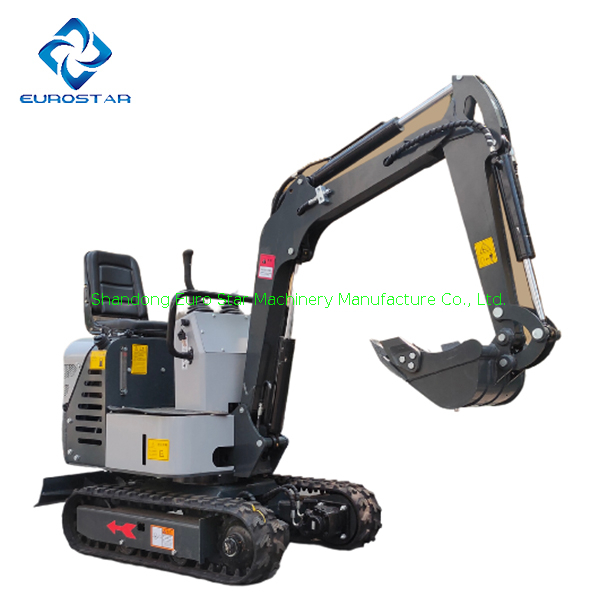

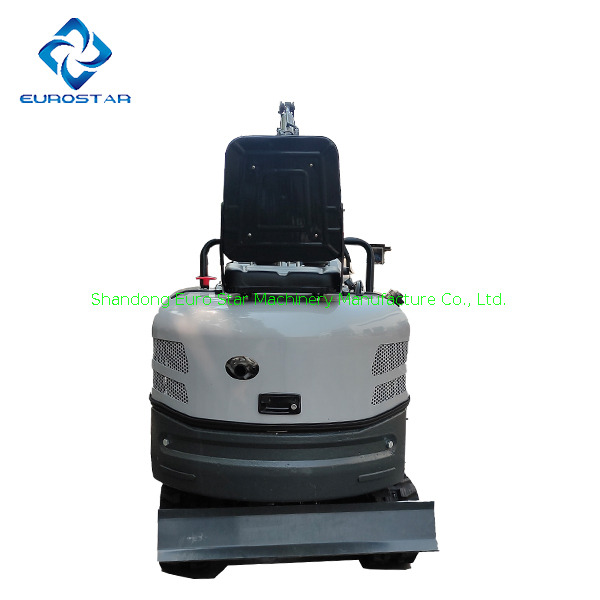

EX8010 mini excavator details picture display:
Mini excavator can be equipped with auxiliary tools:
EX1800 series metal crawler small excavator product technical parameters
Model | EX1800K | EX1800Y | |
Size parameters | Total Weight | 1810 kg | 1810kg |
Standard bucket capacity | 0.04 m³ | 0.04 m³ | |
Full length during transportation | 3608 mm | 3608 mm | |
Full width during transportation | 990 mm | 990 mm | |
Full height during transportation | 2375 mm | 2375 mm | |
Minimum ground clearance | 150 mm | 150 mm | |
Gauge | 760 mm | 760 mm | |
Wheelbase | 1230 mm | 1230 mm | |
Total track length | 1585 mm | 1585 mm | |
Track shoe width | 230 mm | 230 mm | |
Support wheel | 3 Unit | 3 Unit | |
Front radius of gyration | 1490 mm | 1490 mm | |
Radius of tail gyration | 640 mm | 640 mm | |
Job parameters | Maximum digging radius | 3849 mm | 3849 mm |
Maximum digging depth | 1911 mm | 1911 mm | |
Maximum digging height | 3540 mm | 3540 mm | |
Maximum unloading height | 2243 mm | 2243 mm | |
Tank | Fuel tank volume | 19 L | 19 L |
Total hydraulic oil of hydraulic system | 21 L | 21 L | |
Hydraulic oil tank volume | 13 L | 13 L | |
Engine oil capacity | 2.5 L | 2.5L | |
Engine | Engine model | Kubota D902-E4B-CBH-1 | YANMAR 3TNV70 |
4-stroke | Yes | Yes | |
Emission Standards | EPA4, Euro V | G3 | |
Water cooling | Yes | Yes | |
Number of cylinders | 3 | 3 | |
Engine rated power | 12KW/2200rpm | 12KW/2200rpm | |
Maximum torque/speed | 48NM/1600rpm | 48NM/1600rpm | |
Displacement | 0.854 L | 0.854 L | |
Main performance parameters | Walking speed | 3.9 km/h | 3.9 km/h |
Swing speed | 10 r/min | 10 r/min | |
Gradeability | 30° | 30° | |
Ground pressure | 28.5 kpa | 28.5 kpa | |
Bucket digging force | 8.5 KN | 8.5 KN | |
Bucket rod digging force | 15.2 KN | 15.2 KN | |
main traction force | 13.5 KN | 13.5 KN | |
Hydraulic system | Rated flow of main pump | 2*17.2+10.8 L/min | 2*17.2+10.8 L/min |
Work pressure | 21.6+18.6 MPa | 21.6+18.6 MPa | |
Walking system pressure | 24 MPa | 24 MPa | |
Rotary system pressure | 11 MPa | 11 MPa | |
Pilot system pressure | 3.9 MPa | 3.9 MPa | |
Standard configuration | Boom length | 1830 mm | 1830 mm |
Length of bucket rod | 950 mm | 950 mm | |
Bucket capacity | 0.04 m³ | 0.04 m³ | |
Optional | Length of bucket rod | 1120 mm | 1120 mm |
Bucket capacity | 0.02 m³ | 0.02 m³ |
EX1800 series metal crawler small excavator product display
EX1800 series metal crawler small excavator product display
Other construction machinery products:
Construction machinery products packaging and shipping display
EX8010 mini excavator details picture display:
Mini excavator can be equipped with auxiliary tools:
EX1800 series metal crawler small excavator product technical parameters
Model | EX1800K | EX1800Y | |
Size parameters | Total Weight | 1810 kg | 1810kg |
Standard bucket capacity | 0.04 m³ | 0.04 m³ | |
Full length during transportation | 3608 mm | 3608 mm | |
Full width during transportation | 990 mm | 990 mm | |
Full height during transportation | 2375 mm | 2375 mm | |
Minimum ground clearance | 150 mm | 150 mm | |
Gauge | 760 mm | 760 mm | |
Wheelbase | 1230 mm | 1230 mm | |
Total track length | 1585 mm | 1585 mm | |
Track shoe width | 230 mm | 230 mm | |
Support wheel | 3 Unit | 3 Unit | |
Front radius of gyration | 1490 mm | 1490 mm | |
Radius of tail gyration | 640 mm | 640 mm | |
Job parameters | Maximum digging radius | 3849 mm | 3849 mm |
Maximum digging depth | 1911 mm | 1911 mm | |
Maximum digging height | 3540 mm | 3540 mm | |
Maximum unloading height | 2243 mm | 2243 mm | |
Tank | Fuel tank volume | 19 L | 19 L |
Total hydraulic oil of hydraulic system | 21 L | 21 L | |
Hydraulic oil tank volume | 13 L | 13 L | |
Engine oil capacity | 2.5 L | 2.5L | |
Engine | Engine model | Kubota D902-E4B-CBH-1 | YANMAR 3TNV70 |
4-stroke | Yes | Yes | |
Emission Standards | EPA4, Euro V | G3 | |
Water cooling | Yes | Yes | |
Number of cylinders | 3 | 3 | |
Engine rated power | 12KW/2200rpm | 12KW/2200rpm | |
Maximum torque/speed | 48NM/1600rpm | 48NM/1600rpm | |
Displacement | 0.854 L | 0.854 L | |
Main performance parameters | Walking speed | 3.9 km/h | 3.9 km/h |
Swing speed | 10 r/min | 10 r/min | |
Gradeability | 30° | 30° | |
Ground pressure | 28.5 kpa | 28.5 kpa | |
Bucket digging force | 8.5 KN | 8.5 KN | |
Bucket rod digging force | 15.2 KN | 15.2 KN | |
main traction force | 13.5 KN | 13.5 KN | |
Hydraulic system | Rated flow of main pump | 2*17.2+10.8 L/min | 2*17.2+10.8 L/min |
Work pressure | 21.6+18.6 MPa | 21.6+18.6 MPa | |
Walking system pressure | 24 MPa | 24 MPa | |
Rotary system pressure | 11 MPa | 11 MPa | |
Pilot system pressure | 3.9 MPa | 3.9 MPa | |
Standard configuration | Boom length | 1830 mm | 1830 mm |
Length of bucket rod | 950 mm | 950 mm | |
Bucket capacity | 0.04 m³ | 0.04 m³ | |
Optional | Length of bucket rod | 1120 mm | 1120 mm |
Bucket capacity | 0.02 m³ | 0.02 m³ |
EX1800 series metal crawler small excavator product display
EX1800 series metal crawler small excavator product display
Other construction machinery products:
Construction machinery products packaging and shipping display
Our company produces other agricultural machinery display
Our company produces other agricultural machinery display
Factory introduction:
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Factory and production equipment display:
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 6-9 units can be in a 20ft container, 13-19 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
Factory introduction:
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Factory and production equipment display:
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 6-9 units can be in a 20ft container, 13-19 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
