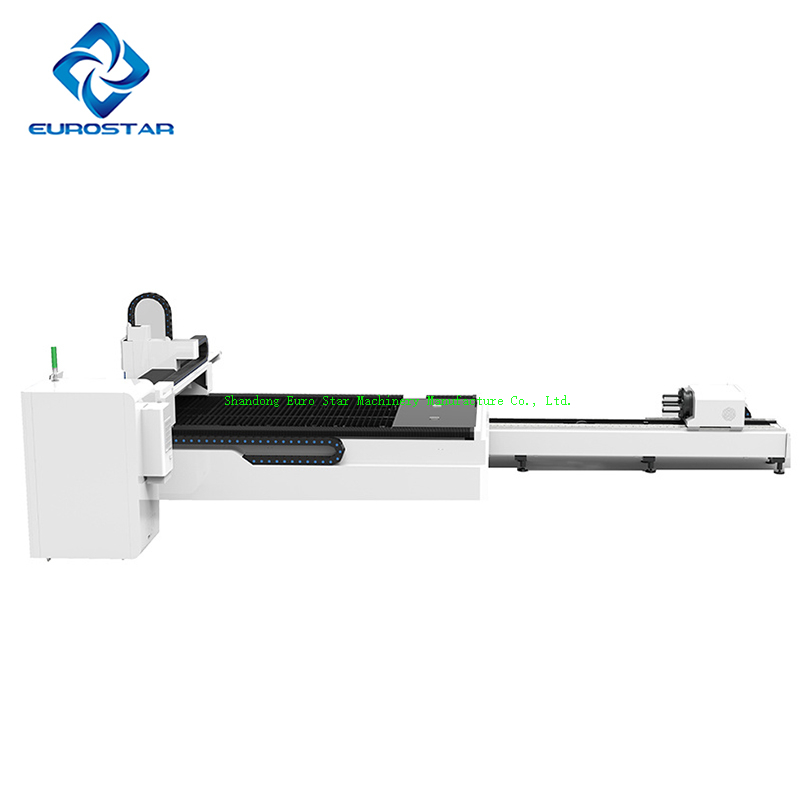

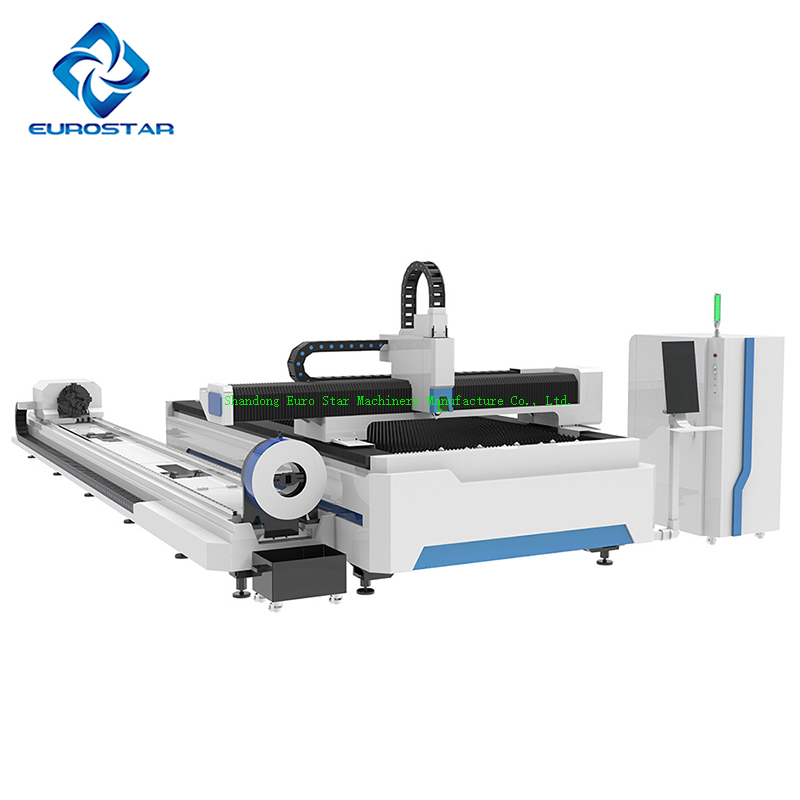

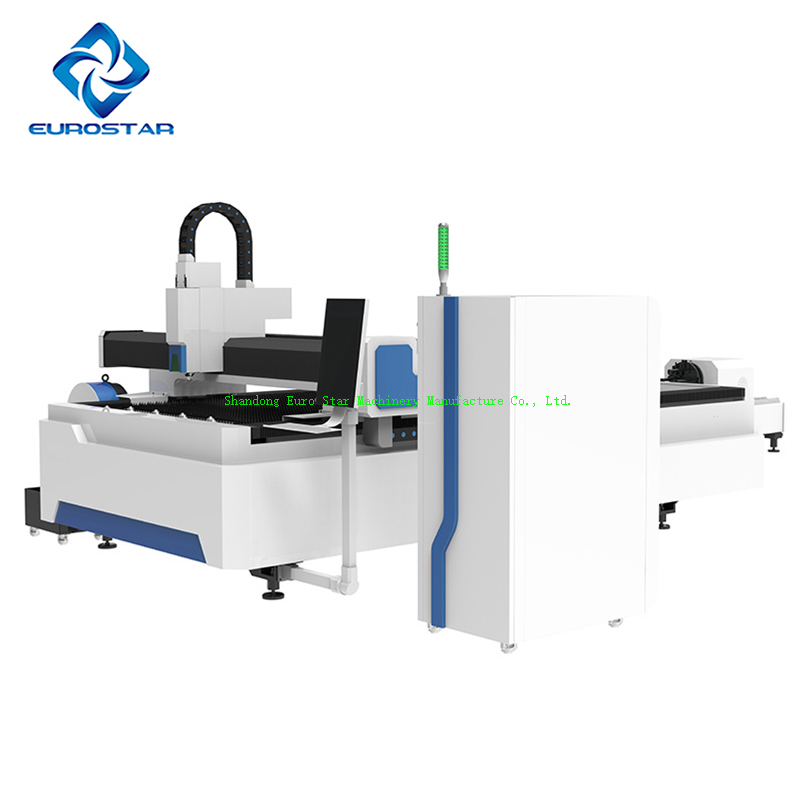

GF-T Laser Cutting Equipment

Fiber Fiber Laser Cutter Product Advantage:
Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.
Functions:
1) Auxiliary feeding mechansism
2) Intelligent travel protection
3) Automatic lubrication
4) Global real-time feedback
5) A new generation of safety following module
6) Intelligent alarm system
7) Auxiliary gas low pressure alarm fuction
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
GF-T Laser Cutting Equipment
GF-T Laser Cutting Equipment
GF-T Laser Cutting Equipment
GF-T Laser Cutting Equipment
GF-T Laser Cutting Equipment
GF-T Laser Cutting Equipment
  • GF3015T GF4020T GF6015T GF6020T

  • GRS or OEM

  • 8456110090

GF-T Fiber Laser Cutter


Fiber Laser Cutting Machine Product Advantage:

Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.

Functions:

1) Auxiliary feeding mechansism

2) Intelligent travel protection

3) Automatic lubrication

4) Global real-time feedback

5) A new generation of safety following module

6) Intelligent alarm system

7) Auxiliary gas low pressure alarm fuction

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.


Parameter&configration List:

Parameter & configration List
ItemSubitemGF6020TGF4020TGF3015T
Basic parameterWorking area6100mm*2000mm4000mm*2000mm3000mm*1524mm
Table load bearing2400kg1600kg900kg
Machine overall dimensionsF-T3:7900*4000*2000mm
F-T6:8400*4000*2000mm
F-T3:5600*4000*2000mm
F-T6:8400*4000*2000mm
F-T3:5200*3300*2000mm
F-T6:8400*3300*2000mm
Machine weightF-T3:10400kg
F-T6:11000kg
F-T3:7500kg
F-T6:8100kg
F-T3:6400kg
F-T6:7000kg
Z axis travel120mm120mm120mm
Fastest exchange time of platformsNo configuration requiredNo configuration requiredNo configuration required
Operation parameterMax. linkage speed100m/min100m/min140m/min
Max. acceleration1G1G1G
Positioning accuracy0.05mm0.05mm0.03mm
Repositioning accuracy0.03mm0.03mm0.02mm
processing precision
(1mm Original box carbon steel plate)
Φ30mm roundness≤0.1mm≤0.1mm≤0.1mm
30mm adjacent side dimension difference≤0.04mm≤0.04mm≤0.04mm
190mm adjacent side dimension difference≤0.06mm≤0.06mm≤0.06mm
190mm diagonal size difference≤0.07mm≤0.07mm≤0.07mm
Processing precision
(38mm stainless steel square tube)
Φ20mm roundness≤0.15mm≤0.15mm≤0.15mm
20mm square diagonal size difference≤0.20mm≤0.20mm≤0.20mm
20mm square position size difference≤0.20mm(3m)
≤0.50mm(6m)
≤0.20mm(3m)
≤0.50mm(6m)
≤0.20mm(3m)
≤0.50mm(6m)
Optical systemLaser sourceMAX/IPGMAX/IPGMAX/IPG
laser headRaytoolsRaytoolsRaytools
Automatic focusing function of laser headstandard configurationstandard configurationstandard configuration
Multi-stage perforation Technologystandard configurationstandard configurationstandard configuration
smooth cutting technologystandard configurationstandard configurationstandard configuration
Anti-slag protection function of double cyclonesstandard configurationstandard configurationstandard configuration
Mechanical systemmachine bedCast iron bedCast iron bedCast iron bed
X-axis,Y-axis,Z-axis,U-axis,W-axis
Servo motor and driver
Japan YaskawaJapan YaskawaJapan Yaskawa
SlidewayMade in TaiwanMade in TaiwanMade in Taiwan
RackMade in TaiwanMade in TaiwanMade in Taiwan
Closed protection enclosureNo configuration requiredNo configuration requiredNo configuration required
Automatic lubrication functionstandard configurationstandard configurationstandard configuration
Countertop locking functionNo configuration requiredNo configuration requiredNo configuration required
Intelligent control system

Control systemCypcutCypcutCypcut
Display size21.5 inches21.5 inches21.5 inches
WIFI wireless controlstandard configurationstandard configurationstandard configuration
Process monitoringNo configuration requiredNo configuration requiredNo configuration required
Active obstacle avoidance functionstandard configurationstandard configurationstandard configuration
Laser cutting technology databasestandard configurationstandard configurationstandard configuration
Auxiliary gas low pressure alarm functionstandard configurationstandard configurationstandard configuration
Cutting gas automatic pressure regulation functionO2O2O2
BreakerFrance Schneid eFrance Schneid eFrance Schneid e
RelayFrance Schneid eFrance Schneid eFrance Schneid e
Electrical proportional valveGermany AVENTICSGermany AVENTICSGermany AVENTICS
O2 Cutting gas control valveGermany AVENTICSGermany AVENTICSGermany AVENTICS
N2 Cutting gas control valveGermany AVENTICSGermany AVENTICSGermany AVENTICS
Plate cutting part system identification file formatG file,DXF,DWG,PLT,ENGG file,DXF,DWG,PLT,ENGG file,DXF,DWG,PLT,ENG
Part of pipe cutting system identification file formatIGSIGSIGS
Tube processing parameterTube size rangeRound tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤225mm
Round tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤226mm
Round tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤227mm
Requirements for tubes Diameter<φ50mm
Wall thickness of tubes≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Diameter<φ50mm
Wall thickness of tubes≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Diameter<φ50mm
Wall thickness of tubes≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Max. length of tubeF-T3/6 tube maximum length 3m and 6mF-T3/6 tube maximum length 3m and 6mF-T3/6 tube maximum length 3m and 6m
Cutting function of angle steel and channel steelstandard configurationstandard configurationstandard configuration
Min. tube material surplus250mm250mm250mm
Chuck drive typespneumatic chuckpneumatic chuckpneumatic chuck
Electric chuck maximum load100kg  16kg/m100kg  16kg/m100kg  16kg/m
W axis rotation angleUnlimited n*360Unlimited n*360Unlimited n*360
Max. rotational speed of W axis75RPM75RPM75RPM
F-T3U axis positioning accuracy0.03mm0.03mm0.03mm
F-T3U axis repositioning accuracy0.02mm0.02mm0.02mm
F-T6U axis positioning accuracy0.05mm0.05mm0.05mm
F-T6U axis repositioning accuracy0.03mm0.03mm0.03mm
U axis maximum moving speed30m/min30m/min30m/min
Safety protection systemLarge Enclosure Open Door ProtectionNo configuration requiredNo configuration requiredNo configuration required
Laser abnormal alarmstandard configurationstandard configurationstandard configuration
Cutting abnormal alarmstandard configurationstandard configurationstandard configuration
Gas low pressure alarmstandard configurationstandard configurationstandard configuration
Water cooler abnormal alarmstandard configurationstandard configurationstandard configuration
 Laser protective glassesstandard configurationstandard configurationstandard configuration
Peripheral systemWater coolerstandard configurationstandard configurationstandard configuration
Dust removalCentrifugal fanCentrifugal fanCentrifugal fan
Other parameter configurationTotal power/current with 6KW source38.9KW/92.4ANo configuration requiredNo configuration required
Total power/current with 3KW source26KW/61A26KW/61A22KW/52.3A
Total power/current with 2KW source22.3KW/53A22.3KW/53A18.3KW/43.5A
Total power/current with 1.5KW source20.3KW/48A20.3KW/48A16.3KW/38.7A
Total power/current with 1KW source19KW/45A19KW/45A15KW/35.9A

laser fume filter(Made in China)1plantforms1plantforms1plantforms
laser fume filter(America Donaldson)DFOE6-1plantformsDFOE6-1plantformsDFOE4-1plantforms
 security light curtains
Generally, 1 set, large equipment or have special requirements, and other non-standard.(CE and ETL certification standard)
optional configurationoptional configurationoptional configuration
 electron microscopeoptional configurationoptional configurationoptional configuration
Pin-lift auxiliary loading module
It is used for auxiliary loading of the backboard and can be equipped with 1 set for each equipment.
No configuration requiredNo configuration requiredNo configuration required
Integrated compressed air systemoptional configurationoptional configurationoptional configuration
Voltage regulatoroptional configuration
optional configuration
Laser case plus air conditioner
Generally no air conditioning is required, and it is optional in the tropics.
optional configurationoptional configurationoptional configuration
6KW Equipped with Gemany Precitec Laser Headoptional configurationNo configuration requiredNo configuration required
Compliance with CE or North American Standards
They have TUV CE certificate and ETL North American certificate respectively. They are only applicable overseas.
No configuration requiredNo configuration requiredNo configuration required
Blanking support (Pipe)optional configurationoptional configurationoptional configuration

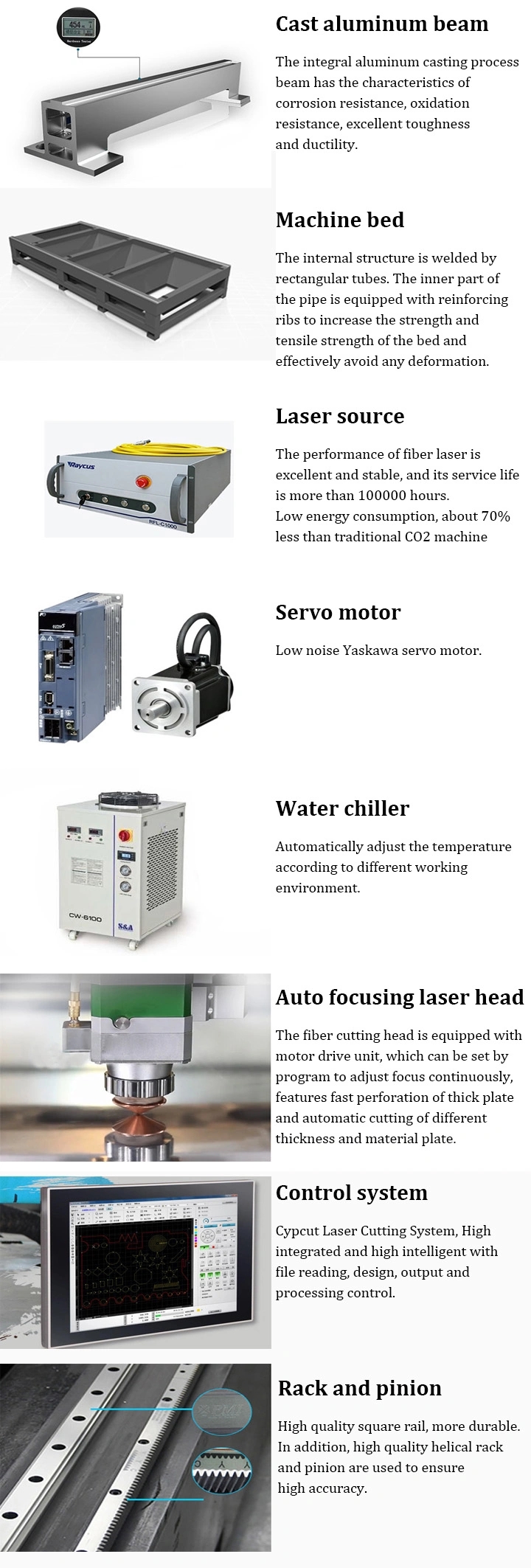

Fiber Laser Cutting Machine display

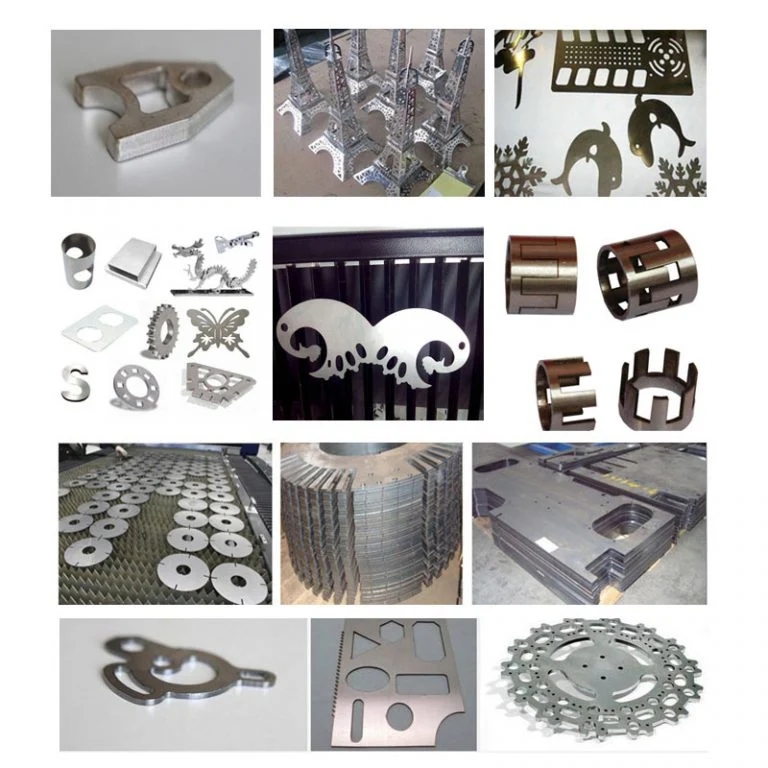

Nobot-NF3015A-1kw-1-5kw-2kw-3kw-Aluminum-Copper-Carbon-Steel-Stainless-Steel-Sheet-Fiber-Laser-Cutter.webp

Application:

GRS fiber laser cutting machines are widely used in manufacturing Billboard, Advertising,Signs,Signage,Metal Letters,LED Letters,Kitchen Ware,Advertising Letters, Sheet Metal Processing,Metals Components and Parts,Ironware,Chassis,Racks & Cabinets Processing,Metal Crafts,Metal Art Ware,Elevator Panel Cutting,Hardware, Auto Parts,Glasses Frame,Electronic Parts,Nameplates,etc.

Nobot-NF3015A-1kw-1-5kw-2kw-3kw-Aluminum-Copper-Carbon-Steel-Stainless-Steel-Sheet-Fiber-Laser-Cutter.webp (1)

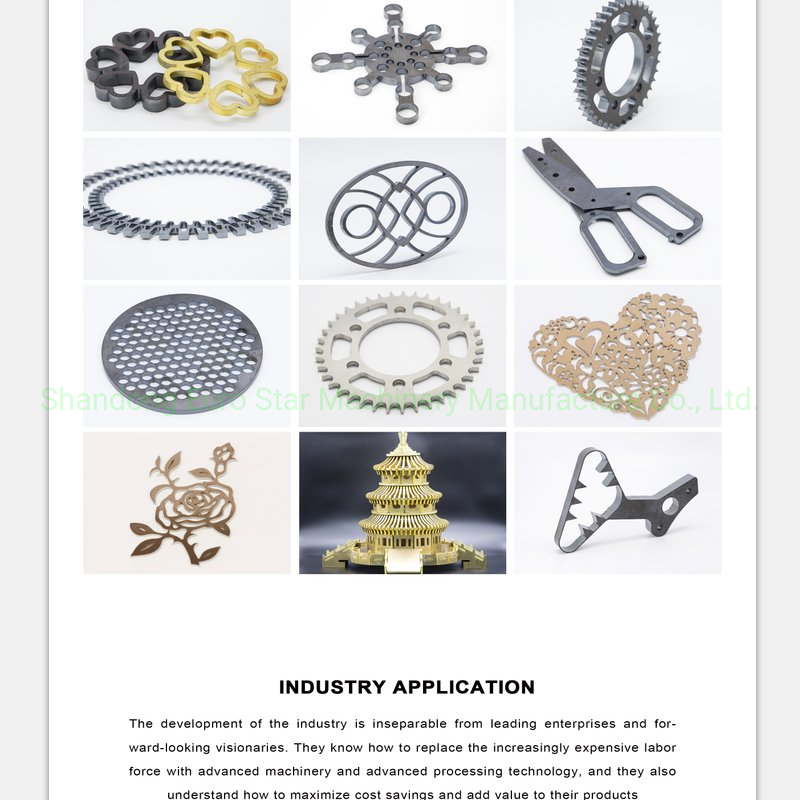

downLoadImg (2)
