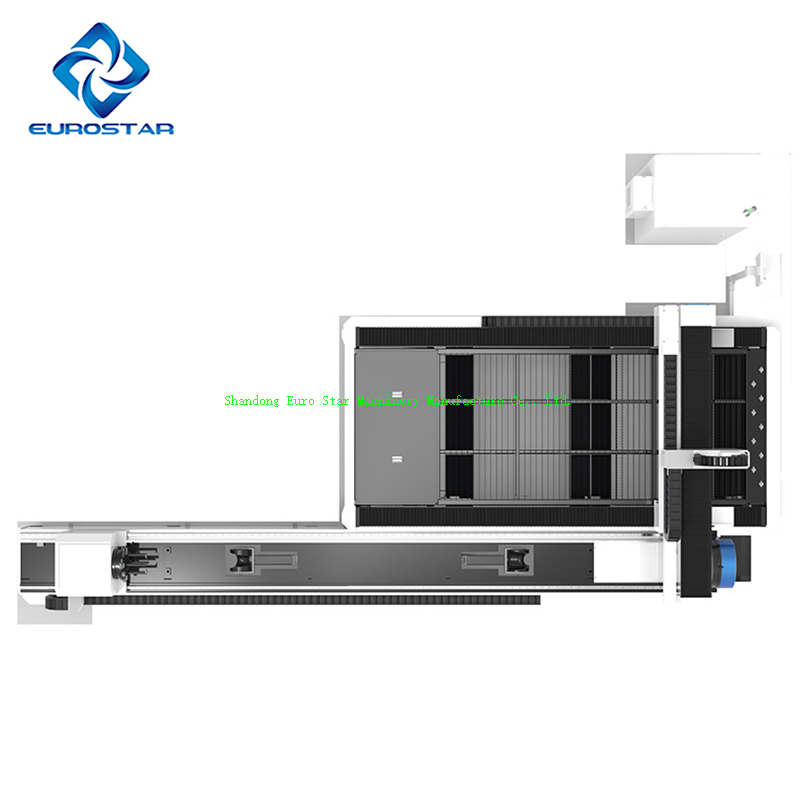

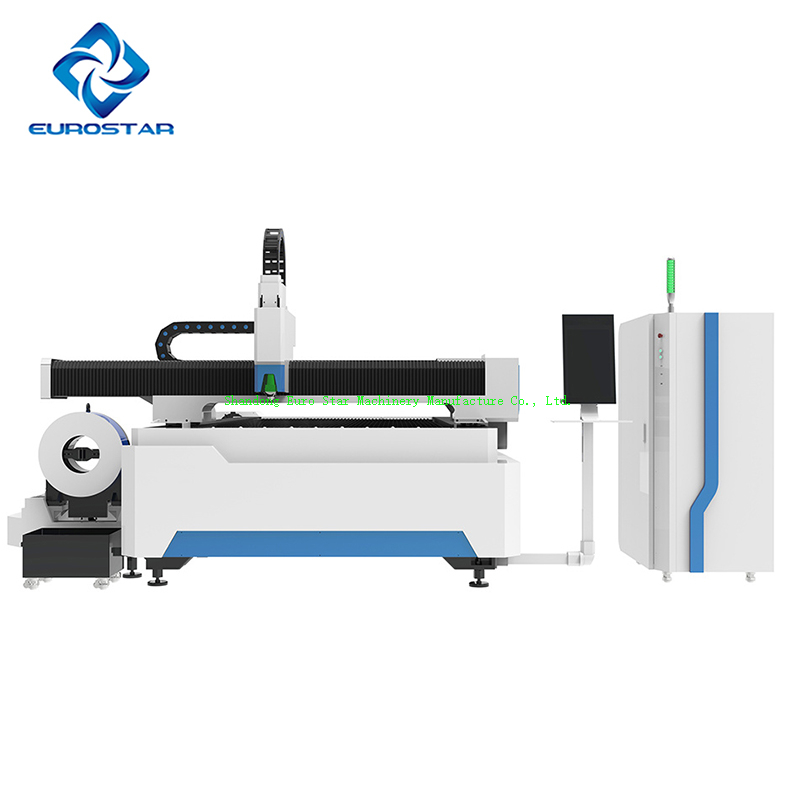

GF-T CNC Metal Laser Cutter

Fiber Fiber Laser Cutter Product Advantage:
Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.
Functions:
1) Auxiliary feeding mechansism
2) Intelligent travel protection
3) Automatic lubrication
4) Global real-time feedback
5) A new generation of safety following module
6) Intelligent alarm system
7) Auxiliary gas low pressure alarm fuction
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
  • GF3015T GF4020T GF6015T GF6020T
  • GRS or OEM
  • 8456110090

GF-T Fiber Laser Cutter


Fiber Laser Cutting Machine Product Advantage:

Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.

Functions:

1) Auxiliary feeding mechansism

2) Intelligent travel protection

3) Automatic lubrication

4) Global real-time feedback

5) A new generation of safety following module

6) Intelligent alarm system

7) Auxiliary gas low pressure alarm fuction

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.


Parameter&configration List:

Parameter & configration List
ItemSubitemGF6020TGF4020TGF3015T
Basic parameterWorking area6100mm*2000mm4000mm*2000mm3000mm*1524mm
Table load bearing2400kg1600kg900kg
Machine overall dimensionsF-T3:7900*4000*2000mm
F-T6:8400*4000*2000mm
F-T3:5600*4000*2000mm
F-T6:8400*4000*2000mm
F-T3:5200*3300*2000mm
F-T6:8400*3300*2000mm
Machine weightF-T3:10400kg
F-T6:11000kg
F-T3:7500kg
F-T6:8100kg
F-T3:6400kg
F-T6:7000kg
Z axis travel120mm120mm120mm
Fastest exchange time of platformsNo configuration requiredNo configuration requiredNo configuration required
Operation parameterMax. linkage speed100m/min100m/min140m/min
Max. acceleration1G1G1G
Positioning accuracy0.05mm0.05mm0.03mm
Repositioning accuracy0.03mm0.03mm0.02mm
processing precision
(1mm Original box carbon steel plate)
Φ30mm roundness≤0.1mm≤0.1mm≤0.1mm
30mm adjacent side dimension difference≤0.04mm≤0.04mm≤0.04mm
190mm adjacent side dimension difference≤0.06mm≤0.06mm≤0.06mm
190mm diagonal size difference≤0.07mm≤0.07mm≤0.07mm
Processing precision
(38mm stainless steel square tube)
Φ20mm roundness≤0.15mm≤0.15mm≤0.15mm
20mm square diagonal size difference≤0.20mm≤0.20mm≤0.20mm
20mm square position size difference≤0.20mm(3m)
≤0.50mm(6m)
≤0.20mm(3m)
≤0.50mm(6m)
≤0.20mm(3m)
≤0.50mm(6m)
Optical systemLaser sourceMAX/IPGMAX/IPGMAX/IPG
laser headRaytoolsRaytoolsRaytools
Automatic focusing function of laser headstandard configurationstandard configurationstandard configuration
Multi-stage perforation Technologystandard configurationstandard configurationstandard configuration
smooth cutting technologystandard configurationstandard configurationstandard configuration
Anti-slag protection function of double cyclonesstandard configurationstandard configurationstandard configuration
Mechanical systemmachine bedCast iron bedCast iron bedCast iron bed
X-axis,Y-axis,Z-axis,U-axis,W-axis
Servo motor and driver
Japan YaskawaJapan YaskawaJapan Yaskawa
SlidewayMade in TaiwanMade in TaiwanMade in Taiwan
RackMade in TaiwanMade in TaiwanMade in Taiwan
Closed protection enclosureNo configuration requiredNo configuration requiredNo configuration required
Automatic lubrication functionstandard configurationstandard configurationstandard configuration
Countertop locking functionNo configuration requiredNo configuration requiredNo configuration required
Intelligent control system

Control systemCypcutCypcutCypcut
Display size21.5 inches21.5 inches21.5 inches
WIFI wireless controlstandard configurationstandard configurationstandard configuration
Process monitoringNo configuration requiredNo configuration requiredNo configuration required
Active obstacle avoidance functionstandard configurationstandard configurationstandard configuration
Laser cutting technology databasestandard configurationstandard configurationstandard configuration
Auxiliary gas low pressure alarm functionstandard configurationstandard configurationstandard configuration
Cutting gas automatic pressure regulation functionO2O2O2
BreakerFrance Schneid eFrance Schneid eFrance Schneid e
RelayFrance Schneid eFrance Schneid eFrance Schneid e
Electrical proportional valveGermany AVENTICSGermany AVENTICSGermany AVENTICS
O2 Cutting gas control valveGermany AVENTICSGermany AVENTICSGermany AVENTICS
N2 Cutting gas control valveGermany AVENTICSGermany AVENTICSGermany AVENTICS
Plate cutting part system identification file formatG file,DXF,DWG,PLT,ENGG file,DXF,DWG,PLT,ENGG file,DXF,DWG,PLT,ENG
Part of pipe cutting system identification file formatIGSIGSIGS
Tube processing parameterTube size rangeRound tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤225mm
Round tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤226mm
Round tube    Φ20-Φ220mm
Square tube   20 - 150mm
Rectangular tube:
150mm≥Side length≥20mm,
Circumscribed circle diameter≤227mm
Requirements for tubes Diameter<φ50mm
Wall thickness of tubes≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Diameter<φ50mm
Wall thickness of tubes≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Diameter<φ50mm
Wall thickness of tubes≥1.2mm;
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Max. length of tubeF-T3/6 tube maximum length 3m and 6mF-T3/6 tube maximum length 3m and 6mF-T3/6 tube maximum length 3m and 6m
Cutting function of angle steel and channel steelstandard configurationstandard configurationstandard configuration
Min. tube material surplus250mm250mm250mm
Chuck drive typespneumatic chuckpneumatic chuckpneumatic chuck
Electric chuck maximum load100kg  16kg/m100kg  16kg/m100kg  16kg/m
W axis rotation angleUnlimited n*360Unlimited n*360Unlimited n*360
Max. rotational speed of W axis75RPM75RPM75RPM
F-T3U axis positioning accuracy0.03mm0.03mm0.03mm
F-T3U axis repositioning accuracy0.02mm0.02mm0.02mm
F-T6U axis positioning accuracy0.05mm0.05mm0.05mm
F-T6U axis repositioning accuracy0.03mm0.03mm0.03mm
U axis maximum moving speed30m/min30m/min30m/min
Safety protection systemLarge Enclosure Open Door ProtectionNo configuration requiredNo configuration requiredNo configuration required
Laser abnormal alarmstandard configurationstandard configurationstandard configuration
Cutting abnormal alarmstandard configurationstandard configurationstandard configuration
Gas low pressure alarmstandard configurationstandard configurationstandard configuration
Water cooler abnormal alarmstandard configurationstandard configurationstandard configuration
 Laser protective glassesstandard configurationstandard configurationstandard configuration
Peripheral systemWater coolerstandard configurationstandard configurationstandard configuration
Dust removalCentrifugal fanCentrifugal fanCentrifugal fan
Other parameter configurationTotal power/current with 6KW source38.9KW/92.4ANo configuration requiredNo configuration required
Total power/current with 3KW source26KW/61A26KW/61A22KW/52.3A
Total power/current with 2KW source22.3KW/53A22.3KW/53A18.3KW/43.5A
Total power/current with 1.5KW source20.3KW/48A20.3KW/48A16.3KW/38.7A
Total power/current with 1KW source19KW/45A19KW/45A15KW/35.9A

laser fume filter(Made in China)1plantforms1plantforms1plantforms
laser fume filter(America Donaldson)DFOE6-1plantformsDFOE6-1plantformsDFOE4-1plantforms
 security light curtains
Generally, 1 set, large equipment or have special requirements, and other non-standard.(CE and ETL certification standard)
optional configurationoptional configurationoptional configuration
 electron microscopeoptional configurationoptional configurationoptional configuration
Pin-lift auxiliary loading module
It is used for auxiliary loading of the backboard and can be equipped with 1 set for each equipment.
No configuration requiredNo configuration requiredNo configuration required
Integrated compressed air systemoptional configurationoptional configurationoptional configuration
Voltage regulatoroptional configuration
optional configuration
Laser case plus air conditioner
Generally no air conditioning is required, and it is optional in the tropics.
optional configurationoptional configurationoptional configuration
6KW Equipped with Gemany Precitec Laser Headoptional configurationNo configuration requiredNo configuration required
Compliance with CE or North American Standards
They have TUV CE certificate and ETL North American certificate respectively. They are only applicable overseas.
No configuration requiredNo configuration requiredNo configuration required
Blanking support (Pipe)optional configurationoptional configurationoptional configuration


Fiber Laser Cutting Machine display

Nobot-NF3015A-1kw-1-5kw-2kw-3kw-Aluminum-Copper-Carbon-Steel-Stainless-Steel-Sheet-Fiber-Laser-Cutter.webp

Application:

GRS fiber laser cutting machines are widely used in manufacturing Billboard, Advertising,Signs,Signage,Metal Letters,LED Letters,Kitchen Ware,Advertising Letters, Sheet Metal Processing,Metals Components and Parts,Ironware,Chassis,Racks & Cabinets Processing,Metal Crafts,Metal Art Ware,Elevator Panel Cutting,Hardware, Auto Parts,Glasses Frame,Electronic Parts,Nameplates,etc.

Nobot-NF3015A-1kw-1-5kw-2kw-3kw-Aluminum-Copper-Carbon-Steel-Stainless-Steel-Sheet-Fiber-Laser-Cutter.webp (1)

downLoadImg (2)


Production flow chart

Production flow chart

Production flow chart-2

Certification



certification

Activity Customer

Activity Customer

Packaging details

packing details

Factory introduction

GLORIOUS ,AKA, "GRS", represents the ultimate pursuit of Gorgeous Reliable and Smart. GLORIOUS Laser is a high-tech enterprise specializing in the R&D, manufacturing and marketing of intelligent laser equipment. GLORIOUS laser, driven by technology source power, adheres to the innovation development strategy; attach importance to talent cultivation so as to provide advanced technology and reliable products.GLORIOUS has obtained more than 100 R & D patents including Reddot Award and IF Award, GLORIOUS owns 208 professional R & D personnel and a production base covering an area of 100,000 square meters, and strictly executes the product quality control process. With "advanced technology and reliable products", GLORIOUS laser brings long-term and stable benefits to customers.
P4: Company Tenet - Fast Fast" is one of our business tenets. GLORIOUS will respond positively to and meet customers' needs immediately, and dedicated to solve problems for customers with enough patience as soon as possible.


Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.


1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified


2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;


4) Technical Support
The whole process Technology support covers on sale and after-sale service.

Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for lon
g terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:

Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
