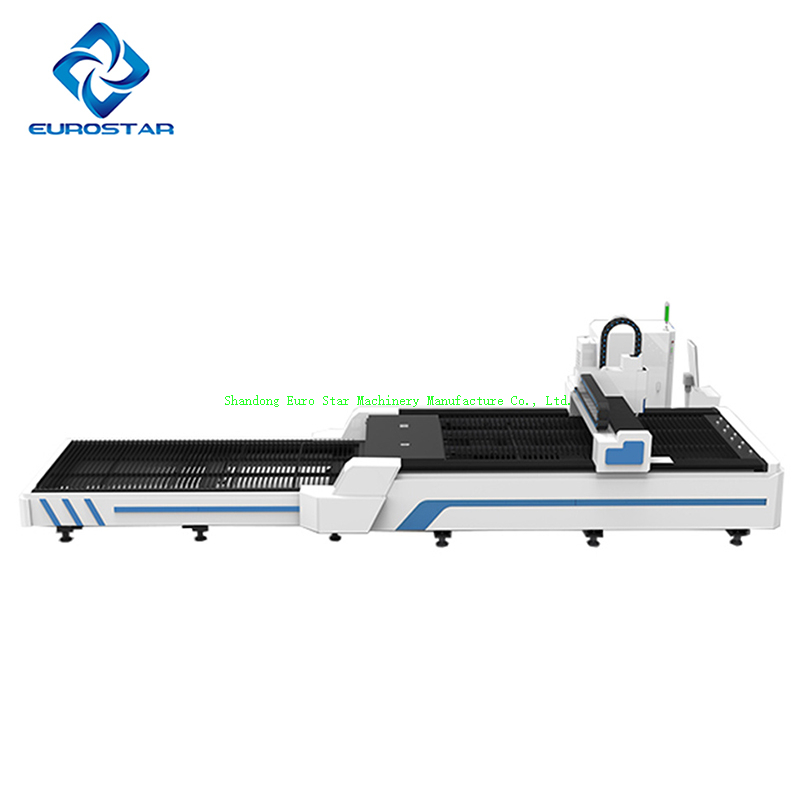

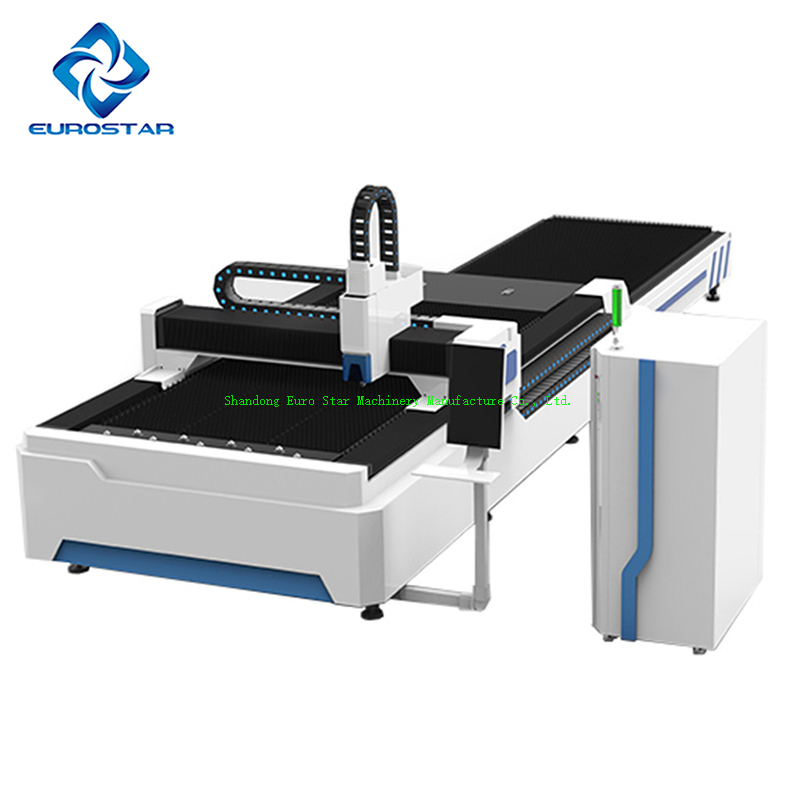

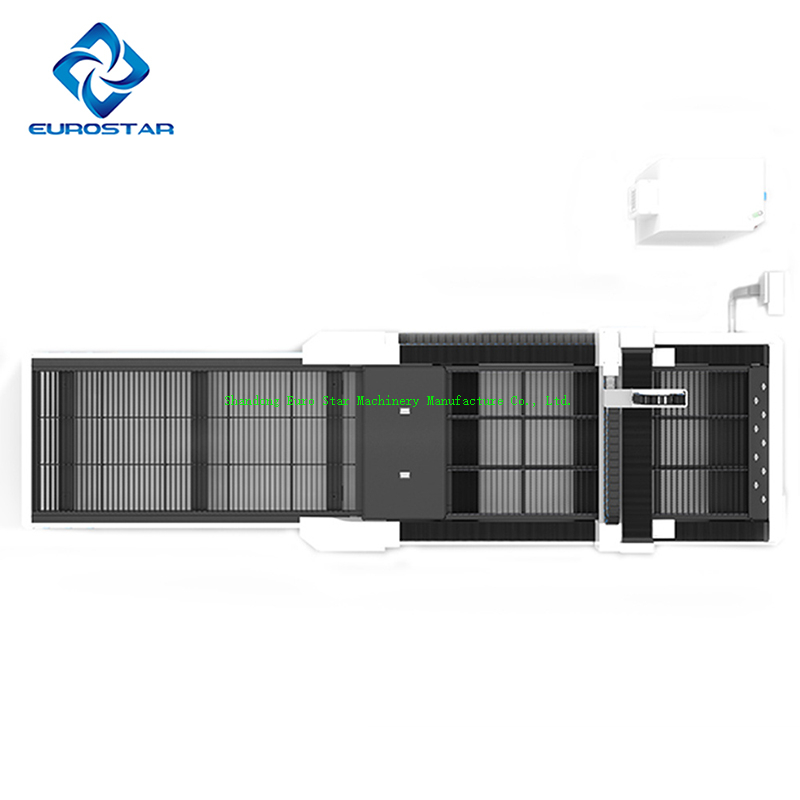

GE CNC Metal Laser Cutter

GE CNC Metal Laser Cutter
Fiber Laser Cutting Machine Product Advantage:
Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.
Functions:
1) Auxiliary feeding mechansism
2) Intelligent travel protection
3) Automatic lubrication
4) Global real-time feedback
5) A new generation of safety following module
6) Intelligent alarm system
7) Auxiliary gas low pressure alarm fuction
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
  • GE3015 GE4020 GE6015 GE6020 GE6025 GE8025
  • GRS or OEM
  • 8456110090

GE CNC Metal Laser Cutter


Fiber Laser Cutting Machine Product Advantage:

Glorious Laser provides different series of products in order to satisfy customers' comprehensive needs. In Glorious Laser, there are totally 9 types of products with different functions from 1000 watts to 15000 watts to satisfy customers' various needs in metal cutting under different types, shapes, sizes and maximum thicknesses.

Functions:

1) Auxiliary feeding mechansism

2) Intelligent travel protection

3) Automatic lubrication

4) Global real-time feedback

5) A new generation of safety following module

6) Intelligent alarm system

7) Auxiliary gas low pressure alarm fuction

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia


Parameter&configration List:

Parameter & configration List
ItemSubitemGE8025GE6025GE6020GE4020GE3015
Basic parameterWorking area8100mm*2500mm6100mm*2500mm6100mm*2000mm4000mm*2000mm3000mm*1500mm
Table load bearing6000kg2950kg2400kg1600kg900kg
Machine overall dimensions19500*3600*2200mm15300*3600*2200mm15100*3000*2000mm10200*3100*2000mm9350*2300*2000mm
Machine weight21000kg18000kg16000Kg10000kg5700kg
Z axis travel120mm315mm315mm315mm315mm
Fastest exchange time of platforms60s30s30s10s10s
Operation parameterMax. linkage speed140m/min140m/min140m/min140m/min140m/min
Max. acceleration1.5G1.5G1.5G1.5G1.5G
Positioning accuracy0.05mm0.05mm0.05mm0.05mm0.03mm
Repositioning accuracy0.03mm0.03mm0.03mm0.03mm0.02mm
processing precision
(1mm Original box carbon steel plate)
Φ30mm roundness≤0.1mm≤0.1mm≤0.1mm≤0.1mm≤0.1mm
30mm adjacent side dimension difference≤0.04mm≤0.04mm≤0.04mm≤0.04mm≤0.04mm
190mm adjacent side dimension difference≤0.06mm≤0.06mm≤0.06mm≤0.06mm≤0.06mm
190mm diagonal size difference≤0.07mm≤0.07mm≤0.07mm≤0.07mm≤0.07mm
Optical systemLaser sourceMAX/IPG
Raycus/GW
MAX/IPG
Raycus/GW
MAX/IPG
Raycus/GW
MAX/IPG
Raycus/GW
MAX/IPG
Raycus/GW
laser head6KW:WSX/Raytools/Hsns
6KW  above:Gemany Precitec
6KW:WSX/Raytools/Hsns
6KW  above:Gemany Precitec
6KW:WSX/Raytools/Hsns
6KW  above:Gemany Precitec
6KW:WSX/Raytools/Hsns
6KW  above:Gemany Precitec
6KW:WSX/Raytools/Hsns
6KW  above:Gemany Precitec
Precitec Special Laser Head Equipped with External Water Coolingstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Automatic focusing function of laser headstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Multi-stage perforation Technologystandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
smooth cutting technologystandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Anti-slag protection function of double cyclonesstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
mechanical systemMachine bedCast iron bedCast iron bedCast iron bedCast iron bedCast iron bed
X-axis,Y-axis,Z-axisServo motor and driverJapan YaskawaJapan YaskawaJapan YaskawaJapan YaskawaJapan Yaskawa
SlidewayMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in Taiwan
RackMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in Taiwan
Closed protection enclosureNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Automatic lubrication functionstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Countertop locking functionstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Intelligent control system

Control systemCypcut Cypcut Cypcut Cypcut Cypcut
Display size21.5 inches21.5 inches21.5 inches21.5 inches21.5 inches
WIFI wireless controlstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Nozzle automatic calibration functionstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Nozzle automatic cleaning functionoptional configurationoptional configurationoptional configurationoptional configurationoptional configuration
Process monitoringNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Active obstacle avoidance functionstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Laser cutting technology databasestandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Auxiliary gas low pressure alarm functionstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Cutting gas automatic pressure regulation function6KW below:O2
6KW and above:O2,N2,air
6KW below:O2
6KW and above:O2,N2,air
6KW below:O2
6KW and above:O2,N2,air
6KW below:O2
6KW and above:O2,N2,air
6KW below:O2
6KW and above:O2,N2,air
BreakerFrance SchneideFrance SchneideFrance SchneideFrance SchneideFrance Schneide
RelayFrance SchneideFrance SchneideFrance SchneideFrance SchneideFrance Schneide
Electrical proportional valveGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICS
O2 Cutting gas control valveGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICS
N2 Cutting gas control valveGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICSGermany AVENTICS
System identification file formatG file,DXF,PLT,AIG file,DXF,PLT,AIG file,DXF,PLT,AIG file,DXF,PLT,AIG file,DXF,PLT,AI
Safety protection systemLarge enclosure open door protectionNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Laser abnormal alarmstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Cutting abnormal alarmstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Gas low pressure alarmstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Water cooler abnormal alarmstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Laser protective glassesstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Peripheral systemWater coolerstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Dust removalCentrifugal fanCentrifugal fanCentrifugal fanCentrifugal fanCentrifugal fan
Other parameters configurationIntegral aluminum cantilever for high pressure steel mould castingstandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Total power/current with30KW sourceNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Total power/current with 20KW sourceNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Total power/current with 15KW sourceNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Total power/current with 12KW sourceNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Total power/current with 8KW   IPG sourceNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
Total power/current with 6KW source51kW/121A41kW/97A44.9kW/106.6A41.9kW/99.5A37kW/88A
Total power/current with 3KW source43.2kW/102.6A33.2kW/78.9A32.5kW/77.2A29.5kW/70.1A24kW/58A
Total power/current with 2KW source39.5kW/93.8A29.5kW/70.1A28.8kW/68.4A25.8kW/61.3A21kW/49A
Total power/current with 1.5KW source37.5kW/89.1A27.5kW/65.3A26.8kW/63.7A23.8kW/56.6A19kW/45A
Total power/current/current with 4KW source36.3kW/86.2A26.3kW/62.5A25.6kW/60.8A22.6kW/53.7A18kW/42A
Multifunctional ergonomic handlestandard configurationstandard configurationstandard configurationstandard configurationstandard configuration
Optionlaser fume filter(Made in China)1set1set1set1set1set
laser fume filter(America Donaldson)DFOE6-1 setDFOE6-1 setDFOE6-1 setDFOE6-1 setDFOE4-1 set
security light curtains
Generally, 1 set, large equipment or have special requirements, and other non-standard.(CE and ETL certification standard)
optional configurationoptional configurationoptional configurationoptional configurationoptional configuration
 electron microscopeoptional configurationoptional configurationoptional configurationoptional configurationoptional configuration
G-Lift
It is used for auxiliary loading of the backboard and can be equipped with 1 set for each equipment.
No configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredoptional configuration
Automatic loading systemNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredoptional configuration
Integrated compressed air systemoptional configurationoptional configurationoptional configurationoptional configurationoptional configuration
Voltage regulatoroptional configurationoptional configurationoptional configurationoptional configurationoptional configuration
Laser case plus air conditioner
Generally no air conditioning is required, and it is optional in the tropics.
optional configurationoptional configurationoptional configurationoptional configurationoptional configuration
6KW Equipped with Gemany Precitec Laser Headoptional configurationoptional configurationoptional configurationoptional configurationoptional configuration
Precitec laser head added laser head side blow moduleNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required
150mm focus distance Precitec laser headNo configuration requiredNo configuration requiredNo configuration requiredNo configuration requiredNo configuration required

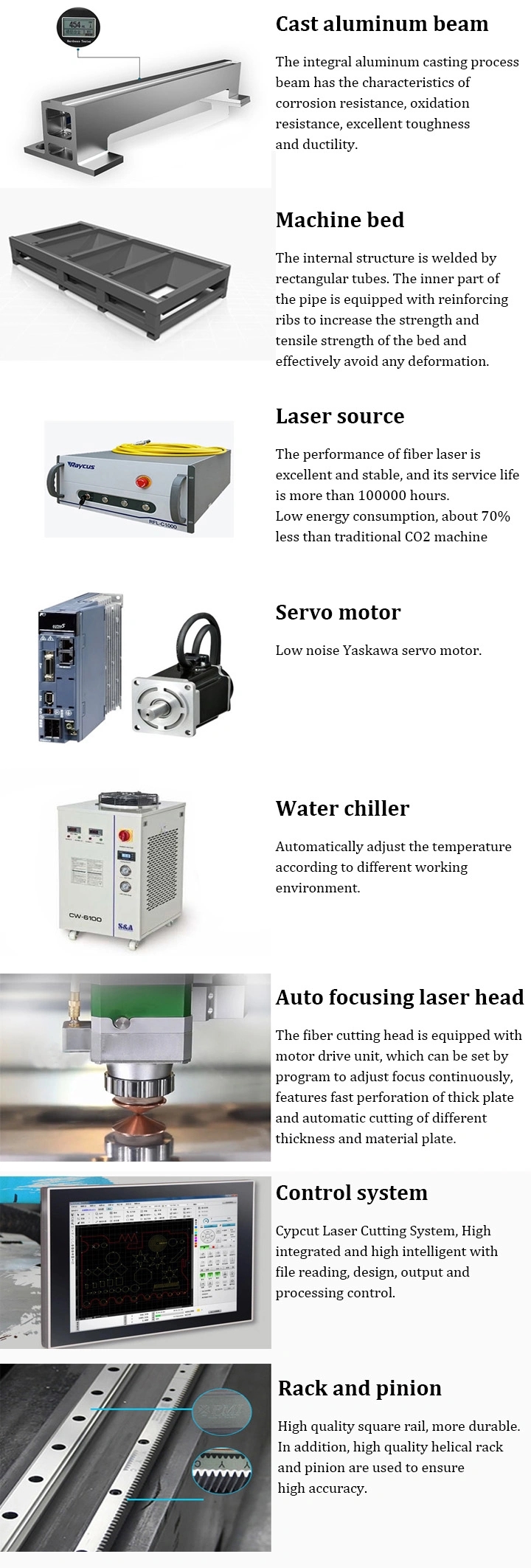

Fiber Laser Cutting Machine display

GRS -1kw-1-5kw-2kw-3kw-Aluminum-Copper-Carbon-Steel-Stainless-Steel-Sheet-Fiber-Laser-Cutter.webp

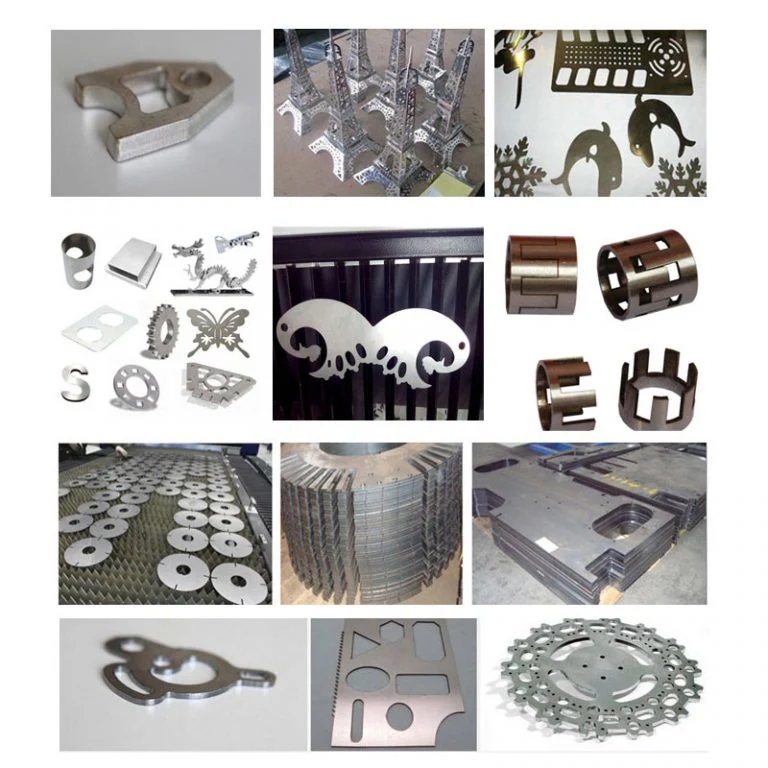

Application:
GRS fiber laser cutting machines are widely used in manufacturing Billboard, Advertising,Signs,Signage,Metal Letters,LED Letters,Kitchen Ware,Advertising Letters, Sheet Metal Processing,Metals Components and Parts,Ironware,Chassis,Racks & Cabinets Processing,Metal Crafts,Metal Art Ware,Elevator Panel Cutting,Hardware, Auto Parts,Glasses Frame,Electronic Parts,Nameplates,etc.

GRS 1kw-1-5kw-2kw-3kw-Aluminum-Copper-Carbon-Steel-Stainless-Steel-Sheet-Fiber-Laser-Cutter.webp (1)

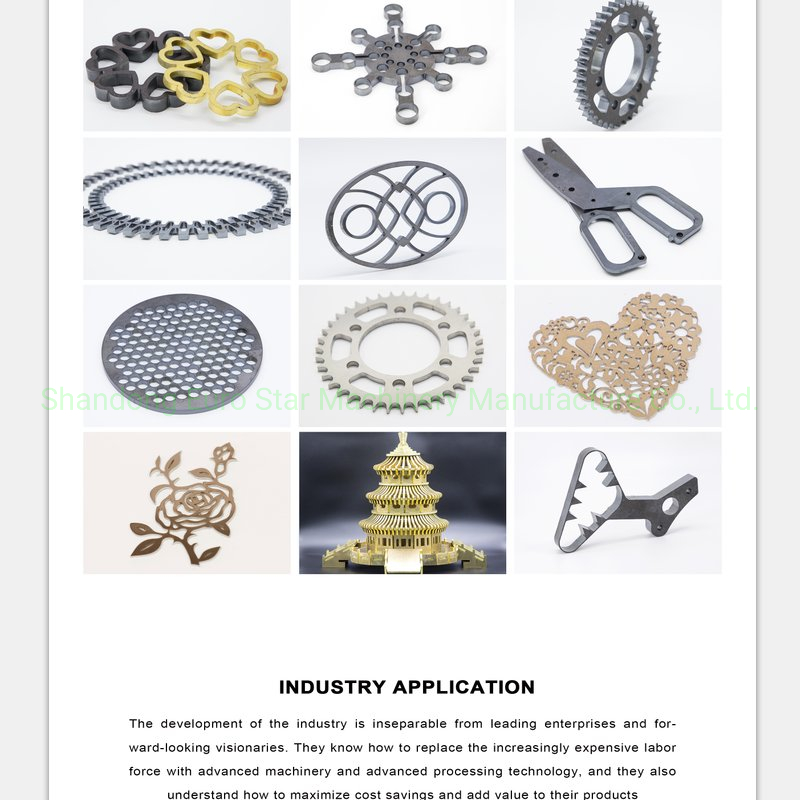

GRS fiber laser cutting machine

Production flow chart

Production flow chart

Production flow chart-2

Certification



certification

Activity Customer

Activity Customer

Packaging details

packing details

Factory introduction

GLORIOUS ,AKA, "GRS", represents the ultimate pursuit of Gorgeous Reliable and Smart. GLORIOUS Laser is a high-tech enterprise specializing in the R&D, manufacturing and marketing of intelligent laser equipment. GLORIOUS laser, driven by technology source power, adheres to the innovation development strategy; attach importance to talent cultivation so as to provide advanced technology and reliable products.GLORIOUS has obtained more than 100 R & D patents including Reddot Award and IF Award, GLORIOUS owns 208 professional R & D personnel and a production base covering an area of 100,000 square meters, and strictly executes the product quality control process. With "advanced technology and reliable products", GLORIOUS laser brings long-term and stable benefits to customers.
P4: Company Tenet - Fast Fast" is one of our business tenets. GLORIOUS will respond positively to and meet customers' needs immediately, and dedicated to solve problems for customers with enough patience as soon as possible.


Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.


1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified


2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;


4) Technical Support
The whole process Technology support covers on sale and after-sale service.

Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:

Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com

EUROSTAR CUSTOMERS ALL OVER THE WORLD


Factory introduction

Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional agricultural machinery manufacturer integrating R&D, design, manufacturing, sales and service. The company products cover road transport machinery, harvest machinery, equipment for plant protection, agricultural implements and agricultural unmanned machinery.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as
 so to improve reputation and market share of eurostar in the world step by step.
The company has worked out comprehensive quality manual and quality control procedure files at all levels based on ISO9001:2000, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 50 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end
machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.


Agricultural machinery factory production equipment display


Agricultural machinery factory production equipment display

Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;


4) Technical Support
The whole process Technology support covers on sale and after-sale service.

Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:

Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are g
uaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.


What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.


Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com


EUROSTAR CUSTOMERS ALL OVER THE WORLD

Our company produces other agricultural machinery display

downLoadImg (7)

downLoadImg (8)

downLoadImg (9)

downLoadImg (10)

downLoadImg (11)

Previous:
Next:

Get In Touch

We look forward to establishing long-term business relationship
with customers both home and abroad , or learn more about us,get in touch!
 Address
198 Chang Ning Street ,Weifang City, Shandong, Province,P.R.C.
 E-mail
duke@eurostar-hm.com
 Phone
86-536-766 2277 / 86 18606366000 / 86 13863646513
Contact us for details!
 Copyrights 2020 Eurostar All rights reserved.     Sitemap
