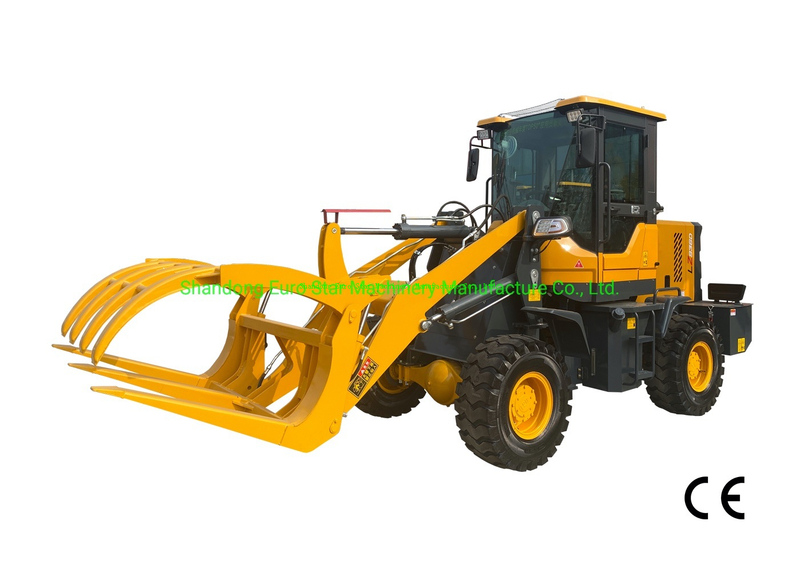

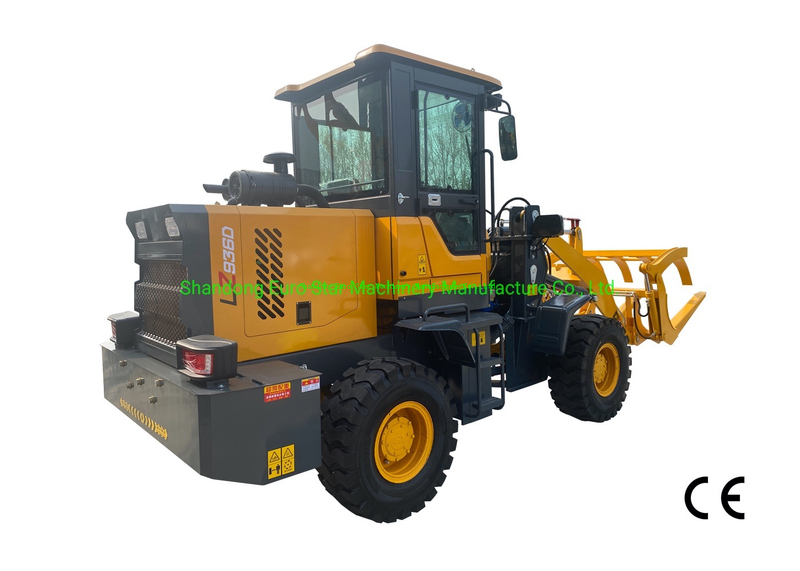

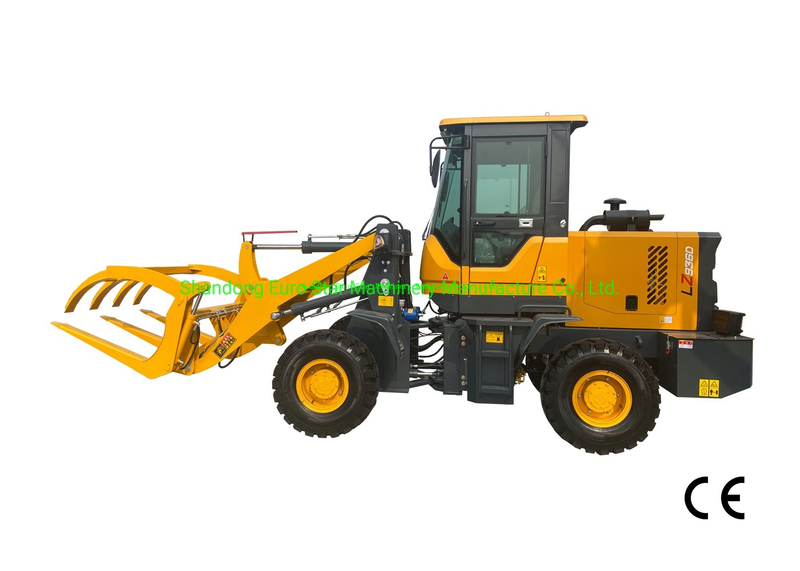

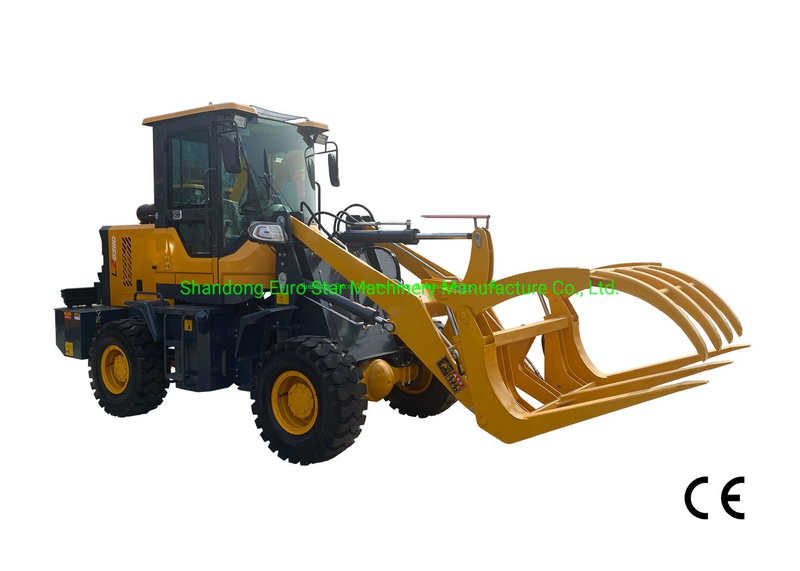

Front End Loader with Wood Grapple

EZ938 Wheel loader
Wheel Loader is a kind of earthwork construction machinery widely used in highway,railway,construction,hydropower,port,mine and other construction projects.It is mainly used for shoveling bulk materials such as soil,sand,lime,coal etc.It can also be used for slight shoveling and excavation of ores,hard soil etc.Different auxuliary devices can also be used for bulldozing,lifting,loading and unloading of other materials.
EZ936 is a long-wheelbase loader designed by with a next generation of apperaance, and combines the energy-saving, reliability and comfort.It has the superior stability and large breakout force, and by virtue of the superior comperehensive prrformance, it is more suitable for mining and other heavy-duty operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
  • EZ938/1.8T
  • EUROSTAR OEM
  • 84295100
EZ938 Wheel loader Product Description

Wheel Loader is a kind of earthwork construction machinery widely used in highway,railway,construction,hydropower,port,mine and other construction projects.It is mainly used for shoveling bulk materials such as soil,sand,lime,coal etc.It can also be used for slight shoveling and excavation of ores,hard soil etc.Different auxuliary devices can also be used for bulldozing,lifting,loading and unloading of other materials.
EZ938 is a long-wheelbase loader designed by with a next generation of apperaance, and combines the energy-saving, reliability and comfort.It has the superior stability and large breakout force, and by virtue of the superior comperehensive prrformance, it is more suitable for mining and other heavy-duty operations.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

EZ938 Wheel loader Product Selling Points
1. Operator Comfort and Safety
2. Adjustable seat, and ergonomically designed placement of instruments.
3. Comfortable A/C and heated operator environment.Two mechanical lever controls.
4. Optional pilot control.Convenient detachable cab.
5. UV resistance glass. Cigarette lighter works as electrical outlet.
6. Easy to Maintain
7. Power cut-off function prevents damage to drive components.
8. Double sealed O-rings used in Hydraulic system.
9. Stress analysis tested to strengthen weak points.
10. Sub frame and rear axle swingable by 11 degrees .
11. Front frame box structure highly torsion and damage resistant.
12. Parts, Attachments and Service to count on.
13. World class suppliers of key components.
14. Long life high performance multi valve from  Zhejiang Linhai.
15. Long life highly efficient Shantui transmission and converter used.
16. Performance  Reliable
17. Hydraulic system easily checked after removing front cover.
18. Easy engine access, convenient placement of key parts and fluid refill points.
19. Built for Efficiency
20 Turbo air filter removes over 90% of dust and impurities, reducing  engine wear and fuel consumption extending engine service life and improving engine efficiency.
21. Radiator fan is directly engine driven and provides strong  efficient cooling.
22. 38 degree angle of articulation for working in tight spaces.
23. Low fuel consumption engine that doesn't sacrifice any power.
24. Very low cycle time of 8.6 second, great for efficient  for smooth strong gear changes.
25. Meets EU stage II/EPA tier 2 emission requirements.

EZ Series Wheel loader product technical parameters

ModelEZ936/1.6TEZ938/1.8TEZ952/2.0T
Rated Load1600 kg1800 kg2000 kg
Total Weight   3010 kg3320 kg4230 kg
Bucket capacity0.55  m³0.55  m³0.78  m³
Bucket width1830 mm1830 mm2020 mm
size(L×W×H)5450*1890*2660mm5750*1780*2715mm6270*1860*2690mm
Max.unloading height3200 mm3500 mm3500 mm
Min.turning radius4400 mm4500 mm4900 mm
Mini.ground clearance260 mm260 mm320 mm
Boom lift6.5 S4.67 S5.55 S
Boom down 4.62 S2.84 S4.74 S
Trinomial sum10.89 S9.23 S10.83 S
Driving speedLow I (F/R)5 km/h5 km/h6.5 km/h
Low II (F/R)8.5 km/h8.5 km/h11 km/h
High I (F/R)18 km/h18 km/h21 km/h
High II (F/R)27 km/h27 km/h35 km/h
EngineModelRB2619RAS010IB042
Rated power40 kW61.8 kW77 kW
Rated net power36.8 kW58.8 kW74 kW
Rated speed240024002400
Emission StandardsII stages Europe IIII stages Europe IIII stages Europe II

EZ Series Wheel loader details picture display

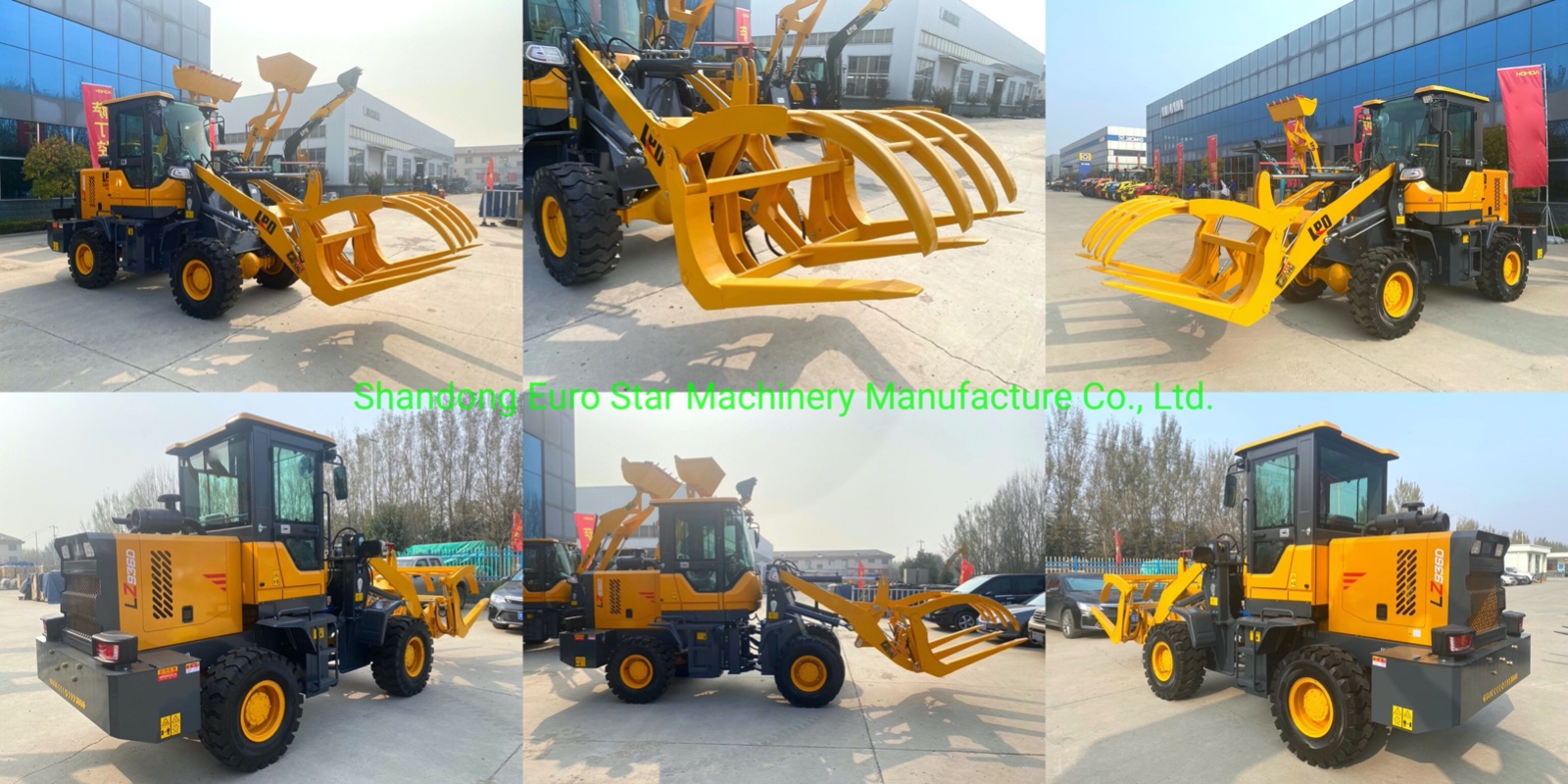

EZ Series Wheel loader details picture display1

EZ Series Wheel loader details picture display2

EZ Series Wheel loader details picture display3

Wheel loader supporting installation Attachments display

Wheel loader supporting installation Attachments display1

Wheel loader supporting installation Attachments display-1

Wheel loader supporting installation Attachments display-2

Other construction machinery products

Other construction machinery products1

Other construction machinery products2

Rubber track small excavator product display

Rubber track small excavator product display

Metal crawler small excavator product display

Metal crawler small excavator product display

Metal crawler small excavator product display-1

Wheel loader Packaging and shipping display

Wheel loader Packaging and shipping display

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Factory and production equipment display

Agricultural machinery factory production equipment displayService
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
