ATV series Backhoe Digger for all types of Groundwork in confined Spaces. This little unit has the capacity to handle much more than you'd think it would. The backhoe digger digs 2050mm deep, with a serrated digger bucket 220mm in width. ATV seriesbackhoe digger with its own power source in the form of a 9 hp petrol motor with recoil starter, Two-lever hydraulic valve for simple and flexible excavation. Wheels for moving with an ATV or another vehicle with a 50 mm ball coupling.When the machine has to be moved, the wheels are fitted to the back making it easy to transport; when excavating, the wheels are fitted at the front with the stabilizers at the back and the machine is then moved by dragging it backward or forwards using the first boom and outer boom. Main sales territory: regions Europe, the United States, Russia, Canada,Ukraine, South America, Africa, southeast Asia and Australia.
ATV series Backhoe Digger for all types of Groundwork in confined Spaces. This little unit has the capacity to handle much more than you'd think it would. The backhoe digger digs 2050mm deep, with a serrated digger bucket 220mm in width. ATV seriesbackhoe digger with its own power source in the form of a 9 hp petrol motor with recoil starter, Two-lever hydraulic valve for simple and flexible excavation. Wheels for moving with an ATV or another vehicle with a 50 mm ball coupling.When the machine has to be moved, the wheels are fitted to the back making it easy to transport; when excavating, the wheels are fitted at the front with the stabilizers at the back and the machine is then moved by dragging it backward or forwards using the first boom and outer boom. Main sales territory: regions Europe, the United States, Russia, Canada,Ukraine, South America, Africa, southeast Asia and Australia. ATV series wheel backhoe product selling points 1. It is used for dicthing in farms and grazing lands, trenching,digging pool, cleaning waterways as well as assistant excavating work in construction and building roads. 2. Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting. 3. Hydraulic feeding system,with free flow valve,easy to control feeding rate,featured with compact structure. 4. Bucket size can be chosen, 200mm, 300mm, 400mm, 500mm, 600mm wide extra buckets.V type bucket,thumb,ditching finger also be availible. 5. backhoe loader can be towable by ATV,UTV eg,easy tranport,which is use for small digging and construction work. 6. Different engine opotion,9-15hp gasoline or diesel engine. 7. Various attachments,220mm.300mm,400mm,500mm,600mm,V type bucket,thumb,ditching finger also be availible. 8. CE approved,reliable quality.
ATV series wheel backhoe product technical parameters
Model
ATV-9
Product Name
9HP gasoline engine
Bucket Swings
120° For real maneuverability
Deepth
Digs 7FT. Deep with 8FT. Reach
Dumps
Dumps at 3½FT
Bucket Size
12''(300mm)bucket
Using
Bucket action pulls it around jobsite
Capacity
Tows easily on 3500-LB
Coupler Size
2"ball for easy towing
Package Size
48.03"×40.55"/224×99×84cm
G.W.
1176.21LB/534KGS
N.W.
982.38LB/446KGS
ATV series wheel backhoe product description
ATV series Backhoe Digger for all types of Groundwork in confined Spaces. This little unit has the capacity to handle much more than you'd think it would. The backhoe digger digs 2050mm deep, with a serrated digger bucket 220mm in width. ATV seriesbackhoe digger with its own power source in the form of a 9 hp petrol motor with recoil starter, Two-lever hydraulic valve for simple and flexible excavation. Wheels for moving with an ATV or another vehicle with a 50 mm ball coupling.When the machine has to be moved, the wheels are fitted to the back making it easy to transport; when excavating, the wheels are fitted at the front with the stabilizers at the back and the machine is then moved by dragging it backward or forwards using the first boom and outer boom. Main sales territory: regions Europe, the United States, Russia, Canada,Ukraine, South America, Africa, southeast Asia and Australia. ATV series wheel backhoe product selling points 1. It is used for dicthing in farms and grazing lands, trenching,digging pool, cleaning waterways as well as assistant excavating work in construction and building roads. 2. Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting. 3. Hydraulic feeding system,with free flow valve,easy to control feeding rate,featured with compact structure. 4. Bucket size can be chosen, 200mm, 300mm, 400mm, 500mm, 600mm wide extra buckets.V type bucket,thumb,ditching finger also be availible. 5. backhoe loader can be towable by ATV,UTV eg,easy tranport,which is use for small digging and construction work. 6. Different engine opotion,9-15hp gasoline or diesel engine. 7. Various attachments,220mm.300mm,400mm,500mm,600mm,V type bucket,thumb,ditching finger also be availible. 8. CE approved,reliable quality.
ATV series wheel backhoe product technical parameters
Model
ATV-9
Product Name
9HP gasoline engine
Bucket Swings
120° For real maneuverability
Deepth
Digs 7FT. Deep with 8FT. Reach
Dumps
Dumps at 3½FT
Bucket Size
12''(300mm)bucket
Using
Bucket action pulls it around jobsite
Capacity
Tows easily on 3500-LB
Coupler Size
2"ball for easy towing
Package Size
48.03"×40.55"/224×99×84cm
G.W.
1176.21LB/534KGS
N.W.
982.38LB/446KGS

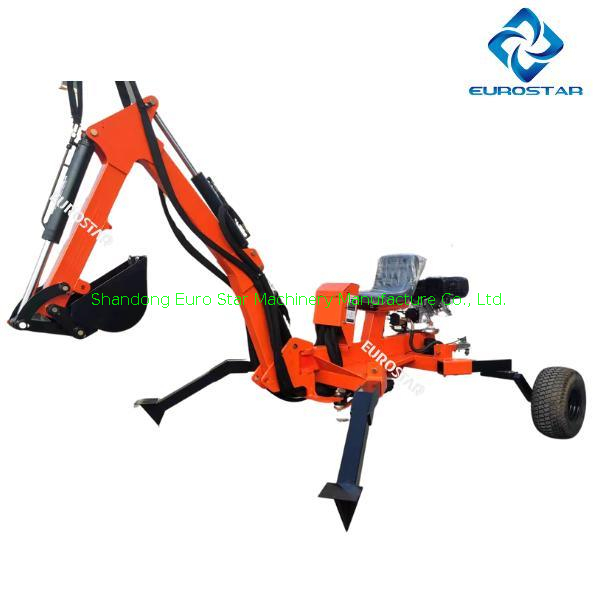

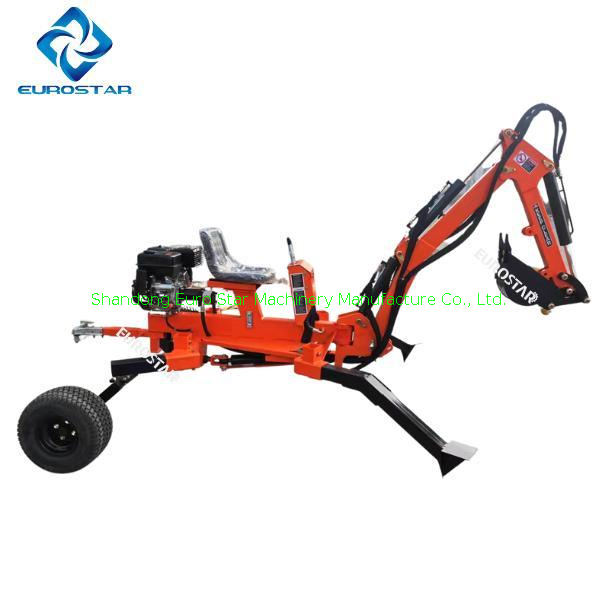

ATV series wheel backhoe details show
LW series backhoe product technical parameters
Model
LW-4
LW-6
LW-7
LW-8
LW-9
Specification
Inch
Metric
Inch
Metric
Inch
Metric
Inch
Metric
Inch
Metric
Tractor HP
20-30hp
30-40HP
30-45HP
45-60HP
60-80HP
3-point Linkage
Cat-1
Cat-1
Cat-1
CAT-1&2
CAT-1&2
Structure Weight
771lb
350kg
1060lb
480kg
1100lb
500kg
1280lb
580kg
1370lb
620kg
A
Digging Depth(two foot flat bottom)
4'
1200mm
5.74'
1750mm
6.4'
1950mm
7.38'
2250mm
8.36'
2550mm
B
Reach from center line of Swing pivot
7.55'
2300mm
8.53'
2600mm
9.51'
2900mm
10.5'
3200mm
11.8'
3600mm
C
Loading Height(bucket at 60°)
5.64'
1720mm
6.03'
1840mm
3.66'
1930mm
7.25'
2210mm
D
Transport Height(maximum)
4.1'
1250mm
6.03'
1840mm
6.75'
2060mm
6.98'
2130mm
8.13'
2480mm
E
Extend Height
4'
1200mm
9.41'
2870mm
10.2'
3110mm
10.62'
3240mm
11.77'
3590mm
F
Loading Reach(bucket at 60°)
3.11'
950mm
3.87'
1180mm
3.74'
1140mm
4.46'
1360mm
G
Transport Overhang
3.54'
1080mm
3.64'
1110mm
4'
1220mm
4.16'
1270mm
H
Undercut
2.4'
730mm
2.72'
830mm
1.54'
470mm
1.7'
520mm
I
Bucket Rotation
180°
180°
180°
180°
J
Stabilizer Spread(up position)
4.3'
1310mm
4.3'
1310mm
4.3'
1310mm
4.3'
1310mm
K
Stabilizer Spread(down position)
6.23'
1900mm
4.3'
2100mm
6.9'
2100mm
7.67'
2340m
7.67'
2340mm
L
Swing Arc
180°
180°
180°
180°
180°
M
Bucket width
250mm
300mm
400mm
450mm
500mm
N
Bucket cubage
0.028
0.036
0.045
0.052
0.063
LW series Backhoe details show
TZ series front end loader details display
Front end loader and backhoe container shipping link display
ATV series wheel backhoe details show
LW series backhoe product technical parameters
Model
LW-4
LW-6
LW-7
LW-8
LW-9
Specification
Inch
Metric
Inch
Metric
Inch
Metric
Inch
Metric
Inch
Metric
Tractor HP
20-30hp
30-40HP
30-45HP
45-60HP
60-80HP
3-point Linkage
Cat-1
Cat-1
Cat-1
CAT-1&2
CAT-1&2
Structure Weight
771lb
350kg
1060lb
480kg
1100lb
500kg
1280lb
580kg
1370lb
620kg
A
Digging Depth(two foot flat bottom)
4'
1200mm
5.74'
1750mm
6.4'
1950mm
7.38'
2250mm
8.36'
2550mm
B
Reach from center line of Swing pivot
7.55'
2300mm
8.53'
2600mm
9.51'
2900mm
10.5'
3200mm
11.8'
3600mm
C
Loading Height(bucket at 60°)
5.64'
1720mm
6.03'
1840mm
3.66'
1930mm
7.25'
2210mm
D
Transport Height(maximum)
4.1'
1250mm
6.03'
1840mm
6.75'
2060mm
6.98'
2130mm
8.13'
2480mm
E
Extend Height
4'
1200mm
9.41'
2870mm
10.2'
3110mm
10.62'
3240mm
11.77'
3590mm
F
Loading Reach(bucket at 60°)
3.11'
950mm
3.87'
1180mm
3.74'
1140mm
4.46'
1360mm
G
Transport Overhang
3.54'
1080mm
3.64'
1110mm
4'
1220mm
4.16'
1270mm
H
Undercut
2.4'
730mm
2.72'
830mm
1.54'
470mm
1.7'
520mm
I
Bucket Rotation
180°
180°
180°
180°
J
Stabilizer Spread(up position)
4.3'
1310mm
4.3'
1310mm
4.3'
1310mm
4.3'
1310mm
K
Stabilizer Spread(down position)
6.23'
1900mm
4.3'
2100mm
6.9'
2100mm
7.67'
2340m
7.67'
2340mm
L
Swing Arc
180°
180°
180°
180°
180°
M
Bucket width
250mm
300mm
400mm
450mm
500mm
N
Bucket cubage
0.028
0.036
0.045
0.052
0.063
LW series Backhoe details show
TZ series front end loader details display
Front end loader and backhoe container shipping link display
Factory introduction Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on. As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step. The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole. Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends. Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction. In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Tractor production workshop display
Service One-stop business chain service support system With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support. 1) Market service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service Short-term Circuit Technology Support Service Service Process: Standard, High Efficient, Seasonable Service Image: Professional, Unified 2) Spare parts service Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse 100% original spare parts assure good quality; Bar-code system adopted in the whole process assures accuracy and promptness; Professional and accurate package and logistics assure safe and relieved transportation. 3) Training service Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training; A full range of training tools, multi-language training materials, vivid training video; Professional training teachers with rich service experience and good communication capability; One-to-one special assignment training; Remote online network training; 4) Technical support The whole process Technology support covers on sale and after-sale service. Terms of the deal: 1). Delivery: 20 days for normal orders 2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice 3). Payment terms for first order: -----T/T 30% deposit and balance before shipment -----100% L/C at sight 4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business FAQ: Why choose us? 1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system. 2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products) 3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care. How shipment? We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
Contact us
Mr. Duke Zhang Shandong Euro Star Machinery Manufacture Co., Ltd. Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C. Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
Factory introduction Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on. As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step. The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole. Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends. Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction. In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Tractor production workshop display
Service One-stop business chain service support system With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support. 1) Market service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service Short-term Circuit Technology Support Service Service Process: Standard, High Efficient, Seasonable Service Image: Professional, Unified 2) Spare parts service Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse 100% original spare parts assure good quality; Bar-code system adopted in the whole process assures accuracy and promptness; Professional and accurate package and logistics assure safe and relieved transportation. 3) Training service Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training; A full range of training tools, multi-language training materials, vivid training video; Professional training teachers with rich service experience and good communication capability; One-to-one special assignment training; Remote online network training; 4) Technical support The whole process Technology support covers on sale and after-sale service. Terms of the deal: 1). Delivery: 20 days for normal orders 2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice 3). Payment terms for first order: -----T/T 30% deposit and balance before shipment -----100% L/C at sight 4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business FAQ: Why choose us? 1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system. 2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products) 3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care. How shipment? We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
Contact us
Mr. Duke Zhang Shandong Euro Star Machinery Manufacture Co., Ltd. Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C. Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
