LZ912F, LZ908F
EUROSTAR OEM
84295100
Main sales territory: regions Europe, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
LZ series Euro V wheel loader product selling points
1. Operator Comfort and Safety
2. Adjustable seat, and ergonomically designed placement of instruments.
3. Comfortable A/C and heated operator environment.Two mechanical lever controls.
4. Optional pilot control.Convenient detachable cab.
5. Easy to Maintain
6. Power cut-off function prevents damage to drive components.
7. Double sealed O-rings used in Hydraulic system.
8. Stress analysis tested to strengthen weak points.
9. Sub frame and rear axle swingable by 11 degrees .
10. Parts, Attachments and Service to count on.
11. World class suppliers of key components.
12. Hydraulic system easily checked after removing front cover.
13. Easy engine access, convenient placement of key parts and fluid refill points.
14. Turbo air filter removes over 90% of dust and impurities, reducing engine wear and fuel consumption extending engine service life and improving engine efficiency.
15. Radiator fan is directly engine driven and provides strong efficient cooling.
16. Low fuel consumption engine that doesn't sacrifice any power.
17. Engine with European Emission V.
LZ series Euro V wheel loader product technical parameter
Model | LZ912F | LZ908F | |||
Rated Contained Mass (kg) | 1200 | 800 kg | |||
Total Weight (kg) | 3720 | 2460 kg | |||
Axle Type | Small Wheel Side Bridge | Isuz u | |||
Transmission Type | 265 Torque Converter | 265 Torque Converter | |||
High and Low Speed Power Shift Transmission | Power Shift Transmission | ||||
Operate Mode | Mechanical Pilot | Mechanical Pilot | |||
Brake Type | Air Brake | Air Brake | |||
Bucket Capacity ( m³) | 0.5 | 0.4 | |||
Bucket Width (mm) | 1750 | 1500 | |||
Dimension (mm x mm x mm) | 5650x1820x2750 | 4530x1560x2510 | |||
Wheelbase (mm) | 1490 | 1200 | |||
Axle Spacing (mm) | 2100 | 1880 | |||
Max.Unloading Height (mm) | 3200 | 2100 | |||
Min. Turning Radius (mm) | 4420 | 4760 | |||
Mini. Ground Clearance (mm) | 250 | 240 | |||
Unloading Distance (mm) | 940 | 840 | |||
Tires Size | 20.5/70-16 | 31×15.5-15 | |||
Boom Lift (s) | 5.15 | 3.26 | |||
Boom Down (s) | 3.12 | 2.42 | |||
Trinomial Sum (s) | 9.24 | 6.36 | |||
Driving Speed | Low I (F/R) (km/h) | 5.5 | 7.1 | ||
Low II(F/R) (km/h) | 10 | ||||
High I (F/R) (km/h) | 18 | 19.8 | |||
High II (F/R) (km/h) | 29 | ||||
Engine | Model | Xin Chai 3E22YT | Xin Chai 3B11X51 | ||
Rated Power (kW) | 44.8 | 18.5 | |||
Rated Speed (rpm) | 2300-2400 | 2400-3000 | |||
Emission Standards | European Emission V | European Emission V | |||
Displacement (L) | 2.2 | 1.12 | |||
Production Period | 30 days | ||||
Optional | Warm Wind Cabin | Warm Wind Cabin | |||
Yun Nei Brand Euro V 36.8 KW Engine | Yun Nei Brand Euro V 29.5 KW Engine | ||||
Yun Nei Brand Euro V 45 KW Engine | Yun Nei Brand Euro V 36.8 KW Engine | ||||
Bucket quick change device | Bucket Quick Change Device | ||||
Tires Size 20.5/70-16 | |||||
Mode of Stuffing | 3 sets in 40' container: Only remove bucket and tire, install iron process wheel | ||||
4sets in 40'high container/ 6sets in 45'high container: Remove the bridge, boom, bucket, counterweight, oil tank, etc |
Main sales territory: regions Europe, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
LZ series Euro V wheel loader product selling points
1. Operator Comfort and Safety
2. Adjustable seat, and ergonomically designed placement of instruments.
3. Comfortable A/C and heated operator environment.Two mechanical lever controls.
4. Optional pilot control.Convenient detachable cab.
5. Easy to Maintain
6. Power cut-off function prevents damage to drive components.
7. Double sealed O-rings used in Hydraulic system.
8. Stress analysis tested to strengthen weak points.
9. Sub frame and rear axle swingable by 11 degrees .
10. Parts, Attachments and Service to count on.
11. World class suppliers of key components.
12. Hydraulic system easily checked after removing front cover.
13. Easy engine access, convenient placement of key parts and fluid refill points.
14. Turbo air filter removes over 90% of dust and impurities, reducing engine wear and fuel consumption extending engine service life and improving engine efficiency.
15. Radiator fan is directly engine driven and provides strong efficient cooling.
16. Low fuel consumption engine that doesn't sacrifice any power.
17. Engine with European Emission V.
LZ series Euro V wheel loader product technical parameter
Model | LZ912F | LZ908F | |||
Rated Contained Mass (kg) | 1200 | 800 kg | |||
Total Weight (kg) | 3720 | 2460 kg | |||
Axle Type | Small Wheel Side Bridge | Isuz u | |||
Transmission Type | 265 Torque Converter | 265 Torque Converter | |||
High and Low Speed Power Shift Transmission | Power Shift Transmission | ||||
Operate Mode | Mechanical Pilot | Mechanical Pilot | |||
Brake Type | Air Brake | Air Brake | |||
Bucket Capacity ( m³) | 0.5 | 0.4 | |||
Bucket Width (mm) | 1750 | 1500 | |||
Dimension (mm x mm x mm) | 5650x1820x2750 | 4530x1560x2510 | |||
Wheelbase (mm) | 1490 | 1200 | |||
Axle Spacing (mm) | 2100 | 1880 | |||
Max.Unloading Height (mm) | 3200 | 2100 | |||
Min. Turning Radius (mm) | 4420 | 4760 | |||
Mini. Ground Clearance (mm) | 250 | 240 | |||
Unloading Distance (mm) | 940 | 840 | |||
Tires Size | 20.5/70-16 | 31×15.5-15 | |||
Boom Lift (s) | 5.15 | 3.26 | |||
Boom Down (s) | 3.12 | 2.42 | |||
Trinomial Sum (s) | 9.24 | 6.36 | |||
Driving Speed | Low I (F/R) (km/h) | 5.5 | 7.1 | ||
Low II(F/R) (km/h) | 10 | ||||
High I (F/R) (km/h) | 18 | 19.8 | |||
High II (F/R) (km/h) | 29 | ||||
Engine | Model | Xin Chai 3E22YT | Xin Chai 3B11X51 | ||
Rated Power (kW) | 44.8 | 18.5 | |||
Rated Speed (rpm) | 2300-2400 | 2400-3000 | |||
Emission Standards | European Emission V | European Emission V | |||
Displacement (L) | 2.2 | 1.12 | |||
Production Period | 30 days | ||||
Optional | Warm Wind Cabin | Warm Wind Cabin | |||
Yun Nei Brand Euro V 36.8 KW Engine | Yun Nei Brand Euro V 29.5 KW Engine | ||||
Yun Nei Brand Euro V 45 KW Engine | Yun Nei Brand Euro V 36.8 KW Engine | ||||
Bucket quick change device | Bucket Quick Change Device | ||||
Tires Size 20.5/70-16 | |||||
Mode of Stuffing | 3 sets in 40' container: Only remove bucket and tire, install iron process wheel | ||||
4sets in 40'high container/ 6sets in 45'high container: Remove the bridge, boom, bucket, counterweight, oil tank, etc |

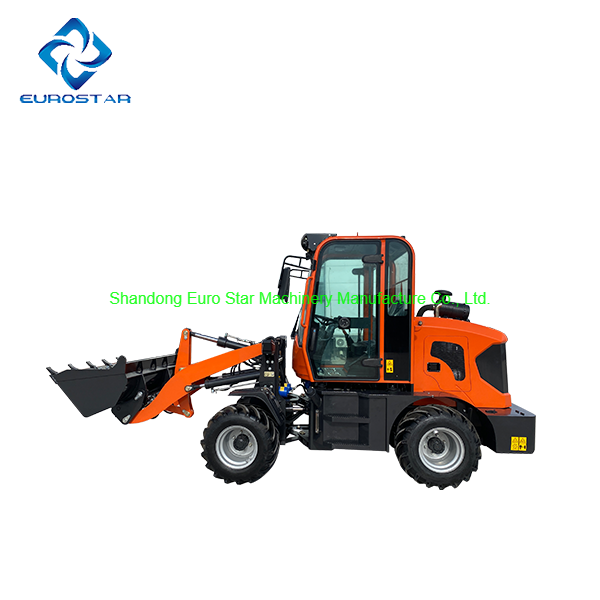

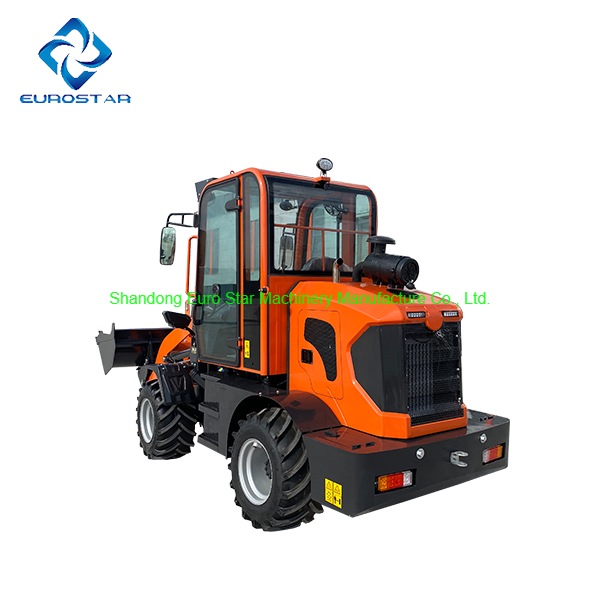

LZ series Euro V wheel loader display
LZ series Euro V wheel loader details picture display
Wheel loader supporting installation attachments display
Other construction machinery products
Rubber track small excavator product display
Metal crawler small excavator product display
Wheel loader packaging and shipping display
LZ series Euro V wheel loader display
LZ series Euro V wheel loader details picture display
Wheel loader supporting installation attachments display
Other construction machinery products
Rubber track small excavator product display
Metal crawler small excavator product display
Wheel loader packaging and shipping display
Factory introduction:
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Factory and production equipment display
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
Factory introduction:
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Factory and production equipment display
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
