ES388T, ES388K-K
EUROSTAR OEM
84295100
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
ES388K-K series backhoe loader product selling points
1) Work for digging projects, landscaping, moving materials and more
2) Performance with economy: one machine can do two kinds of work, dig and load.
3) Hydraulic joystick, A/C and Reverse camera are standard spec
4) The relatively small frame size and versatility our backhoe loaders improve construction productivity and lower your machine operating costs.
5) Improve the steering pressure, steering easier and quick.
6) High reliability of the transmission system.
7) Enhanced working device.
8) Enhanced transmission shaft.
9) Cycle time is short.
10) The pivotal point sealing dust.
11) The main parts quality assurance for a year.
ES388K-K Series backhoe loader product technical parameters
ES388K-K Model Backhoe Loader Configuration | |||
Machine Information | |||
1 | Total length | 6450±80mm | |
2 | Total width | 2550±20mm | |
3 | Bucket width | 2420mm | |
4 | Total height (cabin top) | 3120±10mm | |
5 | Total height (digging boom top) | 3940 ±20mm | |
6 | Wheel base | 2335±10 mm | |
7 | Wheel tread | 2139 ±10mm | |
Load main technical parameter | |||
1 | Rated load | 2500KG | |
2 | Operating weight | 10920kg | |
3 | Rated bucket capacity | 1.2m³ | |
4 | Max. Dumping height (41° dumping angle) | 3050±50 mm | |
5 | Dumping distance | 870±20 mm | |
6 | Turning radius | Tires outside | 5750±50mm |
Digging main technical parameters | |||
1 | Rated digging bucket capacity | 0.3m³ | |
2 | Max. Digging depth | 3820±20 mm | |
3 | Max. Digging radius | 5345±20mm | |
4 | Max Loading height | 3740±20mm | |
5 | Max. Digging force | 5100kgf | |
6 | Max.Digging height | 5470 ±20mm | |
7 | Lifting force at Max. Digging radius | 1220kg | |
Engine | |||
1 | Engine model | YC4A105Z-T20 | |
2 | Cooling type | Water cooling | |
3 | Rated power | 75 (kW) | |
4 | Displacement | 4.8(L) | |
5 | Rated speed | 2200(r/min) | |
6 | Max. Torque | 400(N.M) | |
7 | Manufacturer | YUCHAI | |
Transmission | |||
1 | Hydraulic torque convertor | Model | 315 |
Cooling way | Pressured oil circle | ||
2 | Gearbox | Model | 28 |
Type | Mechanically Operated Hydraulic | ||
Synchronized Shift | |||
3 | Driving axles | Model | WZL100 |
4 | Gear shift | Forward 4 Backward 4 | |
5 | Speed(F/R)km/h | Forward: 5 km/h, 10 km/h, 18 km/h, 32 km/h. | |
Backward: 5 km/h, 10 km/h , 18 km/h, 32 km/h. | |||
6 | Tyres model | 16.9-28 | |
Hydraulic system | |||
1 | Working pump displacement | 63ml/r | |
2 | Working pump pressure | 20Mpa | |
3 | Diverter model | BZZ5-250 | |
Digging attachments(hydraulic hammer) | |||
1 | Rod diameter (mm) | 68-70 | |
2 | Working pressure (Mpa) | 11-14 | |
3 | Impact frequency | 500-900 | |
4 | Flow scope (L/min) | 25-45 | |
5 | kinetic energy (KN) | 49 | |
Oil capacity | |||
1 | Hydraulic oil tank | 125 | |
2 | Fuel tank | 125 | |
Basic configuration: | |||
Yuchai 75KW China II engine, mechanical operation, air conditioner, Feicheng bridge, Qingzhou box, 16.9-28 tires; four-wheel steering, hydraulic side shift, crab-shaped travel. | |||
Optional equipment | |||
1 | Hydraulic Pilot | ||
2 | Automatic centralized lubrication system | ||
3 | Cummin s Engine (China II) | ||
4 | Front end Quick hitch device | ||
5 | Front loading end match: triple valve and pipe | ||
6 | Front loading end match: Forks | ||
7 | Front loading end match: four in one bucket (additional three valves must be added) | ||
8 | Front loading end match: Six in one bucket (additional Triple valve must be added) | ||
9 | Front loading end match: A type log grab (additional triple valves must be added) | ||
10 | Front loading end match: Forks (additional triple valves must be added) | ||
11 | Front loading end match: Snow blade (additional triple valves must be added) | ||
12 | Front loading end match: bulldozer blade | ||
13 | Front loading end match: Quick hitch bucket | ||
14 | Front loading end match: standard bucket | ||
15 | Front loading end match: Grab bucket (Replace this bucket, Markup) | ||
16 | Backhoe end match: Quick hitch (mechanical /hydraulic) | ||
17 | Backhoe end match: Hydraulic breaker (JISAN) / (TOFFEN) | ||
18 | Rear excavation end match | Backhoe Auger(Length 1.5 m,diameter 30CM) | |
Backhoe Auger( Length m,diameter 60CM) | |||
19 | Rear excavation end: telescopic boom | ||
20 | Rear excavation end match: Log grab | ||
21 | Excavator bucket:300\400\600MM | ||
22 | Excavator bucket:800\900\1200MM(Grading bucket, no warranty) | ||
23 | Oil filter |
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
ES388K-K series backhoe loader product selling points
1) Work for digging projects, landscaping, moving materials and more
2) Performance with economy: one machine can do two kinds of work, dig and load.
3) Hydraulic joystick, A/C and Reverse camera are standard spec
4) The relatively small frame size and versatility our backhoe loaders improve construction productivity and lower your machine operating costs.
5) Improve the steering pressure, steering easier and quick.
6) High reliability of the transmission system.
7) Enhanced working device.
8) Enhanced transmission shaft.
9) Cycle time is short.
10) The pivotal point sealing dust.
11) The main parts quality assurance for a year.
ES388K-K Series backhoe loader product technical parameters
ES388K-K Model Backhoe Loader Configuration | |||
Machine Information | |||
1 | Total length | 6450±80mm | |
2 | Total width | 2550±20mm | |
3 | Bucket width | 2420mm | |
4 | Total height (cabin top) | 3120±10mm | |
5 | Total height (digging boom top) | 3940 ±20mm | |
6 | Wheel base | 2335±10 mm | |
7 | Wheel tread | 2139 ±10mm | |
Load main technical parameter | |||
1 | Rated load | 2500KG | |
2 | Operating weight | 10920kg | |
3 | Rated bucket capacity | 1.2m³ | |
4 | Max. Dumping height (41° dumping angle) | 3050±50 mm | |
5 | Dumping distance | 870±20 mm | |
6 | Turning radius | Tires outside | 5750±50mm |
Digging main technical parameters | |||
1 | Rated digging bucket capacity | 0.3m³ | |
2 | Max. Digging depth | 3820±20 mm | |
3 | Max. Digging radius | 5345±20mm | |
4 | Max Loading height | 3740±20mm | |
5 | Max. Digging force | 5100kgf | |
6 | Max.Digging height | 5470 ±20mm | |
7 | Lifting force at Max. Digging radius | 1220kg | |
Engine | |||
1 | Engine model | YC4A105Z-T20 | |
2 | Cooling type | Water cooling | |
3 | Rated power | 75 (kW) | |
4 | Displacement | 4.8(L) | |
5 | Rated speed | 2200(r/min) | |
6 | Max. Torque | 400(N.M) | |
7 | Manufacturer | YUCHAI | |
Transmission | |||
1 | Hydraulic torque convertor | Model | 315 |
Cooling way | Pressured oil circle | ||
2 | Gearbox | Model | 28 |
Type | Mechanically Operated Hydraulic | ||
Synchronized Shift | |||
3 | Driving axles | Model | WZL100 |
4 | Gear shift | Forward 4 Backward 4 | |
5 | Speed(F/R)km/h | Forward: 5 km/h, 10 km/h, 18 km/h, 32 km/h. | |
Backward: 5 km/h, 10 km/h , 18 km/h, 32 km/h. | |||
6 | Tyres model | 16.9-28 | |
Hydraulic system | |||
1 | Working pump displacement | 63ml/r | |
2 | Working pump pressure | 20Mpa | |
3 | Diverter model | BZZ5-250 | |
Digging attachments(hydraulic hammer) | |||
1 | Rod diameter (mm) | 68-70 | |
2 | Working pressure (Mpa) | 11-14 | |
3 | Impact frequency | 500-900 | |
4 | Flow scope (L/min) | 25-45 | |
5 | kinetic energy (KN) | 49 | |
Oil capacity | |||
1 | Hydraulic oil tank | 125 | |
2 | Fuel tank | 125 | |
Basic configuration: | |||
Yuchai 75KW China II engine, mechanical operation, air conditioner, Feicheng bridge, Qingzhou box, 16.9-28 tires; four-wheel steering, hydraulic side shift, crab-shaped travel. | |||
Optional equipment | |||
1 | Hydraulic Pilot | ||
2 | Automatic centralized lubrication system | ||
3 | Cummin s Engine (China II) | ||
4 | Front end Quick hitch device | ||
5 | Front loading end match: triple valve and pipe | ||
6 | Front loading end match: Forks | ||
7 | Front loading end match: four in one bucket (additional three valves must be added) | ||
8 | Front loading end match: Six in one bucket (additional Triple valve must be added) | ||
9 | Front loading end match: A type log grab (additional triple valves must be added) | ||
10 | Front loading end match: Forks (additional triple valves must be added) | ||
11 | Front loading end match: Snow blade (additional triple valves must be added) | ||
12 | Front loading end match: bulldozer blade | ||
13 | Front loading end match: Quick hitch bucket | ||
14 | Front loading end match: standard bucket | ||
15 | Front loading end match: Grab bucket (Replace this bucket, Markup) | ||
16 | Backhoe end match: Quick hitch (mechanical /hydraulic) | ||
17 | Backhoe end match: Hydraulic breaker (JISAN) / (TOFFEN) | ||
18 | Rear excavation end match | Backhoe Auger(Length 1.5 m,diameter 30CM) | |
Backhoe Auger( Length m,diameter 60CM) | |||
19 | Rear excavation end: telescopic boom | ||
20 | Rear excavation end match: Log grab | ||
21 | Excavator bucket:300\400\600MM | ||
22 | Excavator bucket:800\900\1200MM(Grading bucket, no warranty) | ||
23 | Oil filter |

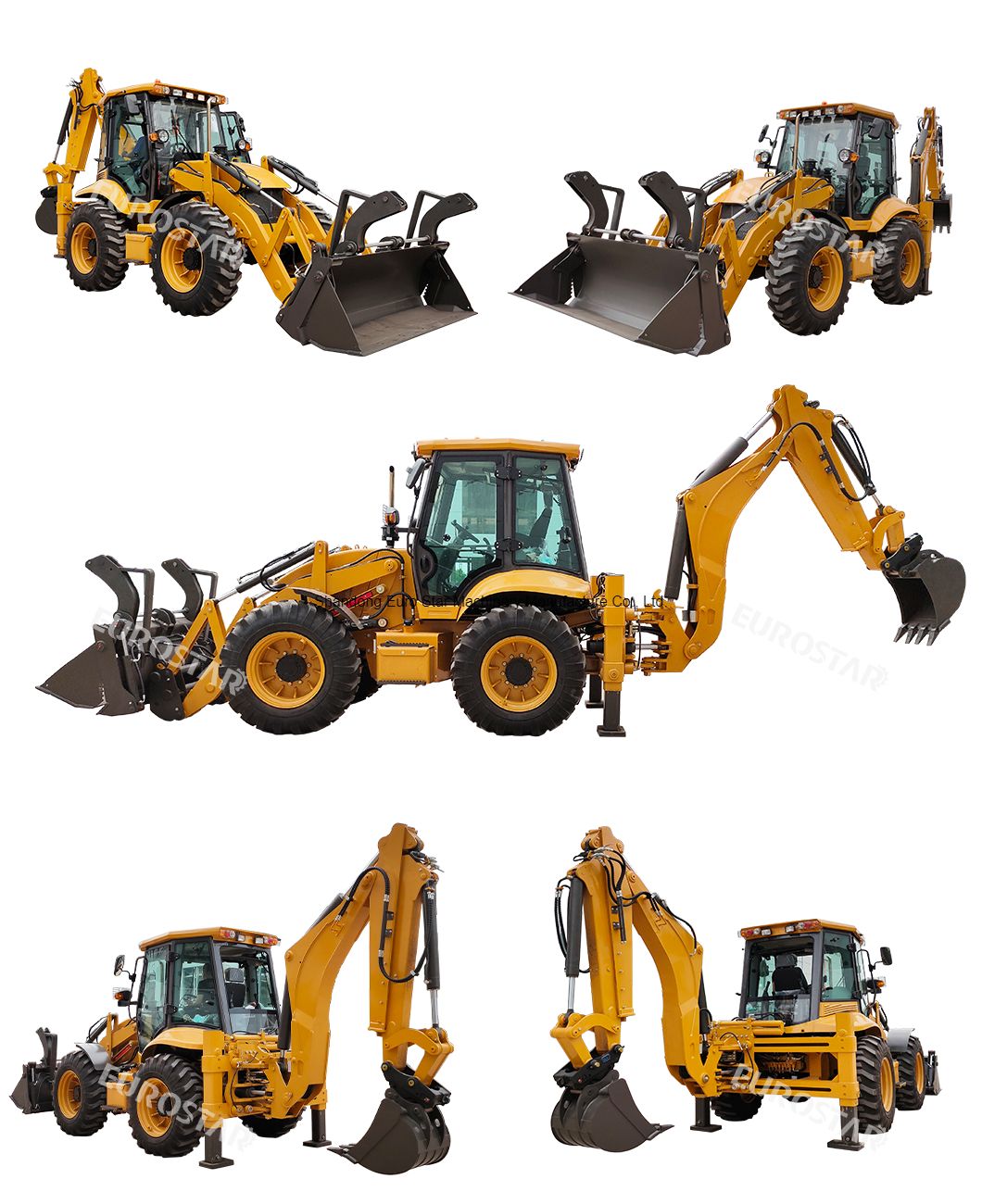

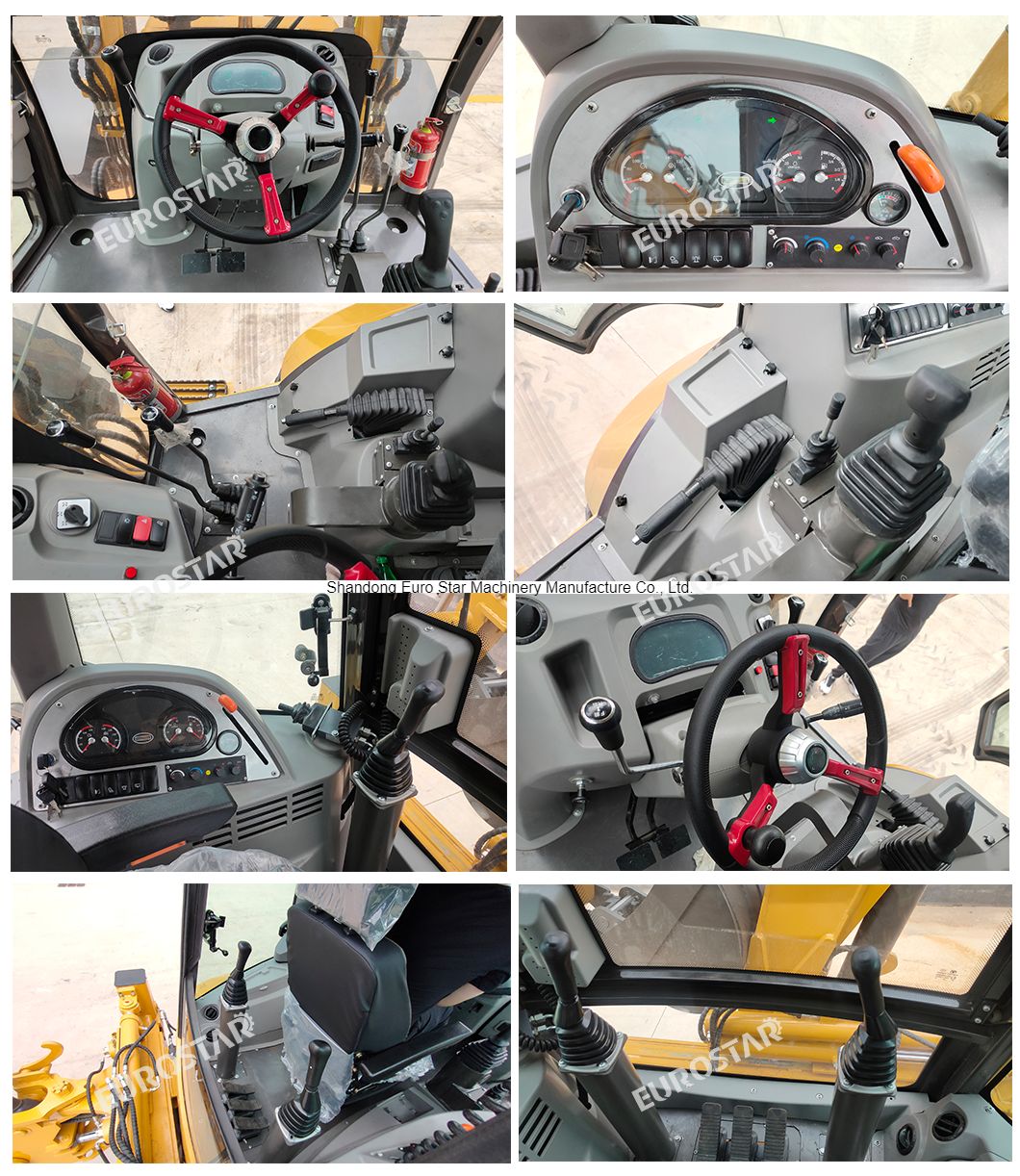

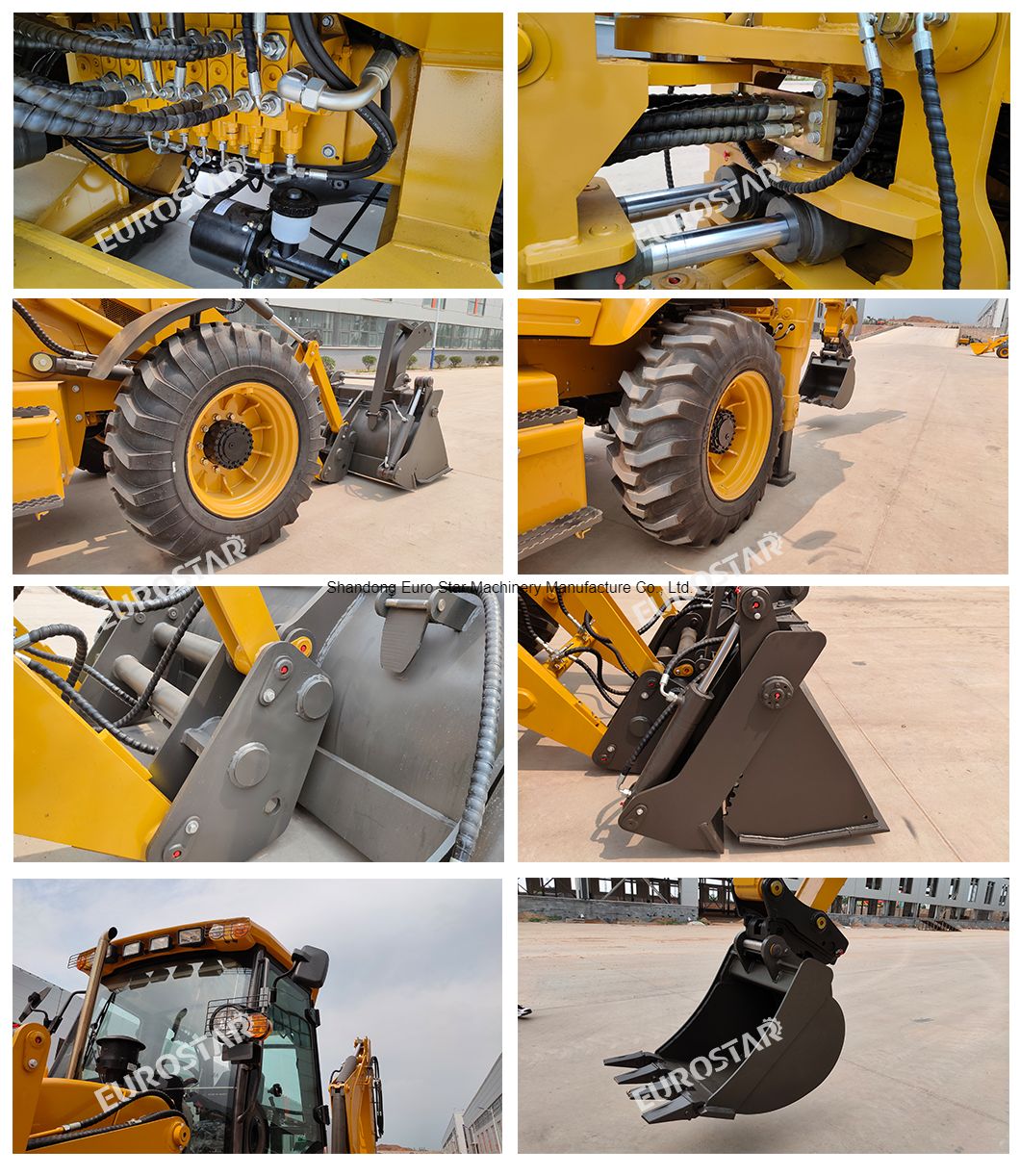

ES388K-K backhoe loader details picture display
ES Series backhoe loader tooling attachments
Wheel loader supporting installation attachments display
Other construction machinery products
Rubber track small excavator product display
Metal crawler small excavator product display
Wheel loader packaging and shipping display
ES388K-K backhoe loader details picture display
ES Series backhoe loader tooling attachments
Wheel loader supporting installation attachments display
Other construction machinery products
Rubber track small excavator product display
Metal crawler small excavator product display
Wheel loader packaging and shipping display
Factory introduction:
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Factory and production equipment display
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
Factory introduction:
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Factory and production equipment display
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
