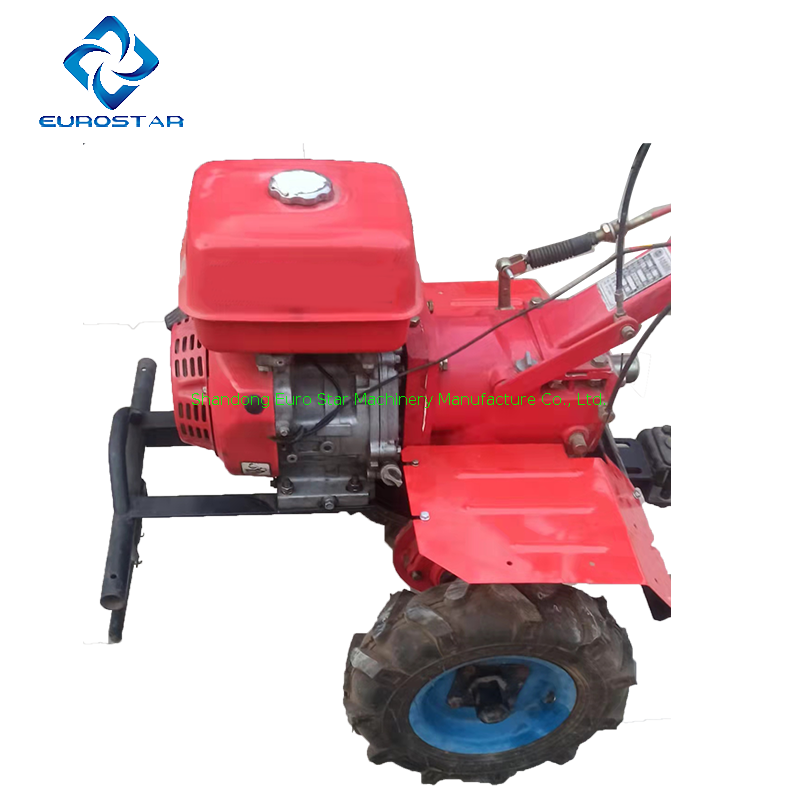

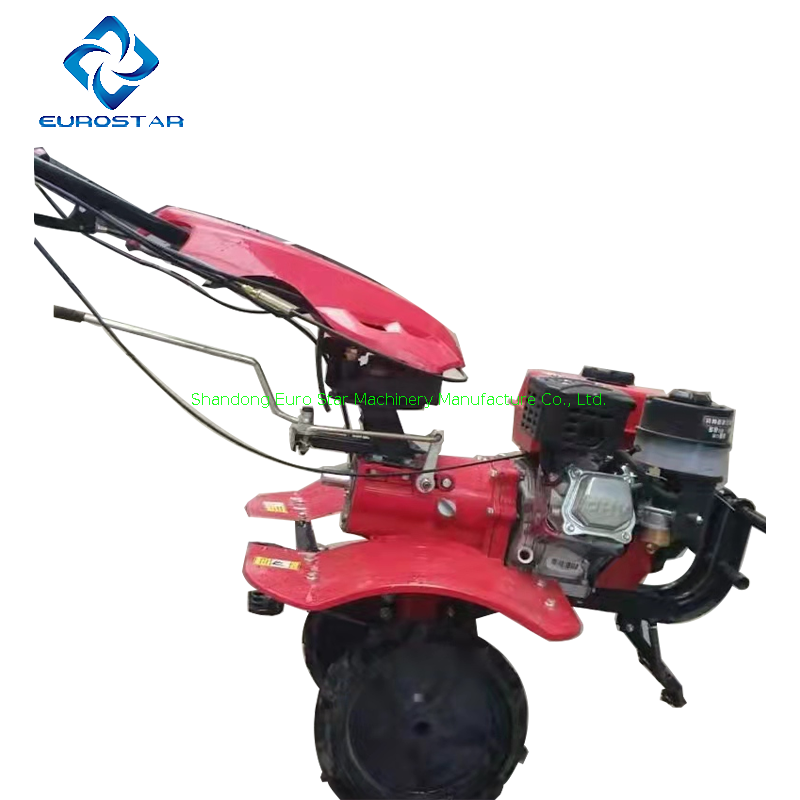

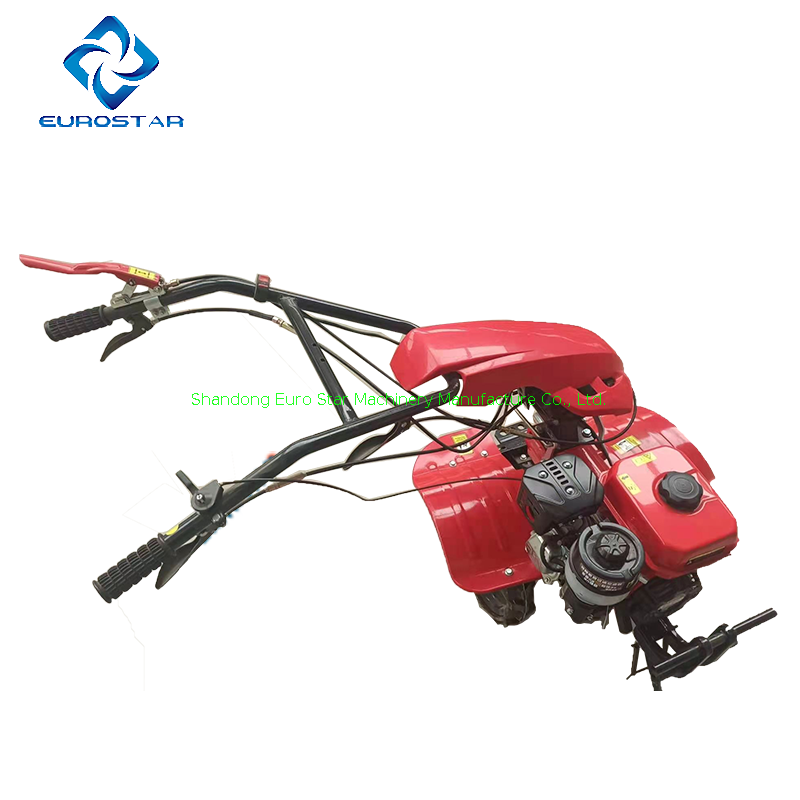

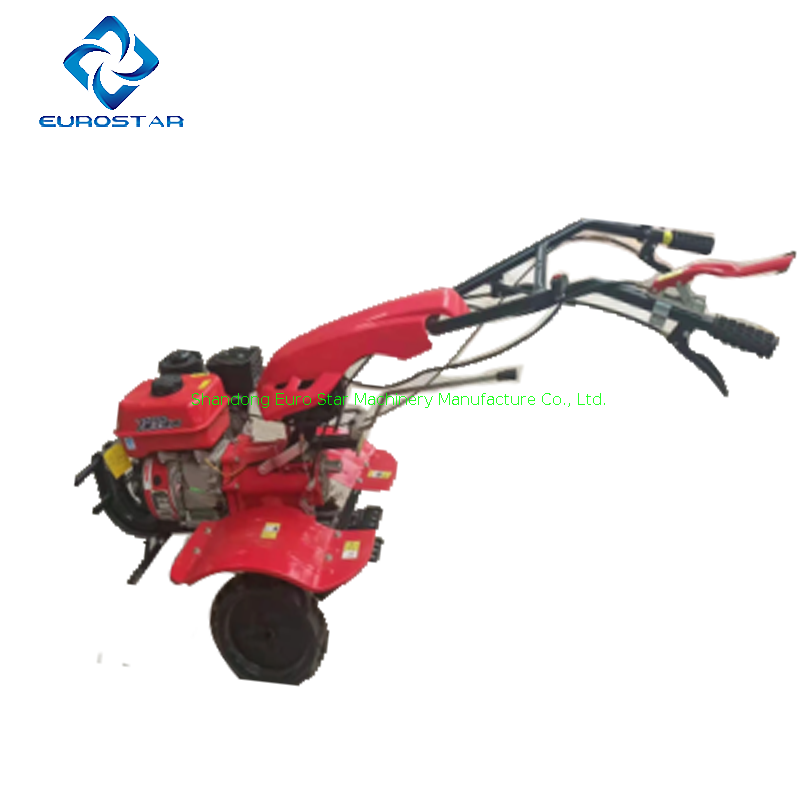

ES 1100A Power Tiller

ES series rear tine tiller is a new farm and gardening machinery. Handle can be adjusted as required, adjust support wheel to suit different soil and terrain, compact and attractive structure,easy gear shifting allows convenient operation, blades numbers optional to suit different requirements.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
ES 1100A Power Tiller
ES 1100A Power Tiller
ES 1100A Power Tiller
ES 1100A Power Tiller
ES 1100A Power Tiller
ES 1100A Power Tiller
  • ES-720 ES-1000 ES-1100A ES-1000D ES-1000B ES-1100C

  • EUROSTAR OEM

  • 8432290000

ES series rear tine tiller description

ES series rear tine tiller is a new farm and gardening machinery. Handle can be adjusted as required, adjust support wheel to suit different soil and terrain, compact and attractive structure,easy gear shifting allows convenient operation, blades numbers optional to suit different requirements.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

ES series rear tine tiller product selling points
1. This model can be equipped with 173/178/186 diesel engine power and 170/177 petrol engine power
2. Equipped with a steering clutch device, the steering is flexible and light, and can be cultivated in narrow areas of dry land and paddy fields, and the hooked trailer can be eaqqsily steered when transporting in the field.
3. The walking part has two forward gears and one reverse gear, and the working part has one forward rotation and one reverse ditching, which can adapt to the requirements of different operation modes on the traveling speed.
4. The position of the main gear lever can be adjusted horizontally, and it can also be easily shifted when the armrest is working in reverse.
5. The armrest can be adjusted 180° horizontally.
6. The front and rear are equipped with trailers to hook up equipment, and only need to replace the equipment to complete rotary tillage, ploughing, ditching, ridge, mulching, weeding and other operations.

ES series tiller technical parameters

ES Series tiller
modelES-1000ES-1100AES-1000DES-1100BES-1100CES-720
body size1630×1000×10201750×1100×9401630×1000×10201750×1100×9401750×1100×9401680×660×930
weight(kg)70838511513575+40
Engine170 petrol177 petrol173 diesel178 diesel186 diesel178 diesel
rated power(kw)45.14.054.46.54.4
engine modelYH170FYH177FYH173FSYH178FSYH186FSzongshen
gears  shifting2,0,1,-12,0,1,-12,0,1,-12,0,1,-12,0,1,-13,2,1,
0,-1,-2
Driving modelgeargeargeargeargeargear
Tilling depth(mm)≥100mm≥100mm≥100mm100-300100-300150-250
Tilling scope(mm)1000800-10001000800-1000800-1350600
tyre350-6 solid tyre400-8 solid tyre350-6 solid tyre400-8 solid tyre400-8 solid tyre400-8 solid tyre
standar equipment3pcs 3 group rotary blade3+1 blades3pcs 4 group rotary blade3+1 blades3+1 blades10pcs 3 group rotary blade
Packaging Dimension(mm)850×730×7001050*570*780850×730×7001050*570*7801050*570*780850×720×600+
720×550×450
40HQ(set)Certificates144108144108108112

ES series tiller displayS Series tiller display

GW series rear tine tiller (gear) technical parameters

GW Series Rear tine tiller (gear)
model GW-4G01 GW-4G02 GW-4D03 GW-4D04 GW-4D05
body size 1720*730*1000 1750*730*1000 1750*730*1150 1800*730*1150 1850*730*1150
weight(kg)
87 96 96 96
Engine 170 petrol 177 petrol 173 diesel 178 diesel 186 diesel
rated power(kw) 4 5.1 4.05 4.4 6.5
engine model 170P 177P 173FS 178FS 186FS
gears
shifting
walking gearbox H,0,L,R H,0,L,R H,0,L,R H,0,L,R H,0,L,R
Tilling gearbox ditching,0, tilling ditching,0, tilling ditching,0, tilling ditching,0, tilling ditching,0, tilling
transmission way gear gear gear gear gear
tillage depth(mm) 100-300 100-300 100-300 100-300 100-300
working width(mm) 440-720 800-1000 440-720 800-1000 800-1350
ditching depthing(mm) 200-300 200-300 200-300 200-300 200-300
ditching width(mm) 250 250 250 250 250
tyre 350-6 solid tyre 400-8 solid tyre 400-8 solid tyre 400-8 solid tyre 400-8 solid tyre
standar equipment 3pcs 3 group rotary blade, ditching blade 3pcs 4group rotary blade, ditching blade 3pcs 3 group rotary blade, ditching blade 3pcs 4 group rotary blade, ditching blade 4pcs 4group rotary blade, ditching blade
Packaging Dimension(mm) 1300×550×680 1300×550×680 1300×550×680 1300×550×680 1400×550×680
40HQ(set)Certificates 108 108 108 108 98

GW series rear tine tiller (gear) displayGW Series Rear tine tiller (gear) Display

ES seies rear tine tiller with belt technical parameters

ES Series Rear tine tiller  (belt)
model ES680 ES680-D1 ES700-D1 ES700-D2
body size 1680*730*1000 1700*730*1150 1720*730*1150 1750*730*1150
weight(kg) 85 96 96 96
Engine 170 petrol 173 diesel 178 diesel 186 diesel
rated power(kw) 4 4.05 4.4 6.5
engine model 170P 173FS 178FS 186FS
gears  shifting walking gearbox H,0,L,R H,0,L,R H,0,L,R H,0,L,R
Tilling gearbox ditching,0, tilling ditching,0, tilling ditching,0, tilling ditching,0, tilling
transmission way Belt drive Belt drive Belt drive Belt drive
tillage depth(mm) 100-300 100-300 100-300 100-300
working width(mm) 440-720 440-720 800-1000 800-1350
ditching depthing(mm) 200-300 200-300 200-300 200-300
ditching width(mm) 250 250 250 250
tyre 350-6 solid tyre 400-8 solid tyre 400-8 solid tyre 400-8 solid tyre
standar equipment 3pcs 3 group rotary blade, ditching blade 3pcs 3 group rotary blade, ditching blade 3pcs 4 group rotary blade, ditching blade 4pcs 4group rotary blade, ditching blade
Packaging Dimension(mm) 1300×550×680 1300×550×680 1300×550×680 1400×550×680
40HQ(set)Certificates 108 108 108 98

ES series rear tine tiller with belt displayES Series Rear Tine Tiller with Belt Display



Standard equipment displaystandard equipment

Rear tine tiller packing and shipping link display packing and shipping link display
