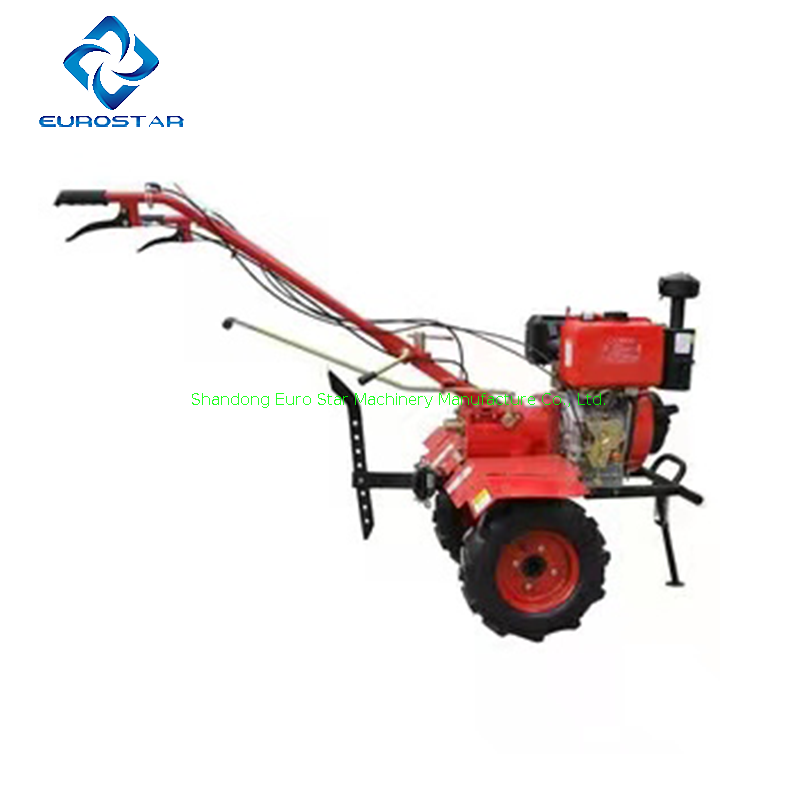

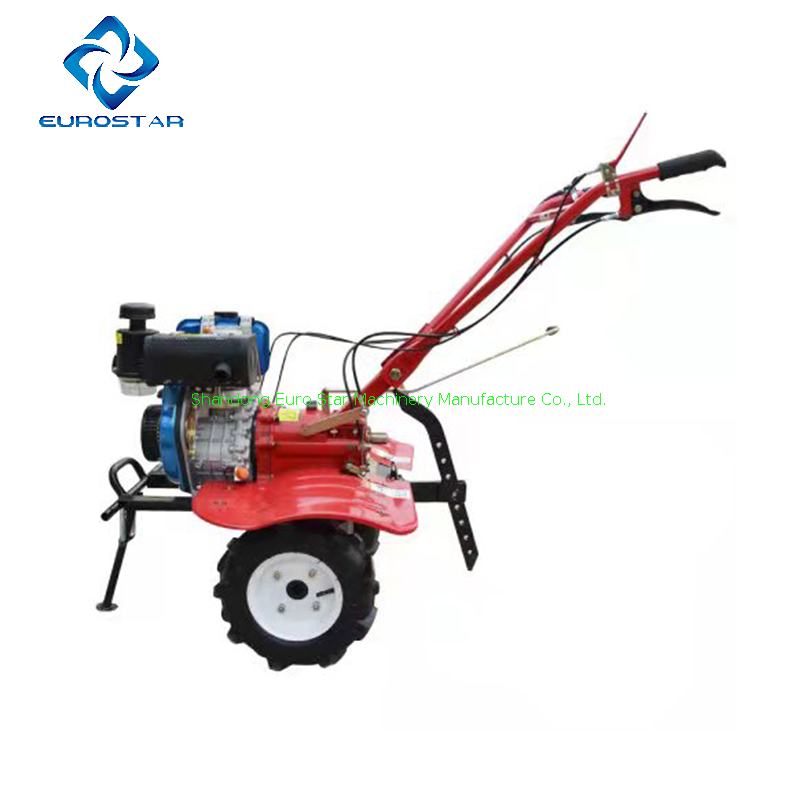

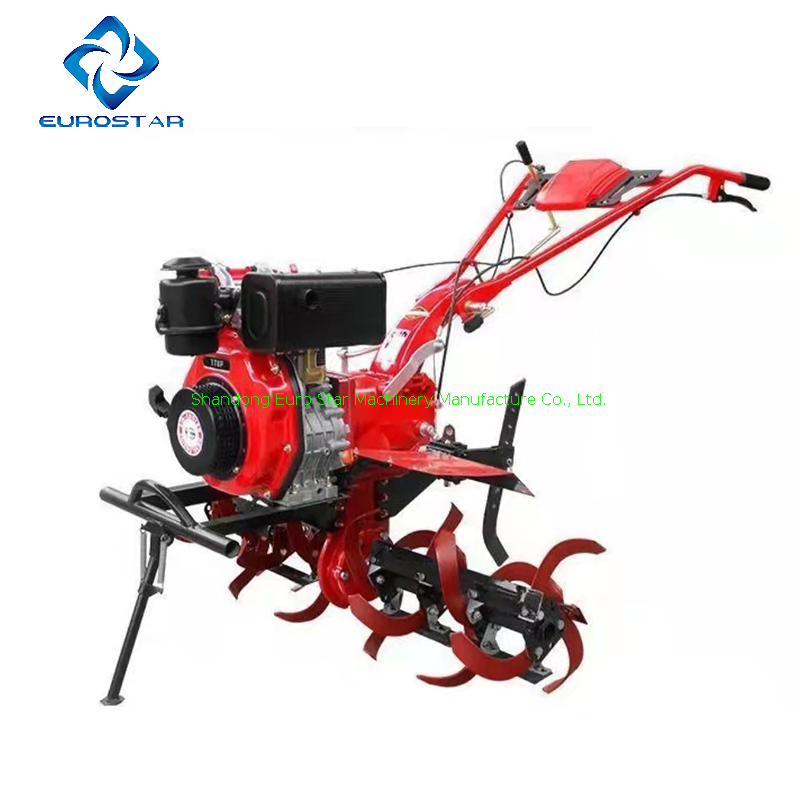

ES 1000D Mini Power Rotary Tiller

ES series rear tine tiller is a new farm and gardening machinery. Handle can be adjusted as required, adjust support wheel to suit different soil and terrain, compact and attractive structure,easy gear shifting allows convenient operation, blades numbers optional to suit different requirements.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
ES 1000D Mini Power Rotary Tiller
ES 1000D Mini Power Rotary Tiller
ES 1000D Mini Power Rotary Tiller
ES 1000D Mini Power Rotary Tiller
ES 1000D Mini Power Rotary Tiller
ES 1000D Mini Power Rotary Tiller
  • ES-720 ES-1000 ES-1100A ES-1000D ES-1000B ES-1100C

  • EUROSTAR OEM

  • 8432290000

ES series rear tine tiller description

ES series rear tine tiller is a new farm and gardening machinery. Handle can be adjusted as required, adjust support wheel to suit different soil and terrain, compact and attractive structure,easy gear shifting allows convenient operation, blades numbers optional to suit different requirements.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

ES series rear tine tiller product selling points
1. This model can be equipped with 173/178/186 diesel engine power and 170/177 petrol engine power
2. Equipped with a steering clutch device, the steering is flexible and light, and can be cultivated in narrow areas of dry land and paddy fields, and the hooked trailer can be eaqqsily steered when transporting in the field.
3. The walking part has two forward gears and one reverse gear, and the working part has one forward rotation and one reverse ditching, which can adapt to the requirements of different operation modes on the traveling speed.
4. The position of the main gear lever can be adjusted horizontally, and it can also be easily shifted when the armrest is working in reverse.
5. The armrest can be adjusted 180° horizontally.
6. The front and rear are equipped with trailers to hook up equipment, and only need to replace the equipment to complete rotary tillage, ploughing, ditching, ridge, mulching, weeding and other operations.

ES series tiller technical parameters

ES Series tiller
modelES-1000ES-1100AES-1000DES-1100BES-1100CES-720
body size1630×1000×10201750×1100×9401630×1000×10201750×1100×9401750×1100×9401680×660×930
weight(kg)70838511513575+40
Engine170 petrol177 petrol173 diesel178 diesel186 diesel178 diesel
rated power(kw)45.14.054.46.54.4
engine modelYH170FYH177FYH173FSYH178FSYH186FSzongshen
gears  shifting2,0,1,-12,0,1,-12,0,1,-12,0,1,-12,0,1,-13,2,1,
0,-1,-2
Driving modelgeargeargeargeargeargear
Tilling depth(mm)≥100mm≥100mm≥100mm100-300100-300150-250
Tilling scope(mm)1000800-10001000800-1000800-1350600
tyre350-6 solid tyre400-8 solid tyre350-6 solid tyre400-8 solid tyre400-8 solid tyre400-8 solid tyre
standar equipment3pcs 3 group rotary blade3+1 blades3pcs 4 group rotary blade3+1 blades3+1 blades10pcs 3 group rotary blade
Packaging Dimension(mm)850×730×7001050*570*780850×730×7001050*570*7801050*570*780850×720×600+
720×550×450
40HQ(set)Certificates144108144108108112

ES series tiller displayS Series tiller display

GW series rear tine tiller (gear) technical parameters

GW Series Rear tine tiller (gear)
model GW-4G01 GW-4G02 GW-4D03 GW-4D04 GW-4D05
body size 1720*730*1000 1750*730*1000 1750*730*1150 1800*730*1150 1850*730*1150
weight(kg)
87 96 96 96
Engine 170 petrol 177 petrol 173 diesel 178 diesel 186 diesel
rated power(kw) 4 5.1 4.05 4.4 6.5
engine model 170P 177P 173FS 178FS 186FS
gears
shifting
walking gearbox H,0,L,R H,0,L,R H,0,L,R H,0,L,R H,0,L,R
Tilling gearbox ditching,0, tilling ditching,0, tilling ditching,0, tilling ditching,0, tilling ditching,0, tilling
transmission way gear gear gear gear gear
tillage depth(mm) 100-300 100-300 100-300 100-300 100-300
working width(mm) 440-720 800-1000 440-720 800-1000 800-1350
ditching depthing(mm) 200-300 200-300 200-300 200-300 200-300
ditching width(mm) 250 250 250 250 250
tyre 350-6 solid tyre 400-8 solid tyre 400-8 solid tyre 400-8 solid tyre 400-8 solid tyre
standar equipment 3pcs 3 group rotary blade, ditching blade 3pcs 4group rotary blade, ditching blade 3pcs 3 group rotary blade, ditching blade 3pcs 4 group rotary blade, ditching blade 4pcs 4group rotary blade, ditching blade
Packaging Dimension(mm) 1300×550×680 1300×550×680 1300×550×680 1300×550×680 1400×550×680
40HQ(set)Certificates 108 108 108 108 98

GW series rear tine tiller (gear) displayGW Series Rear tine tiller (gear) Display

ES seies rear tine tiller with belt technical parameters

ES Series Rear tine tiller  (belt)
model ES680 ES680-D1 ES700-D1 ES700-D2
body size 1680*730*1000 1700*730*1150 1720*730*1150 1750*730*1150
weight(kg) 85 96 96 96
Engine 170 petrol 173 diesel 178 diesel 186 diesel
rated power(kw) 4 4.05 4.4 6.5
engine model 170P 173FS 178FS 186FS
gears  shifting walking gearbox H,0,L,R H,0,L,R H,0,L,R H,0,L,R
Tilling gearbox ditching,0, tilling ditching,0, tilling ditching,0, tilling ditching,0, tilling
transmission way Belt drive Belt drive Belt drive Belt drive
tillage depth(mm) 100-300 100-300 100-300 100-300
working width(mm) 440-720 440-720 800-1000 800-1350
ditching depthing(mm) 200-300 200-300 200-300 200-300
ditching width(mm) 250 250 250 250
tyre 350-6 solid tyre 400-8 solid tyre 400-8 solid tyre 400-8 solid tyre
standar equipment 3pcs 3 group rotary blade, ditching blade 3pcs 3 group rotary blade, ditching blade 3pcs 4 group rotary blade, ditching blade 4pcs 4group rotary blade, ditching blade
Packaging Dimension(mm) 1300×550×680 1300×550×680 1300×550×680 1400×550×680
40HQ(set)Certificates 108 108 108 98

ES series rear tine tiller with belt displayES Series Rear Tine Tiller with Belt Display



Standard equipment displaystandard equipment

Rear tine tiller packing and shipping link display packing and shipping link display

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in do
mestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop displayAgricultural machinery factory production equipment display

Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market service

Service Mode : Stationary Point + Circuit Service

Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare parts service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a larg
e spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.

Contact us

Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com


EUROSTAR CUSTOMERS ALL OVER THE WORLD

Full range of tractor products display

Full range of tractor products display1Full range of tractor products display2

Our company produces other agricultural machinery display

Our company produces other agricultural machinery displayOur company produces other agricultural machinery display1Our company produces other agricultural machinery display2Our company produces other agricultural machinery display3
