EPA 4 Euro V Gasoline Mini Loader

Thanks to compact dimensions and excellent control, Euro Star Wheel Loaders can work in many grounds, and tackle different problems. The hydraulic drive system makes operation more comfortable and easier. Operators can learn how to use the machines much more quickly. The individual wheel motor gives an excellent ground clearance that can make machines to be operated in restricted areas. Reliability, durability and low maintenance makes wheel loaders a good investment.
Main sales territory: regions Europe, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:

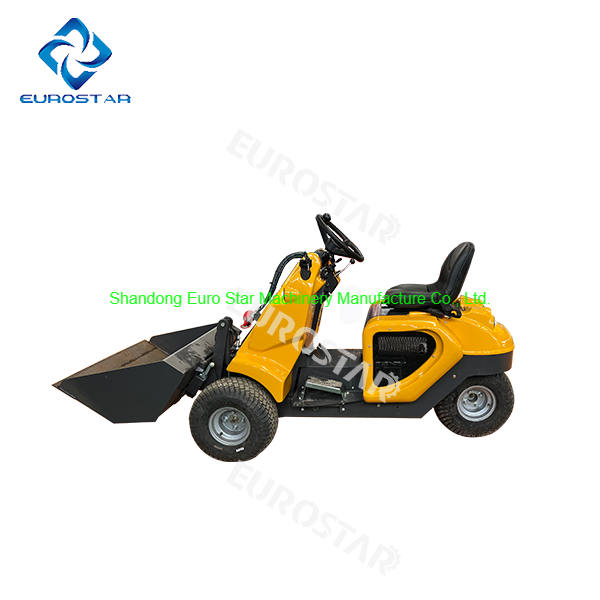

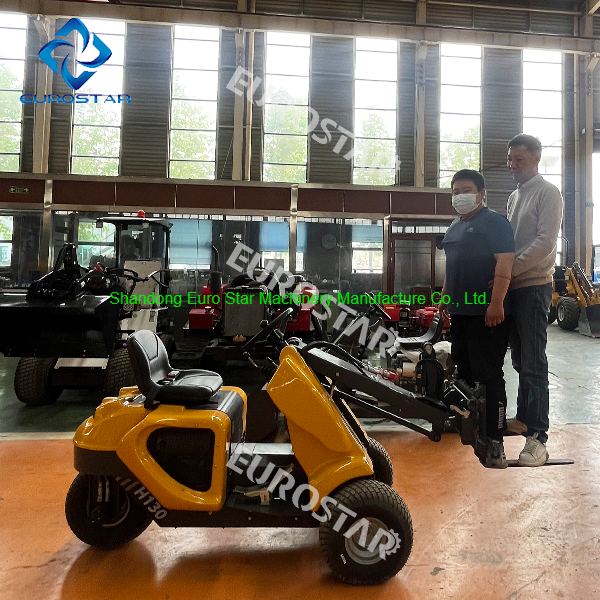

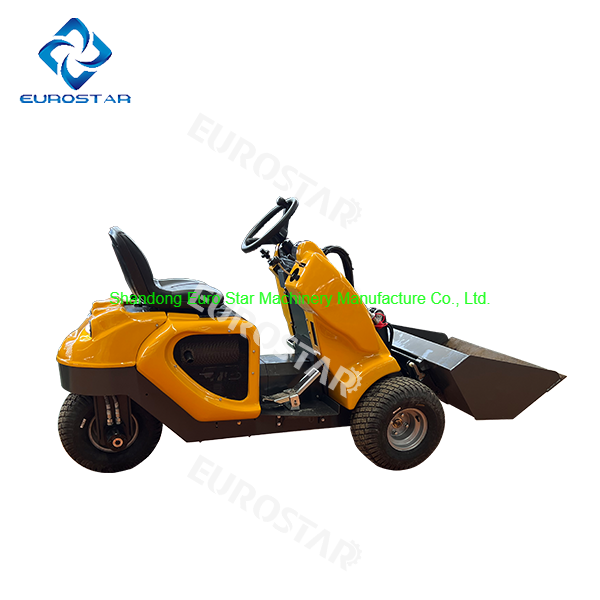

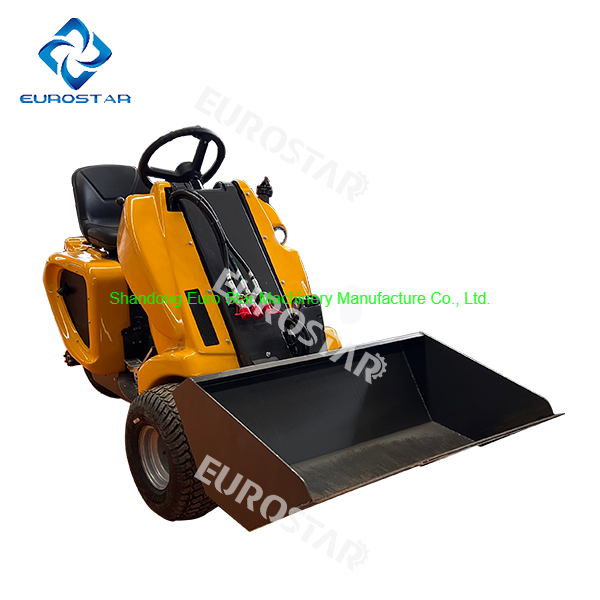

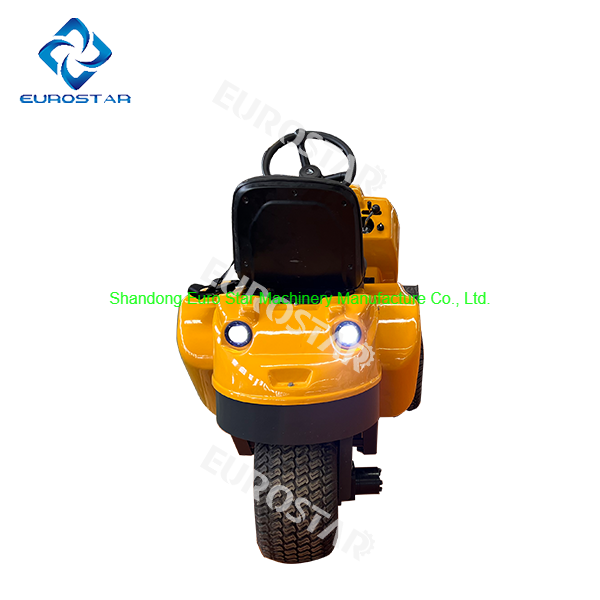

EPA 4 Euro V Gasoline Mini Loader
EPA 4 Euro V Gasoline Mini Loader
EPA 4 Euro V Gasoline Mini Loader
EPA 4 Euro V Gasoline Mini Loader
EPA 4 Euro V Gasoline Mini Loader
EPA 4 Euro V Gasoline Mini Loader
  • H130

  • EUROSTAR OEM

  • 84295100

H series Euro V or EPA wheel loader product description
Thanks to compact dimensions and excellent control, Euro Star Wheel Loaders can work in many grounds, and tackle different problems. The hydraulic drive system makes operation more comfortable and easier. Operators can learn how to use the machines much more quickly. The individual wheel motor gives an excellent ground clearance that can make machines to be operated in restricted areas. Reliability, durability and low maintenance makes wheel loaders a good investment.

Main sales territory: regions Europe, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
H series Euro V or EPA wheel loader product selling points
1) Euro V or EPA standard suitable for the Eureap and American market
2) Compact dimensions and excellent control,
3) The hydraulic drive system makes operation more comfortable and easier.
4) The individual wheel motor gives an excellent ground clearance that can make machines to be operated in restricted areas.
5) Reliability, durability and low maintenance
6) 360° steering angle,work more efficiently


H130 Euro V or EPA wheel loader (gasoline) product technical parameter

H130 Technical data
Engine modelBriggs & Stratton XR2100
Fuel typeGasoline
Cylinders1
Displacement (cc)420
Emission standardsEU Stage V&EPA Tier 4 Final
Max engine output (kw)10@3600rpm
Max engine torque (Nm)28.5@3060
Cooling systemAir
Operating voltage (V)12
Battery (Ah)20
Operating weight (kg)500
Tipping load ,max (kg)400
Lifting capacity,max (kg)350
Operator's cabNone
Travel speed (km/h)0~12
Steering angle (°)0~360
Turn radius inside/outside (mm)0/993
Standard tires18x9.50-8
Fuel tank capacity (l)10
Hydraulic oil tank capacity (l)10
Working hydraulic flow (l/min)17.5
Working hydraulic pressure (bar)14
Transmission typeHydrostatic
Tire size18x9.50-8
Height (mm)1304
Width (mm)993

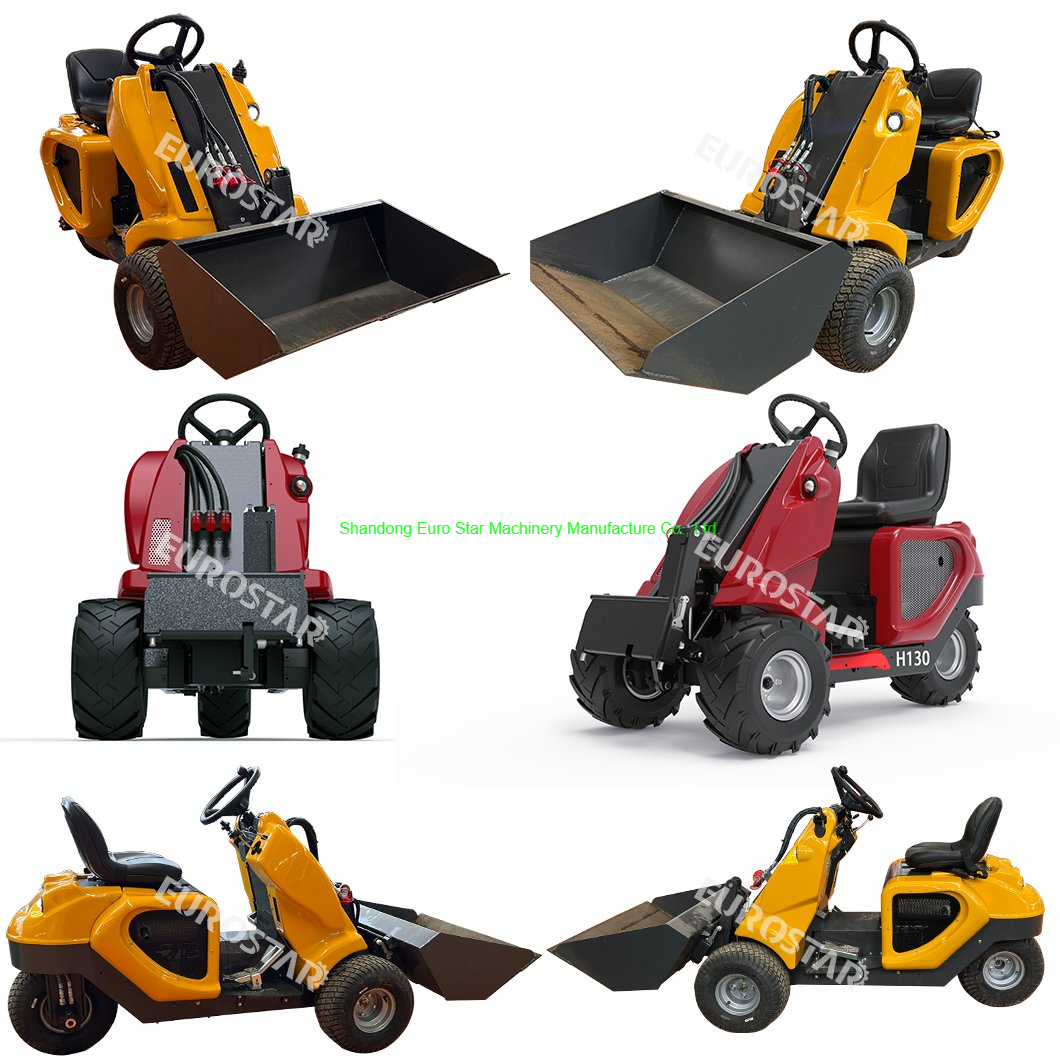

H130 Euro V or EPA wheel loader (gasoline) display

H130 (1)H130 (2)H190 Euro V or EPA wheel loader(diesel) product technical parameter

H190 Technical Data
Engine model AOLING
3TNV88-G1
YANMAR
3TNV88-BDTYC
YANMAR
3TNV88-BWTY
Kubota D1703-M-
DI-E4B-CBH1T
Fuel type Diesel
Cylinders 3
Displacement (cc) 1640 1642 1647
Emission standards China Off-Roda
GB2
China Off-Roda
GB3
EU Stage V EU Stage V&EPA
Tier 4 Final
Max engine output (kW) 19@2200rpm 28.2@3000rpm 18.4@2000rpm 18.2@2200rpm
Max engine torque (Nm) 108@1200rpm 107.7@1800rpm 107.1@1200rpm 96@1500rpm
Cooling system Water
Operating voltage (V) 12
Battery (Ah) 70
Operating weight (kg) 2000
Tipping load ,max (kg) 1300
Lifting capacity,max (kg) 1000
Operator's cab Canopy
Travel speed km/h 0~20
Steering angle (°) 45
Turn radius inside/outside (mm) 1282/2790
Standard tires 10.0/75-15.3
Fuel tank capacity (l) 30
Hydraulic oil tank capacity (l) 30
Working hydraulic flow (l/min) 40
Working hydraulic pressure (bar) 160
Transmission type Hydrostatic
Tires size 10.0/75-15.3
400/60-15.5
Height (mm) 2513
Width (mm) 1160
1340
Size(mm*mm*mm) 3300* 1160/1340 *2513

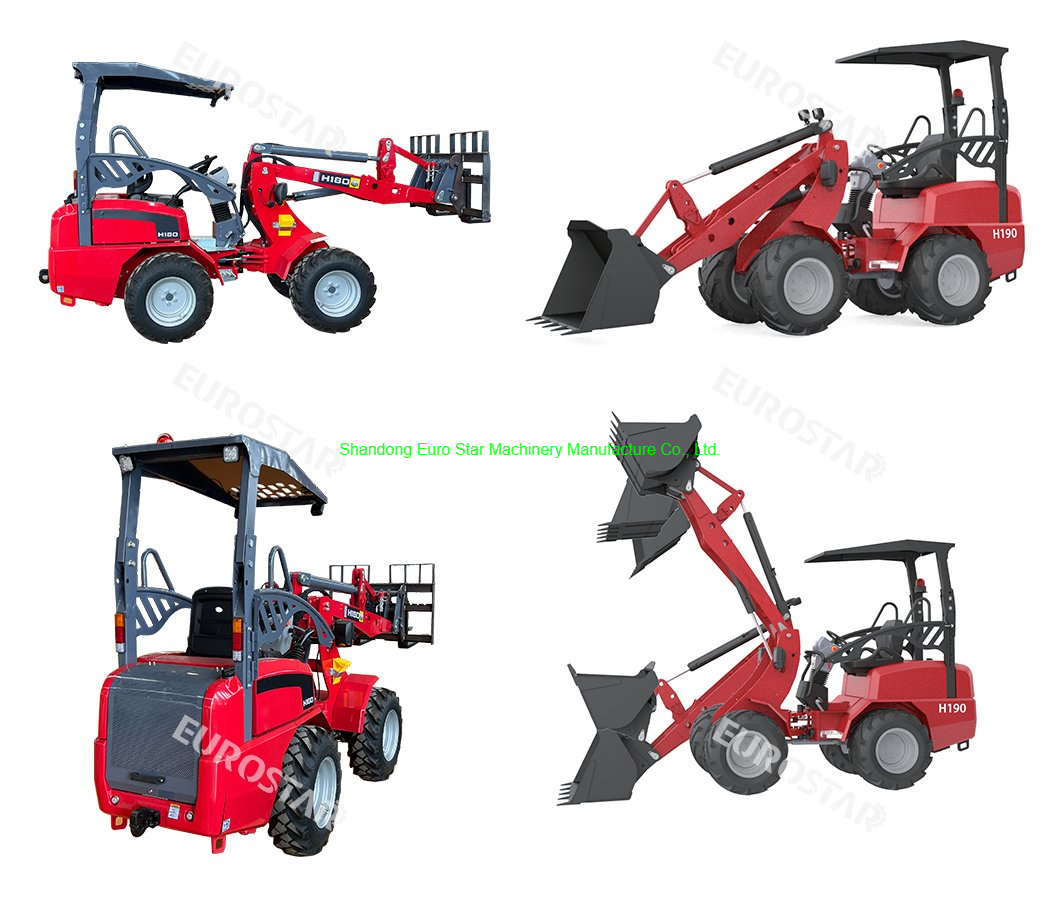

H190 Euro V or EPA wheel loader  (diesel) display H190 (1) H190 (2)

H220E Euro V or EPA wheel loader (electric) product technical parameter

 H220E Technical data
Battery Type Maintenance-free lead-
acid battery
Maintenance-free
lead-acid battery
Lithium iron
phosphate battery
Battery capacity (kwh) 19.2 26 28.8
Drive motor (kw) 30 30 30
Pump motor (kw) 28 28 28
Charging voltage (V) 110/220 110/220 110/220(380)
Charging time (h) 6~8 6~8(2)
Operating voltage (V) 12
Battery  (Ah) 45
Operating weight (kg) 2600
Tipping load ,max (kg) 1500
Lifting capacity,max (kg) 1200
Operator's cab Cab/Canopy
Travel speed (km/h) 0~20
Steering angle (°) 45
Turn radius inside/outside mm 1410/3025
Standard tires 10.0/75-15.3
Hydraulic oil tank capacity (l) 50
Working hydraulic flow (l/min) 43
Working hydraulic pressure (bar) 160
Transmission type Electric direct drive
Tires size 10.0/75-15.3
31/15.5-15
Height (mm) 2395
2400
Width (mm) 1198
1450

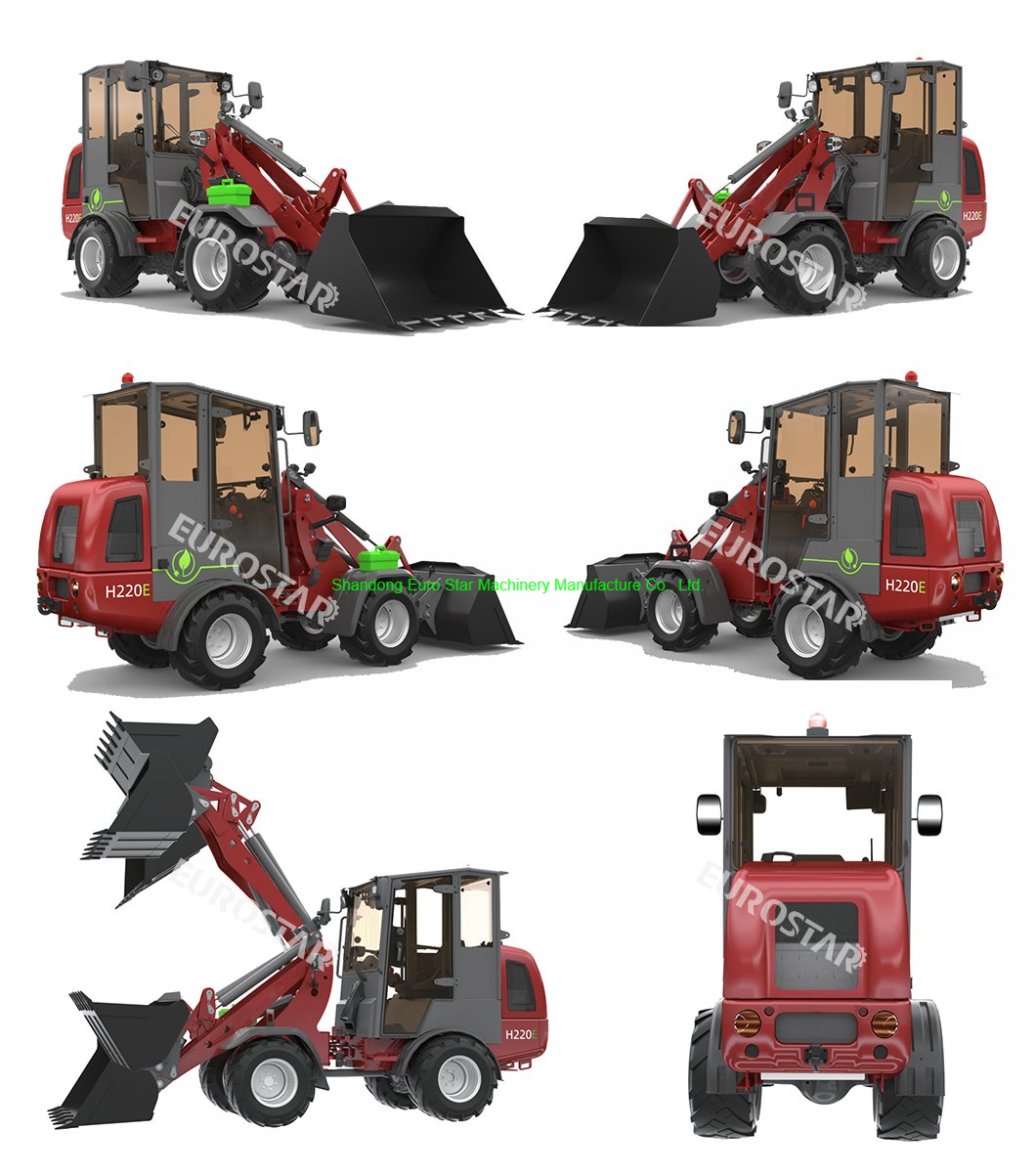

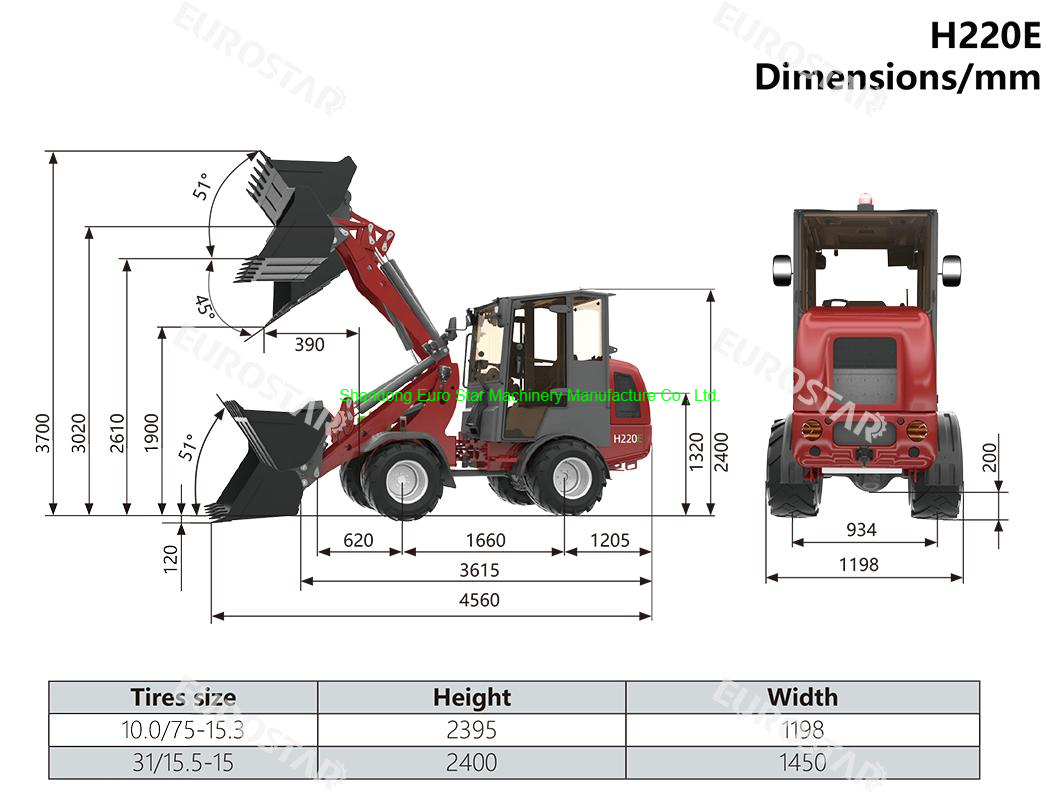

H220E Euro V or EPA wheel loader (electric) display

H220E (1)H220E (2)H series wheel loader supporting installation attachments display

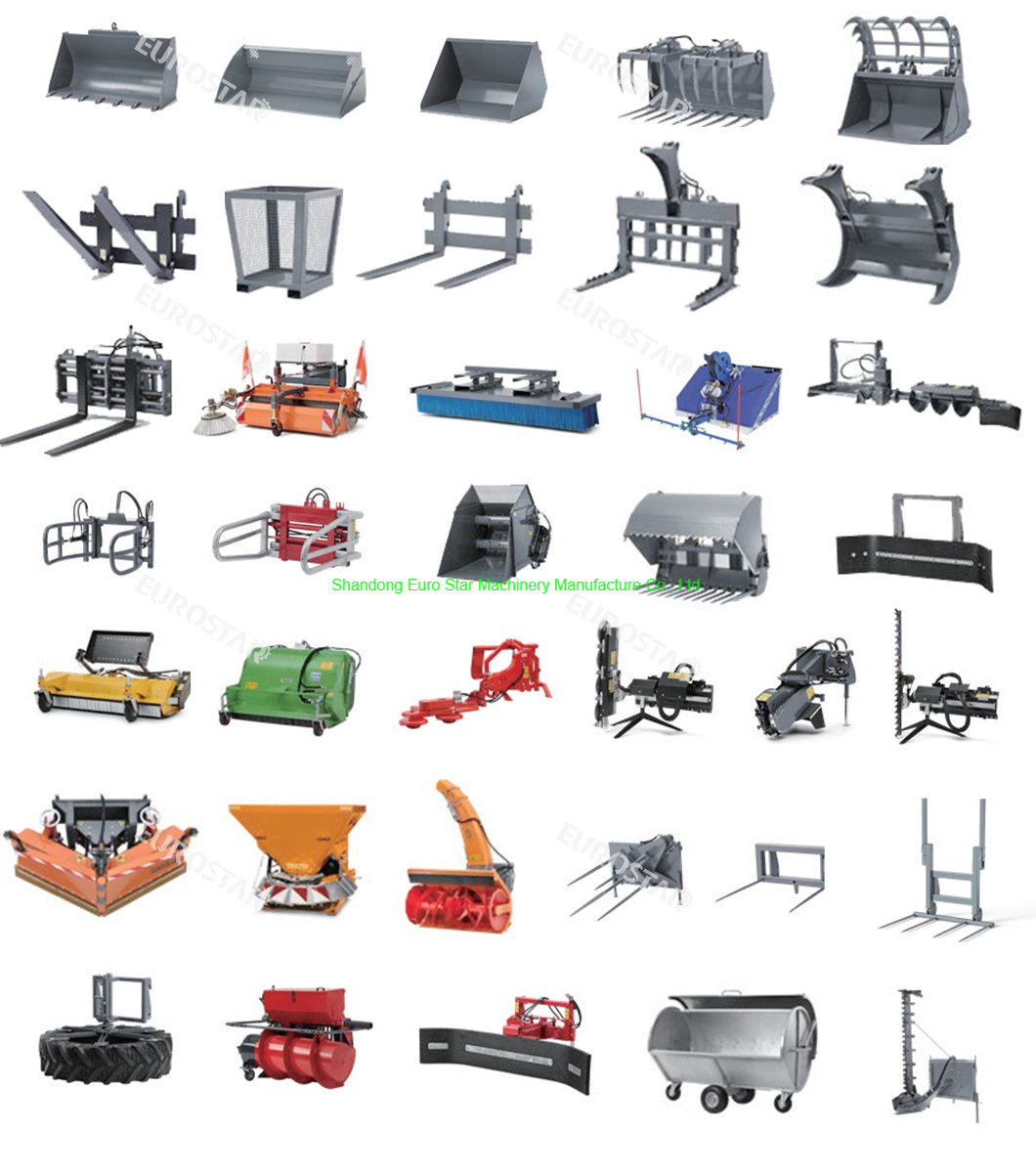

Attachment

Wheel loader supporting installation attachments displayWheel loader supporting installation attachments display (1)

Wheel loader supporting installation Attachments display1

Wheel loader supporting installation Attachments display-1

Wheel loader supporting installation Attachments display-2
