Construction Machine

Mini Excavator Product Description:
EX8010 mini excavator is a compact, lightweight, economic and multi-purpose excavator. has the advantages of flexible and practical, high configuration, high performance,low oil consumption, beautiful appearance and wide application. It is also called compact excavator or small excavator. Mini excavators are flexible in narrow spaces. They are widely used for material handling, light demolition jobs, stump removal, ditching, construction projects, landscaping, road building, small projects, farmland,in garden, municipal works,vegetable greenhouse, digging trench. home garden use and so on.The turning radius is small and the steering is flexible; suitable for operating in tight spaces.Oscillating rear axle keeps four-wheel drive engaged for superior off-road mobility. One-stop maintenance: engine, fan, radiator and hydraulic hoses can be serviced from ground level.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Mini Excavator Product Selling Points :
1. Excavators with compact dimensions can easily drive through narrow passages and doors.
2. Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
3. Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.

Availability:

Quantity:



Inquire

Model:
Ex8010
Brand:
EUROSTAR or OEM
Code:
8429521200

Mini excavator product description:

EX8010 mini excavator is a compact, lightweight, economic and multi-purpose excavator. has the advantages of flexible and practical, high configuration, high performance,low oil consumption, beautiful appearance and wide application. It is also called compact excavator or small excavator. Mini excavators are flexible in narrow spaces. They are widely used for material handling, light demolition jobs, stump removal, ditching, construction projects, landscaping, road building, small projects, farmland,in garden, municipal works,vegetable greenhouse, digging trench. home garden use and so on.The turning radius is small and the steering is flexible; suitable for operating in tight spaces.Oscillating rear axle keeps four-wheel drive engaged for superior off-road mobility. One-stop maintenance: engine, fan, radiator and hydraulic hoses can be serviced from ground level.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

Mini excavator product selling points :

1. Excavators with compact dimensions can easily drive through narrow passages and doors.
2. Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
3. Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.

EX8010 mini excavator product technical parameters:

	Model	EX8010
Standard configuration	Weight	1.0 T
	Track length	1300 mm
	Ground clearance	380 mm
	Chssis width	970 mm
	Track width	180 mm
	Total length	2450 mm
	Total height	2200 mm
	Bucket capacity	0.02 m³
	Max. digging radius	2400 mm
	Max. digging depth	1600 mm
	Max. digging height	2850 mm
	Max. dump height	2000 mm
	Rated Power	7.5 KW
	Engine	Changchai
	Bucket width	300mm
	Shipment quantity 40HQ	13 Unit/19 Unit
Optional	Kubota engine	Kubota
	YANMAR engine	YANMAR
	guide system	guide system
	bucket	200mm
	bucket	300mm
	bucket	600mm
	Quick change device	Quick change device
	Plow groove	Plow groove
	Catch	Catch
	Spiral drill	Spiral drill
	Dumping hopper side	Dumping hopper side

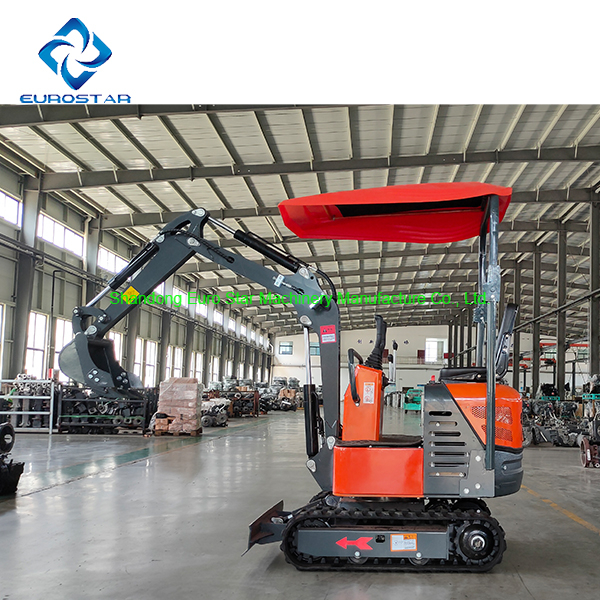

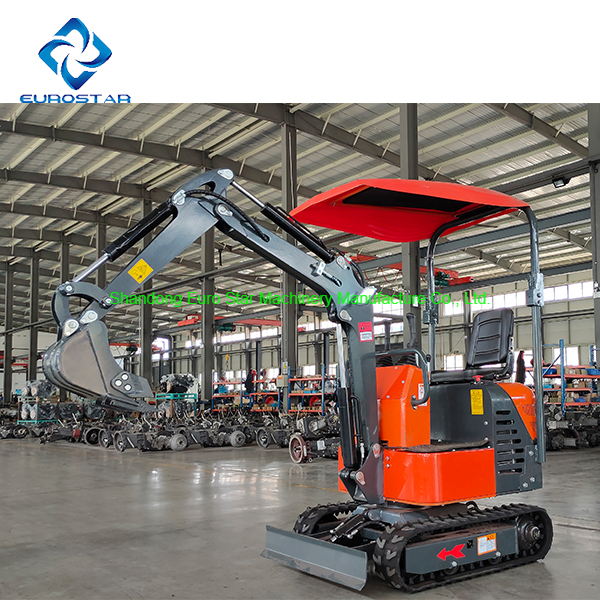

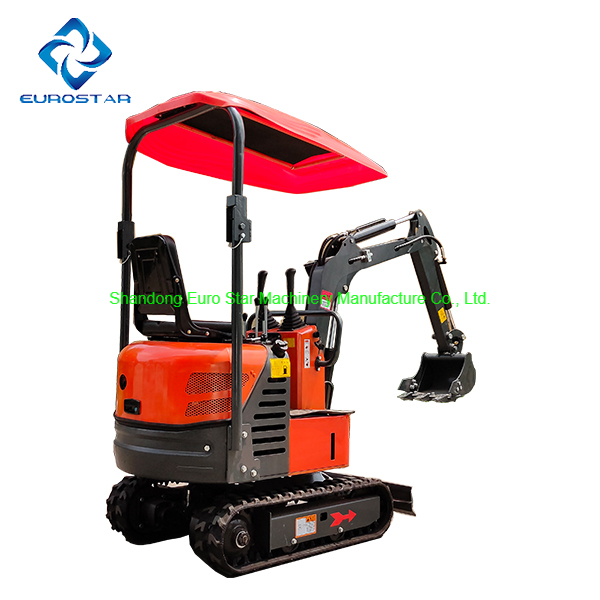

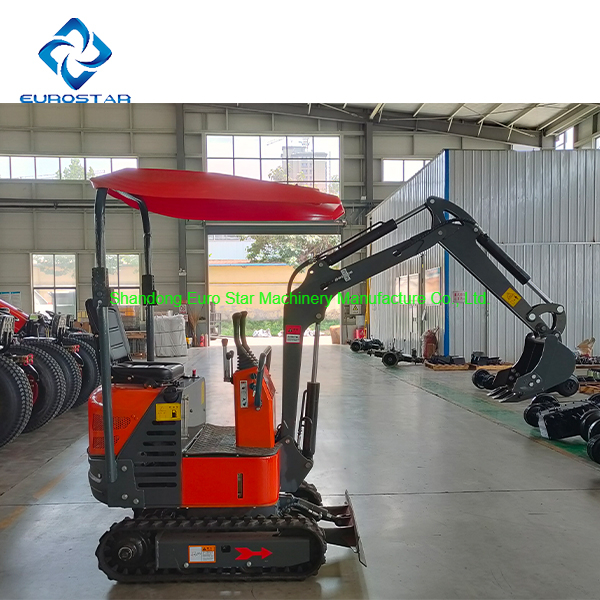

EX8010 mini excavator details picture display:

mini excavator detail

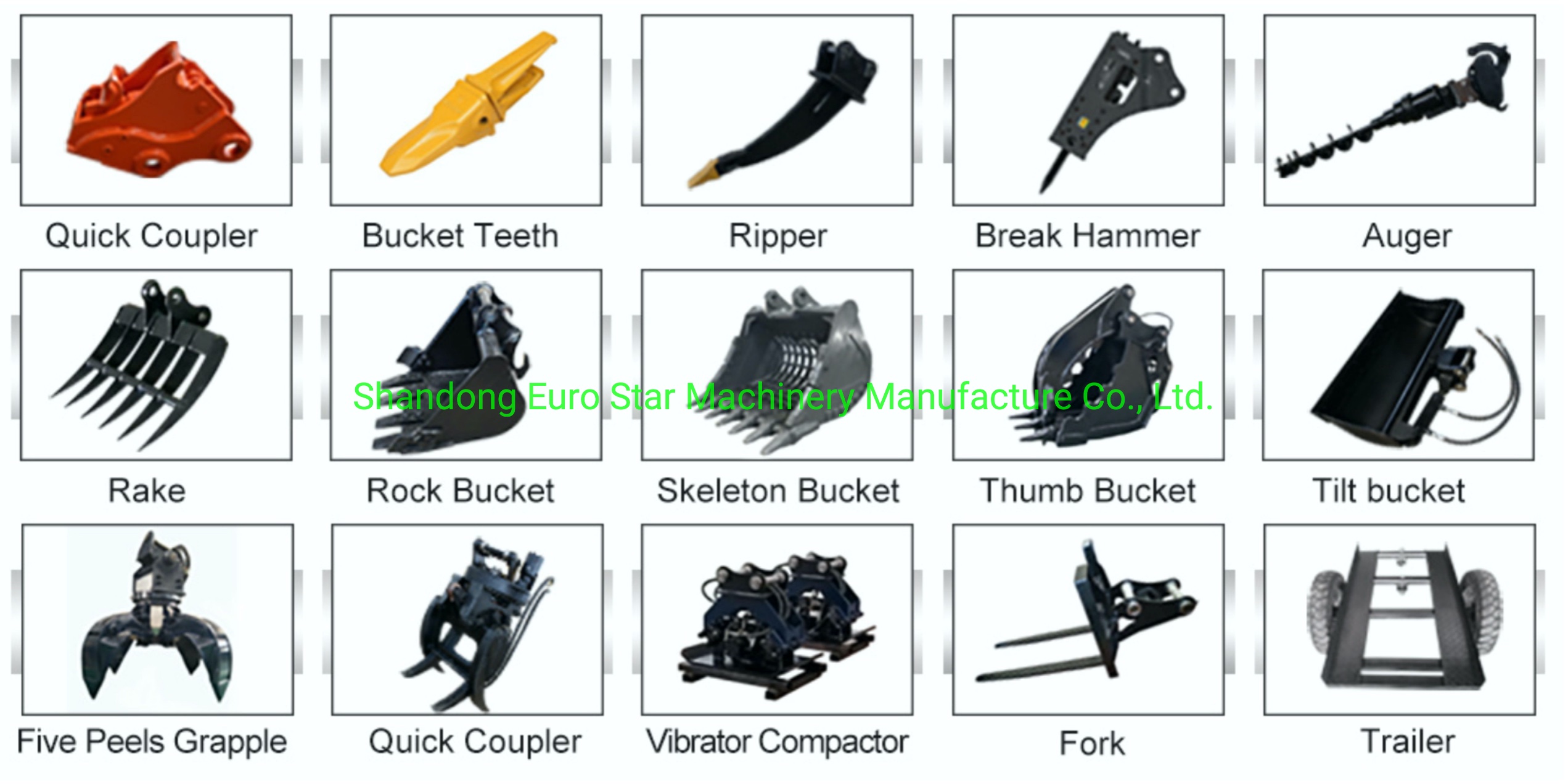

Mini excavator can be equipped with auxiliary tools:

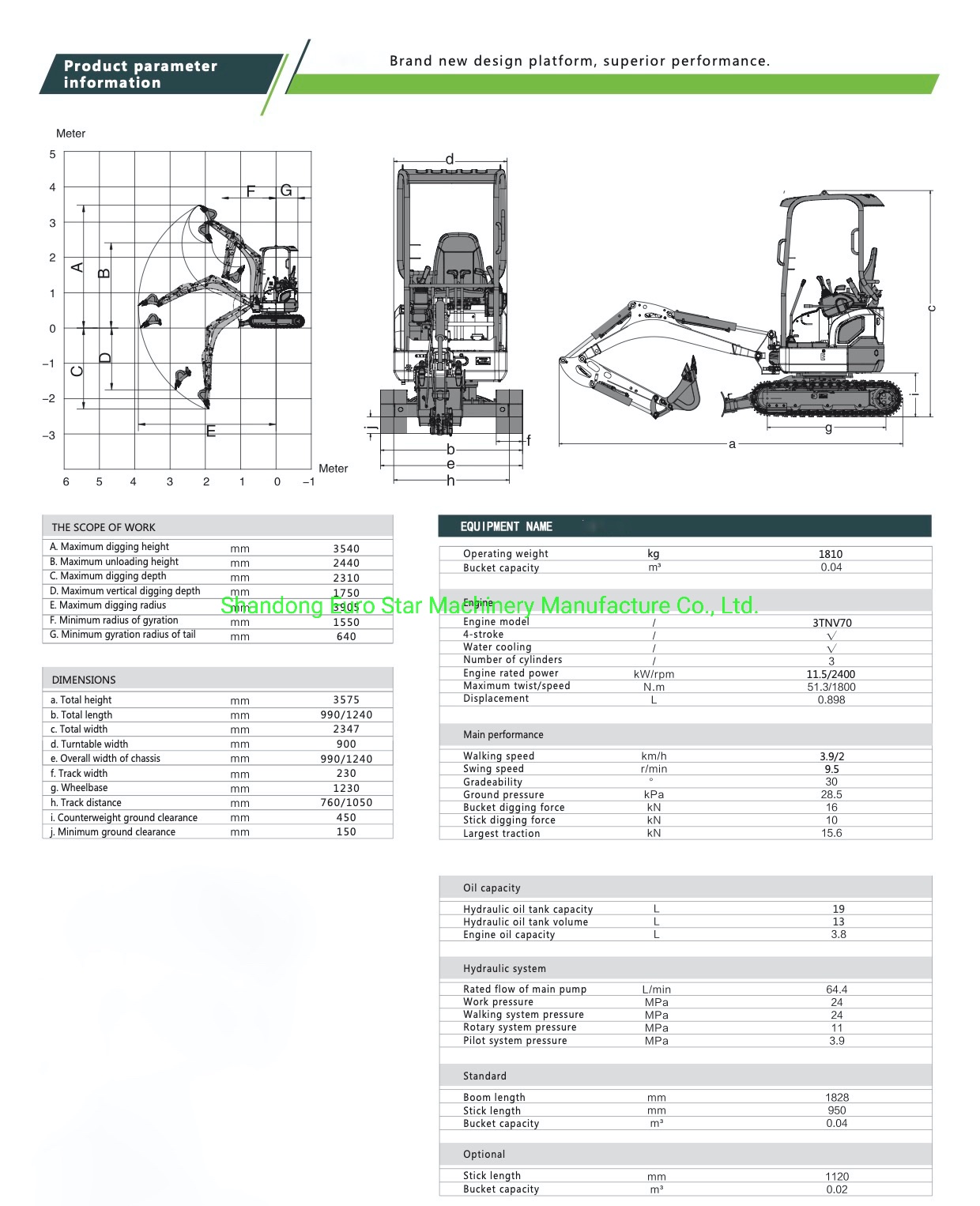

EX1800 series metal crawler small excavator product technical parameters

Model		EX1800K	EX1800Y
Size parameters	Total Weight	1810 kg	1810kg
	Standard bucket capacity	0.04 m³	0.04 m³
	Full length during transportation	3608 mm	3608 mm
	Full width during transportation	990 mm	990 mm
	Full height during transportation	2375 mm	2375 mm
	Minimum ground clearance	150 mm	150 mm
	Gauge	760 mm	760 mm
	Wheelbase	1230 mm	1230 mm
	Total track length	1585 mm	1585 mm
	Track shoe width	230 mm	230 mm
	Support wheel	3 Unit	3 Unit
	Front radius of gyration	1490 mm	1490 mm
	Radius of tail gyration	640 mm	640 mm
Job parameters	Maximum digging radius	3849 mm	3849 mm
	Maximum digging depth	1911 mm	1911 mm
	Maximum digging height	3540 mm	3540 mm
	Maximum unloading height	2243 mm	2243 mm
Tank	Fuel tank volume	19 L	19 L
	Total hydraulic oil of hydraulic system	21 L	21 L
	Hydraulic oil tank volume	13 L	13 L
	Engine oil capacity	2.5 L	2.5L
Engine	Engine model	Kubota D902-E4B-CBH-1	YANMAR 3TNV70
	4-stroke	Yes	Yes
	Emission Standards	EPA4, Euro V	G3
	Water cooling	Yes	Yes
	Number of cylinders	3	3
	Engine rated power	12KW/2200rpm	12KW/2200rpm
	Maximum torque/speed	48NM/1600rpm	48NM/1600rpm
	Displacement	0.854 L	0.854 L
Main performance parameters	Walking speed	3.9 km/h	3.9 km/h
	Swing speed	10 r/min	10 r/min
	Gradeability	30°	30°
	Ground pressure	28.5 kpa	28.5 kpa
	Bucket digging force	8.5 KN	8.5 KN
	Bucket rod digging force	15.2 KN	15.2 KN
	main traction force	13.5 KN	13.5 KN
Hydraulic system	Rated flow of main pump	2*17.2+10.8 L/min	2*17.2+10.8 L/min
	Work pressure	21.6+18.6 MPa	21.6+18.6 MPa
	Walking system pressure	24 MPa	24 MPa
	Rotary system pressure	11 MPa	11 MPa
	Pilot system pressure	3.9 MPa	3.9 MPa
Standard configuration	Boom length	1830 mm	1830 mm
	Length of bucket rod	950 mm	950 mm
	Bucket capacity	0.04 m³	0.04 m³
Optional	Length of bucket rod	1120 mm	1120 mm
Optional	Bucket capacity	0.02 m³	0.02 m³

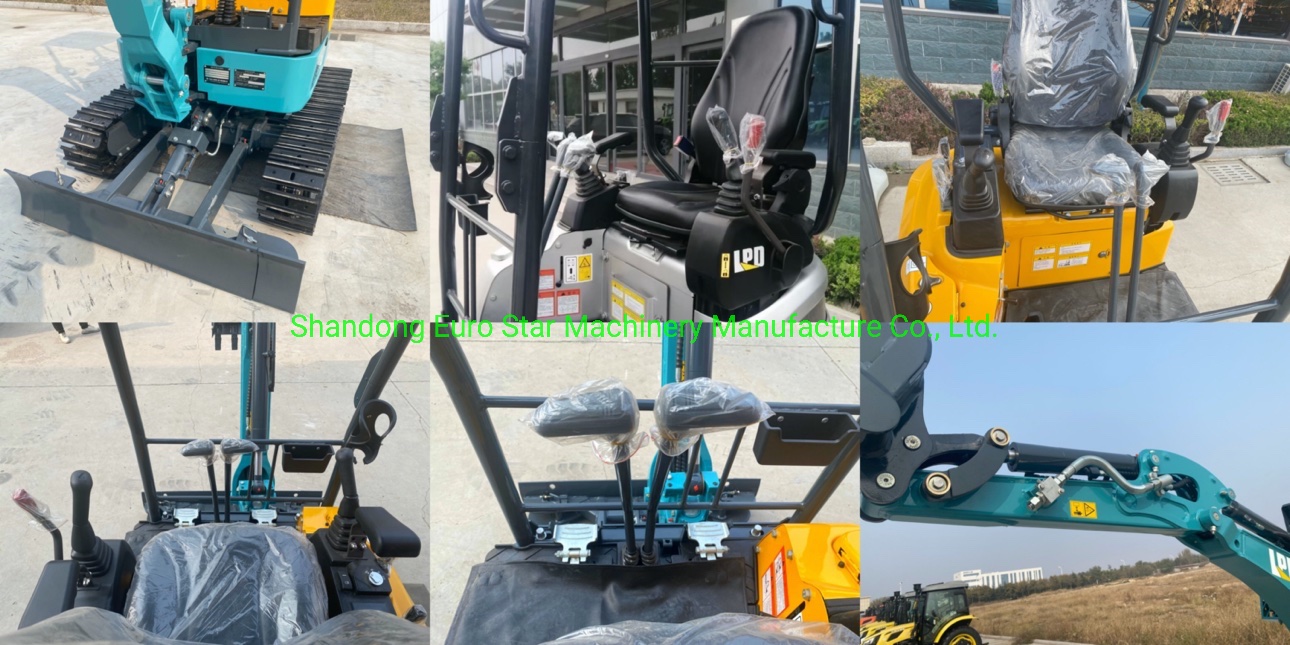

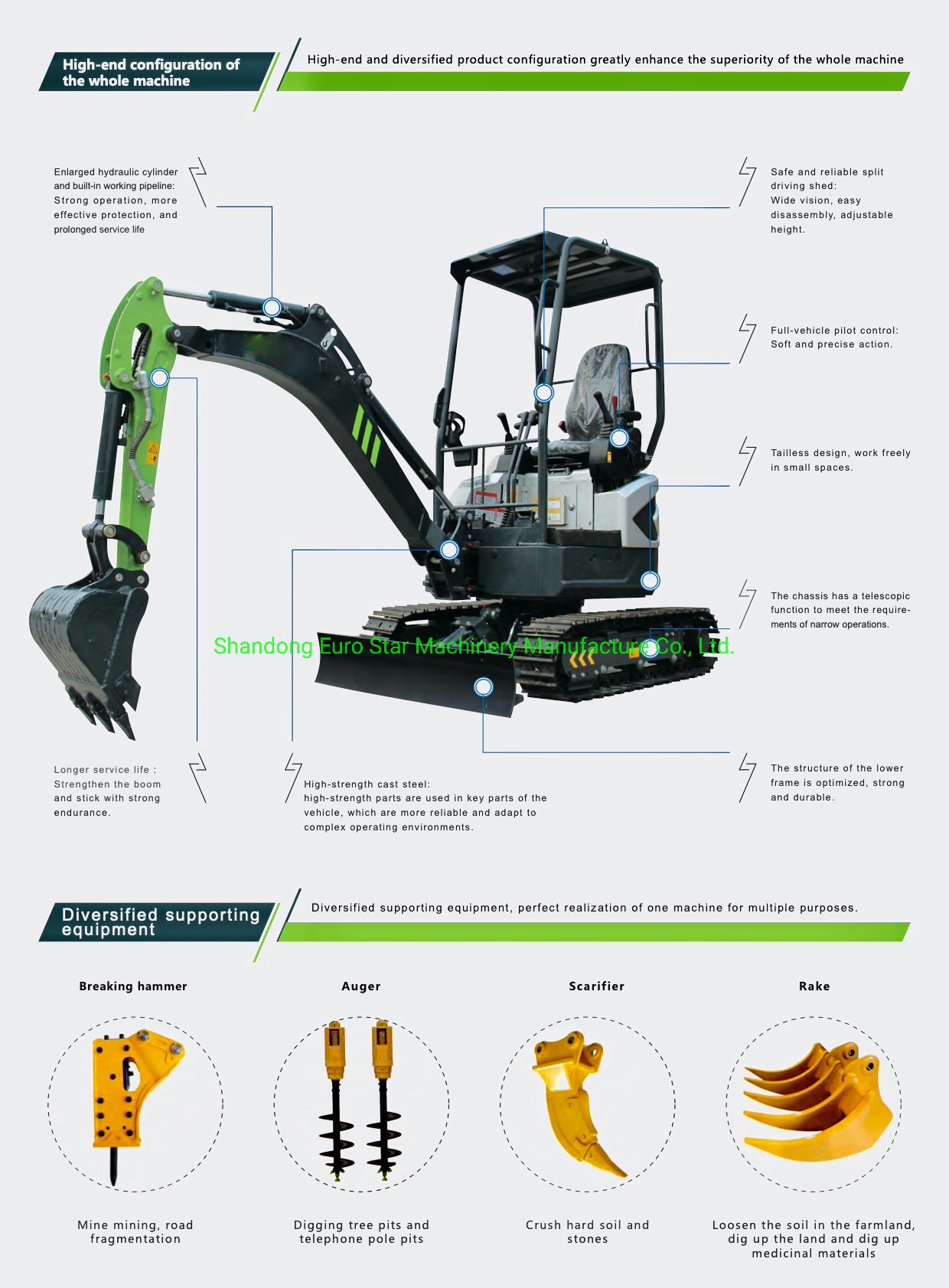

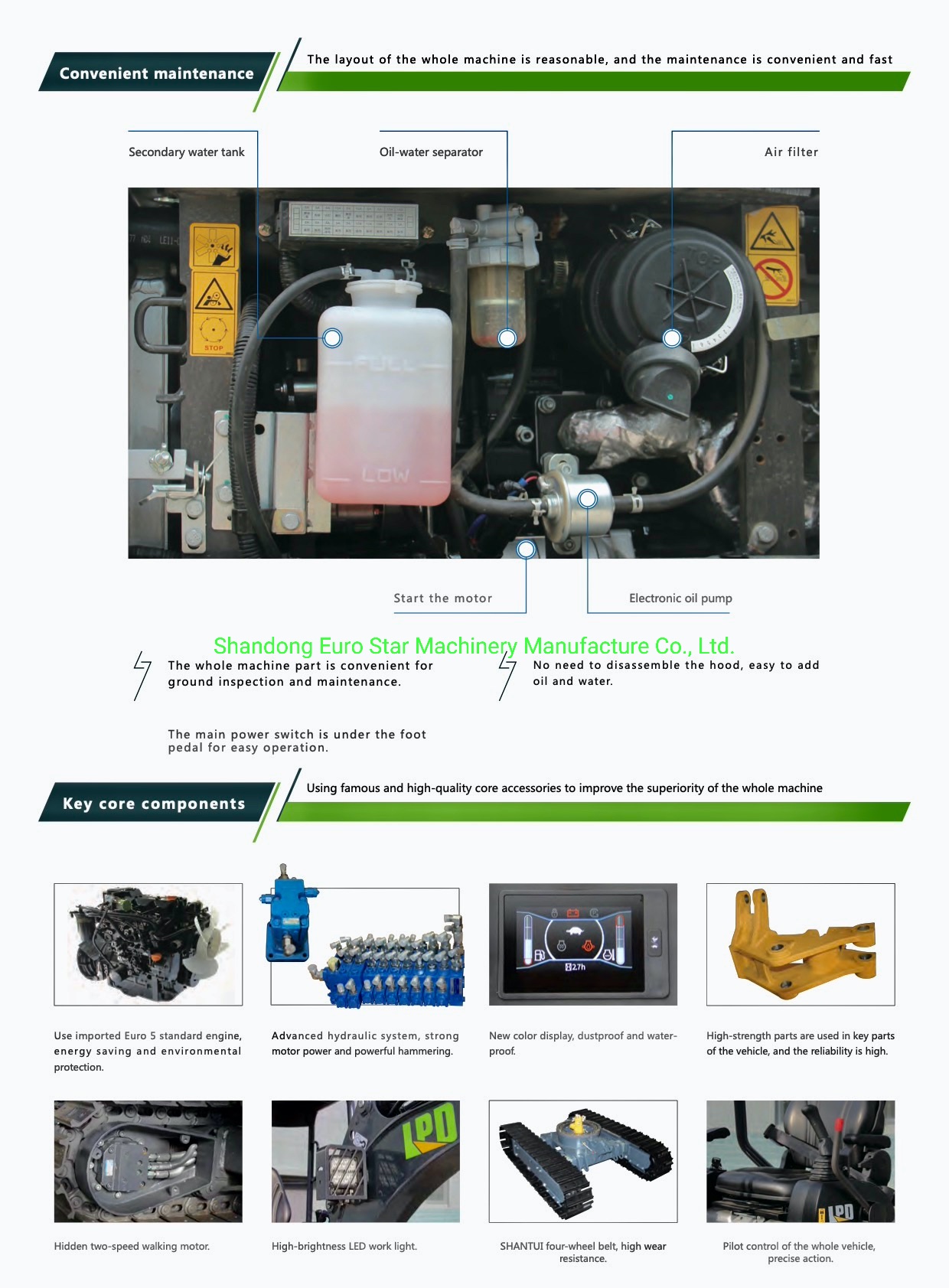

EX1800 series metal crawler small excavator product display

downLoadImg downLoadImg (1) downLoadImg (2)

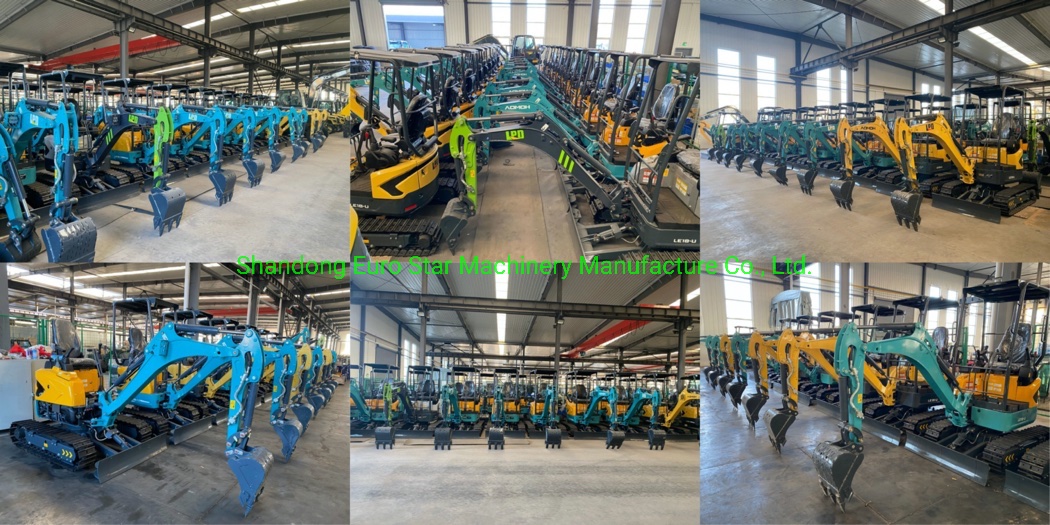

EX1800 series metal crawler small excavator product display

Other construction machinery products:

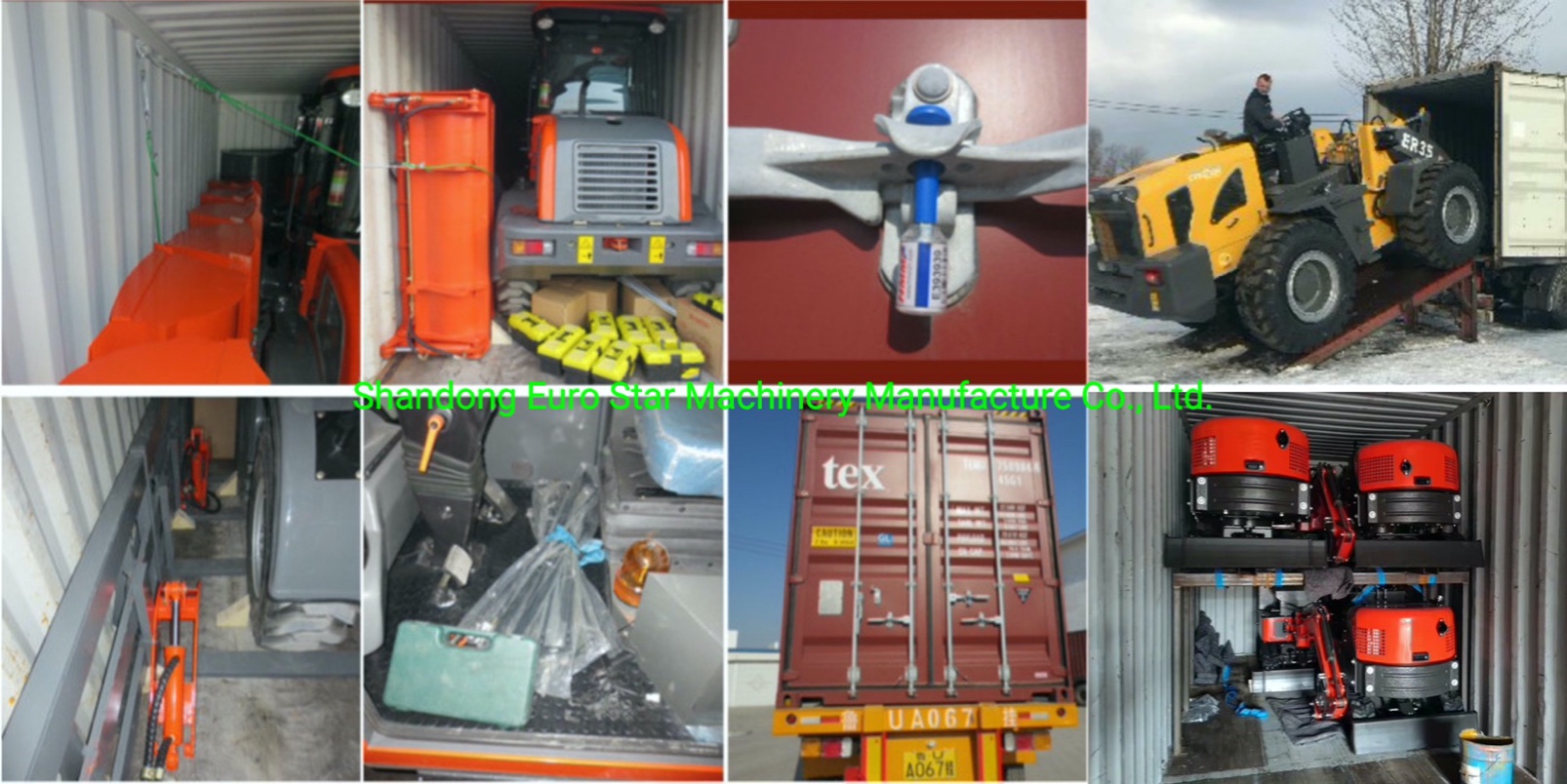

Construction machinery products packaging and shipping display

Factory introduction:

Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

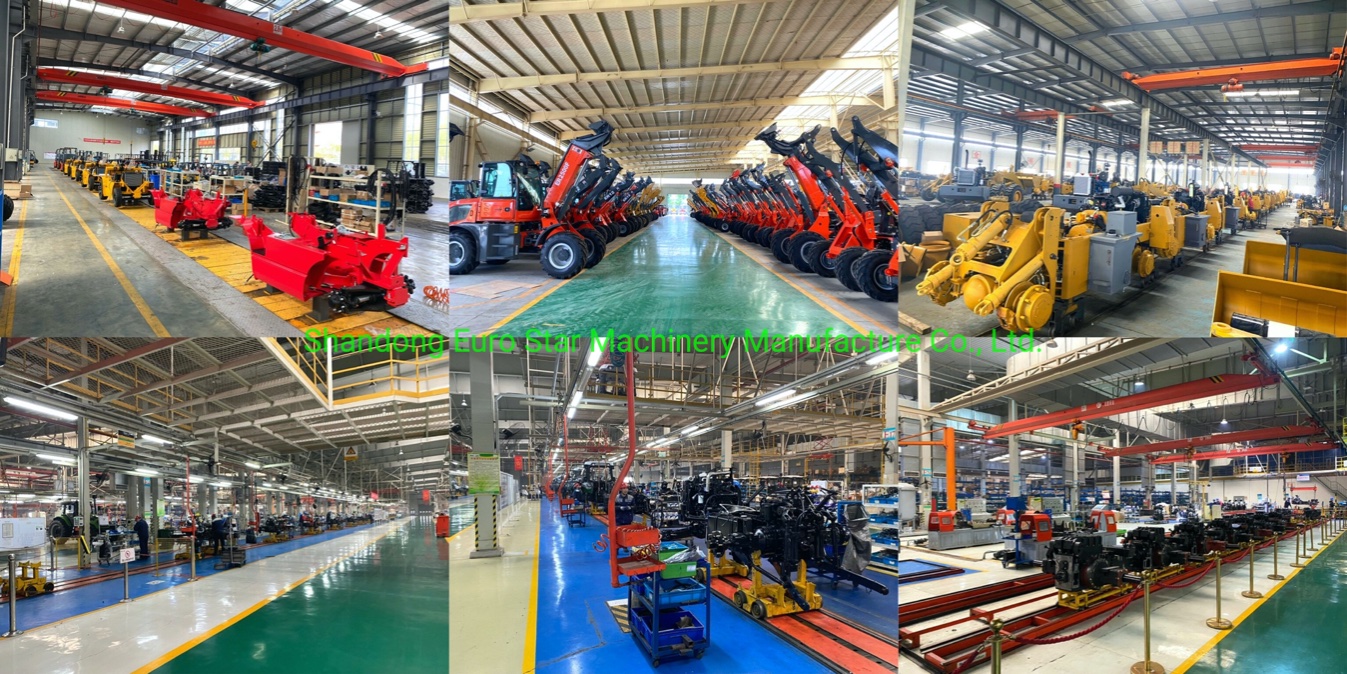

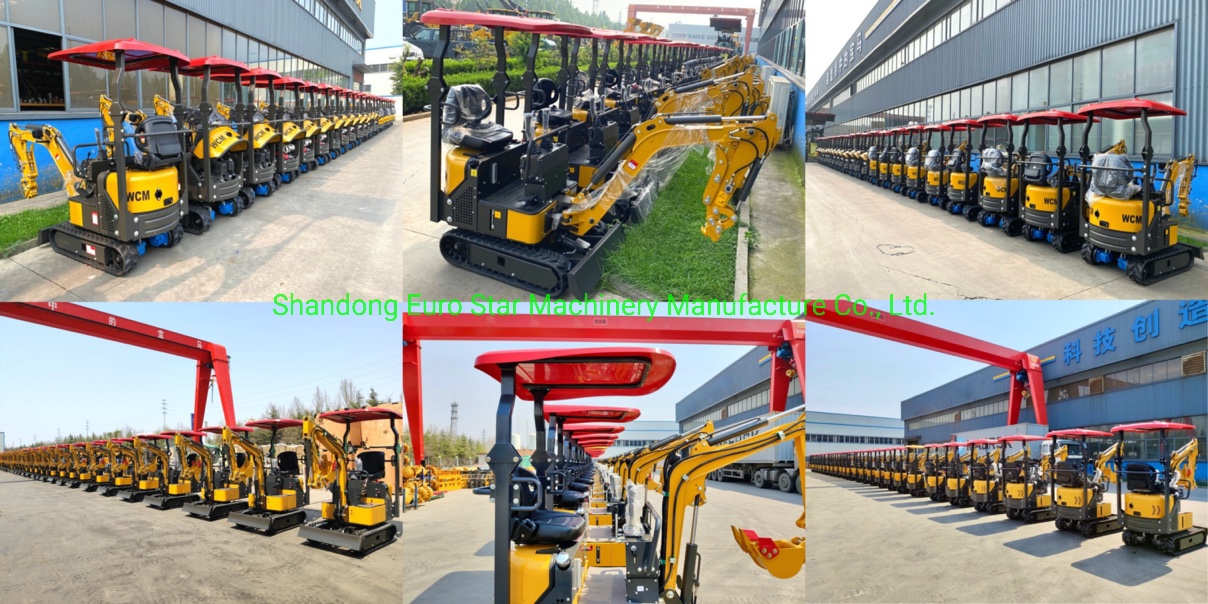

Factory and production equipment display:

Service

One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare Parts Service

Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service

Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical Support

The whole process Technology support covers on sale and after-sale service.
Terms of the deal:

1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 6-9 units can be in a 20ft container, 13-19 units can be in a 40HQ container.will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
