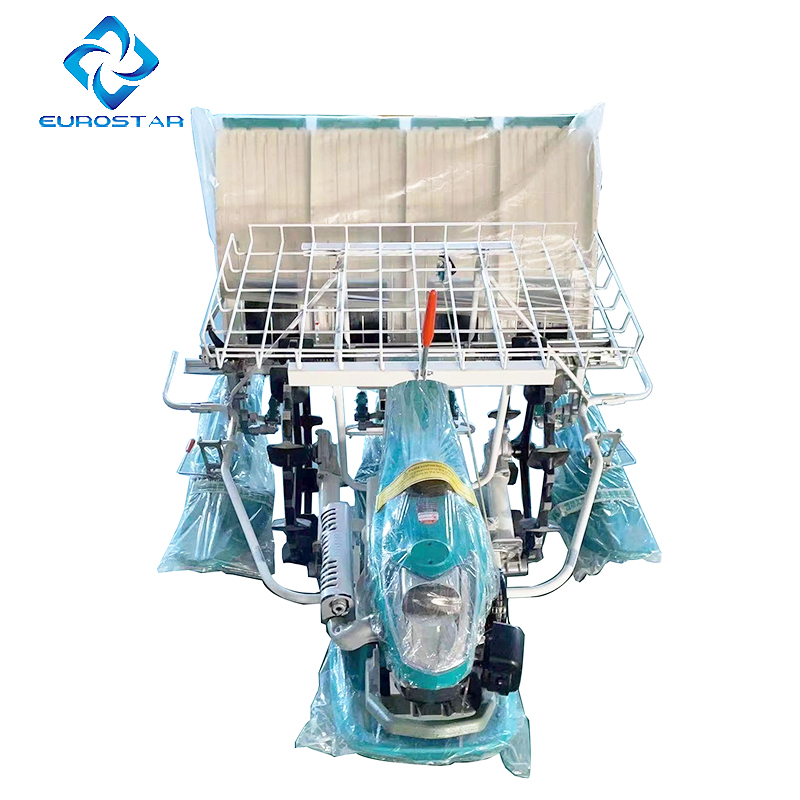

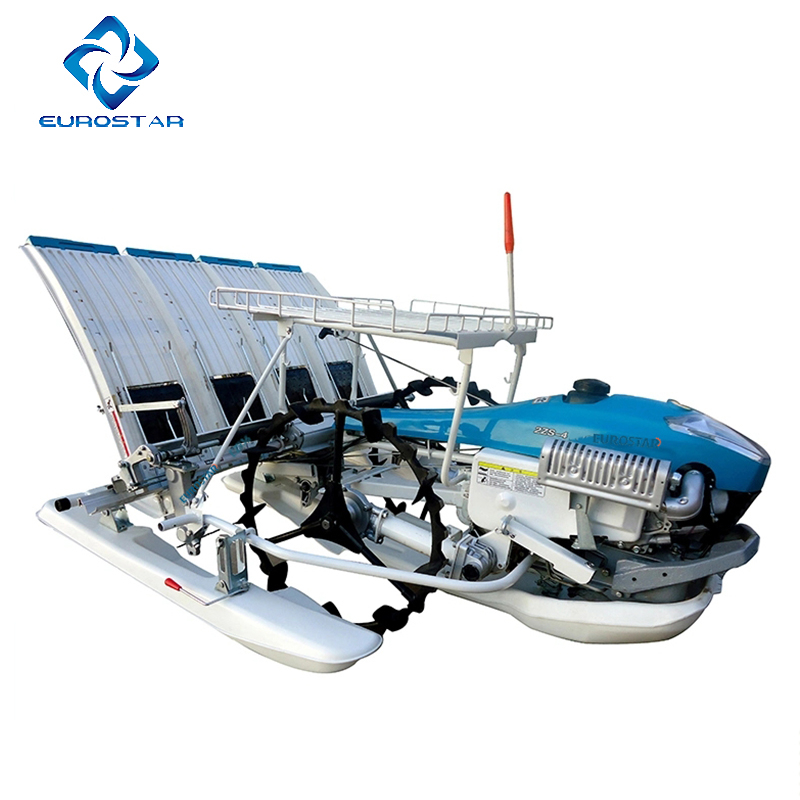

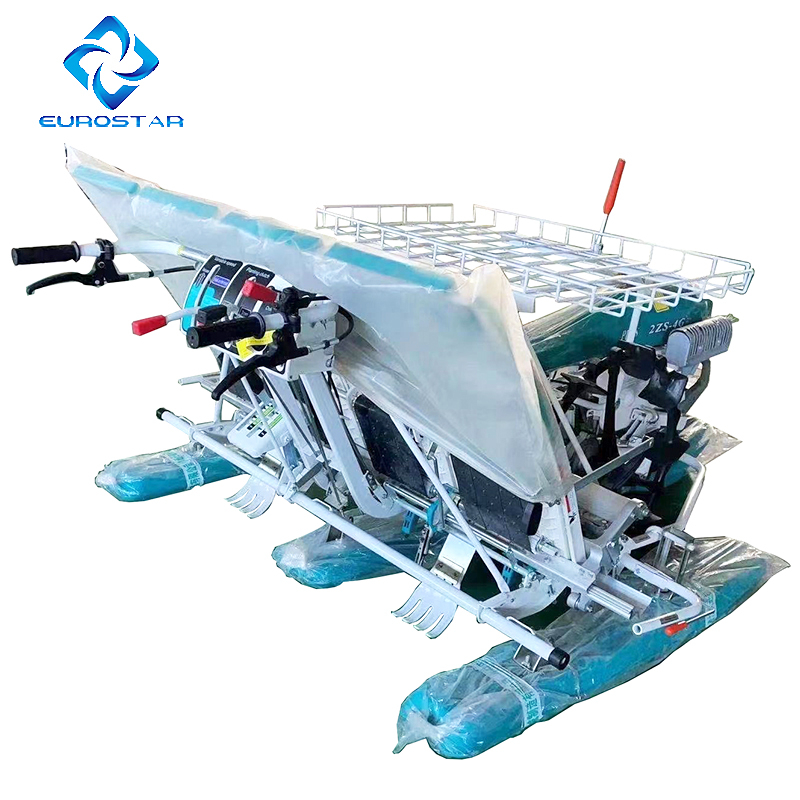

4 Rows Paddy Planting Machine

1.The 2ZS series rice transplanter can be driven by YAMAHA gasoline engine that give more power to the machine.
2.Transplanting distance can be adjusted with four grades. By adjusting the speed and distance regulation handle. It can realize 12-14 or 16 -21 cm by a simple and quick operation.
3. High applicability. The transplanter can be used in the field where the mud depth is 15-35cm. It's not limited by the size of the filed.
4. The machine is light in weight, which saves much labor.
5. The user should put seedling evenly and reliably to effectively avoid to miss transplanting.
6. Aesthetic shape, through-drive power transmission make machine more strength and better balance.
Availability:
Quantity:
4 Rows Paddy Planting Machine
4 Rows Paddy Planting Machine
4 Rows Paddy Planting Machine
4 Rows Paddy Planting Machine
4 Rows Paddy Planting Machine
4 Rows Paddy Planting Machine
  • 2ZS-6/2ZS-4 2ZG-6Q/8Q

  • EUROSTAR OEM

  • 8432313100

Rice Transplanter Product Description

A new type of walking transplanter, which is designed and produced by Eurostar, has stable and reliable power transmission, high efficiency and excellent transplant performance. This model can transplant blanket bowl-seedlings accurately . It is the ideal model for paddy field operations which is can be adapt to various paddy fields .
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.


Rice Transplanter Product Selling Points

1.The 2ZS series rice transplanter can be driven by YAMAHA gasoline engine that give more power to the machine.

2.Transplanting distance can be adjusted with four grades. By adjusting the speed and distance regulation handle. It can realize 12-14 or 16 -21 cm by a simple and quick operation.

3. High applicability. The transplanter can be used in the field where the mud depth is 15-35cm. It's not limited by the size of the filed.

4. The machine is light in weight, which saves much labor.

5. The user should put seedling evenly and reliably to effectively avoid to miss transplanting.

6. Aesthetic shape, through-drive power transmission make machine more strength and better balance.


2ZS series Walking Type Rice Transplanter Product Parameters


Model2ZS-4G2ZS-6G
Machine Size (L*W*H)mm2140*1630*9102370*1930*910
Weight(KG)162187
EngineTypeAir-cooled OHV 4-stroke cylinder gasoline engineAir-cooled OHV 4-stroke cylinder gasoline engine
EngineYamahaYamaha
Engine Power (kw)3.3(4.5)3.3(4.5)
Engine Speed (r/min)36003600
Using fuelUnleaded gasoline for automobilesUnleaded gasoline for automobiles
Startup modeHand-held / ElectricHand-held / Electric
Walking
Section
Body up and down adjustmentHydraulic adjustment (manual, automatic, linkage)Hydraulic up and down adjustment+Automatic swing 3-speed height adjustment
GearboxF2(planting1)+R1F2(planting1,walking1)+R1
Working speed(m/s)0.34-0.770.28-0.50
Planting SectionPlanting methodCrank rockerCrank rocker
Transplant Rows46
Row Spacer (mm)300
Planting distance(mm)120/140/160/180/210120/140/160/180/210
Number of Plants Planted (plants/3.3m2)90/80/70/60/5090/80/70/60/50
Working Depth (mm)15-3715-37
Seedling ConditionsLeaf age/ Seedling height(leaf/mm)(2.0-4.5)/100-250(2.0-4.5)/100-250
Work EfficiencyProductivity (ha/h)3.24.8

2ZS-4G Walking Type Rice Transplanter images

2ZS-4G series rice transplanter picture display


2ZS Series Rice Transplanter Product Details2ZS series rice transplanter details2ZS-6G Rice Transplanter Product Display

2ZS-6G series rice transplanter picture display

2ZG-6Q Series of Rice Transplanter images

6rows high speed rice transplanter

2ZG-8Q Series of Rice Transplanter images

2ZG-8Q Series of Rice Transplanter images

high speed riding rice transplanter details1Rice transplanter packaging delivery site

Rice transplanter packaging delivery site

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop displayAgricultural machinery factory production equipment display

Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.


1) Market Service

Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified


2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.


3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;


4) Technical Support
The whole process Technology support covers on sale and after-sale service.

Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business


FAQ:

Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
