1LYT Hanging Disc Plough for 100-120HP Tractor

1. 1LYT series disc plough suitable for plowing paddy field and dry cultivated field, especially suitable for plowing paddy field, high-yield green fertilizer fields and plowing filed with rice or wheat stubble. This plow is with good working performance, good cutting soil performance. it can meet the technical requirements of agricultural production, and it is easy to operate and adjust.
2. 1LYT series disc plough applicable for complex land, such as weedy land, heavy soil, farmland with bricks and stones, etc. no tied with grass, not obstruction, can cut off stem of crop and overcome bricks and stones, with high efficiency, good quality work, easy to adjust, simple to use,durable, etc.

Availability:

Quantity:



Inquire

Model:
1LYT220/320/420/1LYT325/425/525/625/1LYT230/330/430
Brand:
EUROSTAR OEM
Code:
8432100000

1LYT series disc plough product description
1. 1LYT series disc plough suitable for plowing paddy field and dry cultivated field, especially suitable for plowing paddy field, high-yield green fertilizer fields and plowing filed with rice or wheat stubble. This plow is with good working performance, good cutting soil performance. it can meet the technical requirements of agricultural production, and it is easy to operate and adjust.
2. 1LYT series disc plough applicable for complex land, such as weedy land, heavy soil, farmland with bricks and stones, etc. no tied with grass, not obstruction, can cut off stem of crop and overcome bricks and stones, with high efficiency, good quality work, easy to adjust, simple to use,durable, etc.
1LYT series disc plough product selling points
1. New type compact tractor disc plow has the feature of not Winding grass , not block and no hip building- up.
2. The mounted disc plough is easy to cut off stems and roots .
3. Less working resistance .
4. It is a mounted disc plough for 4-wheel tractor.
5. It has compact structure and suitable for working on all various land.
6. With the working performance of the machine, after cultivation, the land surface is leveling, the soil clods well crushed and turned over and the furrows is small.
7. The working speed is 8-10 kilometers per hour.
8. Disc plough can be mounted to 20-100 HP tractors with the operation is smooth without any troubles.
9. They are also suitable for working on terraced fields and small piece of farming land.
10. have the characteristics of short idle distance of travel on the edge of fields, high productivity, low oil consumption etc(etcetera),

1LYT series disc plough product parameters

Model	1LYT-220	1LYT-320	1LYT-420	1LYT-325	1LYT-425	1LYT-525	1LYT-625	1LYT-230	1LYT-330	1LYT-430
Working Width (mm)	400	600	800	750	1000	1250	1500	600	900	1200
Working Depth (mm)	200			250-300				300
Qty. of Disc (pc)	2	3	4	3	4	5	6	2	3	4
Dia. of Disc (mm)	510*4	510*4	510*4	660*6				710*6
Linkage	Three-point suspension			Three-point suspension				Three points suspension
Matched Power (hp)	21-30	25-35	30-40	50-65	65-85	80-100	100-120	55-70	60-80	80-100

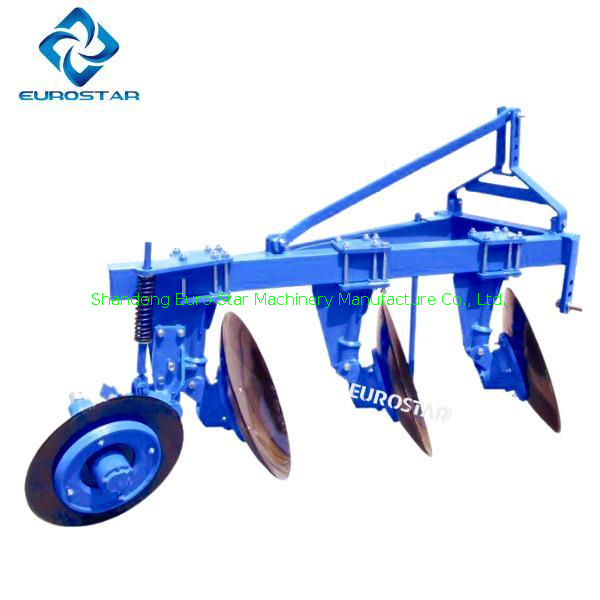

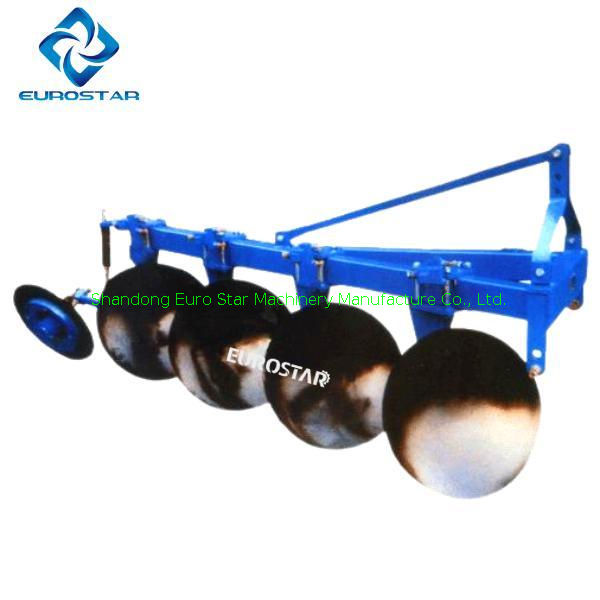

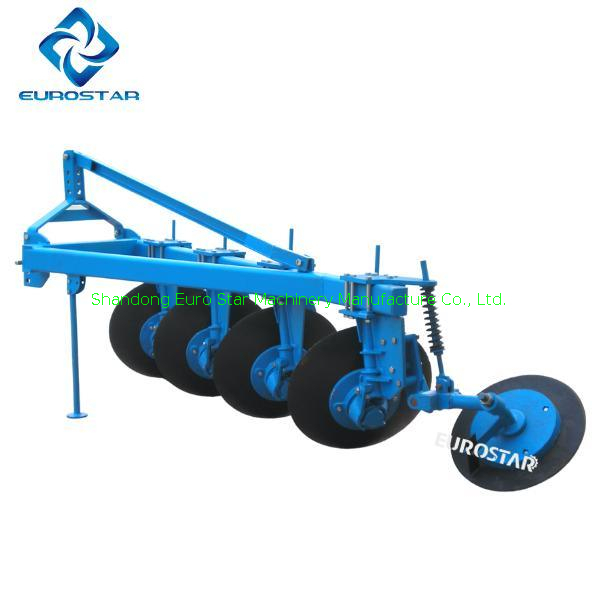

1LYT series disc plough pictures show

1L series furrow plough1

1LYQ series driving disc plough product parameters

Model	1LYQ-320	1LYQ-420	1LYQ-522	1LYQ-622	1LYQ-722	1LYQ-822	1LYQ-922
Overall dimension(mm)	132520251050	96513651050	107515851050	121018051050	132520251050	144022651050	155524651050
number of disc (pec)	3	4	5	6	7	8	9
the dia of disc (mm)	560	560	560	560	560	560	560
Working width(mm)	660	880	1100	1320	1540	1760	1980
working depth(mm)	200-240	200-240	200-240	200-240	200-240	200-240	200-240
Rotating speed of input shaft(r/min)	540/720	540/720	540/720	540/720	540/720	540/720	540/720
Rotating speed of cutter shaft(r/min)	90-120	90-120	90-120	90-120	90-120	90-120	90-120
Matched power(hp)	15-18	18-22	25-40	40-50	50-60	60-80	80-90
overall weight (kg)	210	240	276	321	357	393	430
Linkage	Three-point suspension		Three-point suspension

1LY series disc plough product parameters

Model	1LY-2	1LY-3	1LY-4	1LY-5
Working width(mm)	600	900	1200	1500
Working depth(mm)	250~300	250~300	250~300	250~300
Q'ty of disc	2	3	4	5
Total weight(kg)	350	400	470	560
Matched power(hp)	40	60	80	120
Linkage	Three-point suspension	Three-point suspension	Three-point suspension	Three-point suspension

1L series furrow plough product parameters

Model	1L-220	1L-320	1L-420	1L-520	1L-225	1L-325	1L-425	1L-525	1L-625
Weight(kg)	60	100	155	180	125	160	210	260	300
Matched power(hp)	12-20	25-30	35-40	45-50	28-30	30-45	40-50	60-65	70-75
Linkage	Three-point suspension				Three-point suspension
Working width(mm)	400	600	800	1000	500	750	1000	1250	1600
Working depth(mm)	180-250				200-250
No. of plowbody(pcs)	2	3	4	5	2	3	4	5	6

Model	1L-330	1L-430	1L-530	1L-335	1L-435	1L-535	1L-635
Weight(kg)	240	310	380	280	320	370	420
Matched power(hp)	50-55	60-75	80-100	50-75	80-100	100	120
Linkage	Three-point suspension			Three-point suspension
Working width(mm)	900	1200	1500	1050	1400	1700	2100
Working depth(mm)	260-300			285-350
No. of plowbody(pcs)	3	4	5	3	4	5	6

1LF series hydraulic grille flip plough product parameters

Modle	1LF-345	1LF-445	1LF-545
Number of bottoms	6	8	10
Working width(mm)	1350	1800	2250
Working depth(mm)	350-400	350-400	350-400
weight(kg)	1000	1200	1400
Matched power(hp)	120-150	150-180	180-240
Linkage	(Standard three-point mounted)	(Standard three-point mounted)	(Standard three-point mounted)

1LF series hydraulic flip plow product parameters

Model	1LF-330	1LF-430	1LF-530
Max .Working width(mm)	900	1200	1500
working depth	160-250	160-250	160-250
Linkage	Three-point suspension II type	Three-point suspension II type	Three-point suspension II type
Work efficiency(Ha/h)	5.5-7.5	7.5-9	10-12.5
Matched power(hp)	50-65	65-90	100-120
No of disc(pc)	6	8	10
Weight(Kg)	550	750	980

1LYX series disc plough product parameters

Model	1LYX-230	1LYX-330	1LYX-430	1LYX-530
Overall dimension (mm)	1650x1150x1200	2300x1400x1200	2950x1730x1200	3687x2163x1200
Weight (kg)	320	450	540	600
Working width (mm)	600	900	1200	1500
Working depth (mm)	250	250	250	250
Nos of disc blade	2	3	4	5
Dia of disc	710mm"X6 "	710mm"X6 "	710mm"X6 "	710mm"X6 "
Matched power (hp)	40-50	70	90-100	120
Productivity (ha/h)	0.3	0.45	0.6	0.75
Linkage	Three-point suspension	Three-point suspension	Three-point suspension	Three-point suspension

Full series of share plow, turnover plow, disc plow picture combination display

Full range of disc harrow picture display

ES series disc blade Product parameters

Diameter		Thickness		Weight Plain		Weight Notched
MM	INCH	MM	INCH	KG	LBS	KG	LBS
300mm	12"	3	1/8"	1.6	3.5	1.1	2.4
330mm	13"	3	1/8"	1.8	4	1.2	2.6
360mm	14"	3	1/8"	2.3	4.9	1.9	4.1
410mm	16"	3	1/8"	3.2	7	2.7	5.9
460mm	18"	3	1/8"	4.3	9.5	3.8	8.4
460mm	18"	3.5	1/7"	4.6	10.2	4.1	9
510mm	20"	3.5	1/7"	5.8	12.7	5.6	11.5
510mm	20"	4	2/13"	6.5	14.4	5.8	12.7
560mm	22"	4	2/13"	8.1	18	7.5	16.5
560mm	22"	4.5	2/11"	9	20	8.5	18.7
560mm	22"	5	1/5"	9.5	21.6	9	19.8
560mm	22"	6	15/64"	12	26.5	11	24.2
610mm	24"	5	1/5"	11.3	25	10.5	23.1
610mm	24"	6	15/64"	14.2	31.5	13	28.6
660mm	26"	5	1/5"	14.1	31	13	28.6
660mm	26"	6	15/64"	17	37.5	15.8	34.8
660mm	26"	7	9/32"	20	43.5	18.5	40.7
660mm	26"	8	5/16"	23	51	21	46
710mm	28"	6	15/64"	20	44	18.5	40.7
710mm	28"	7	9/32"	23	50.6	21.5	46
710mm	28"	8	5/16"	26	57.2	24	52.1
760mm	30"	8	5/16"	29	64	28	61.5
760mm	30"	10	3/8"	35	77	33.5	73.7
810mm	32"	8	5/16"	35	77	33	75
810mm	32"	10	3/8"	43	95	40	68
910mm	36"	12	1/2"	68	150	60	132
960mm	38"	12	1/2"	77	170	70	154
1016mm	40"	12	1/2"	82	180	77	169.4
1116mm	44"	12	1/2"	89	196	84	184.8

Disc blade picture display

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop display

Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market service

Service Mode : Stationary Point + Circuit Service

Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare parts service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
