1LYQ Hanging Disc Plough Working Width 0.6-2.0m

1. 1LYQ Series Driving Disc Plough suitable for plowing paddy field and dry cultivated field, especially suitable for plowing paddy field, high-yield green fertilizer fields and plowing filed with rice or wheat stubble. This plow is with good working performance, good cutting soil performance. it can meet the technical requirements of agricultural production, and it is easy to operate and adjust.
2. 1LYQ Series Driving Disc Plough applicable for complex land, such as weedy land, heavy soil, farmland with bricks and stones, etc. no tied with grass, not obstruction, can cut off stem of crop and overcome bricks and stones, with high efficiency, good quality work, easy to adjust, simple to use,durable, etc.
Availability:
Quantity:
  • 1LYQ-320/420 1LYQ-522 1LYQ-622 1LYQ-722/822 /922
  • EUROSTAR OEM
  • 8432100000

1LYQ Series Driving Disc Plough product description
1. 1LYQ Series Driving Disc Plough suitable for plowing paddy field and dry cultivated field, especially suitable for plowing paddy field, high-yield green fertilizer fields and plowing filed with rice or wheat stubble. This plow is with good working performance, good cutting soil performance. it can meet the technical requirements of agricultural production, and it is easy to operate and adjust.
2. 1LYQ Series Driving Disc Plough applicable for complex land, such as weedy land, heavy soil, farmland with bricks and stones, etc. no tied with grass, not obstruction, can cut off stem of crop and overcome bricks and stones, with high efficiency, good quality work, easy to adjust, simple to use,durable, etc.

1LYQ Series Driving Disc Plough product selling points
1. New type compact tractor disc plow has the feature of not Winding grass , not block and no hip building- up.
2. The mounted disc plough is easy to cut off stems and roots .
3. Less working resistance .
4. It is a mounted disc plough for 4-wheel tractor.
5. It has compact structure and suitable for working on all various land.
6. With the working performance of the machine, after cultivation, the land surface is leveling, the soil clods well crushed and turned over and the furrows is small.
7. The working speed is 8-10 kilometers per hour.
8. Disc plough can be mounted to 15-90 HP tractors with  the operation is smooth without any troubles.
9. They are also suitable for working on terraced fields and small piece of farming land.
10. have the characteristics of short idle distance of travel on the edge of fields,  high productivity, low oil consumption etc(etcetera).

1LYQ series driving disc plough product parameters

Model 1LYQ-3201LYQ-4201LYQ-5221LYQ-6221LYQ-7221LYQ-8221LYQ-922
Overall dimension(mm)1325*2025*1050965*1365*10501075*1585*10501210*1805*10501325*2025*10501440*2265*10501555*2465*1050
number of disc (pec)3456789
the dia of disc (mm)560560560560560560560
Working width(mm)66088011001320154017601980
working depth(mm)200-240200-240200-240200-240200-240200-240200-240
Rotating speed of input shaft(r/min)540/720540/720540/720540/720540/720540/720540/720
Rotating speed of cutter shaft(r/min)90-12090-12090-12090-12090-12090-12090-120
Matched power(hp)15-1818-2225-4040-5050-6060-8080-90
overall weight (kg)210240276321357393430
LinkageThree-point suspensionThree-point suspension

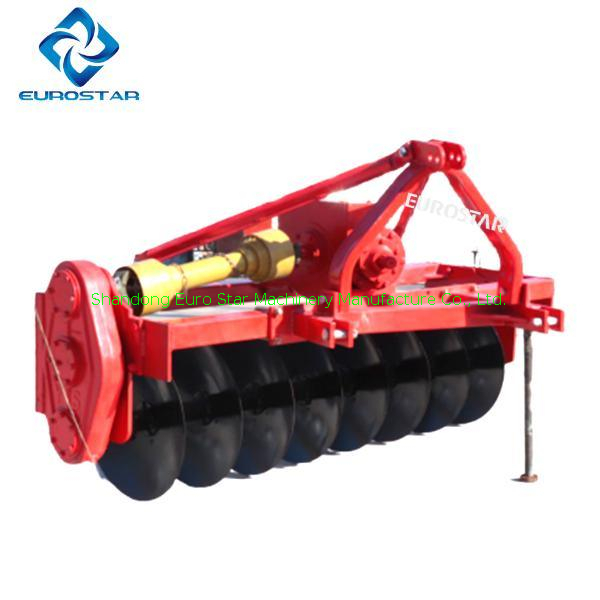

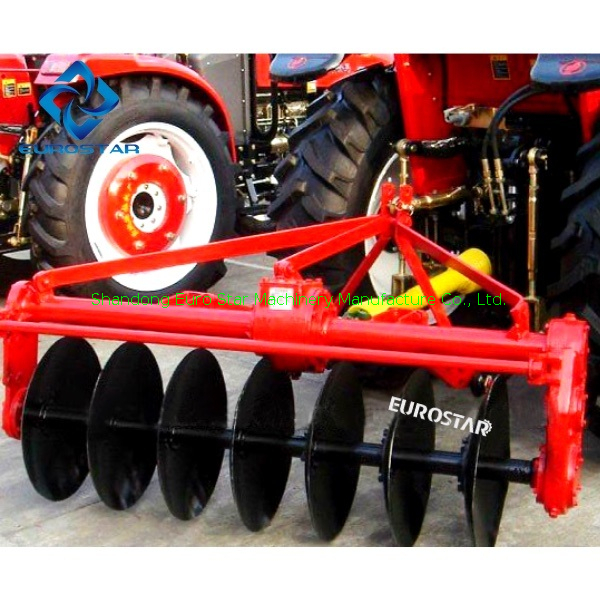

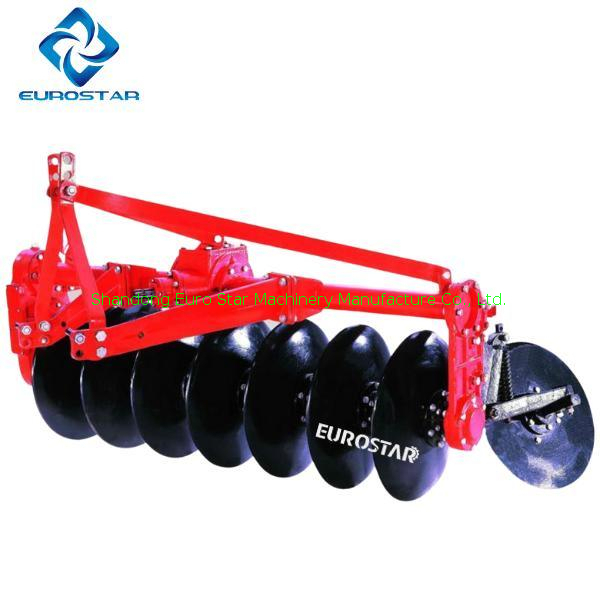

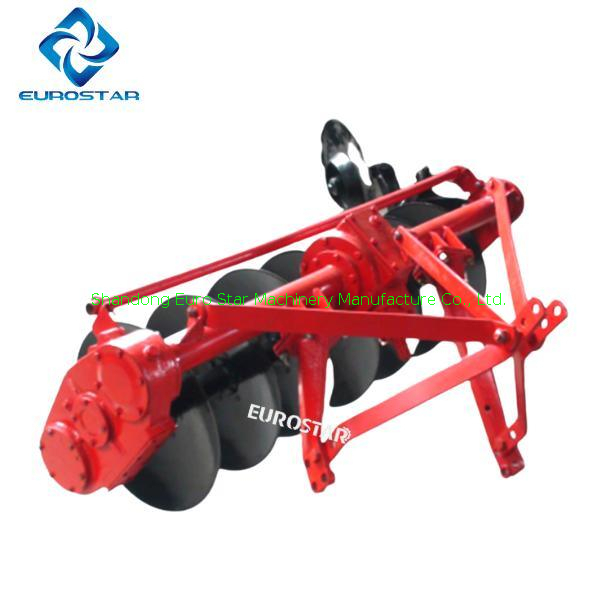

1LYQ Series Driving Disc Plough pictures show

1LYQ Series Driving Disc Plough pictures show

1L series furrow plough1

1LY series disc plough product parameters

Model 1LY-2 1LY-3 1LY-4 1LY-5
Working width(mm) 600 900 1200 1500
Working depth(mm) 250~300 250~300 250~300 250~300
Q'ty of disc 2 3 4 5
Total weight(kg) 350 400 470 560
Matched power(hp) 40 60 80 120
Linkage Three-point suspension Three-point suspension Three-point suspension Three-point suspension

1L series furrow plough product parameters

Model 1L-220 1L-320 1L-420 1L-520 1L-225 1L-325 1L-425 1L-525 1L-625
Weight(kg) 60 100 155 180 125 160 210 260 300
Matched power(hp) 12-20 25-30 35-40 45-50 28-30 30-45 40-50 60-65 70-75
Linkage Three-point suspension Three-point suspension
Working width(mm) 400 600 800 1000 500 750 1000 1250 1600
Working depth(mm) 180-250 200-250
No. of plowbody(pcs) 2 3 4 5 2 3 4 5 6
Model 1L-330 1L-430 1L-530 1L-335 1L-435 1L-535 1L-635
Weight(kg) 240 310 380 280 320 370 420
Matched power(hp) 50-55 60-75 80-100 50-75 80-100 100 120
Linkage Three-point suspension Three-point suspension
Working width(mm) 900 1200 1500 1050 1400 1700 2100
Working depth(mm) 260-300 285-350
No. of plowbody(pcs) 3 4 5 3 4 5 6

1LF series hydraulic grille flip plough product parameters

Modle 1LF-345 1LF-445 1LF-545
Number of bottoms 6 8 10
Working width(mm) 1350 1800 2250
Working depth(mm) 350-400 350-400 350-400
weight(kg) 1000 1200 1400
Matched power(hp) 120-150 150-180 180-240
Linkage (Standard three-point mounted) (Standard three-point mounted) (Standard three-point mounted)

1LF series hydraulic flip plow product parameters

Model 1LF-330 1LF-430 1LF-530
Max .Working width(mm) 900 1200 1500
working depth 160-250 160-250 160-250
Linkage Three-point suspension II type Three-point suspension II type Three-point suspension II type
Work efficiency(Ha/h) 5.5-7.5 7.5-9 10-12.5
Matched power(hp) 50-65 65-90 100-120
No of disc(pc) 6 8 10
Weight(Kg) 550 750 980

1LYX series disc plough product parameters

Model 1LYX-230 1LYX-330 1LYX-430 1LYX-530
Overall dimension (mm) 1650x1150x1200 2300x1400x1200 2950x1730x1200 3687x2163x1200
Weight (kg) 320 450 540 600
Working width (mm) 600 900 1200 1500
Working depth (mm) 250 250 250 250
Nos of disc blade 2 3 4 5
Dia of disc 710mm"X6 " 710mm"X6 " 710mm"X6 " 710mm"X6 "
Matched power (hp) 40-50 70 90-100 120
Productivity (ha/h) 0.3 0.45 0.6 0.75
Linkage  Three-point suspension Three-point suspension Three-point suspension Three-point suspension

1LYT series disc plough product parameters

Model 1LYT-220 1LYT-320 1LYT-420 1LYT-325 1LYT-425 1LYT-525 1LYT-625 1LYT-230 1LYT-330 1LYT-430
 Working Width (mm) 400 600 800 750 1000 1250 1500 600 900 1200
Working Depth (mm) 200 250-300 300
Qty. of Disc (pc) 2 3 4 3 4 5 6 2 3 4
Dia. of Disc (mm) 510*4 510*4 510*4 660*6 710*6
 Linkage Three-point suspension Three-point suspension Three points suspension
 Matched Power (hp) 21-30 25-35 30-40 50-65 65-85 80-100 100-120 55-70 60-80 80-100

Full series of share plow, turnover plow, disc plow picture combination display

Full series of share plow, turnover plow, disc plow picture combination display

Full range of disc harrow picture displayFull range of disc harrow picture display

ES series disc blade Product parameters

Diameter Thickness Weight Plain Weight Notched
MM INCH MM INCH KG LBS KG LBS
300mm 12" 3 1/8" 1.6 3.5 1.1 2.4
330mm 13" 3 1/8" 1.8 4 1.2 2.6
360mm 14" 3 1/8" 2.3 4.9 1.9 4.1
410mm 16" 3 1/8" 3.2 7 2.7 5.9
460mm 18" 3 1/8" 4.3 9.5 3.8 8.4
460mm 18" 3.5 1/7" 4.6 10.2 4.1 9
510mm 20" 3.5 1/7" 5.8 12.7 5.6 11.5
510mm 20" 4 2/13" 6.5 14.4 5.8 12.7
560mm 22" 4 2/13" 8.1 18 7.5 16.5
560mm 22" 4.5 2/11" 9 20 8.5 18.7
560mm 22" 5 1/5" 9.5 21.6 9 19.8
560mm 22" 6 15/64" 12 26.5 11 24.2
610mm 24" 5 1/5" 11.3 25 10.5 23.1
610mm 24" 6 15/64" 14.2 31.5 13 28.6
660mm 26" 5 1/5" 14.1 31 13 28.6
660mm 26" 6 15/64" 17 37.5 15.8 34.8
660mm 26" 7 9/32" 20 43.5 18.5 40.7
660mm 26" 8 5/16" 23 51 21 46
710mm 28" 6 15/64" 20 44 18.5 40.7
710mm 28" 7 9/32" 23 50.6 21.5 46
710mm 28" 8 5/16" 26 57.2 24 52.1
760mm 30" 8 5/16" 29 64 28 61.5
760mm 30" 10 3/8" 35 77 33.5 73.7
810mm 32" 8 5/16" 35 77 33 75
810mm 32" 10 3/8" 43 95 40 68
910mm 36" 12 1/2" 68 150 60 132
960mm 38" 12 1/2" 77 170 70 154
1016mm 40" 12 1/2" 82 180 77 169.4
1116mm 44" 12 1/2" 89 196 84 184.8
Disc blade picture displayDisc blade picture display

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in do
mestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop displayAgricultural machinery factory production equipment display

Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market service

Service Mode : Stationary Point + Circuit Service

Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare parts service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a larg
e spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
