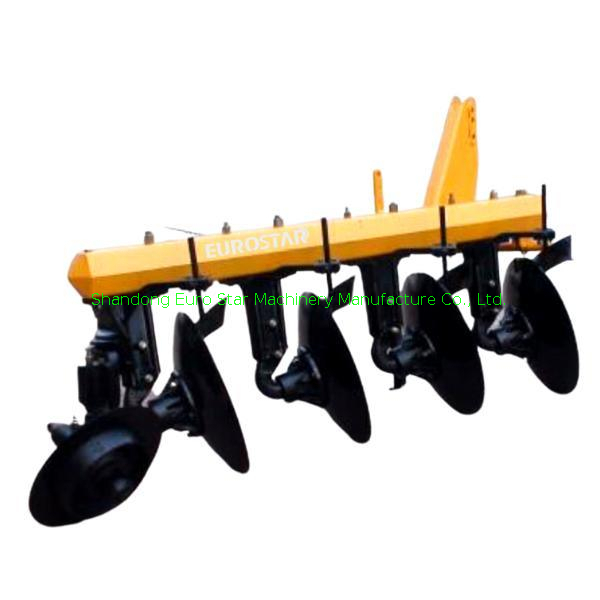

1LY Hanging Disc Plough

1LY series disc plough is connected with tractor three-point suspension, the plough rotates during operation, and the soil is ploughed, especially suitable for the ploughing operation of complex farmland with weeds, upright stems, large soil resistance, and brick and stone fragments in the soil. With no grass, no blocking, no choking, can cut off the crop stem and overcome the soil brick fragments, high efficiency, good operation quality, easy adjustment, durable and other characteristics.
Availability:
Quantity:
  • 1LY-2 1LY-3 1LY-4 1LY-5
  • EUROSTAR OEM
  • 8432100000

1LY Series Disc Plough product description
1LY series disc plough is connected with tractor three-point suspension, the plough rotates during operation, and the soil is ploughed, especially suitable for the ploughing operation of complex farmland with weeds, upright stems, large soil resistance, and brick and stone fragments in the soil. With no grass, no blocking, no choking, can cut off the crop stem and overcome the soil brick fragments, high efficiency, good operation quality, easy adjustment, durable and other characteristics.
1LY Series Disc Plough product selling points
1. New type compact tractor disc plow has the feature of not Winding grass , not block and no hip building- up.
2. The disc ploughs are used to open the new fields and to process the stony areas.The disc plough is easy to cut off stems and roots .
3. High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade.
4. This 1LY disc plough,disk plow,is mounted with four wheel tractor,as in conformity with the current agriculture conditions, are being produced with 2-3-4-5 rows.
5. It has compact structure and suitable for working on all various land. Working depth can reach 250-300mm.
6. The disc plough Matchable with tractor, it furrow soil when patches rotate, mainly applicable for complex land, such as weedy land, heavy soil, farmland with bricks and stones, etc.
7. Effectively avoid the plow disc is grass wrapped, not obstruction, can cut off stem of crop and overcome bricks and stones, with high efficiency, good quality work, easy to adjust, simple to use, durable, etc.
8. Disc plough can be mounted to 40-120 HP tractors with  the operation is smooth without any troubles.
9. They are also suitable for working on terraced fields and small piece of farming land.
10. have the characteristics of short idle distance of travel on the edge of fields,  high productivity, low oil consumption etc(etcetera).
11. It is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing.
12. Its special design allows to easier work in rocky and rooted areas.
13. It is specially useful in hard and dry trashy land.

1LY series disc plough product parameters

Model1LY-21LY-31LY-41LY-5
Working width(mm)60090012001500
Working depth(mm)250~300250~300250~300250~300
Q'ty of disc2345
Total weight(kg)350400470560
Matched power(hp)406080120
LinkageThree-point suspensionThree-point suspensionThree-point suspensionThree-point suspension

1LY series disc plough pictures show

1LY series disc plough pictures show

1L series furrow plough1

1L series furrow plough product parameters

Model 1L-220 1L-320 1L-420 1L-520 1L-225 1L-325 1L-425 1L-525 1L-625
Weight(kg) 60 100 155 180 125 160 210 260 300
Matched power(hp) 12-20 25-30 35-40 45-50 28-30 30-45 40-50 60-65 70-75
Linkage Three-point suspension Three-point suspension
Working width(mm) 400 600 800 1000 500 750 1000 1250 1600
Working depth(mm) 180-250 200-250
No. of plowbody(pcs) 2 3 4 5 2 3 4 5 6
Model 1L-330 1L-430 1L-530 1L-335 1L-435 1L-535 1L-635
Weight(kg) 240 310 380 280 320 370 420
Matched power(hp) 50-55 60-75 80-100 50-75 80-100 100 120
Linkage Three-point suspension Three-point suspension
Working width(mm) 900 1200 1500 1050 1400 1700 2100
Working depth(mm) 260-300 285-350
No. of plowbody(pcs) 3 4 5 3 4 5 6

1LF series hydraulic grille flip plough product parameters

Modle 1LF-345 1LF-445 1LF-545
Number of bottoms 6 8 10
Working width(mm) 1350 1800 2250
Working depth(mm) 350-400 350-400 350-400
weight(kg) 1000 1200 1400
Matched power(hp) 120-150 150-180 180-240
Linkage (Standard three-point mounted) (Standard three-point mounted) (Standard three-point mounted)

1LF series hydraulic flip plow product parameters

Model 1LF-330 1LF-430 1LF-530
Max .Working width(mm) 900 1200 1500
working depth 160-250 160-250 160-250
Linkage Three-point suspension II type Three-point suspension II type Three-point suspension II type
Work efficiency(Ha/h) 5.5-7.5 7.5-9 10-12.5
Matched power(hp) 50-65 65-90 100-120
No of disc(pc) 6 8 10
Weight(Kg) 550 750 980

1LYX series disc plough product parameters

Model 1LYX-230 1LYX-330 1LYX-430 1LYX-530
Overall dimension (mm) 1650x1150x1200 2300x1400x1200 2950x1730x1200 3687x2163x1200
Weight (kg) 320 450 540 600
Working width (mm) 600 900 1200 1500
Working depth (mm) 250 250 250 250
Nos of disc blade 2 3 4 5
Dia of disc 710mm"X6 " 710mm"X6 " 710mm"X6 " 710mm"X6 "
Matched power (hp) 40-50 70 90-100 120
Productivity (ha/h) 0.3 0.45 0.6 0.75
Linkage  Three-point suspension Three-point suspension Three-point suspension Three-point suspension

1LYT series disc plough product parameters

Model 1LYT-220 1LYT-320 1LYT-420 1LYT-325 1LYT-425 1LYT-525 1LYT-625 1LYT-230 1LYT-330 1LYT-430
 Working Width (mm) 400 600 800 750 1000 1250 1500 600 900 1200
Working Depth (mm) 200 250-300 300
Qty. of Disc (pc) 2 3 4 3 4 5 6 2 3 4
Dia. of Disc (mm) 510*4 510*4 510*4 660*6 710*6
 Linkage Three-point suspension Three-point suspension Three points suspension
 Matched Power (hp) 21-30 25-35 30-40 50-65 65-85 80-100 100-120 55-70 60-80 80-100

1LYQ series driving disc plough product parameters

Model  1LYQ-320 1LYQ-420 1LYQ-522 1LYQ-622 1LYQ-722 1LYQ-822 1LYQ-922
Overall dimension(mm) 1325*2025*1050 965*1365*1050 1075*1585*1050 1210*1805*1050 1325*2025*1050 1440*2265*1050 1555*2465*1050
number of disc (pec) 3 4 5 6 7 8 9
the dia of disc (mm) 560 560 560 560 560 560 560
Working width(mm) 660 880 1100 1320 1540 1760 1980
working depth(mm) 200-240 200-240 200-240 200-240 200-240 200-240 200-240
Rotating speed of input shaft(r/min) 540/720 540/720 540/720 540/720 540/720 540/720 540/720
Rotating speed of cutter shaft(r/min) 90-120 90-120 90-120 90-120 90-120 90-120 90-120
Matched power(hp) 15-18 18-22 25-40 40-50 50-60 60-80 80-90
overall weight (kg) 210 240 276 321 357 393 430
Linkage Three-point suspension Three-point suspension

Full series of share plow, turnover plow, disc plow picture combination display

Full series of share plow, turnover plow, disc plow picture combination display

Full range of disc harrow picture displayFull range of disc harrow picture display

ES series disc blade Product parameters

Diameter Thickness Weight Plain Weight Notched
MM INCH MM INCH KG LBS KG LBS
300mm 12" 3 1/8" 1.6 3.5 1.1 2.4
330mm 13" 3 1/8" 1.8 4 1.2 2.6
360mm 14" 3 1/8" 2.3 4.9 1.9 4.1
410mm 16" 3 1/8" 3.2 7 2.7 5.9
460mm 18" 3 1/8" 4.3 9.5 3.8 8.4
460mm 18" 3.5 1/7" 4.6 10.2 4.1 9
510mm 20" 3.5 1/7" 5.8 12.7 5.6 11.5
510mm 20" 4 2/13" 6.5 14.4 5.8 12.7
560mm 22" 4 2/13" 8.1 18 7.5 16.5
560mm 22" 4.5 2/11" 9 20 8.5 18.7
560mm 22" 5 1/5" 9.5 21.6 9 19.8
560mm 22" 6 15/64" 12 26.5 11 24.2
610mm 24" 5 1/5" 11.3 25 10.5 23.1
610mm 24" 6 15/64" 14.2 31.5 13 28.6
660mm 26" 5 1/5" 14.1 31 13 28.6
660mm 26" 6 15/64" 17 37.5 15.8 34.8
660mm 26" 7 9/32" 20 43.5 18.5 40.7
660mm 26" 8 5/16" 23 51 21 46
710mm 28" 6 15/64" 20 44 18.5 40.7
710mm 28" 7 9/32" 23 50.6 21.5 46
710mm 28" 8 5/16" 26 57.2 24 52.1
760mm 30" 8 5/16" 29 64 28 61.5
760mm 30" 10 3/8" 35 77 33.5 73.7
810mm 32" 8 5/16" 35 77 33 75
810mm 32" 10 3/8" 43 95 40 68
910mm 36" 12 1/2" 68 150 60 132
960mm 38" 12 1/2" 77 170 70 154
1016mm 40" 12 1/2" 82 180 77 169.4
1116mm 44" 12 1/2" 89 196 84 184.8
Disc blade picture displayDisc blade picture display
