1LF Hydraulic Flip Plow

1LF series hydraulic grille flip plough is matched with the tractor.is most commonly used soil tillage equipment. Its main working part is a plow body composed of a ploughshare, a plow wall and so on. The working surface of the ploughshare and the plow wall is a continuous, smooth plow curved surface, and its shape and parameters are selected according to different soil and farming requirements, and are related to the traveling speed of the machine. Different plow surfaces have different functions of turning soil, loose soil, crushed soil and covering weed residues.
The working width is varied by varying the angle between the main beam and the working direction of the machine to adapt to different resistances of various soil conditions. The swivel plow is a special form of the plow, with two sets of left and right turn plow bodies (common plows use only right plows), or a set of plows with a turnable direction. makes the plow to turn the soil to the same side during the forward or turnaround working route. After ploughing, there is no gully on the surface.
Availability:
Quantity:
1LF Hydraulic Flip Plow
1LF Hydraulic Flip Plow
1LF Hydraulic Flip Plow
1LF Hydraulic Flip Plow
1LF Hydraulic Flip Plow
1LF Hydraulic Flip Plow
  • 1LF-330 1LF-430 1LF-530

  • EUROSTAR OEM

  • 8432100000

1LF series hydraulic flip plow product description
1LF series Hydraulic flip Plow is matched with the tractor.is most commonly used soil tillage equipment. Its main working part is a plow body composed of a ploughshare, a plow wall and so on. The working surface of the ploughshare and the plow wall is a continuous, smooth plow curved surface, and its shape and parameters are selected according to different soil and farming requirements, and are related to the traveling speed of the machine. Different plow surfaces have different functions of turning soil, loose soil, crushed soil and covering weed residues.
The working width is varied by varying the angle between the main beam and the working direction of the machine to adapt to different resistances of various soil conditions. The swivel plow is a special form of the plow, with two sets of left and right turn plow bodies (common plows use only right plows), or a set of plows with a turnable direction. makes the plow to turn the soil to the same side during the forward or turnaround working route. After ploughing, there is no gully on the surface.

1LF series hydraulic flip plow product selling points
1. Ploughing Suitable for sandy loam, loam, clay soil and paddy field
2. The upper layer of soil and organic compounds on the surface are reversed deeply under the earth.
3. Plowing green manures, trashes and organic matter is effectively mixed with the soil and decays rapidly into humus.
4. The soils are well crushed and after working, the land surface is plane.
5. New type compact tractor disc plow has the feature of not Winding grass , not block and no hip building- up.
6. It has compact structure and suitable for working on all various land. Working depth can reach 160-250mm.
7.  with high efficiency, good quality work, easy to adjust, simple to use, durable, etc.
8. Disc plough can be mounted to 50-120 HP tractors with  the operation is smooth without any troubles.
9. It is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing.

1LF series hydraulic flip plow product parameters

Model1LF-3301LF-4301LF-530
Max .Working width(mm)90012001500
working depth160-250160-250160-250
LinkageThree-point suspension II typeThree-point suspension II typeThree-point suspension II type
Work efficiency(Ha/h)5.5-7.57.5-910-12.5
Matched power(hp)50-6565-90100-120
No of disc(pc)6810
Weight(Kg)550750980

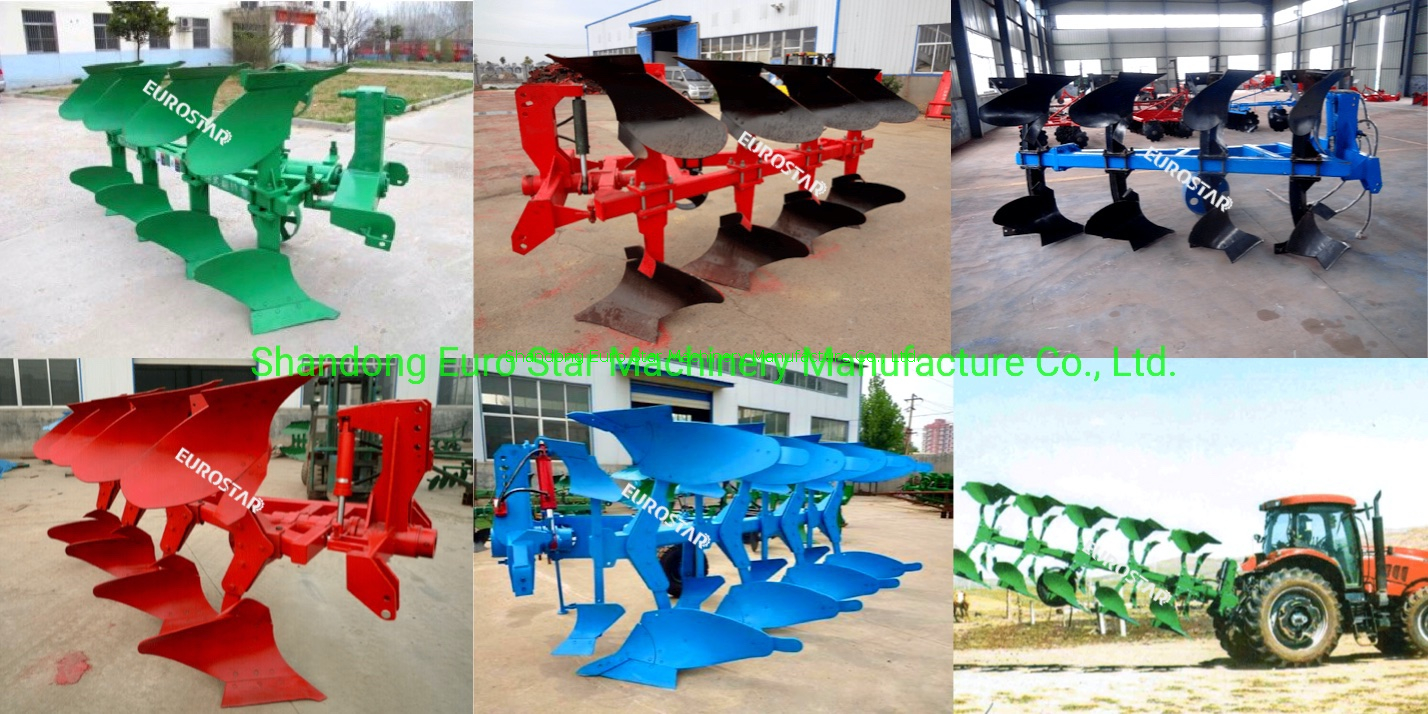

1LF series hydraulic flip plough pictures show1LF series Hydraulic flip Plow

1L series furrow plough1

1LF series hydraulic grille flip plough product parameters

Modle 1LF-345 1LF-445 1LF-545
Number of bottoms 6 8 10
Working width(mm) 1350 1800 2250
Working depth(mm) 350-400 350-400 350-400
weight(kg) 1000 1200 1400
Matched power(hp) 120-150 150-180 180-240
Linkage (Standard three-point mounted) (Standard three-point mounted) (Standard three-point mounted)

1L series furrow plough product parameters

Model 1L-220 1L-320 1L-420 1L-520 1L-225 1L-325 1L-425 1L-525 1L-625
Weight(kg) 60 100 155 180 125 160 210 260 300
Matched power(hp) 12-20 25-30 35-40 45-50 28-30 30-45 40-50 60-65 70-75
Linkage Three-point suspension Three-point suspension
Working width(mm) 400 600 800 1000 500 750 1000 1250 1600
Working depth(mm) 180-250 200-250
No. of plowbody(pcs) 2 3 4 5 2 3 4 5 6
Model 1L-330 1L-430 1L-530 1L-335 1L-435 1L-535 1L-635
Weight(kg) 240 310 380 280 320 370 420
Matched power(hp) 50-55 60-75 80-100 50-75 80-100 100 120
Linkage Three-point suspension Three-point suspension
Working width(mm) 900 1200 1500 1050 1400 1700 2100
Working depth(mm) 260-300 285-350
No. of plowbody(pcs) 3 4 5 3 4 5 6

1LYX series disc plough product parameters

Model 1LYX-230 1LYX-330 1LYX-430 1LYX-530
Overall dimension (mm) 1650x1150x1200 2300x1400x1200 2950x1730x1200 3687x2163x1200
Weight (kg) 320 450 540 600
Working width (mm) 600 900 1200 1500
Working depth (mm) 250 250 250 250
Nos of disc blade 2 3 4 5
Dia of disc 710mm"X6 " 710mm"X6 " 710mm"X6 " 710mm"X6 "
Matched power (hp) 40-50 70 90-100 120
Productivity (ha/h) 0.3 0.45 0.6 0.75
Linkage  Three-point suspension Three-point suspension Three-point suspension Three-point suspension

1LY series disc plough product parameters

Model 1LY-2 1LY-3 1LY-4 1LY-5
Working width(mm) 600 900 1200 1500
Working depth(mm) 250~300 250~300 250~300 250~300
Q'ty of disc 2 3 4 5
Total weight(kg) 350 400 470 560
Matched power(hp) 40 60 80 120
Linkage Three-point suspension Three-point suspension Three-point suspension Three-point suspension

1LYT series disc plough product parameters

Model 1LYT-220 1LYT-320 1LYT-420 1LYT-325 1LYT-425 1LYT-525 1LYT-625 1LYT-230 1LYT-330 1LYT-430
 Working Width (mm) 400 600 800 750 1000 1250 1500 600 900 1200
Working Depth (mm) 200 250-300 300
Qty. of Disc (pc) 2 3 4 3 4 5 6 2 3 4
Dia. of Disc (mm) 510*4 510*4 510*4 660*6 710*6
 Linkage Three-point suspension Three-point suspension Three points suspension
 Matched Power (hp) 21-30 25-35 30-40 50-65 65-85 80-100 100-120 55-70 60-80 80-100

1LYQ series driving disc plough product parameters

Model  1LYQ-320 1LYQ-420 1LYQ-522 1LYQ-622 1LYQ-722 1LYQ-822 1LYQ-922
Overall dimension(mm) 1325*2025*1050 965*1365*1050 1075*1585*1050 1210*1805*1050 1325*2025*1050 1440*2265*1050 1555*2465*1050
number of disc (pec) 3 4 5 6 7 8 9
the dia of disc (mm) 560 560 560 560 560 560 560
Working width(mm) 660 880 1100 1320 1540 1760 1980
working depth(mm) 200-240 200-240 200-240 200-240 200-240 200-240 200-240
Rotating speed of input shaft(r/min) 540/720 540/720 540/720 540/720 540/720 540/720 540/720
Rotating speed of cutter shaft(r/min) 90-120 90-120 90-120 90-120 90-120 90-120 90-120
Matched power(hp) 15-18 18-22 25-40 40-50 50-60 60-80 80-90
overall weight (kg) 210 240 276 321 357 393 430
Linkage Three-point suspension Three-point suspension

Full series of share plow, turnover plow, disc plow picture combination display

Full series of share plow, turnover plow, disc plow picture combination display

Full range of disc harrow picture displayFull range of disc harrow picture display

ES series disc blade Product parameters

Diameter Thickness Weight Plain Weight Notched
MM INCH MM INCH KG LBS KG LBS
300mm 12" 3 1/8" 1.6 3.5 1.1 2.4
330mm 13" 3 1/8" 1.8 4 1.2 2.6
360mm 14" 3 1/8" 2.3 4.9 1.9 4.1
410mm 16" 3 1/8" 3.2 7 2.7 5.9
460mm 18" 3 1/8" 4.3 9.5 3.8 8.4
460mm 18" 3.5 1/7" 4.6 10.2 4.1 9
510mm 20" 3.5 1/7" 5.8 12.7 5.6 11.5
510mm 20" 4 2/13" 6.5 14.4 5.8 12.7
560mm 22" 4 2/13" 8.1 18 7.5 16.5
560mm 22" 4.5 2/11" 9 20 8.5 18.7
560mm 22" 5 1/5" 9.5 21.6 9 19.8
560mm 22" 6 15/64" 12 26.5 11 24.2
610mm 24" 5 1/5" 11.3 25 10.5 23.1
610mm 24" 6 15/64" 14.2 31.5 13 28.6
660mm 26" 5 1/5" 14.1 31 13 28.6
660mm 26" 6 15/64" 17 37.5 15.8 34.8
660mm 26" 7 9/32" 20 43.5 18.5 40.7
660mm 26" 8 5/16" 23 51 21 46
710mm 28" 6 15/64" 20 44 18.5 40.7
710mm 28" 7 9/32" 23 50.6 21.5 46
710mm 28" 8 5/16" 26 57.2 24 52.1
760mm 30" 8 5/16" 29 64 28 61.5
760mm 30" 10 3/8" 35 77 33.5 73.7
810mm 32" 8 5/16" 35 77 33 75
810mm 32" 10 3/8" 43 95 40 68
910mm 36" 12 1/2" 68 150 60 132
960mm 38" 12 1/2" 77 170 70 154
1016mm 40" 12 1/2" 82 180 77 169.4
1116mm 44" 12 1/2" 89 196 84 184.8
Disc blade picture displayDisc blade picture display

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in do
mestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop displayAgricultural machinery factory production equipment display

Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market service

Service Mode : Stationary Point + Circuit Service

Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare parts service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a larg
e spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
