1LF Hydraulic Flip Plow for 50HP Tractor

1LF series Hydraulic flip Plow is matched with the tractor.is most commonly used soil tillage equipment. Its main working part is a plow body composed of a ploughshare, a plow wall and so on. The working surface of the ploughshare and the plow wall is a continuous, smooth plow curved surface, and its shape and parameters are selected according to different soil and farming requirements, and are related to the traveling speed of the machine. Different plow surfaces have different functions of turning soil, loose soil, crushed soil and covering weed residues.
The working width is varied by varying the angle between the main beam and the working direction of the machine to adapt to different resistances of various soil conditions. The swivel plow is a special form of the plow, with two sets of left and right turn plow bodies (common plows use only right plows), or a set of plows with a turnable direction. makes the plow to turn the soil to the same side during the forward or turnaround working route. After ploughing, there is no gully on the surface.
Availability:
Quantity:
  • 1LF-345 1LF-445 1LF-545

  • EUROSTAR OEM

  • 8432100000

1LF series hydraulic grille flip plough product description
1LF series hydraulic grille flip plough is matched with the tractor.is most commonly used soil tillage equipment. Its main working part is a plow body composed of a ploughshare, a plow wall and so on. The working surface of the ploughshare and the plow wall is a continuous, smooth plow curved surface, and its shape and parameters are selected according to different soil and farming requirements, and are related to the traveling speed of the machine. Different plow surfaces have different functions of turning soil, loose soil, crushed soil and covering weed residues.
The working width is varied by varying the angle between the main beam and the working direction of the machine to adapt to different resistances of various soil conditions. The swivel plow is a special form of the plow, with two sets of left and right turn plow bodies (common plows use only right plows), or a set of plows with a turnable direction. makes the plow to turn the soil to the same side during the forward or turnaround working route. After ploughing, there is no gully on the surface.

1LF series hydraulic grille flip plough product selling points
1. Ploughing Suitable for sandy loam, loam, clay soil and paddy field
2. The upper layer of soil and organic compounds on the surface are reversed deeply under the earth.
3. Plowing green manures, trashes and organic matter is effectively mixed with the soil and decays rapidly into humus.
4. The soils are well crushed and after working, the land surface is plane.
5. New type compact tractor disc plow has the feature of not Winding grass , not block and no hip building- up.
6. It has compact structure and suitable for working on all various land. Working depth can reach 350-400mm.
7.  with high efficiency, good quality work, easy to adjust, simple to use, durable, etc.
8. Disc plough can be mounted to 120-240 HP tractors with  the operation is smooth without any troubles.
9. It is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing.

1LF series hydraulic grille flip plough product parameters

Model1LF-3301LF-4301LF-530
Max .Working width(mm)90012001500
working depth160-250160-250160-250
LinkageThree-point suspension II typeThree-point suspension II typeThree-point suspension II type
Work efficiency(Ha/h)5.5-7.57.5-910-12.5
Matched power(hp)50-6565-90100-120
No of disc(pc)6810
Weight(Kg)550750980

1LF series Hydraulic flip Plow pictures show

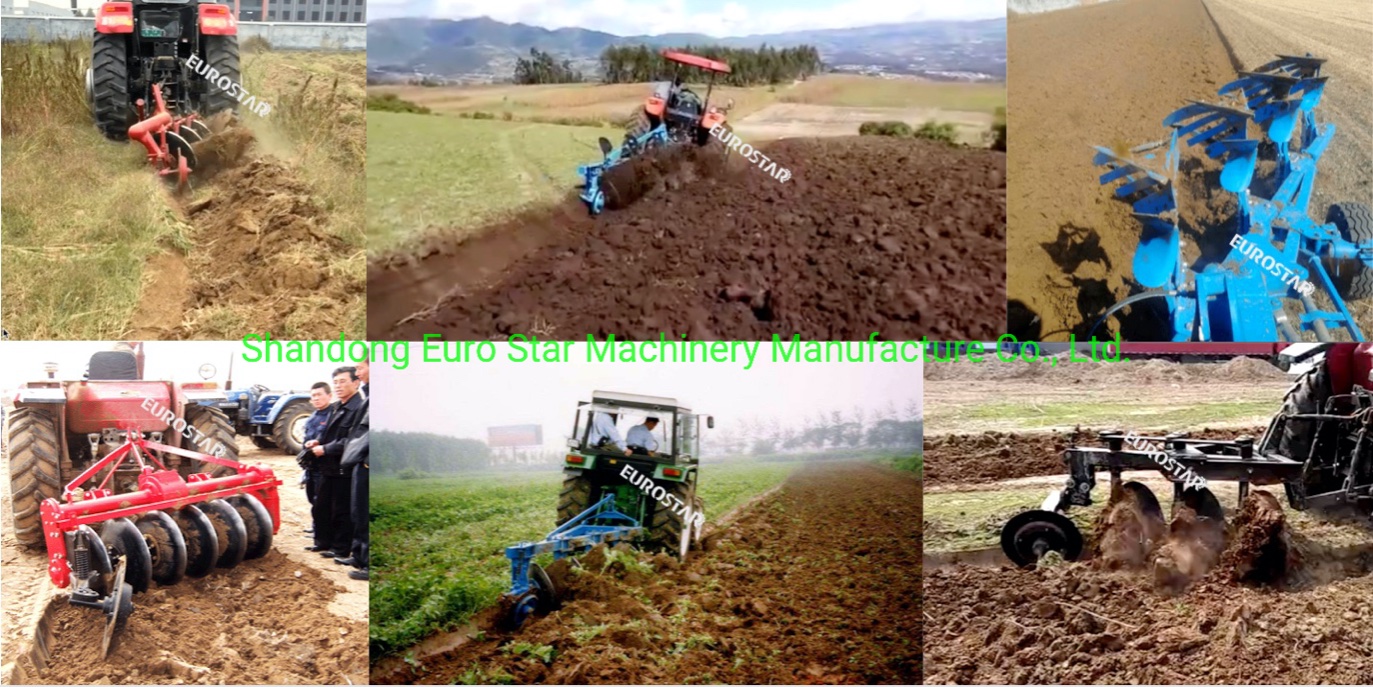

1LF series Hydraulic flip Plow pictures show1L series furrow plough11LF series hydraulic grille flip plough product parameters

Modle 1LF-345 1LF-445 1LF-545
Number of bottoms 6 8 10
Working width(mm) 1350 1800 2250
Working depth(mm) 350-400 350-400 350-400
weight(kg) 1000 1200 1400
Matched power(hp) 120-150 150-180 180-240
Linkage (Standard three-point mounted) (Standard three-point mounted) (Standard three-point mounted)

1L series furrow plough product parameters

Model 1L-220 1L-320 1L-420 1L-520 1L-225 1L-325 1L-425 1L-525 1L-625
Weight(kg) 60 100 155 180 125 160 210 260 300
Matched power(hp) 12-20 25-30 35-40 45-50 28-30 30-45 40-50 60-65 70-75
Linkage Three-point suspension Three-point suspension
Working width(mm) 400 600 800 1000 500 750 1000 1250 1600
Working depth(mm) 180-250 200-250
No. of plowbody(pcs) 2 3 4 5 2 3 4 5 6
Model 1L-330 1L-430 1L-530 1L-335 1L-435 1L-535 1L-635
Weight(kg) 240 310 380 280 320 370 420
Matched power(hp) 50-55 60-75 80-100 50-75 80-100 100 120
Linkage Three-point suspension Three-point suspension
Working width(mm) 900 1200 1500 1050 1400 1700 2100
Working depth(mm) 260-300 285-350
No. of plowbody(pcs) 3 4 5 3 4 5 6

1LYX series disc plough product parameters

Model 1LYX-230 1LYX-330 1LYX-430 1LYX-530
Overall dimension (mm) 1650x1150x1200 2300x1400x1200 2950x1730x1200 3687x2163x1200
Weight (kg) 320 450 540 600
Working width (mm) 600 900 1200 1500
Working depth (mm) 250 250 250 250
Nos of disc blade 2 3 4 5
Dia of disc 710mm"X6 " 710mm"X6 " 710mm"X6 " 710mm"X6 "
Matched power (hp) 40-50 70 90-100 120
Productivity (ha/h) 0.3 0.45 0.6 0.75
Linkage  Three-point suspension Three-point suspension Three-point suspension Three-point suspension

1LY series disc plough product parameters

Model 1LY-2 1LY-3 1LY-4 1LY-5
Working width(mm) 600 900 1200 1500
Working depth(mm) 250~300 250~300 250~300 250~300
Q'ty of disc 2 3 4 5
Total weight(kg) 350 400 470 560
Matched power(hp) 40 60 80 120
Linkage Three-point suspension Three-point suspension Three-point suspension Three-point suspension

1LYT series disc plough product parameters

Model 1LYT-220 1LYT-320 1LYT-420 1LYT-325 1LYT-425 1LYT-525 1LYT-625 1LYT-230 1LYT-330 1LYT-430
 Working Width (mm) 400 600 800 750 1000 1250 1500 600 900 1200
Working Depth (mm) 200 250-300 300
Qty. of Disc (pc) 2 3 4 3 4 5 6 2 3 4
Dia. of Disc (mm) 510*4 510*4 510*4 660*6 710*6
 Linkage Three-point suspension Three-point suspension Three points suspension
 Matched Power (hp) 21-30 25-35 30-40 50-65 65-85 80-100 100-120 55-70 60-80 80-100

1LYQ series driving disc plough product parameters

Model  1LYQ-320 1LYQ-420 1LYQ-522 1LYQ-622 1LYQ-722 1LYQ-822 1LYQ-922
Overall dimension(mm) 1325*2025*1050 965*1365*1050 1075*1585*1050 1210*1805*1050 1325*2025*1050 1440*2265*1050 1555*2465*1050
number of disc (pec) 3 4 5 6 7 8 9
the dia of disc (mm) 560 560 560 560 560 560 560
Working width(mm) 660 880 1100 1320 1540 1760 1980
working depth(mm) 200-240 200-240 200-240 200-240 200-240 200-240 200-240
Rotating speed of input shaft(r/min) 540/720 540/720 540/720 540/720 540/720 540/720 540/720
Rotating speed of cutter shaft(r/min) 90-120 90-120 90-120 90-120 90-120 90-120 90-120
Matched power(hp) 15-18 18-22 25-40 40-50 50-60 60-80 80-90
overall weight (kg) 210 240 276 321 357 393 430
Linkage Three-point suspension Three-point suspension

Full series of share plow, turnover plow, disc plow picture combination display

Full series of share plow, turnover plow, disc plow picture combination display

Full range of disc harrow picture displayFull range of disc harrow picture display

ES series disc blade Product parameters

Diameter Thickness Weight Plain Weight Notched
MM INCH MM INCH KG LBS KG LBS
300mm 12" 3 1/8" 1.6 3.5 1.1 2.4
330mm 13" 3 1/8" 1.8 4 1.2 2.6
360mm 14" 3 1/8" 2.3 4.9 1.9 4.1
410mm 16" 3 1/8" 3.2 7 2.7 5.9
460mm 18" 3 1/8" 4.3 9.5 3.8 8.4
460mm 18" 3.5 1/7" 4.6 10.2 4.1 9
510mm 20" 3.5 1/7" 5.8 12.7 5.6 11.5
510mm 20" 4 2/13" 6.5 14.4 5.8 12.7
560mm 22" 4 2/13" 8.1 18 7.5 16.5
560mm 22" 4.5 2/11" 9 20 8.5 18.7
560mm 22" 5 1/5" 9.5 21.6 9 19.8
560mm 22" 6 15/64" 12 26.5 11 24.2
610mm 24" 5 1/5" 11.3 25 10.5 23.1
610mm 24" 6 15/64" 14.2 31.5 13 28.6
660mm 26" 5 1/5" 14.1 31 13 28.6
660mm 26" 6 15/64" 17 37.5 15.8 34.8
660mm 26" 7 9/32" 20 43.5 18.5 40.7
660mm 26" 8 5/16" 23 51 21 46
710mm 28" 6 15/64" 20 44 18.5 40.7
710mm 28" 7 9/32" 23 50.6 21.5 46
710mm 28" 8 5/16" 26 57.2 24 52.1
760mm 30" 8 5/16" 29 64 28 61.5
760mm 30" 10 3/8" 35 77 33.5 73.7
810mm 32" 8 5/16" 35 77 33 75
810mm 32" 10 3/8" 43 95 40 68
910mm 36" 12 1/2" 68 150 60 132
960mm 38" 12 1/2" 77 170 70 154
1016mm 40" 12 1/2" 82 180 77 169.4
1116mm 44" 12 1/2" 89 196 84 184.8
Disc blade picture displayDisc blade picture display

Full range of tractor products display

Full range of tractor products display1Full range of tractor products display2

Our company produces other agricultural machinery display

Our company produces other agricultural machinery displayOur company produces other agricultural machinery display1Our company produces other agricultural machinery display2Our company produces other agricultural machinery display3
