1BZT Hydraulic Heavy Disc Harrow

1BZT series hydraulic heavy disc harrow has the high working efﬁciency, strong capability into the soil and after plough loosen soil.can highly adapt to the sticky heavy soil,uncultivated ﬁeld and those plots of many weeds,breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.
This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efﬁciency and lifetime of the harrow is dramatically improved.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

Availability:

Quantity:



Inquire

Model:
1BZT-6.0
Brand:
EUROSTAR OEM
Code:
8432210000

1BZT series hydraulic heavy disc harrow product description
1BZT series hydraulic heavy disc harrow has the high working efﬁciency, strong capability into the soil and after plough loosen soil.can highly adapt to the sticky heavy soil,uncultivated ﬁeld and those plots of many weeds,breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.
This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efﬁciency and lifetime of the harrow is dramatically improved.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
1BZT series hydraulic heavy disc harrow product selling points
1. They have been proved to be satisfactory for harrowing work on uncultivated lands and in heavy clay soil fields.
2. Strong ability of soil pulverization.It could be used for cleaning away stubble of plants before tillage, or crushing clods after tillage.
3. Fit the scraper for each disc blade to clean the objects.
4. Hydraulic heavy duty disc harrow is trailed for 80-400hp tractor.
5.High quality of difunctional oil cylinder.Own hydraulic system to lift and down the transport wheel freely.
6. Widely working width of this heavy disc harrow to be 2-6m.
7. The working depth can be adjusted freely.Maximum harrowing depth on uncultivated land can reach 180-350mm.
8. Compact and strong structure make the machine have long service life.
9. The materail of plough disc is 65Mn spring steel,it is more strong.
10. Strong and durable bearing.
11. Work width can be customized according to customer requirements.

1BZT series hydraulic heavy disc harrow product parameters

Model	1BZT-6.0
Diameter of disc(mm)	910
Weight (kg)	11000
Working width (mm)	6000
Working depth (mm)	300-350
Maximum working angle	23
Nos of disc blade	40
Matched power (hp)	300-400

1BZT series hydraulic heavy disc harrow pictures show

1BZF series hydraulic folding heavy duty disc harrow product parameters

Model		1BZF-5.3
Diameter of disc(mm)		660
Weight (kg)		5500
Working width (mm)		5300
Working depth (mm)		180-220
Nos of disc blade		48
Matched power (hp)		200-300

1BZD series hydraulic folding heavy duty disc harrow product parameters

Model	1BZD-6.5	1BZD-7.5	1BZD-8.5	1BZD-9.0	1BZD-9.5
Diameter of disc(mm)	660	660	660	660	660
Weight (kg)	7000	7200	7500	7650	8300
Working width (mm)	6500	7500	8500	9000	9500
Working depth (mm)	180-220	180-220	180-220	180-220	180-220
Nos of disc blade	64	72	80	84	88
Matched power (hp)	300	350	400	400	500

1BZ series hydraulic heavy disc harrow product parameters

Model	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0	1BZ-5.3
Overall dimension(mm)	482024401340	532028801340	532033201340	582037601340	582043201340	600055001450
Working width(mm)	2200	2500	3000	3400	4000	5300
Working depth(mm)	180-200
No of disc(pc)	20	24	28	32	36	48
Dia.of disc(mm)	660*6	660*6	660*6	660*6	660*6	660*6
Productivity(ha/h)	1.3	1.4	1.7	1.9	2.4	3-5
Matched power(hp)	80-100	100-120	100-120	120-150	130-150	150-200
Linkage	Traction	Traction	Traction	Traction	Traction	Traction

1BQX series hanging light duty disc harrow product parameters

Model	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-2.0	1BQX-2.2	1BQX-2.3	1BQX-3.4	1BQX-5.0
Working width(mm)	1100	1300	1500	1700	2000	2200	2300	3400	5000
Working depth (mm)	100-140	100-140	100-140	100-140	100-140	100-140	100-140	100-140	100-140
No. of disc (pc)	12	14	16	18	20	22	24	42	60
Dia. Of disc (mm)	460	460	460	460	460	460	460	460	460
Weight(kg)	200	220	250	270	380	400	420	1150	1550
Linkage	Three-point suspension							Tractor traction
Match power (hp)	12--18	15-18	20-25	25-30	35-40	40-45	55	80-100	120

1BQD series hydraulic pressure contraposion folding light harrow product parameters

Model	1BQD-7.2
Diameter of disc(mm)	460
Weight (kg)	2920
Working width (mm)	7200
Working depth (mm)	100-150
Nos of disc blade	84
Matched power (hp)	120-150

1BQDX series hanging pair setting light duty disc harrow product parameters

Model	1BQDX-1.25	1BQDX-1.6	1BQDX-2.0	1BQDX-2.3	1BQDX-2.65	1BQDX-3.0
Working width(mm)	1250	1600	2000	2300	2650	3000
Working depth (mm)	50-150	50-150	50-150	50-150	50-150	50-150
No. of disc (pc)	16	20	24	28	32	36
Dia. Of disc (mm)	460	460	460	460	460	460
Weight(kg)	330	390	460	560	600	650
Linkage	Three-point suspension
Matched power (hp)	35-40	40-45	50-60	55-70	60-80	80-90

1BJX series hanging medium-sized disc harrow product parameters

Model	1BJX-1.1	1BJX-1.3	1BJX-1.5	1BJX-1.7	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5	1BJX-2.8	1BJX-3.0	1BJX-3.4
Working width(mm)	1100	1300	1500	1700	2000	2200	2400	2500	2800	3000	3400
Working depth (mm)	140	140	140	140	140	140	140	140	140	140	140
No. of disc (pc)	10	12	14	16	18	20	22	24	26	28	32
Dia. Of disc (mm)	560	560	560	560	560	560	560	560	560	560	560
Weight(kg)	320	340	360	420	440	463	604	660	700	1300	1400
Linkage	Three-point suspension
Matched power (hp)	25-30	30-40	40	45	50-60	55-60	65-70	75	80	80	100

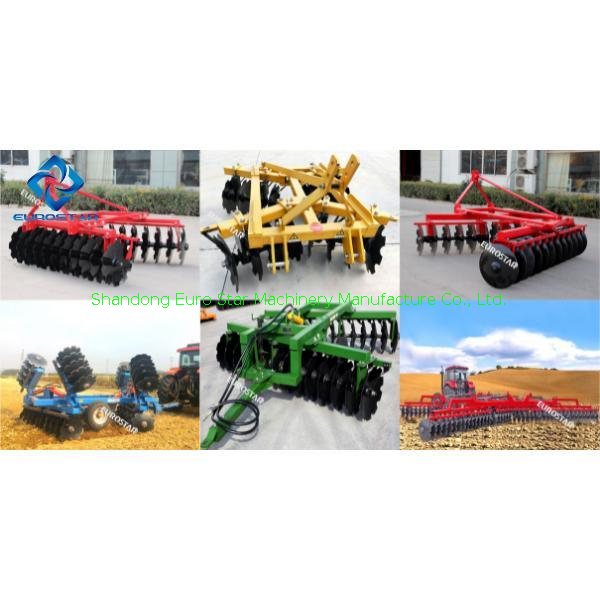

Full range of disc harrow picture display

Full series of share plow, turnover plow, disc plow picture combination display

ES series disc blade Product parameters

Diameter		Thickness		Weight Plain		Weight Notched
MM	INCH	MM	INCH	KG	LBS	KG	LBS
300mm	12"	3	1/8"	1.6	3.5	1.1	2.4
330mm	13"	3	1/8"	1.8	4	1.2	2.6
360mm	14"	3	1/8"	2.3	4.9	1.9	4.1
410mm	16"	3	1/8"	3.2	7	2.7	5.9
460mm	18"	3	1/8"	4.3	9.5	3.8	8.4
460mm	18"	3.5	1/7"	4.6	10.2	4.1	9
510mm	20"	3.5	1/7"	5.8	12.7	5.6	11.5
510mm	20"	4	2/13"	6.5	14.4	5.8	12.7
560mm	22"	4	2/13"	8.1	18	7.5	16.5
560mm	22"	4.5	2/11"	9	20	8.5	18.7
560mm	22"	5	1/5"	9.5	21.6	9	19.8
560mm	22"	6	15/64"	12	26.5	11	24.2
610mm	24"	5	1/5"	11.3	25	10.5	23.1
610mm	24"	6	15/64"	14.2	31.5	13	28.6
660mm	26"	5	1/5"	14.1	31	13	28.6
660mm	26"	6	15/64"	17	37.5	15.8	34.8
660mm	26"	7	9/32"	20	43.5	18.5	40.7
660mm	26"	8	5/16"	23	51	21	46
710mm	28"	6	15/64"	20	44	18.5	40.7
710mm	28"	7	9/32"	23	50.6	21.5	46
710mm	28"	8	5/16"	26	57.2	24	52.1
760mm	30"	8	5/16"	29	64	28	61.5
760mm	30"	10	3/8"	35	77	33.5	73.7
810mm	32"	8	5/16"	35	77	33	75
810mm	32"	10	3/8"	43	95	40	68
910mm	36"	12	1/2"	68	150	60	132
960mm	38"	12	1/2"	77	170	70	154
1016mm	40"	12	1/2"	82	180	77	169.4
1116mm	44"	12	1/2"	89	196	84	184.8

Disc blade picture display
