1BZT-6.0 Width 6m Hydraulic Heavy Duty Disc Harrow

1BZT series hydraulic heavy disc harrow has the high working efficiency, strong capability into the soil and after plough loosen soil.can highly adapt to the sticky heavy soil,uncultivated field and those plots of many weeds,breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.
This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
  • 1BZT-6.0

  • EUROSTAR OEM

  • 8432210000

1BZT series hydraulic heavy disc harrow product description
1BZT series hydraulic heavy disc harrow has the high working efficiency, strong capability into the soil and after plough loosen soil.can highly adapt to the sticky heavy soil,uncultivated field and those plots of many weeds,breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.
This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
1BZT series hydraulic heavy disc harrow product selling points
1. They have been proved to be satisfactory for harrowing work on uncultivated lands and in heavy clay soil fields.
2. Strong ability of soil pulverization.It could be used for cleaning away stubble of plants before tillage, or crushing clods after tillage.
3. Fit the scraper for each disc blade to clean the objects.
4. Hydraulic heavy duty disc harrow is trailed for 80-400hp tractor.
5.High quality of difunctional oil cylinder.Own hydraulic system to lift and down the transport wheel freely.
6. Widely working width of this heavy disc harrow to be 2-6m.
7. The working depth can be adjusted freely.Maximum harrowing depth on uncultivated land can reach 180-350mm.
8. Compact and strong structure make the machine have long service life.
9. The materail of plough disc is 65Mn spring steel,it is more strong.
10. Strong and durable bearing.
11. Work width can be customized according to customer requirements.

1BZT series hydraulic heavy disc harrow product parameters
Model1BZT-6.0
Diameter of disc(mm)910
Weight (kg)11000
Working width (mm)6000
Working depth (mm)300-350
Maximum working angle23
Nos of disc blade40
Matched power (hp)300-400

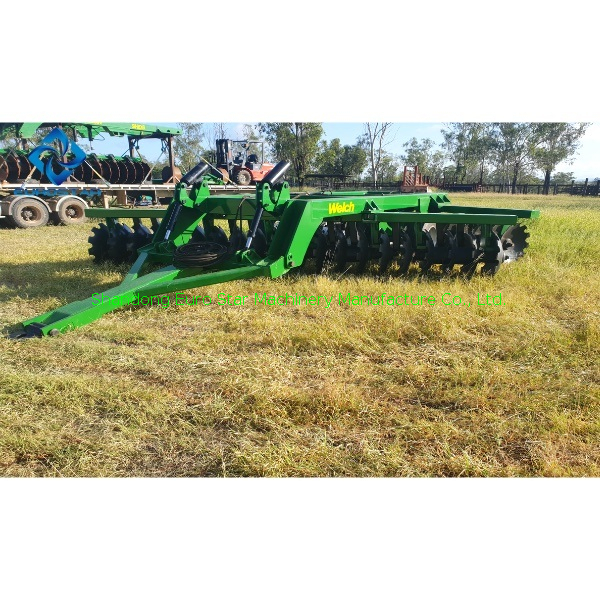

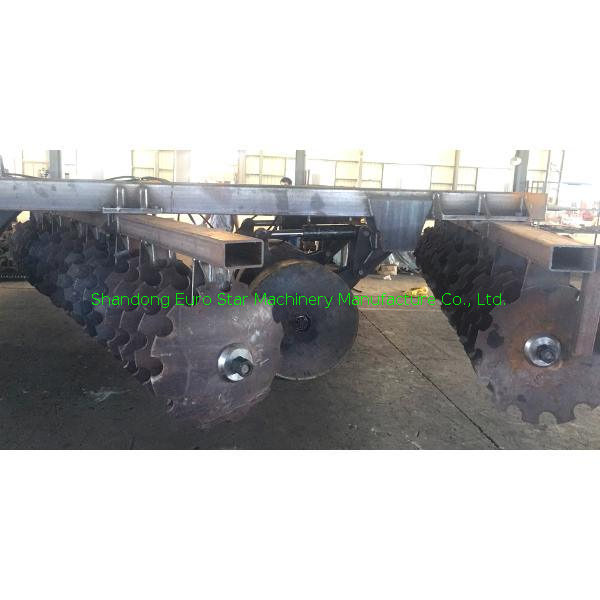

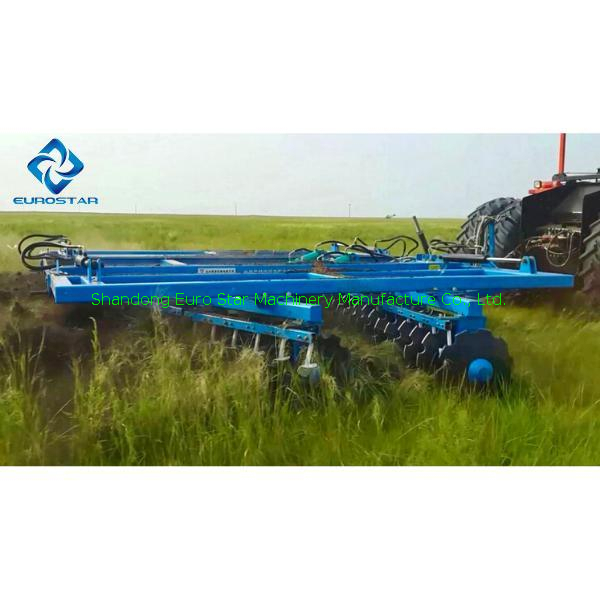

1BZT series hydraulic heavy disc harrow pictures show

1BZT series hydraulic heavy disc harrow pictures show1BZF series hydraulic folding heavy duty disc harrow product parameters

Model 1BZF-5.3
Diameter of disc(mm) 660
Weight (kg) 5500
Working width (mm) 5300
Working depth (mm) 180-220
Nos of disc blade 48
Matched power (hp) 200-300
1BZD series hydraulic folding heavy duty disc harrow product parameters
Model 1BZD-6.5 1BZD-7.5 1BZD-8.5 1BZD-9.0 1BZD-9.5
Diameter of disc(mm) 660 660 660 660 660
Weight (kg) 7000 7200 7500 7650 8300
Working width (mm) 6500 7500 8500 9000 9500
Working depth (mm) 180-220 180-220 180-220 180-220 180-220
Nos of disc blade 64 72 80 84 88
Matched power (hp) 300 350 400 400 500

1BZ series hydraulic heavy disc harrow product parameters

Model 1BZ-2.2 1BZ-2.5 1BZ-3.0 1BZ-3.4 1BZ-4.0 1BZ-5.3
Overall dimension(mm) 4820*2440*1340 5320*2880*1340 5320*3320*1340 5820*3760*1340 5820*4320*1340 6000*5500*1450
Working width(mm) 2200 2500 3000 3400 4000 5300
Working depth(mm) 180-200
No of disc(pc) 20 24 28 32 36 48
Dia.of disc(mm) 660*6 660*6 660*6 660*6 660*6 660*6
Productivity(ha/h) 1.3 1.4 1.7 1.9 2.4 3-5
Matched power(hp) 80-100 100-120 100-120 120-150 130-150 150-200
Linkage Traction Traction Traction Traction Traction Traction

1BQX series hanging light duty disc harrow product parameters

Model 1BQX-1.1 1BQX-1.3 1BQX-1.5 1BQX-1.7 1BQX-2.0 1BQX-2.2 1BQX-2.3 1BQX-3.4 1BQX-5.0
Working width(mm) 1100 1300 1500 1700 2000 2200 2300 3400 5000
Working depth (mm) 100-140 100-140 100-140 100-140 100-140 100-140 100-140 100-140 100-140
No. of disc (pc) 12 14 16 18 20 22 24 42 60
Dia. Of disc (mm) 460 460 460 460 460 460 460 460 460
Weight(kg) 200 220 250 270 380 400 420 1150 1550
Linkage Three-point suspension Tractor traction
Match power (hp) 12--18 15-18 20-25 25-30 35-40 40-45 55 80-100 120

1BQD series hydraulic pressure contraposion folding light harrow product parameters

Model 1BQD-7.2
Diameter of disc(mm) 460
Weight (kg) 2920
Working width (mm) 7200
Working depth (mm) 100-150
Nos of disc blade 84
Matched power (hp) 120-150
1BQDX series hanging pair setting light duty disc harrow product parameters
Model 1BQDX-1.25 1BQDX-1.6 1BQDX-2.0 1BQDX-2.3 1BQDX-2.65 1BQDX-3.0
Working width(mm) 1250 1600 2000 2300 2650 3000
Working depth (mm) 50-150 50-150 50-150 50-150 50-150 50-150
No. of disc (pc) 16 20 24 28 32 36
Dia. Of disc (mm) 460 460 460 460 460 460
Weight(kg) 330 390 460 560 600 650
Linkage Three-point suspension
Matched power (hp) 35-40 40-45 50-60 55-70 60-80 80-90
1BJX series hanging medium-sized disc harrow product parameters
Model 1BJX-1.1 1BJX-1.3 1BJX-1.5 1BJX-1.7 1BJX-2.0 1BJX-2.2 1BJX-2.4 1BJX-2.5 1BJX-2.8 1BJX-3.0 1BJX-3.4
Working width(mm) 1100 1300 1500 1700 2000 2200 2400 2500 2800 3000 3400
Working depth (mm) 140 140 140 140 140 140 140 140 140 140 140
No. of disc (pc) 10 12 14 16 18 20 22 24 26 28 32
Dia. Of disc (mm) 560 560 560 560 560 560 560 560 560 560 560
Weight(kg) 320 340 360 420 440 463 604 660 700 1300 1400
Linkage Three-point suspension
Matched power (hp) 25-30 30-40 40 45 50-60 55-60 65-70 75 80 80 100

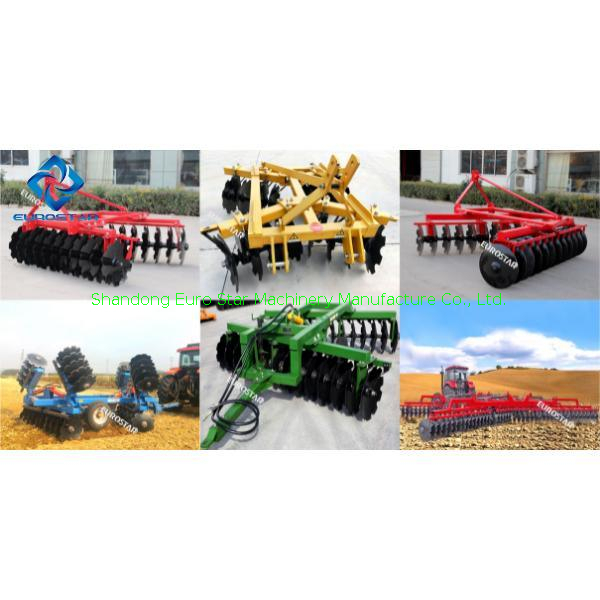

Full range of disc harrow picture displayFull range of disc harrow picture display

Full series of share plow, turnover plow, disc plow picture combination displayFull series of share plow, turnover plow, disc plow picture combination display

ES series disc blade Product parameters

Diameter Thickness Weight Plain Weight Notched
MM INCH MM INCH KG LBS KG LBS
300mm 12" 3 1/8" 1.6 3.5 1.1 2.4
330mm 13" 3 1/8" 1.8 4 1.2 2.6
360mm 14" 3 1/8" 2.3 4.9 1.9 4.1
410mm 16" 3 1/8" 3.2 7 2.7 5.9
460mm 18" 3 1/8" 4.3 9.5 3.8 8.4
460mm 18" 3.5 1/7" 4.6 10.2 4.1 9
510mm 20" 3.5 1/7" 5.8 12.7 5.6 11.5
510mm 20" 4 2/13" 6.5 14.4 5.8 12.7
560mm 22" 4 2/13" 8.1 18 7.5 16.5
560mm 22" 4.5 2/11" 9 20 8.5 18.7
560mm 22" 5 1/5" 9.5 21.6 9 19.8
560mm 22" 6 15/64" 12 26.5 11 24.2
610mm 24" 5 1/5" 11.3 25 10.5 23.1
610mm 24" 6 15/64" 14.2 31.5 13 28.6
660mm 26" 5 1/5" 14.1 31 13 28.6
660mm 26" 6 15/64" 17 37.5 15.8 34.8
660mm 26" 7 9/32" 20 43.5 18.5 40.7
660mm 26" 8 5/16" 23 51 21 46
710mm 28" 6 15/64" 20 44 18.5 40.7
710mm 28" 7 9/32" 23 50.6 21.5 46
710mm 28" 8 5/16" 26 57.2 24 52.1
760mm 30" 8 5/16" 29 64 28 61.5
760mm 30" 10 3/8" 35 77 33.5 73.7
810mm 32" 8 5/16" 35 77 33 75
810mm 32" 10 3/8" 43 95 40 68
910mm 36" 12 1/2" 68 150 60 132
960mm 38" 12 1/2" 77 170 70 154
1016mm 40" 12 1/2" 82 180 77 169.4
1116mm 44" 12 1/2" 89 196 84 184.8
Disc blade picture displayDisc blade picture display3
