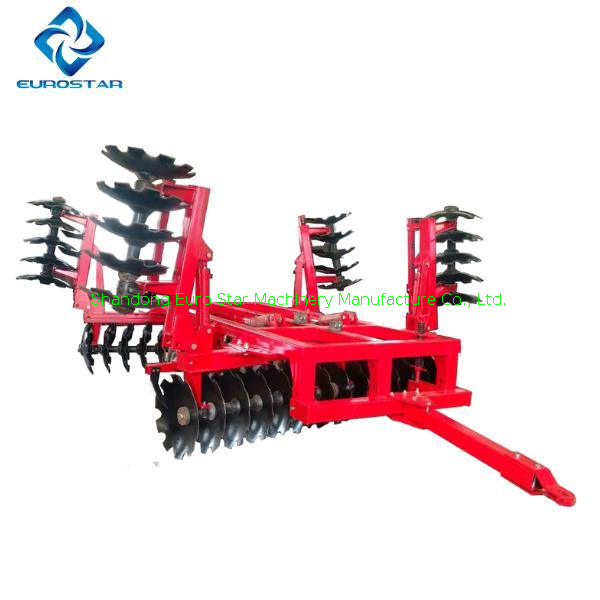

1BZF Width 5.3m Disc Harrow for 200-300HP Tractor

1BZF series hydraulic heavy disc harrow has the high working efficiency, strong capability into the soil and after plough loosen soil.can highly adapt to the sticky heavy soil,uncultivated field and those plots of many weeds,breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.
This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
1BZF Width 5.3m Disc Harrow for 200-300HP Tractor
1BZF Width 5.3m Disc Harrow for 200-300HP Tractor
1BZF Width 5.3m Disc Harrow for 200-300HP Tractor
1BZF Width 5.3m Disc Harrow for 200-300HP Tractor
1BZF Width 5.3m Disc Harrow for 200-300HP Tractor
1BZF Width 5.3m Disc Harrow for 200-300HP Tractor
  • 1BZF-5.3

  • EUROSTAR OEM

  • 8432210000

1BZF series hydraulic folding heavy duty disc harrow product description
1BZF series hydraulic heavy disc harrow has the high working efficiency, strong capability into the soil and after plough loosen soil.can highly adapt to the sticky heavy soil,uncultivated field and those plots of many weeds,breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.
This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
1BZF series hydraulic folding heavy duty disc harrow product selling points
1. They have been proved to be satisfactory for harrowing work on uncultivated lands and in heavy clay soil fields.
2. Strong ability of soil pulverization.It could be used for cleaning away stubble of plants before tillage, or crushing clods after tillage.
3. Fit the scraper for each disc blade to clean the objects.
4. Hydraulic heavy duty disc harrow is trailed for 80-400hp tractor.
5.High quality of difunctional oil cylinder.Own hydraulic system to lift and down the transport wheel freely.
6. Widely working width of this heavy disc harrow to be 5.3m.
7. The working depth can be adjusted freely.Maximum harrowing depth on uncultivated land can reach 180-220mm.
8. Compact and strong structure make the machine have long service life.
9. The materail of plough disc is 65Mn spring steel,it is more strong.
10. Strong and durable bearing.
11.Disc harrow is equipped with multiple hydraulic cylinders, which can be folded on both sides of the disc harrow for convenient transportation and storage.
12.Work width can be customized according to customer requirements.

1BZF series hydraulic folding heavy duty disc harrow product parameters
Model1BZF-5.3
Diameter of disc(mm)660
Weight (kg)5500
Working width (mm)5300
Working depth (mm)180-220
Nos of disc blade48
Matched power (hp)200-300

1BZF series hydraulic folding heavy duty disc harrow pictures show

1BZF series hydraulic folding heavy duty disc harrow pictures show1BZD series hydraulic folding heavy duty disc harrow product parameters

Model 1BZD-6.5 1BZD-7.5 1BZD-8.5 1BZD-9.0 1BZD-9.5
Diameter of disc(mm) 660 660 660 660 660
Weight (kg) 7000 7200 7500 7650 8300
Working width (mm) 6500 7500 8500 9000 9500
Working depth (mm) 180-220 180-220 180-220 180-220 180-220
Nos of disc blade 64 72 80 84 88
Matched power (hp) 300 350 400 400 500

1BZ series hydraulic heavy disc harrow product parameters

Model 1BZ-2.2 1BZ-2.5 1BZ-3.0 1BZ-3.4 1BZ-4.0 1BZ-5.3
Overall dimension(mm) 4820*2440*1340 5320*2880*1340 5320*3320*1340 5820*3760*1340 5820*4320*1340 6000*5500*1450
Working width(mm) 2200 2500 3000 3400 4000 5300
Working depth(mm) 180-200
No of disc(pc) 20 24 28 32 36 48
Dia.of disc(mm) 660*6 660*6 660*6 660*6 660*6 660*6
Productivity(ha/h) 1.3 1.4 1.7 1.9 2.4 3-5
Matched power(hp) 80-100 100-120 100-120 120-150 130-150 150-200
Linkage Traction Traction Traction Traction Traction Traction

1BQX series hanging light duty disc harrow product parameters

Model 1BQX-1.1 1BQX-1.3 1BQX-1.5 1BQX-1.7 1BQX-2.0 1BQX-2.2 1BQX-2.3 1BQX-3.4 1BQX-5.0
Working width(mm) 1100 1300 1500 1700 2000 2200 2300 3400 5000
Working depth (mm) 100-140 100-140 100-140 100-140 100-140 100-140 100-140 100-140 100-140
No. of disc (pc) 12 14 16 18 20 22 24 42 60
Dia. Of disc (mm) 460 460 460 460 460 460 460 460 460
Weight(kg) 200 220 250 270 380 400 420 1150 1550
Linkage Three-point suspension Tractor traction
Match power (hp) 12--18 15-18 20-25 25-30 35-40 40-45 55 80-100 120

1BQD series hydraulic pressure contraposion folding light harrow product parameters

Model 1BQD-7.2
Diameter of disc(mm) 460
Weight (kg) 2920
Working width (mm) 7200
Working depth (mm) 100-150
Nos of disc blade 84
Matched power (hp) 120-150
1BQDX series hanging pair setting light duty disc harrow product parameters
Model 1BQDX-1.25 1BQDX-1.6 1BQDX-2.0 1BQDX-2.3 1BQDX-2.65 1BQDX-3.0
Working width(mm) 1250 1600 2000 2300 2650 3000
Working depth (mm) 50-150 50-150 50-150 50-150 50-150 50-150
No. of disc (pc) 16 20 24 28 32 36
Dia. Of disc (mm) 460 460 460 460 460 460
Weight(kg) 330 390 460 560 600 650
Linkage Three-point suspension
Matched power (hp) 35-40 40-45 50-60 55-70 60-80 80-90
1BZT series hydraulic heavy disc harrow product parameters

Model 1BZT-6.0
Diameter of disc(mm) 910
Weight (kg) 11000
Working width (mm) 6000
Working depth (mm) 300-350
Maximum working angle 23
Nos of disc blade 40
Matched power (hp) 300-400
1BJ X series hanging medium-sized disc harrow product parameters
Model 1BJX-1.1 1BJX-1.3 1BJX-1.5 1BJX-1.7 1BJX-2.0 1BJX-2.2 1BJX-2.4 1BJX-2.5 1BJX-2.8 1BJX-3.0 1BJX-3.4
Working width(mm) 1100 1300 1500 1700 2000 2200 2400 2500 2800 3000 3400
Working depth (mm) 140 140 140 140 140 140 140 140 140 140 140
No. of disc (pc) 10 12 14 16 18 20 22 24 26 28 32
Dia. Of disc (mm) 560 560 560 560 560 560 560 560 560 560 560
Weight(kg) 320 340 360 420 440 463 604 660 700 1300 1400
Linkage Three-point suspension
Matched power (hp) 25-30 30-40 40 45 50-60 55-60 65-70 75 80 80 100
Full range of disc harrow picture displayFull range of disc harrow picture display

Full series of share plow, turnover plow, disc plow picture combination displayFull series of share plow, turnover plow, disc plow picture combination display

ES series disc blade Product parameters

Diameter Thickness Weight Plain Weight Notched
MM INCH MM INCH KG LBS KG LBS
300mm 12" 3 1/8" 1.6 3.5 1.1 2.4
330mm 13" 3 1/8" 1.8 4 1.2 2.6
360mm 14" 3 1/8" 2.3 4.9 1.9 4.1
410mm 16" 3 1/8" 3.2 7 2.7 5.9
460mm 18" 3 1/8" 4.3 9.5 3.8 8.4
460mm 18" 3.5 1/7" 4.6 10.2 4.1 9
510mm 20" 3.5 1/7" 5.8 12.7 5.6 11.5
510mm 20" 4 2/13" 6.5 14.4 5.8 12.7
560mm 22" 4 2/13" 8.1 18 7.5 16.5
560mm 22" 4.5 2/11" 9 20 8.5 18.7
560mm 22" 5 1/5" 9.5 21.6 9 19.8
560mm 22" 6 15/64" 12 26.5 11 24.2
610mm 24" 5 1/5" 11.3 25 10.5 23.1
610mm 24" 6 15/64" 14.2 31.5 13 28.6
660mm 26" 5 1/5" 14.1 31 13 28.6
660mm 26" 6 15/64" 17 37.5 15.8 34.8
660mm 26" 7 9/32" 20 43.5 18.5 40.7
660mm 26" 8 5/16" 23 51 21 46
710mm 28" 6 15/64" 20 44 18.5 40.7
710mm 28" 7 9/32" 23 50.6 21.5 46
710mm 28" 8 5/16" 26 57.2 24 52.1
760mm 30" 8 5/16" 29 64 28 61.5
760mm 30" 10 3/8" 35 77 33.5 73.7
810mm 32" 8 5/16" 35 77 33 75
810mm 32" 10 3/8" 43 95 40 68
910mm 36" 12 1/2" 68 150 60 132
960mm 38" 12 1/2" 77 170 70 154
1016mm 40" 12 1/2" 82 180 77 169.4
1116mm 44" 12 1/2" 89 196 84 184.8
Disc blade picture displayDisc blade picture display3

Farm tools packaging and shipping site displayDisc harrow, disc plough packing and shipping


Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop displayAgricultural machinery factory production equipment display

Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market service

Service Mode : Stationary Point + Circuit Service

Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare parts service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a larg
e spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
