1BZD Heavy Duty Disc Harrow for 300-400HP Tractor

1BZD series hydraulic heavy disc harrow has the high working efﬁciency, strong capability into the soil and after plough loosen soil.can highly adapt to the sticky heavy soil,uncultivated ﬁeld and those plots of many weeds,breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.very effectively on the heavy soils where other disc harrow can not operate. It is easy to transport the machine from one field to another by assistance of hydraulic lifted wheels on the equipment.
This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efﬁciency and lifetime of the harrow is dramatically improved.

Availability:

Quantity:



Inquire

Model:
1BZD-6.5 1BZD-7.5 1BZD-8.5 1BZD-9 1BZD-9.5
Brand:
EUROSTAR OEM
Code:
8432210000

1BZD series hydraulic folding heavy duty disc harrow product description
1BZD series hydraulic heavy disc harrow has the high working efﬁciency, strong capability into the soil and after plough loosen soil.can highly adapt to the sticky heavy soil,uncultivated ﬁeld and those plots of many weeds,breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.very effectively on the heavy soils where other disc harrow can not operate. It is easy to transport the machine from one field to another by assistance of hydraulic lifted wheels on the equipment.
This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efﬁciency and lifetime of the harrow is dramatically improved.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

1BZD series hydraulic folding heavy duty disc harrow product parameters

Model	1BZD-6.5	1BZD-7.5	1BZD-8.5	1BZD-9.0	1BZD-9.5
Diameter of disc(mm)	660	660	660	660	660
Weight (kg)	7000	7200	7500	7650	8300
Working width (mm)	6500	7500	8500	9000	9500
Working depth (mm)	180-220	180-220	180-220	180-220	180-220
Nos of disc blade	64	72	80	84	88
Matched power (hp)	300	350	400	400	500

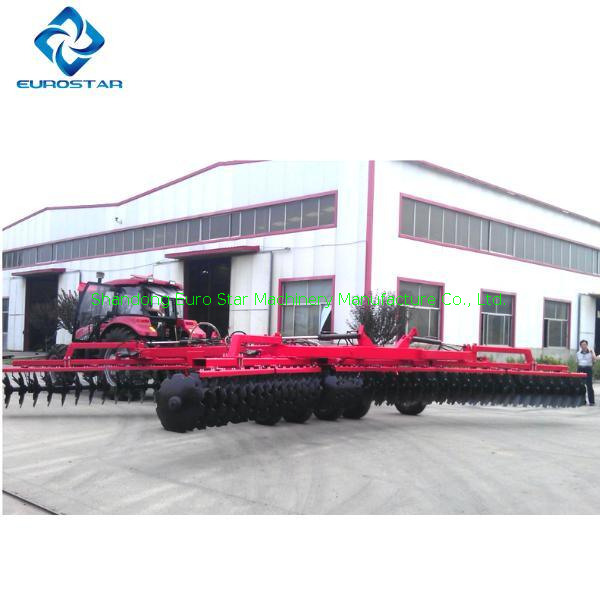

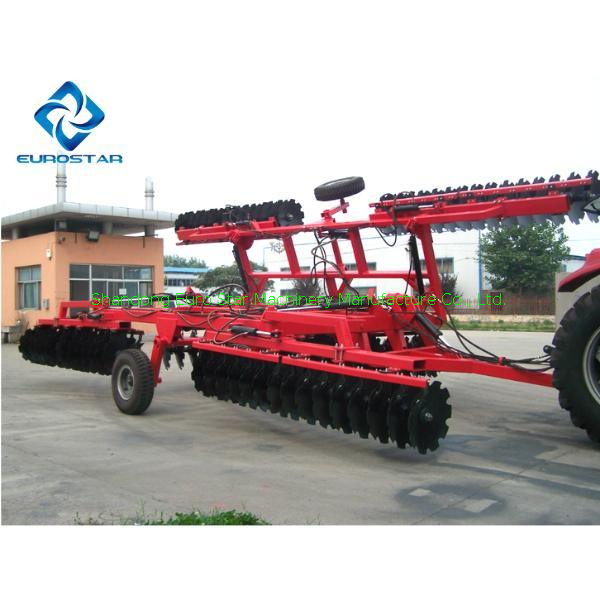

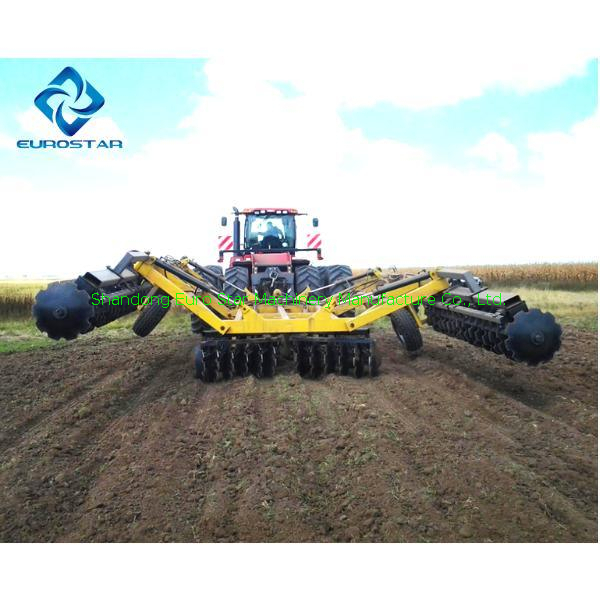

1BZD series hydraulic folding heavy duty disc harrow pictures show

1BZD series hydraulic folding heavy duty disc harrow pictures show

1BZ series hydraulic heavy disc harrow product parameters

Model	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0	1BZ-5.3
Overall dimension(mm)	482024401340	532028801340	532033201340	582037601340	582043201340	600055001450
Working width(mm)	2200	2500	3000	3400	4000	5300
Working depth(mm)	180-200
No of disc(pc)	20	24	28	32	36	48
Dia.of disc(mm)	660*6	660*6	660*6	660*6	660*6	660*6
Productivity(ha/h)	1.3	1.4	1.7	1.9	2.4	3-5
Matched power(hp)	80-100	100-120	100-120	120-150	130-150	150-200
Linkage	Traction	Traction	Traction	Traction	Traction	Traction

1BQX series hanging light duty disc harrow product parameters

Model	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-2.0	1BQX-2.2	1BQX-2.3	1BQX-3.4	1BQX-5.0
Working width(mm)	1100	1300	1500	1700	2000	2200	2300	3400	5000
Working depth (mm)	100-140	100-140	100-140	100-140	100-140	100-140	100-140	100-140	100-140
No. of disc (pc)	12	14	16	18	20	22	24	42	60
Dia. Of disc (mm)	460	460	460	460	460	460	460	460	460
Weight(kg)	200	220	250	270	380	400	420	1150	1550
Linkage	Three-point suspension							Tractor traction
Match power (hp)	12--18	15-18	20-25	25-30	35-40	40-45	55	80-100	120

1BQD series hydraulic pressure contraposion folding light harrow product parameters

Model	1BQD-7.2
Diameter of disc(mm)	460
Weight (kg)	2920
Working width (mm)	7200
Working depth (mm)	100-150
Nos of disc blade	84
Matched power (hp)	120-150

1BQDX series hanging pair setting light duty disc harrow product parameters

Model	1BQDX-1.25	1BQDX-1.6	1BQDX-2.0	1BQDX-2.3	1BQDX-2.65	1BQDX-3.0
Working width(mm)	1250	1600	2000	2300	2650	3000
Working depth (mm)	50-150	50-150	50-150	50-150	50-150	50-150
No. of disc (pc)	16	20	24	28	32	36
Dia. Of disc (mm)	460	460	460	460	460	460
Weight(kg)	330	390	460	560	600	650
Linkage	Three-point suspension
Matched power (hp)	35-40	40-45	50-60	55-70	60-80	80-90

1BZF series hydraulic folding heavy duty disc harrow product parameters

Model		1BZF-5.3
Diameter of disc(mm)		660
Weight (kg)		5500
Working width (mm)		5300
Working depth (mm)		180-220
Nos of disc blade		48
Matched power (hp)		200-300

1BZT series hydraulic heavy disc harrow product parameters

Model	1BZT-6.0
Diameter of disc(mm)	910
Weight (kg)	11000
Working width (mm)	6000
Working depth (mm)	300-350
Maximum working angle	23
Nos of disc blade	40
Matched power (hp)	300-400

1BJ X series hanging medium-sized disc harrow product parameters

Model	1BJX-1.1	1BJX-1.3	1BJX-1.5	1BJX-1.7	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5	1BJX-2.8	1BJX-3.0	1BJX-3.4
Working width(mm)	1100	1300	1500	1700	2000	2200	2400	2500	2800	3000	3400
Working depth (mm)	140	140	140	140	140	140	140	140	140	140	140
No. of disc (pc)	10	12	14	16	18	20	22	24	26	28	32
Dia. Of disc (mm)	560	560	560	560	560	560	560	560	560	560	560
Weight(kg)	320	340	360	420	440	463	604	660	700	1300	1400
Linkage	Three-point suspension
Matched power (hp)	25-30	30-40	40	45	50-60	55-60	65-70	75	80	80	100

Full range of disc harrow picture display

Full series of share plow, turnover plow, disc plow picture combination display

ES series disc blade Product parameters

Diameter		Thickness		Weight Plain		Weight Notched
MM	INCH	MM	INCH	KG	LBS	KG	LBS
300mm	12"	3	1/8"	1.6	3.5	1.1	2.4
330mm	13"	3	1/8"	1.8	4	1.2	2.6
360mm	14"	3	1/8"	2.3	4.9	1.9	4.1
410mm	16"	3	1/8"	3.2	7	2.7	5.9
460mm	18"	3	1/8"	4.3	9.5	3.8	8.4
460mm	18"	3.5	1/7"	4.6	10.2	4.1	9
510mm	20"	3.5	1/7"	5.8	12.7	5.6	11.5
510mm	20"	4	2/13"	6.5	14.4	5.8	12.7
560mm	22"	4	2/13"	8.1	18	7.5	16.5
560mm	22"	4.5	2/11"	9	20	8.5	18.7
560mm	22"	5	1/5"	9.5	21.6	9	19.8
560mm	22"	6	15/64"	12	26.5	11	24.2
610mm	24"	5	1/5"	11.3	25	10.5	23.1
610mm	24"	6	15/64"	14.2	31.5	13	28.6
660mm	26"	5	1/5"	14.1	31	13	28.6
660mm	26"	6	15/64"	17	37.5	15.8	34.8
660mm	26"	7	9/32"	20	43.5	18.5	40.7
660mm	26"	8	5/16"	23	51	21	46
710mm	28"	6	15/64"	20	44	18.5	40.7
710mm	28"	7	9/32"	23	50.6	21.5	46
710mm	28"	8	5/16"	26	57.2	24	52.1
760mm	30"	8	5/16"	29	64	28	61.5
760mm	30"	10	3/8"	35	77	33.5	73.7
810mm	32"	8	5/16"	35	77	33	75
810mm	32"	10	3/8"	43	95	40	68
910mm	36"	12	1/2"	68	150	60	132
960mm	38"	12	1/2"	77	170	70	154
1016mm	40"	12	1/2"	82	180	77	169.4
1116mm	44"	12	1/2"	89	196	84	184.8

Disc blade picture display

Farm tools packaging and shipping site display

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop display

Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market service

Service Mode : Stationary Point + Circuit Service

Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare parts service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
