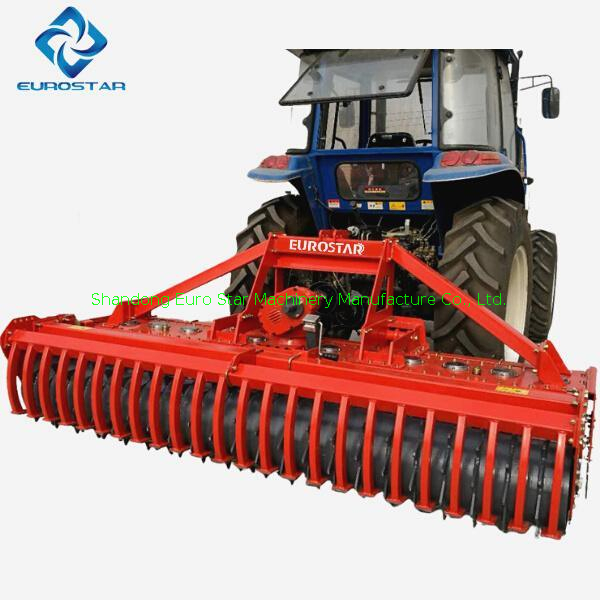

1BQ-4.0 Vertical Tillage Heavy Duty Tiller

1BQ series Heavy duty power driven harrow is a cooperation between Shandong Euro Star Machinery Manufacture Co., Ltd. and Italian CMR Group Company, specially designed and produced for complex soil conditions, with reasonable structure, reliable performance, quick tool change, overload protection and other advantages.
1BQ series Heavy duty power driven harrow can choose working width of 2-4M, and can be used with 80-160HP tractors. It has the advantages of good soil crushing effect, smooth ground after soil preparation, good moisture retention effect, no damage to soil structure and layering, and neat seedbed emergence rate. It is the first choice for farm managers.
1BQ series Heavy duty power driven harrow a very good finishing effect especially for the unbreakable large clods and moisture ditch that appear after deep ploughing. In terms of seedbed and seedbed finishing, the power-driven harrow is the best working machine at present. After finishing, it can meet the agronomic requirements of "flat, tidy, loose, broken, clean, and moisture content" of the land, providing perfect soil conditions for seed germination.

Availability:

Quantity:



Inquire

Model:
1BQ-2.0 1BQ-2.5 1BQ-3.0 1BQ-3.5 1BQ-4.0
Brand:
EUROSTAR OEM
Code:
8432210000

1BQ series heavy duty power driven harrow product description
1BQ series Heavy duty power driven harrow is a cooperation between Shandong Euro Star Machinery Manufacture Co., Ltd. and Italian CMR Group Company, specially designed and produced for complex soil conditions, with reasonable structure, reliable performance, quick tool change, overload protection and other advantages.
1BQ series Heavy duty power driven harrow can choose working width of 2-4M, and can be used with 80-160HP tractors. It has the advantages of good soil crushing effect, smooth ground after soil preparation, good moisture retention effect, no damage to soil structure and layering, and neat seedbed emergence rate. It is the first choice for farm managers.
1BQ series Heavy duty power driven harrow a very good finishing effect especially for the unbreakable large clods and moisture ditch that appear after deep ploughing. In terms of seedbed and seedbed finishing, the power-driven harrow is the best working machine at present. After finishing, it can meet the agronomic requirements of "flat, tidy, loose, broken, clean, and moisture content" of the land, providing perfect soil conditions for seed germination.
1BQ series heavy duty power driven harrow product selling points
1. Strong soil crushing ability, specializing in unbreakable clods.
2. Strengthen the leveling board, which has a good finishing effect for the uneven land after deep ploughing. Ensure that the land is level and there is no moisture ditch.
3. Heavy-duty repression roller, the soil after finishing is solid on the top and the bottom is empty, so it can be directly sown, and the soil moisture is guaranteed to ensure that the seedbed emerges neatly.
4. Keep the soil structure layered. After deep ploughing, the straw and grass have been pressed into the soil. The horizontal rotating structure of the power-driven harrow and the characteristics of the knife shape will not turn the straw up, which is conducive to the rot and decomposition of the straw.
5. Adopt Italian CMR Group special transmission box, high-power spiral bevel gear design, strong bearing capacity.
6. The plug-in quick-change blade structure is convenient and quick to replace the rake.
7. Shafts and gears are made of titanium alloy and processed by advanced heat treatment process.
8. The 16mm thick alloy steel harrow blade is used, which has better wear resistance and strength after special treatment.
9. The high-density drum design is adopted, and more than 2 sets of drums are added to the common drive harrow, which improves the soil crushing effect.
10. The soil after deep ploughing will form a good seedbed and seedbed, and improve the neat emergence rate in the later stage.
11. Strengthen the gear box setting, strong and durable.
12. Primary transmission of main transmission box with higher strength.
13. Super large bearing is selected to reduce the failure rate.
14. The intermediate gear spline shaft and the main drive spline shaft are thicker and more durable.
5. The locking position of each group of gear plum blossom cap and the large plum blossom cap are locked, with simple structure and never loose.

1BQ series heavy duty power driven harrow product parameters

Model	1BQ-2.0	1BQ-2.5	1BQ-3.0	1BQ-3.5	1BQ-4.0
Working width(mm)	2000	2500	3000	3500	4000
Working depth(mm)	50-200	50-200	50-200	50-200	50-200
No of Rotating combination(pc)	8	10	12	14	16
No of Scraper blade(pc)	16	20	24	28	32
weight(KG)	1200	1400	1620	1880	2080
Minimum power(HP)	80 HP	90 HP	110 HP	140 HP	160 HP
Biggest power(HP)	110 HP	125 HP	160 HP	210 HP	250 HP
Overall dimension(mm)	210015001240	260015001240	310015001240	360015001240	410015001240
Linkage	Three-point suspension II type& III type		Three-point suspension II type& III type

1BQ series heavy duty power driven harrow pictures show

1BJX series hanging medium-sized disc harrow product parameters

Model	1BJX-1.1	1BJX-1.3	1BJX-1.5	1BJX-1.7	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5	1BJX-2.8	1BJX-3.0	1BJX-3.4
Working width(mm)	1100	1300	1500	1700	2000	2200	2400	2500	2800	3000	3400
Working depth (mm)	140	140	140	140	140	140	140	140	140	140	140
No. of disc (pc)	10	12	14	16	18	20	22	24	26	28	32
Dia. Of disc (mm)	560	560	560	560	560	560	560	560	560	560	560
Weight(kg)	320	340	360	420	440	463	604	660	700	1300	1400
Linkage	Three-point suspension
Matched power (hp)	25-30	30-40	40	45	50-60	55-60	65-70	75	80	80	100

1BQDX series hanging pair setting light duty disc harrow product parameters

Model	1BQDX-1.25	1BQDX-1.6	1BQDX-2.0	1BQDX-2.3	1BQDX-2.65	1BQDX-3.0
Working width(mm)	1250	1600	2000	2300	2650	3000
Working depth (mm)	50-150	50-150	50-150	50-150	50-150	50-150
No. of disc (pc)	16	20	24	28	32	36
Dia. Of disc (mm)	460	460	460	460	460	460
Weight(kg)	330	390	460	560	600	650
Linkage	Three-point suspension
Matched power (hp)	35-40	40-45	50-60	55-70	60-80	80-90

1BZ series hydraulic heavy disc harrow product parameters

Model	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0	1BZ-5.3
Overall dimension(mm)	482024401340	532028801340	532033201340	582037601340	582043201340	600055001450
Working width(mm)	2200	2500	3000	3400	4000	5300
Working depth(mm)	180-200
No of disc(pc)	20	24	28	32	36	48
Dia.of disc(mm)	660*6	660*6	660*6	660*6	660*6	660*6
Productivity(ha/h)	1.3	1.4	1.7	1.9	2.4	3-5
Matched power(hp)	80-100	100-120	100-120	120-150	130-150	150-200
Linkage	Traction	Traction	Traction	Traction	Traction	Traction

1BZD series hydraulic folding heavy duty disc harrow product parameters

Model	1BZD-6.5	1BZD-7.5	1BZD-8.5	1BZD-9.0	1BZD-9.5
Diameter of disc(mm)	660	660	660	660	660
Weight (kg)	7000	7200	7500	7650	8300
Working width (mm)	6500	7500	8500	9000	9500
Working depth (mm)	180-220	180-220	180-220	180-220	180-220
Nos of disc blade	64	72	80	84	88
Matched power (hp)	300	350	400	400	500

1BZF series hydraulic folding heavy duty disc harrow product parameters

Model		1BZF-5.3
Diameter of disc(mm)		660
Weight (kg)		5500
Working width (mm)		5300
Working depth (mm)		180-220
Nos of disc blade		48
Matched power (hp)		200-300

1BZT series hydraulic heavy disc harrow product parameters

Model	1BZT-6.0
Diameter of disc(mm)	910
Weight (kg)	11000
Working width (mm)	6000
Working depth (mm)	300-350
Maximum working angle	23
Nos of disc blade	40
Matched power (hp)	300-400

1BQD series hydraulic pressure contraposion folding light harrow product parameters

Model	1BQD-7.2
Diameter of disc(mm)	460
Weight (kg)	2920
Working width (mm)	7200
Working depth (mm)	100-150
Nos of disc blade	84
Matched power (hp)	120-150

1BQX series hanging light duty disc harrow product parameter

Model	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-2.0	1BQX-2.2	1BQX-2.3	1BQX-3.4	1BQX-5.0
Working width(mm)	1100	1300	1500	1700	2000	2200	2300	3400	5000
Working depth (mm)	100-140	100-140	100-140	100-140	100-140	100-140	100-140	100-140	100-140
No. of disc (pc)	12	14	16	18	20	22	24	42	60
Dia. Of disc (mm)	460	460	460	460	460	460	460	460	460
Weight(kg)	200	220	250	270	380	400	420	1150	1550
Linkage	Three-point suspension							Tractor traction
Matched power (hp)	12--18	15-18	20-25	25-30	35-40	40-45	55	80-100	120

Full range of disc harrow picture display

Full series of share plow, turnover plow, disc plow picture combination display

ES series disc blade Product parameters

Diameter		Thickness		Weight Plain		Weight Notched
MM	INCH	MM	INCH	KG	LBS	KG	LBS
300mm	12"	3	1/8"	1.6	3.5	1.1	2.4
330mm	13"	3	1/8"	1.8	4	1.2	2.6
360mm	14"	3	1/8"	2.3	4.9	1.9	4.1
410mm	16"	3	1/8"	3.2	7	2.7	5.9
460mm	18"	3	1/8"	4.3	9.5	3.8	8.4
460mm	18"	3.5	1/7"	4.6	10.2	4.1	9
510mm	20"	3.5	1/7"	5.8	12.7	5.6	11.5
510mm	20"	4	2/13"	6.5	14.4	5.8	12.7
560mm	22"	4	2/13"	8.1	18	7.5	16.5
560mm	22"	4.5	2/11"	9	20	8.5	18.7
560mm	22"	5	1/5"	9.5	21.6	9	19.8
560mm	22"	6	15/64"	12	26.5	11	24.2
610mm	24"	5	1/5"	11.3	25	10.5	23.1
610mm	24"	6	15/64"	14.2	31.5	13	28.6
660mm	26"	5	1/5"	14.1	31	13	28.6
660mm	26"	6	15/64"	17	37.5	15.8	34.8
660mm	26"	7	9/32"	20	43.5	18.5	40.7
660mm	26"	8	5/16"	23	51	21	46
710mm	28"	6	15/64"	20	44	18.5	40.7
710mm	28"	7	9/32"	23	50.6	21.5	46
710mm	28"	8	5/16"	26	57.2	24	52.1
760mm	30"	8	5/16"	29	64	28	61.5
760mm	30"	10	3/8"	35	77	33.5	73.7
810mm	32"	8	5/16"	35	77	33	75
810mm	32"	10	3/8"	43	95	40	68
910mm	36"	12	1/2"	68	150	60	132
960mm	38"	12	1/2"	77	170	70	154
1016mm	40"	12	1/2"	82	180	77	169.4
1116mm	44"	12	1/2"	89	196	84	184.8

Farm tools packaging and shipping site display
