1BJX Medium-Sized Disc Harrow

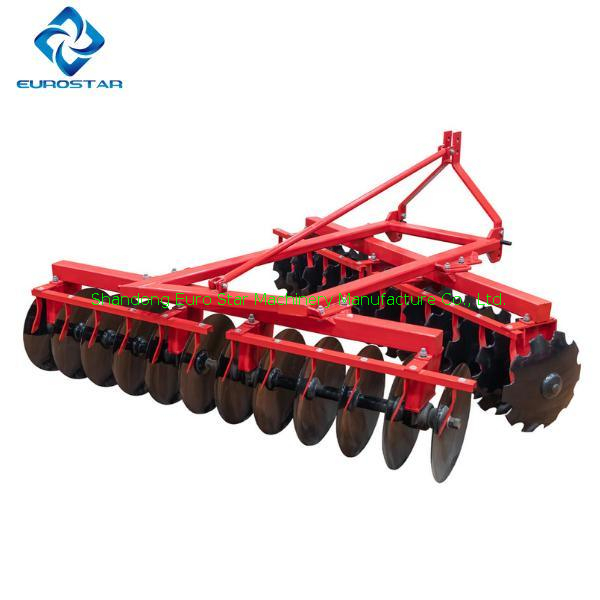

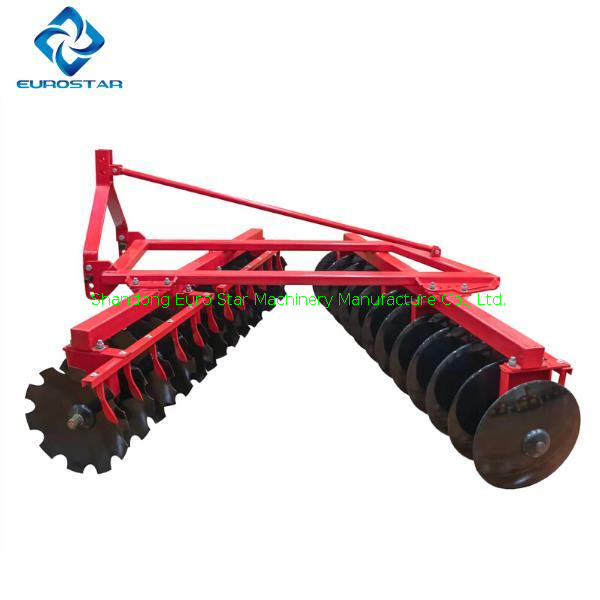

1BJX series traction light duty disc harrow pictures show

1BQX series hanging light duty disc harrow product parameters

Model	1BQD-7.2
Diameter of disc(mm)	460
Weight (kg)	2920
Working width (mm)	7200
Working depth (mm)	100-150
Nos of disc blade	84
Matched power (hp)	120-150

Full range of disc harrow picture display

ES series disc blade Product parameters

Diameter		Thickness		Weight Plain		Weight Notched
MM	INCH	MM	INCH	KG	LBS	KG	LBS
300mm	12"	3	1/8"	1.6	3.5	1.1	2.4
330mm	13"	3	1/8"	1.8	4	1.2	2.6
360mm	14"	3	1/8"	2.3	4.9	1.9	4.1
410mm	16"	3	1/8"	3.2	7	2.7	5.9
460mm	18"	3	1/8"	4.3	9.5	3.8	8.4
460mm	18"	3.5	1/7"	4.6	10.2	4.1	9
510mm	20"	3.5	1/7"	5.8	12.7	5.6	11.5
510mm	20"	4	2/13"	6.5	14.4	5.8	12.7
560mm	22"	4	2/13"	8.1	18	7.5	16.5
560mm	22"	4.5	2/11"	9	20	8.5	18.7
560mm	22"	5	1/5"	9.5	21.6	9	19.8
560mm	22"	6	15/64"	12	26.5	11	24.2
610mm	24"	5	1/5"	11.3	25	10.5	23.1
610mm	24"	6	15/64"	14.2	31.5	13	28.6
660mm	26"	5	1/5"	14.1	31	13	28.6
660mm	26"	6	15/64"	17	37.5	15.8	34.8
660mm	26"	7	9/32"	20	43.5	18.5	40.7
660mm	26"	8	5/16"	23	51	21	46
710mm	28"	6	15/64"	20	44	18.5	40.7
710mm	28"	7	9/32"	23	50.6	21.5	46
710mm	28"	8	5/16"	26	57.2	24	52.1
760mm	30"	8	5/16"	29	64	28	61.5
760mm	30"	10	3/8"	35	77	33.5	73.7
810mm	32"	8	5/16"	35	77	33	75
810mm	32"	10	3/8"	43	95	40	68
910mm	36"	12	1/2"	68	150	60	132
960mm	38"	12	1/2"	77	170	70	154
1016mm	40"	12	1/2"	82	180	77	169.4
1116mm	44"	12	1/2"	89	196	84	184.8

Disc blade picture display

Farm tools packaging and shipping site display

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Tractor production workshop display

Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market service

Service Mode : Stationary Point + Circuit Service

Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare parts service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.

What is the machine advantage? Why I choose from you ?

A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.

How many units can be put in container?

A: 1-2 units can be in a 20ft container, 2-3 units can be in a 40HQ container.will be fixed with wire ropes.

Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?

A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.

Contact us

Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com

EUROSTAR CUSTOMERS ALL OVER THE WORLD

Full range of tractor products display

Our company produces other agricultural machinery display
