EZ936/1.6T
EUROSTAR OEM
84295100
Wheel Loader is a kind of earthwork construction machinery widely used in highway,railway,construction,hydropower,port,mine and other construction projects.It is mainly used for shoveling bulk materials such as soil,sand,lime,coal etc.It can also be used for slight shoveling and excavation of ores,hard soil etc.Different auxuliary devices can also be used for bulldozing,lifting,loading and unloading of other materials.
EZ936 is a long-wheelbase loader designed by with a next generation of apperaance, and combines the energy-saving, reliability and comfort.It has the superior stability and large breakout force, and by virtue of the superior comperehensive prrformance, it is more suitable for mining and other heavy-duty operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
EZ936 wheel loader product selling points
1. Operator Comfort and Safety
2. Adjustable seat, and ergonomically designed placement of instruments.
3. Comfortable A/C and heated operator environment.Two mechanical lever controls.
4. Optional pilot control.Convenient detachable cab.
5. UV resistance glass. Cigarette lighter works as electrical outlet.
6. Easy to Maintain
7. Power cut-off function prevents damage to drive components.
8. Double sealed O-rings used in Hydraulic system.
9. Stress analysis tested to strengthen weak points.
10. Sub frame and rear axle swingable by 11 degrees .
11. Front frame box structure highly torsion and damage resistant.
12. Parts, Attachments and Service to count on.
13. World class suppliers of key components.
14. Hydraulic system easily checked after removing front cover.
15. Easy engine access, convenient placement of key parts and fluid refill points.
16 Turbo air filter removes over 90% of dust and impurities, reducing engine wear and fuel consumption extending engine service life and improving engine efficiency.
17. Radiator fan is directly engine driven and provides strong efficient cooling.
18. 38 degree angle of articulation for working in tight spaces.
19. Low fuel consumption engine that doesn't sacrifice any power.
20. Very low cycle time of 8.6 second, great for efficient for smooth strong gear changes.
21. Meets EU stage II/EPA tier 2 emission requirements.
EZ series wheel loader product technical parameters
EZ936/1.6T Wheel loader | ||
Model | EZ936/1.6T | |
Rated Load | 1600 kg | |
Total Weight | 3700 kg | |
Bucket capacity | 0.55 m³ | |
Bucket width | 1830 mm | |
Size(L×W×H) | 5450*1890*2660mm | |
Max.unloading height | 3200 mm | |
Min.turning radius | 4400 mm | |
Mini.ground clearance | 260 mm | |
Boom lift | 6.5 S | |
Boom down | 4.62 S | |
Trinomial sum | 10.89 S | |
Driving Speed | Low I (F/R) | 5 km/h |
Low II (F/R) | 8.5 km/h | |
High I (F/R) | 18 km/h | |
High II (F/R) | 27 km/h | |
Engine | Model | RB2619 |
Rated power | 40 kW | |
Rated net power | 36.8 kW | |
Rated speed | 2400r/min | |
Emission Standards | II stages Europe II |
Wheel Loader is a kind of earthwork construction machinery widely used in highway,railway,construction,hydropower,port,mine and other construction projects.It is mainly used for shoveling bulk materials such as soil,sand,lime,coal etc.It can also be used for slight shoveling and excavation of ores,hard soil etc.Different auxuliary devices can also be used for bulldozing,lifting,loading and unloading of other materials.
EZ936 is a long-wheelbase loader designed by with a next generation of apperaance, and combines the energy-saving, reliability and comfort.It has the superior stability and large breakout force, and by virtue of the superior comperehensive prrformance, it is more suitable for mining and other heavy-duty operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
EZ936 wheel loader product selling points
1. Operator Comfort and Safety
2. Adjustable seat, and ergonomically designed placement of instruments.
3. Comfortable A/C and heated operator environment.Two mechanical lever controls.
4. Optional pilot control.Convenient detachable cab.
5. UV resistance glass. Cigarette lighter works as electrical outlet.
6. Easy to Maintain
7. Power cut-off function prevents damage to drive components.
8. Double sealed O-rings used in Hydraulic system.
9. Stress analysis tested to strengthen weak points.
10. Sub frame and rear axle swingable by 11 degrees .
11. Front frame box structure highly torsion and damage resistant.
12. Parts, Attachments and Service to count on.
13. World class suppliers of key components.
14. Hydraulic system easily checked after removing front cover.
15. Easy engine access, convenient placement of key parts and fluid refill points.
16 Turbo air filter removes over 90% of dust and impurities, reducing engine wear and fuel consumption extending engine service life and improving engine efficiency.
17. Radiator fan is directly engine driven and provides strong efficient cooling.
18. 38 degree angle of articulation for working in tight spaces.
19. Low fuel consumption engine that doesn't sacrifice any power.
20. Very low cycle time of 8.6 second, great for efficient for smooth strong gear changes.
21. Meets EU stage II/EPA tier 2 emission requirements.
EZ series wheel loader product technical parameters
EZ936/1.6T Wheel loader | ||
Model | EZ936/1.6T | |
Rated Load | 1600 kg | |
Total Weight | 3700 kg | |
Bucket capacity | 0.55 m³ | |
Bucket width | 1830 mm | |
Size(L×W×H) | 5450*1890*2660mm | |
Max.unloading height | 3200 mm | |
Min.turning radius | 4400 mm | |
Mini.ground clearance | 260 mm | |
Boom lift | 6.5 S | |
Boom down | 4.62 S | |
Trinomial sum | 10.89 S | |
Driving Speed | Low I (F/R) | 5 km/h |
Low II (F/R) | 8.5 km/h | |
High I (F/R) | 18 km/h | |
High II (F/R) | 27 km/h | |
Engine | Model | RB2619 |
Rated power | 40 kW | |
Rated net power | 36.8 kW | |
Rated speed | 2400r/min | |
Emission Standards | II stages Europe II |

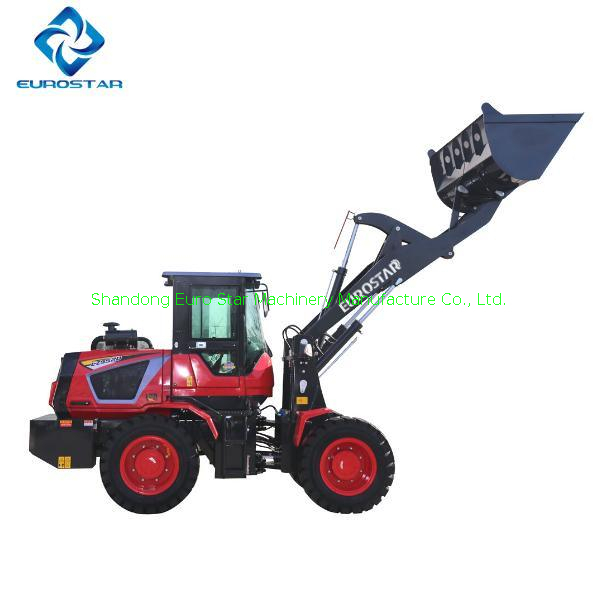

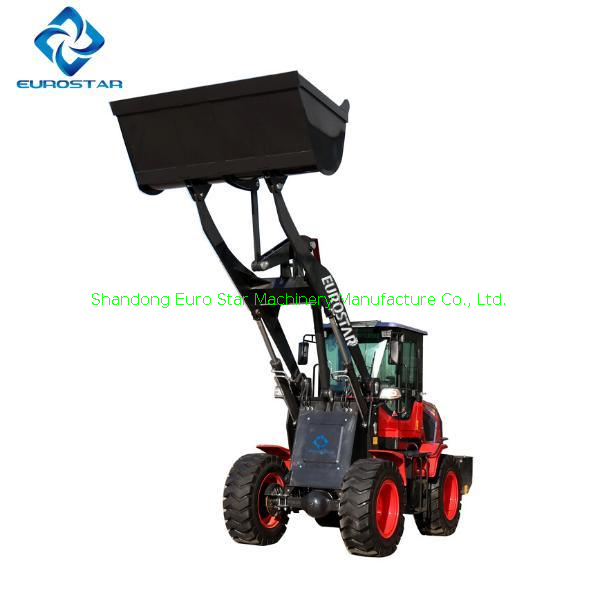

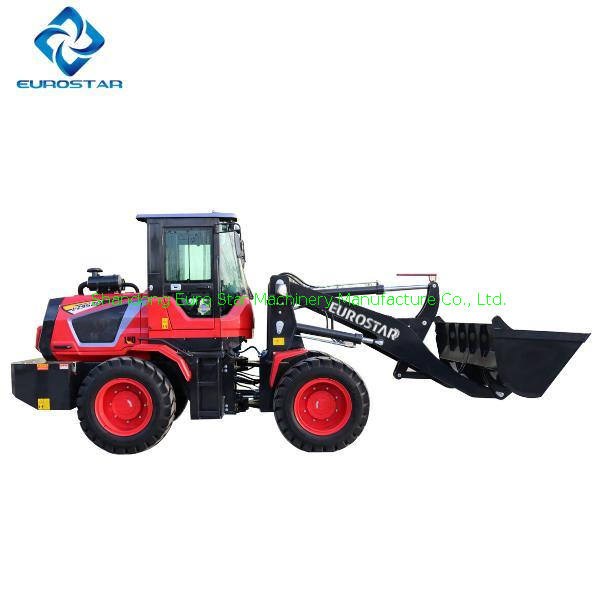

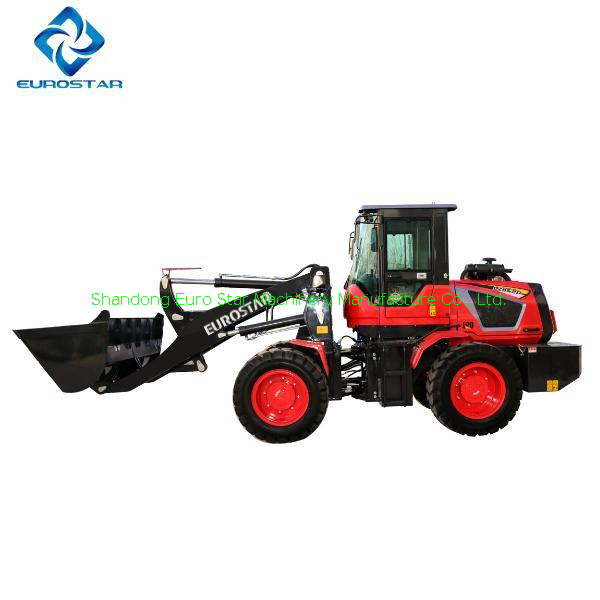

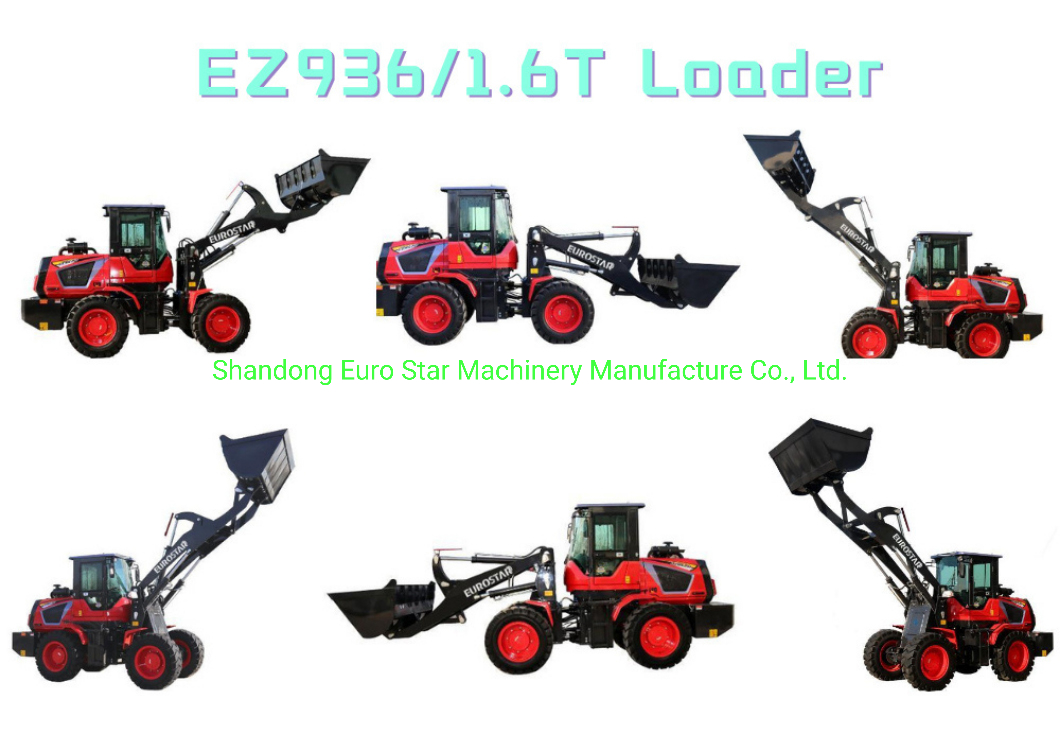

EZ936 wheel loader details picture display
Wheel loader supporting installation attachments display
Other construction machinery products
Rubber track small excavator product display
Metal crawler small excavator product display
Wheel loader packaging and shipping display
EZ936 wheel loader details picture display
Wheel loader supporting installation attachments display
Other construction machinery products
Rubber track small excavator product display
Metal crawler small excavator product display
Wheel loader packaging and shipping display
