Water Pipe Cable Fence Ditcher

LKJ series chain ditch digger operates flexibly and is suitable for narrow working width road surface. Ditching width and depth can be adjusted according to work requirements. The trench width is the narrowest 120mm, and the trench depth can reach 1500mm, which can replace manual and excavator operations and meet the needs of different working environments. The cutting chain is manufactured with special materials and technology, and the product has long service life. For narrow work width of the road work efficiency is very obvious (installation of pipes or cables and other operating environment), more efficient than the excavator.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
Water Pipe Cable Fence Ditcher
Water Pipe Cable Fence Ditcher
Water Pipe Cable Fence Ditcher
Water Pipe Cable Fence Ditcher
Water Pipe Cable Fence Ditcher
Water Pipe Cable Fence Ditcher
  • LKJ200 LKJ300 LKJ400 LKJ500 LKJ600 LKJ800 LKJ1000

  • Eurostar or OEM

  • 8432809000

Chain trencher product description
LKJ series chain ditch digger operates flexibly and is suitable for narrow working width road surface. Ditching width and depth can be adjusted according to work requirements. The trench width is the narrowest 120mm, and the trench depth can reach 1500mm, which can replace manual and excavator operations and meet the needs of different working environments. The cutting chain is manufactured with special materials and technology, and the product has long service life. For narrow work width of the road work efficiency is very obvious (installation of pipes or cables and other operating environment), more efficient than the excavator.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Chain trencher product selling points
The machine is of easy structure, easy-operating, easy maintenance. Note: the equipped tractor shall be with creeper gear and high speed hydraulic joint.
1. Remarkable economical benefit
One ditcher can equal to the work of dozens of persons, several small type excavators. It is the best choice of low investment and high efficiency. After departed, the tractor can do other farm work independently.
2. Good performance
The ditch was vertical and even, a lot better than human labor and excavators.
3. Good quality, long-life span
The blades and chain adopts special materials and good technique to assure long-life span.
4. High efficiency
The ditcher has high work efficiency (3-5 times to the excavator). It is specially suitable for digging deep and narrow ditch (for bury pipe or cable).

Chain trencher product technical parameters
ModelLKJ200LKJ250LKJ300LKJ350LKJ400LKJ500


Supporting power50-80HP50-80HP50-80HP50-80HP50-80HP50-80HP


PTO speed(r/min)500-1000500-1000500-1000500-1000500-1000500-1000


Power speedLow speedLow speedLow speedLow speedLow speedLow speed


structure typeChain ditch, single chain, multi-chain


knife dish speed(r/min)300-550300-550300-550300-550300-550300-550


Number of Trenching knivescustomcustomcustomcustomcustomcustom


Trenching  width(mm)⩽150-200⩽250⩽300⩽350⩽400⩽500


Trenching depth(mm)⩽1500⩽1200⩽100⩽800⩽700⩽500


work efficiency120-500M/h120-500M/h120-500M/h120-500M/h120-500M/h120-500M/h












ModelLKJ200KLKJ250KLKJ300KLKJ350KLKJ400KLKJ500KLKJ600K

Supporting power90-110HP90-110HP90-110HP90-110HP90-110HP90-110HP90-110HP

PTO speed(r/min)500-1000500-1000500-1000500-1000500-1000500-1000500-1000

Power speedLow speedLow speedLow speedLow speedLow speedLow speedLow speed

structure typeChain ditch, single chain, multi-chainChain ditch, single chain, multi-chain

knife dish speed(r/min)300-550300-550300-550300-550300-550300-550300-550

Number of Trenching knivescustomcustomcustomcustomcustomcustomcustom

Trenching  width(mm)⩽150-200⩽250⩽300⩽350⩽400⩽500⩽600

Trenching depth(mm)⩽1800⩽1500⩽1300⩽1200⩽1200⩽1000⩽800

work efficiency120-500M/h120-500M/h120-500M/h120-500M/h120-500M/h120-500M/h120-500M/h











ModelLKJ200KDLKJ250KDLKJ300KDLKJ350KDLKJ400KDLKJ500KDLKJ600KDLKJ800KDLKJ1000KD
Supporting power120-220HP120-220HP120-220HP120-220HP120-220HP120-220HP120-220HP120-220HP120-220HP
PTO speed(r/min)500-1000500-1000500-1000500-1000500-1000500-1000500-1000500-1000500-1000
Power speedLow speedLow speedLow speedLow speedLow speedLow speedLow speedLow speedLow speed
structure typeChain ditch, single chain, multi-chainChain ditch, single chain, multi-chain
knife dish speed(r/min)300-550300-550300-550300-550300-550300-550300-550300-550300-550
Number of Trenching knivescustomcustomcustomcustomcustomcustomcustomcustomcustom
Trenching  width(mm)⩽150-200⩽250⩽300⩽350⩽400⩽500⩽600⩽800⩽1000
Trenching depth(mm)⩽2200⩽2100⩽2100⩽2000⩽2000⩽2000⩽1500⩽1000⩽1000
work efficiency120-500M/h120-500M/h120-500M/h120-500M/h120-500M/h120-500M/h120-500M/h120-500M/h120-500M/h

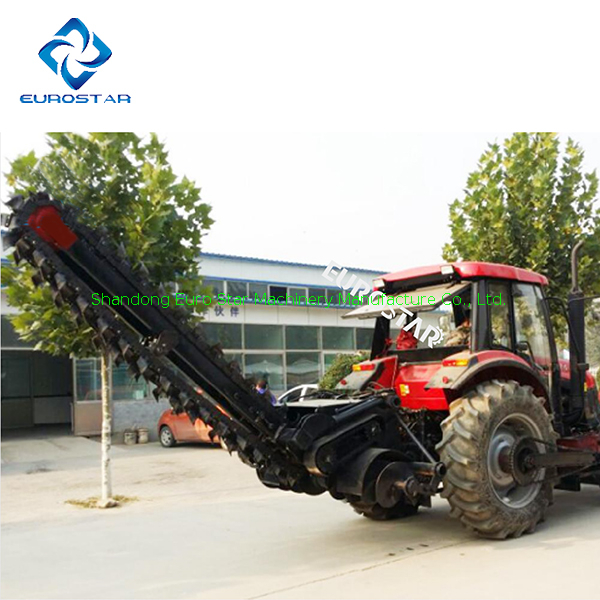

Chain trencher details picture display

Chain trencher details picture display

Disc trencher product technical parameters

parameter PKJ500 PKJ600 PKJ700 PKJ800 PKJ700K PKJ800K PKJ1000 PKJ1100 PKJ1200
Supporting power 50-90HP 50-90HP 50-90HP 50-90HP 100-220HP 100-220HP 100-220HP 100-220HP 100-220HP
PTO speed(r/min) 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000
Power speed Low speed Low speed Low speed Low speed Low speed Low speed Low speed Low speed Low speed
structure type Disc type Disc type Disc type Disc type Disc type Disc type Disc type Disc type Disc type
knife dish speed(r/min) 100~200 100~200 100~200 100~200 100~200 100~200 100~200 100~200 100~200
Number of Trenching knives 30-180 According to the size of the knife plate 30-180 According to the size of the knife plate
Trenching  width(mm) 250-300 200-250 150-200 80-150 300-400 250-300 200-250 150-200 80-150
Trenching depth(mm) ⩽500 ⩽600 ⩽700 ⩽800 ⩽700 ⩽800 ⩽1000 ⩽1100 ⩽1200
Cement road work efficiency 50-100M/h 50-100M/h 50-100M/h 50-100M/h 50-150M/h 50-150M/h 50-150M/h 50-150M/h 50-150M/h
Asphalt work efficiency 120-200M/h 120-200M/h 120-200M/h 120-200M/h 120-200M/h 120-200M/h 120-200M/h 120-200M/h 120-200M/h
Brick pavement work efficiency 150-230M/h 150-230M/h 150-230M/h 150-230M/h 150-230M/h 150-230M/h 150-230M/h 150-230M/h 150-230M/h
Land work efficiency 180-300M/h 180-300M/h 180-300M/h 180-300M/h 180-300M/h 180-300M/h 180-300M/h 180-300M/h 180-300M/h

Disc trencher details picture display

Disc trencher details picture display

Road cutting machine details picture display

Road cutting machine details picture display

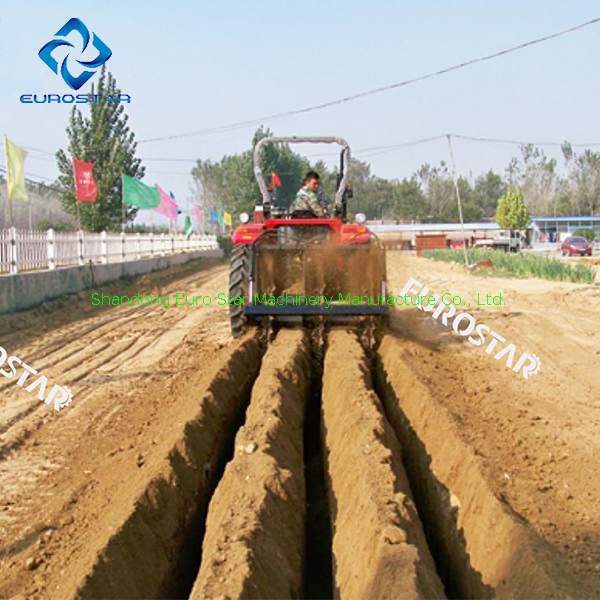

Trencher working effect display

Trencher working effect display

Trencher packing and shipping link display

Trencher packing and shipping link display

Full range of tractor products display

Full range of tractor products display

Full range of tractor products display2


Our company produces other agricultural machinery display

other agricultural machinery display

other agricultural machinery display1

other agricultural machinery display2

other agricultural machinery display4
