Tractor Cable Digging

PKJ series disc trench digger is suitable for hard road surface (hardened ground, asphalt road, highway, frozen soil and construction site), the width and depth of the trench can be customized according to the needs of the work. The ditching side wall is upright and smooth, and the work efficiency is very obvious for the narrow working width of the road (installation of pipes or cables and other operating environment), which is more efficient than the excavator.It can replace manual and excavator operation to meet the needs of different working environments. The cutting blades and disks are manufactured with special materials and technology, and have long service life.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
  • PKJ500 PKJ600 PKJ700 PKJ800 PKJ900 PKJ1000 PKJ1100

  • Eurostar or OEM

  • 8432809000

Disc trencher product description
PKJ series disc trench digger is suitable for hard road surface (hardened ground, asphalt road, highway, frozen soil and construction site), the width and depth of the trench can be customized according to the needs of the work. The ditching side wall is upright and smooth, and the work efficiency is very obvious for the narrow working width of the road (installation of pipes or cables and other operating environment), which is more efficient than the excavator.It can replace manual and excavator operation to meet the needs of different working environments. The cutting blades and disks are manufactured with special materials and technology, and have long service life.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Disc trencher product selling points
The machine is of easy structure, easy-operating, easy maintenance. Note: the equipped tractor shall be with creeper gear and high speed hydraulic joint.
1. Remarkable economical benefit
One ditcher can equal to the work of dozens of persons, several small type excavators. It is the best choice of low investment and high efficiency. After departed, the tractor can do other farm work independently.
2. Good performance
The ditch was vertical and even, a lot better than human labor and excavators.
3. Good quality, long-life span
The blades and chain adopts special materials and good technique to assure long-life span.
4. High efficiency
The ditcher has high work efficiency (3-5 times to the excavator). It is specially suitable for digging deep and narrow ditch (for bury pipe or cable).

Disc trencher product technical parameters

parameterPKJ500PKJ600PKJ700PKJ800PKJ700KPKJ800KPKJ1000PKJ1100PKJ1200
Supporting power50-90HP50-90HP50-90HP50-90HP100-220HP100-220HP100-220HP100-220HP100-220HP
PTO speed(r/min)500-1000500-1000500-1000500-1000500-1000500-1000500-1000500-1000500-1000
Power speedLow speedLow speedLow speedLow speedLow speedLow speedLow speedLow speedLow speed
structure typeDisc typeDisc typeDisc typeDisc typeDisc typeDisc typeDisc typeDisc typeDisc type
knife dish speed(r/min)100~200100~200100~200100~200100~200100~200100~200100~200100~200
Number of Trenching knives30-180 According to the size of the knife plate30-180 According to the size of the knife plate
Trenching  width(mm)250-300200-250150-20080-150300-400250-300200-250150-20080-150
Trenching depth(mm)⩽500⩽600⩽700⩽800⩽700⩽800⩽1000⩽1100⩽1200
Cement road work efficiency50-100M/h50-100M/h50-100M/h50-100M/h50-150M/h50-150M/h50-150M/h50-150M/h50-150M/h
Asphalt work efficiency120-200M/h120-200M/h120-200M/h120-200M/h120-200M/h120-200M/h120-200M/h120-200M/h120-200M/h
Brick pavement work efficiency150-230M/h150-230M/h150-230M/h150-230M/h150-230M/h150-230M/h150-230M/h150-230M/h150-230M/h
Land work efficiency180-300M/h180-300M/h180-300M/h180-300M/h180-300M/h180-300M/h180-300M/h180-300M/h180-300M/h

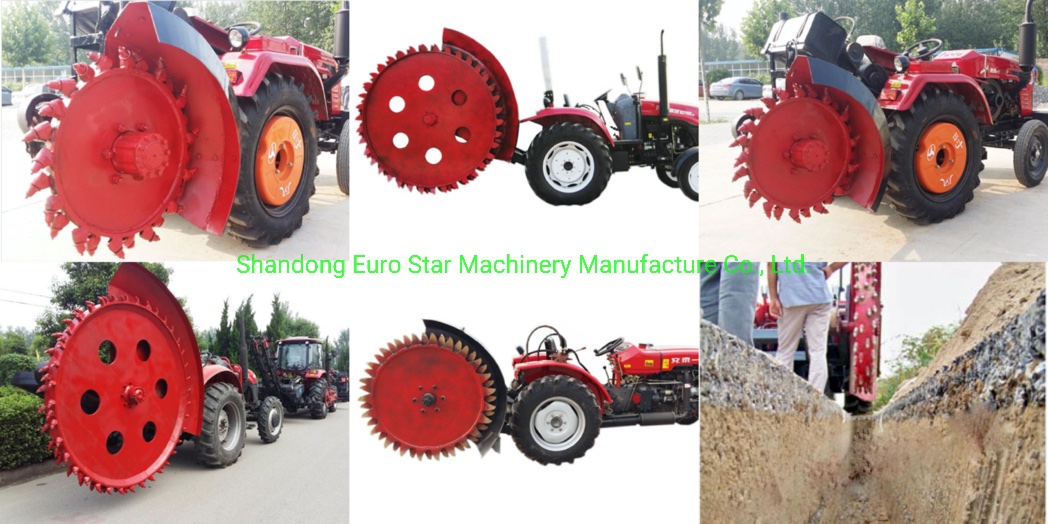

Disc trencher details picture display

Disc trencher details picture display

Chain trencher product technical parameters

Model LKJ200 LKJ250 LKJ300 LKJ350 LKJ400 LKJ500


Supporting power 50-80HP 50-80HP 50-80HP 50-80HP 50-80HP 50-80HP


PTO speed(r/min) 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000


Power speed Low speed Low speed Low speed Low speed Low speed Low speed


structure type Chain ditch, single chain, multi-chain


knife dish speed(r/min) 300-550 300-550 300-550 300-550 300-550 300-550


Number of Trenching knives custom custom custom custom custom custom


Trenching  width(mm) ⩽150-200 ⩽250 ⩽300 ⩽350 ⩽400 ⩽500


Trenching depth(mm) ⩽1500 ⩽1200 ⩽100 ⩽800 ⩽700 ⩽500


work efficiency 120-500M/h 120-500M/h 120-500M/h 120-500M/h 120-500M/h 120-500M/h












Model LKJ200K LKJ250K LKJ300K LKJ350K LKJ400K LKJ500K LKJ600K

Supporting power 90-110HP 90-110HP 90-110HP 90-110HP 90-110HP 90-110HP 90-110HP

PTO speed(r/min) 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000

Power speed Low speed Low speed Low speed Low speed Low speed Low speed Low speed

structure type Chain ditch, single chain, multi-chain Chain ditch, single chain, multi-chain

knife dish speed(r/min) 300-550 300-550 300-550 300-550 300-550 300-550 300-550

Number of Trenching knives custom custom custom custom custom custom custom

Trenching  width(mm) ⩽150-200 ⩽250 ⩽300 ⩽350 ⩽400 ⩽500 ⩽600

Trenching depth(mm) ⩽1800 ⩽1500 ⩽1300 ⩽1200 ⩽1200 ⩽1000 ⩽800

work efficiency 120-500M/h 120-500M/h 120-500M/h 120-500M/h 120-500M/h 120-500M/h 120-500M/h











Model LKJ200KD LKJ250KD LKJ300KD LKJ350KD LKJ400KD LKJ500KD LKJ600KD LKJ800KD LKJ1000KD
Supporting power 120-220HP 120-220HP 120-220HP 120-220HP 120-220HP 120-220HP 120-220HP 120-220HP 120-220HP
PTO speed(r/min) 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000 500-1000
Power speed Low speed Low speed Low speed Low speed Low speed Low speed Low speed Low speed Low speed
structure type Chain ditch, single chain, multi-chain Chain ditch, single chain, multi-chain
knife dish speed(r/min) 300-550 300-550 300-550 300-550 300-550 300-550 300-550 300-550 300-550
Number of Trenching knives custom custom custom custom custom custom custom custom custom
Trenching  width(mm) ⩽150-200 ⩽250 ⩽300 ⩽350 ⩽400 ⩽500 ⩽600 ⩽800 ⩽1000
Trenching depth(mm) ⩽2200 ⩽2100 ⩽2100 ⩽2000 ⩽2000 ⩽2000 ⩽1500 ⩽1000 ⩽1000
work efficiency 120-500M/h 120-500M/h 120-500M/h 120-500M/h 120-500M/h 120-500M/h 120-500M/h 120-500M/h 120-500M/h

Chain trencher details picture display

Chain trencher details picture display

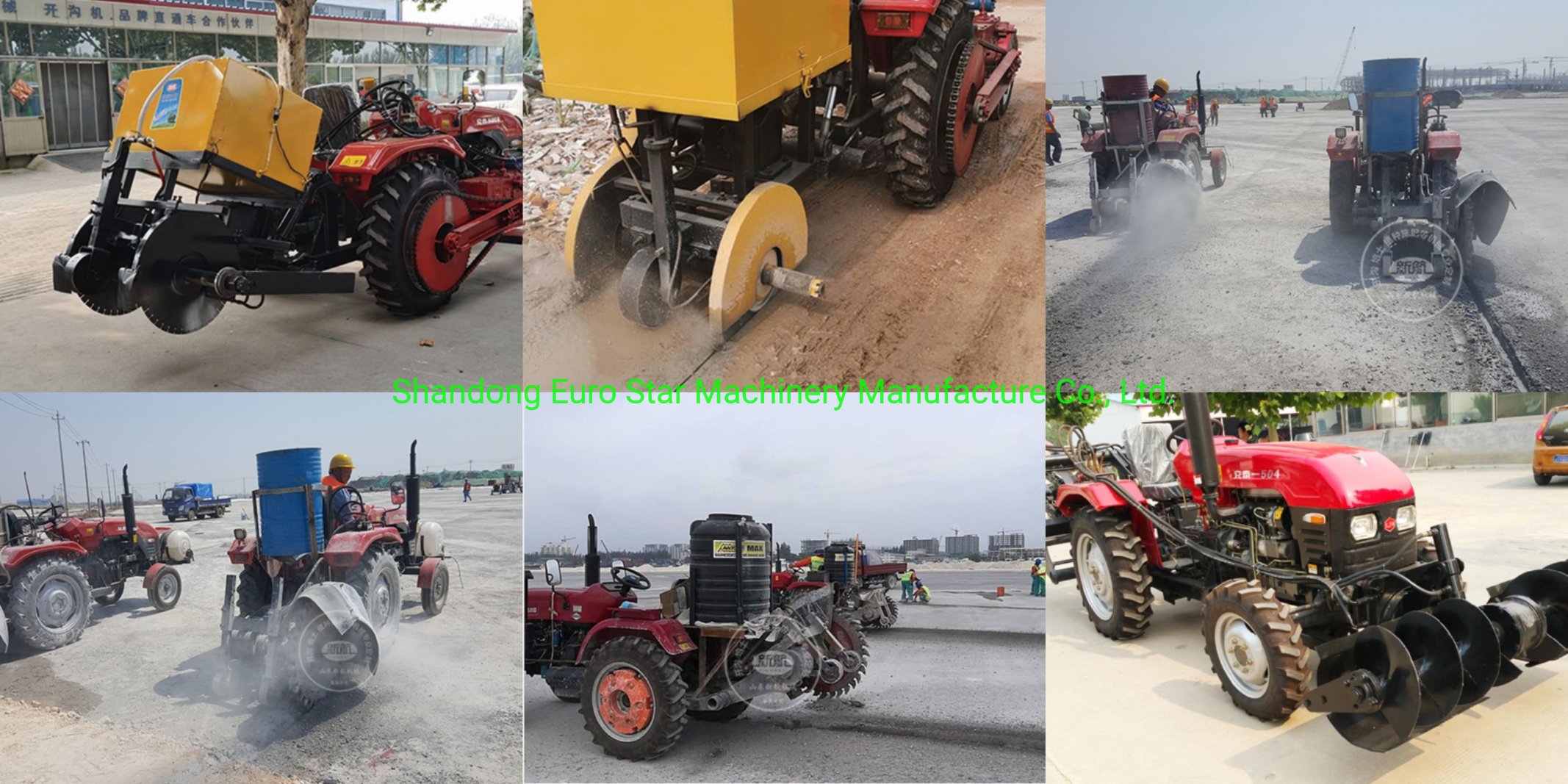

Road cutting machine details picture display

Road cutting machine details picture display

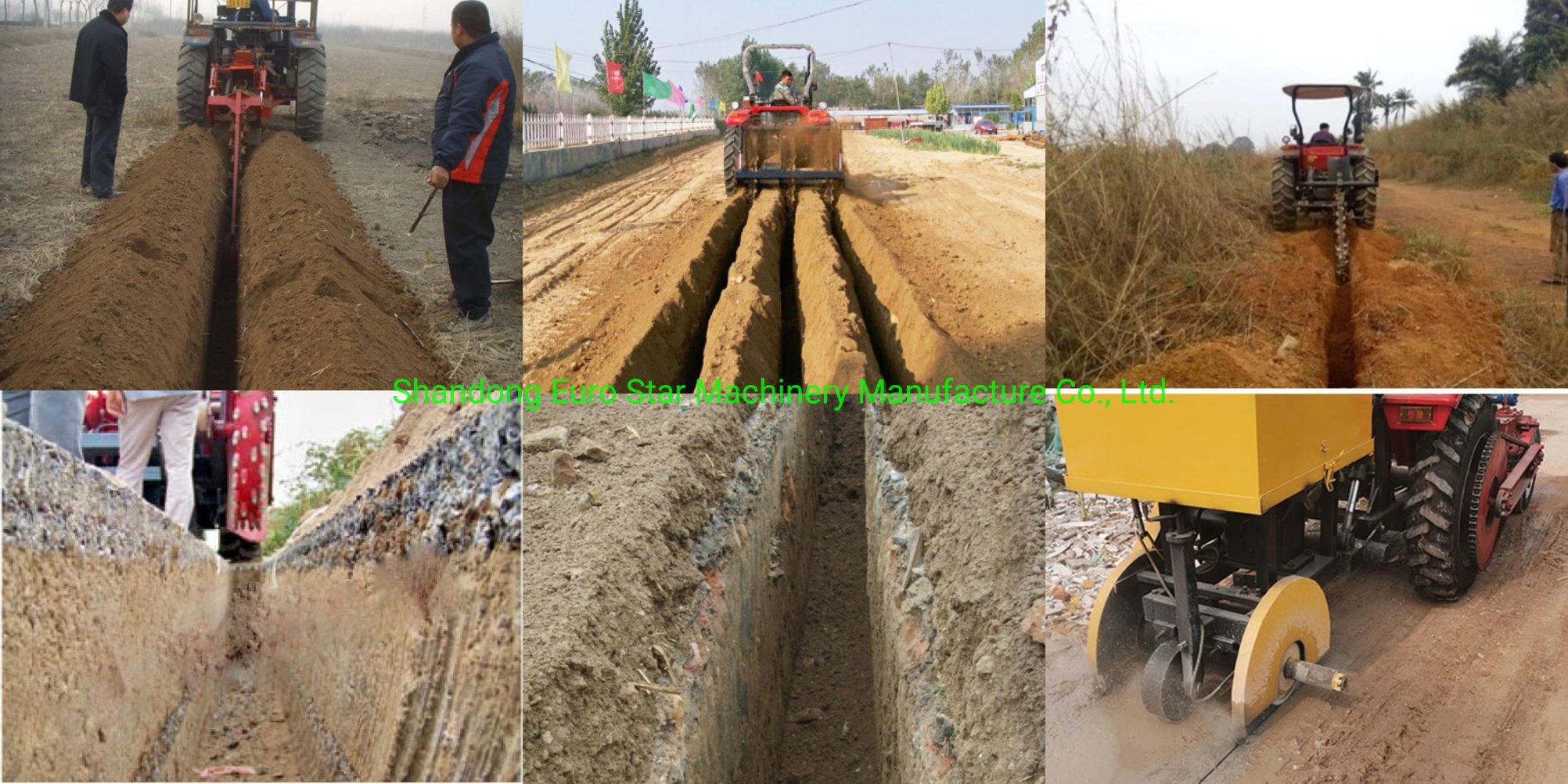

Trencher working effect display

Trencher working effect display

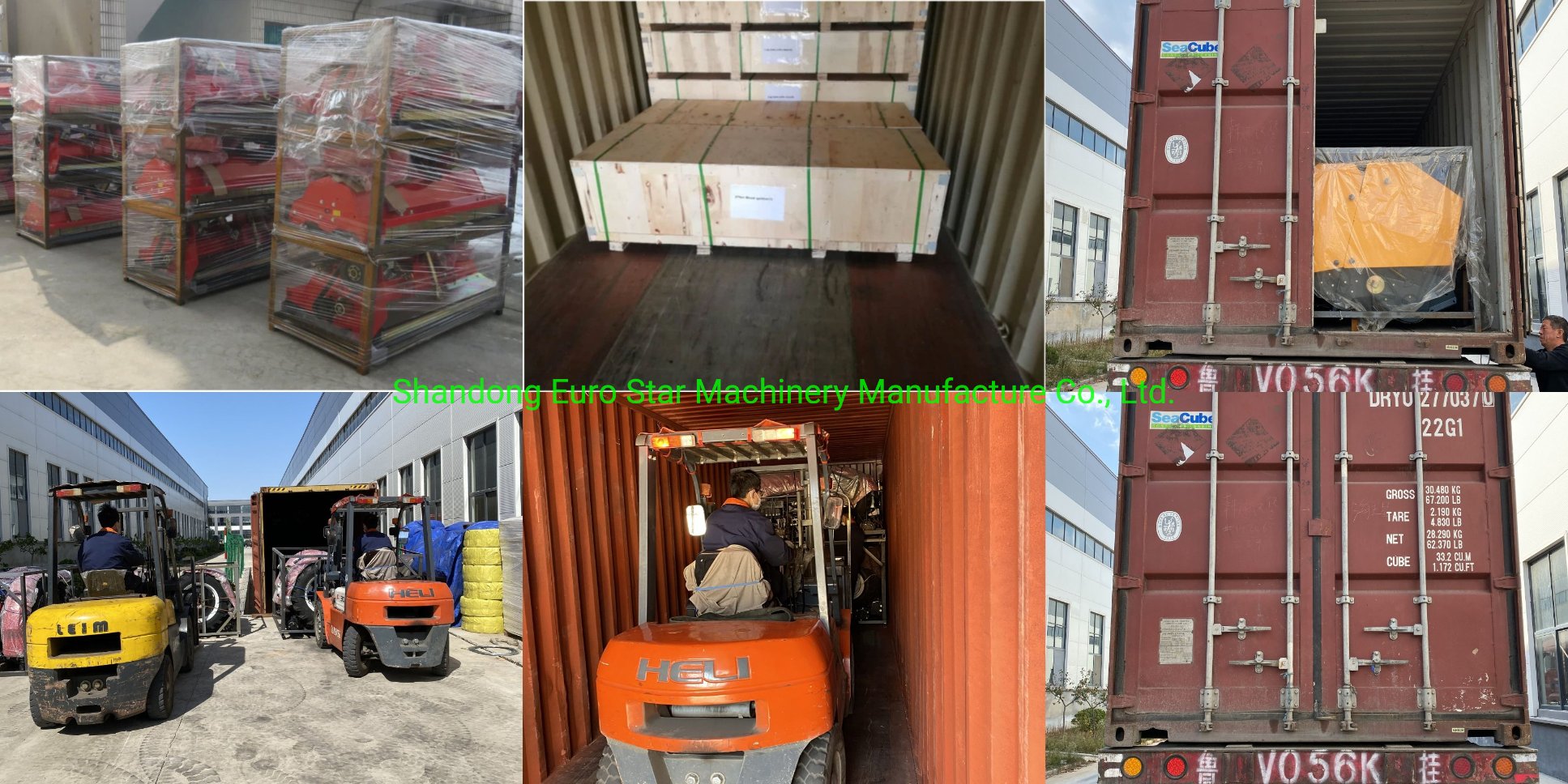

Trencher packing and shipping link display

Trencher packing and shipping link display

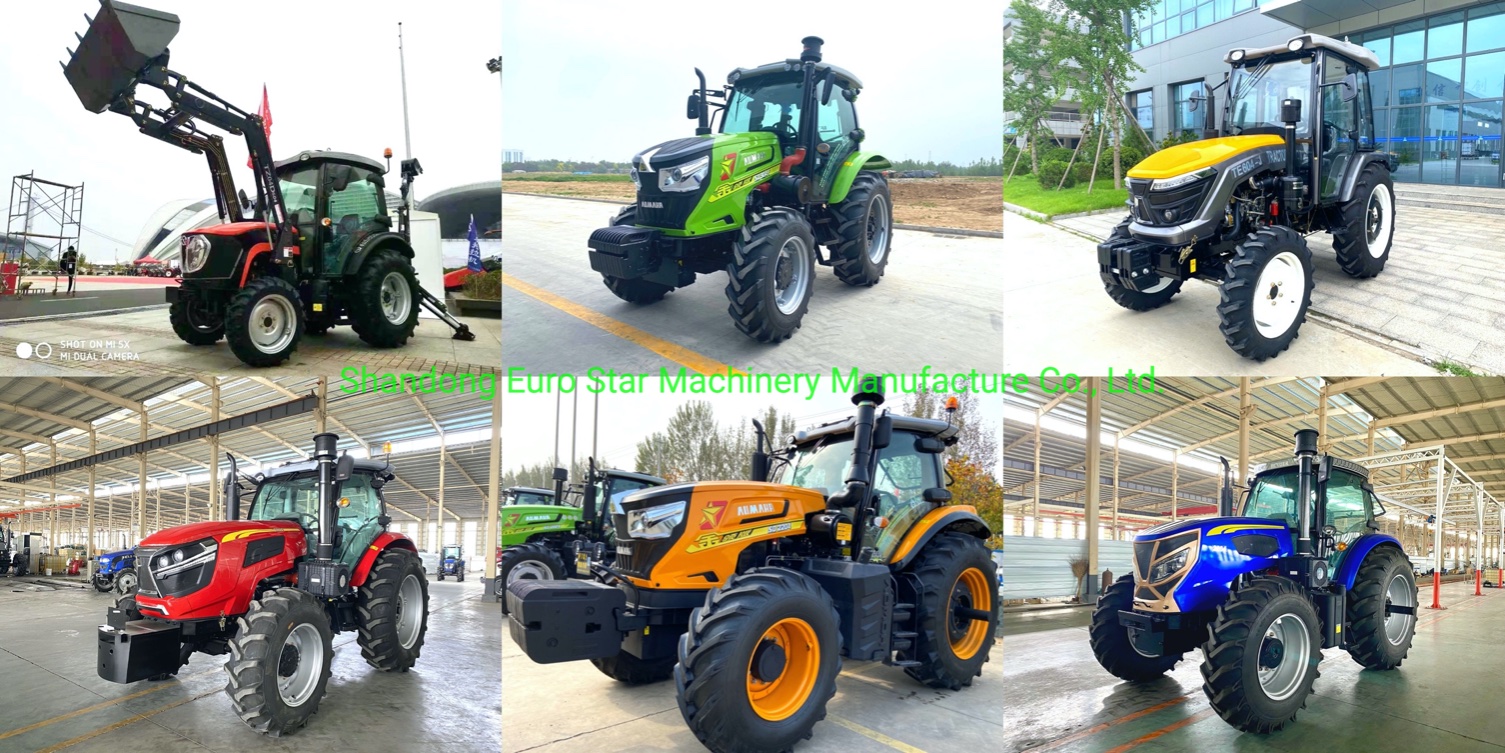

Full range of tractor products display

Full range of tractor products display

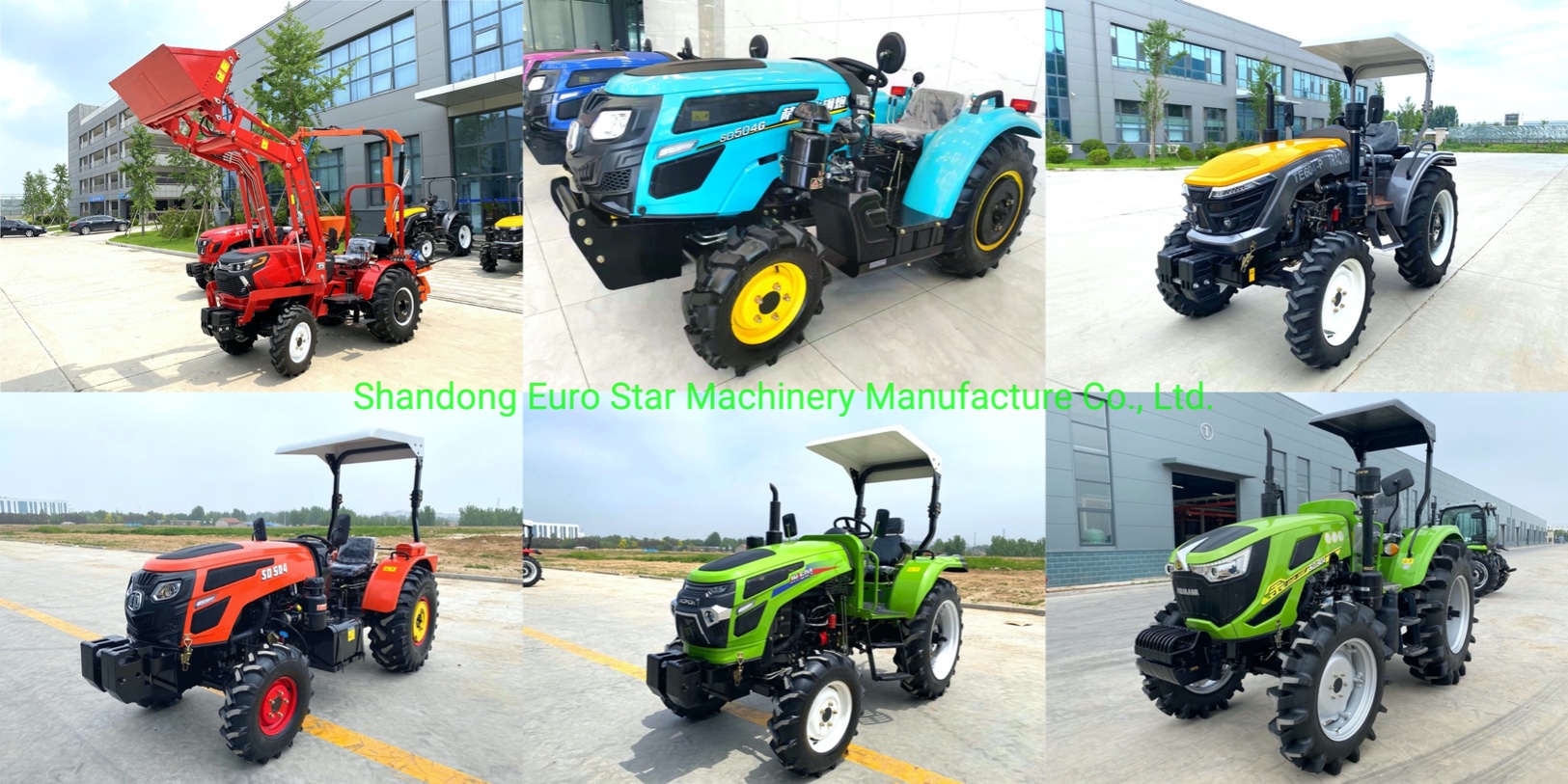

Full range of tractor products display2

Our company produces other agricultural machinery display

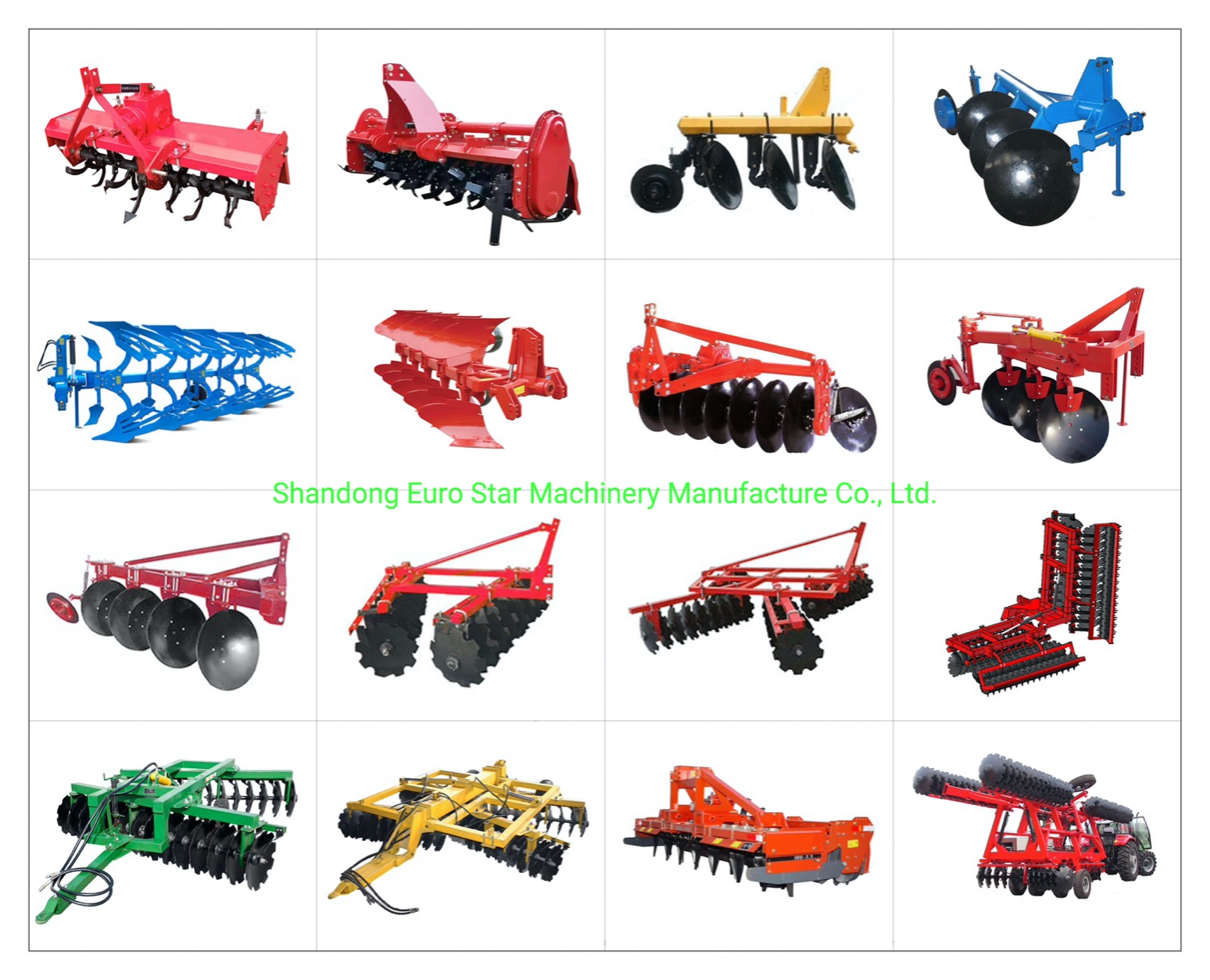

other agricultural machinery display

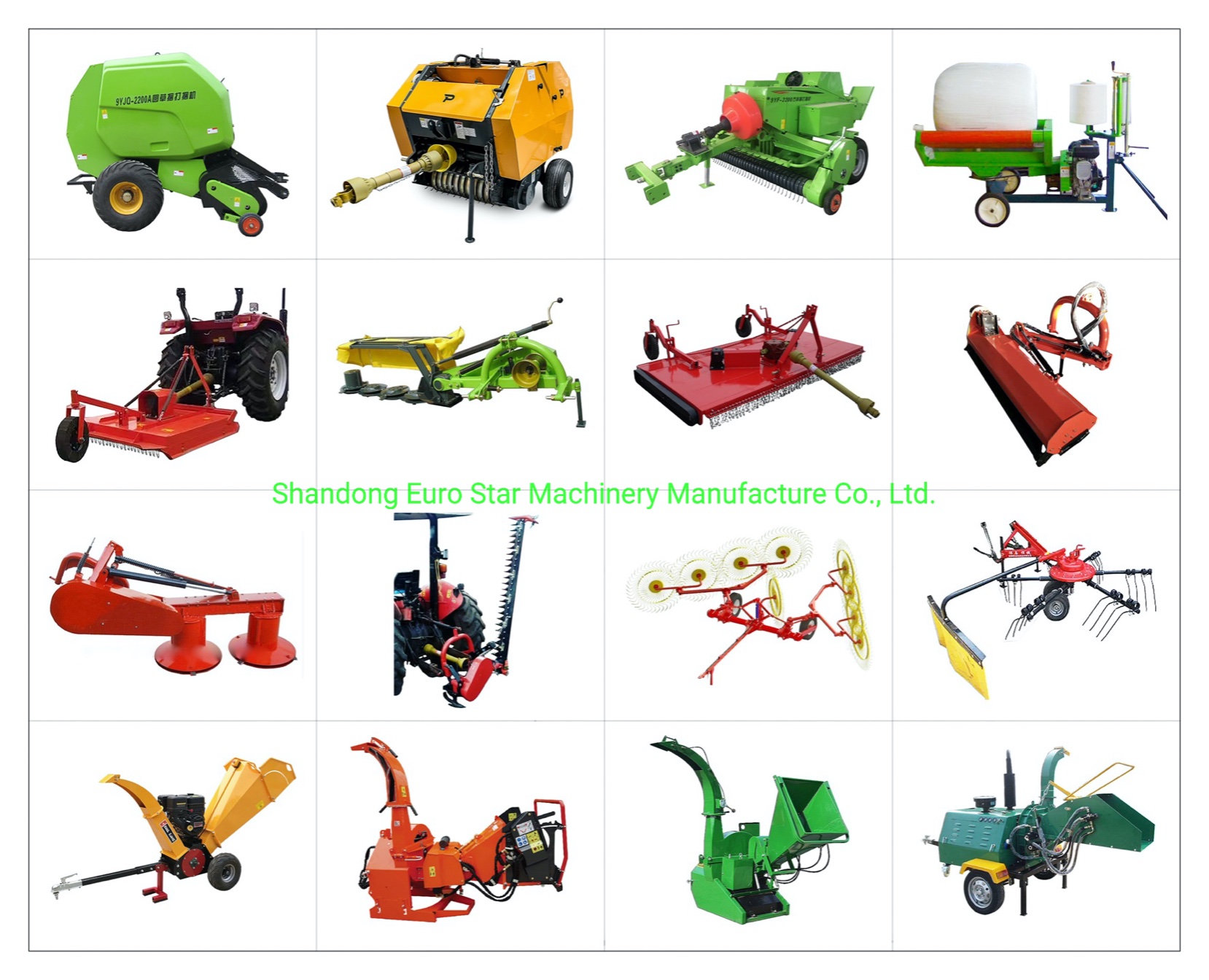

other agricultural machinery display1

other agricultural machinery display2

other agricultural machinery display4


Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

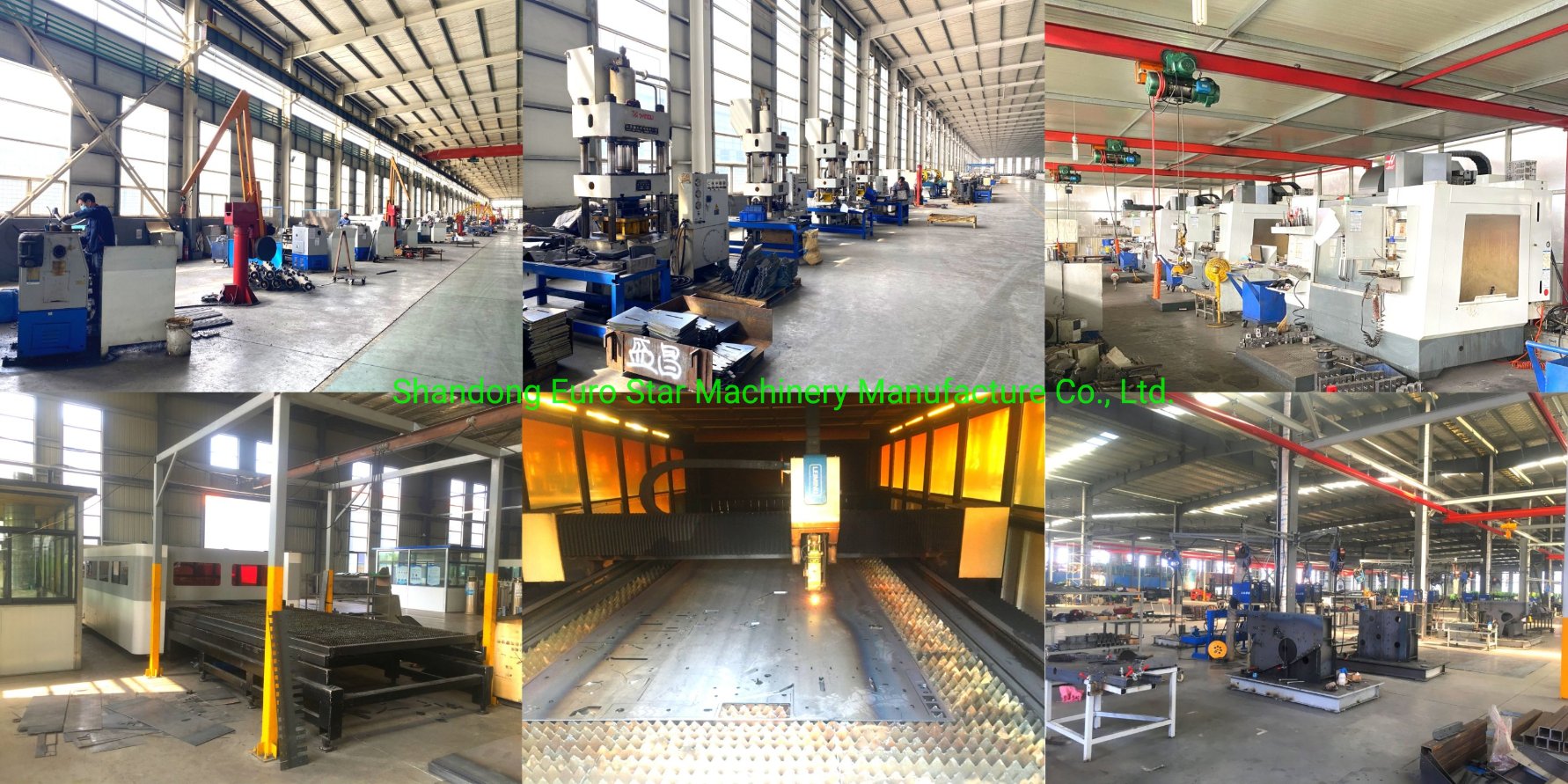

Tractor production workshop display

Tractor production workshop display

Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.

1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;

Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight

4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
