Ditcher Tractor

LKJ series chain ditch digger operates flexibly and is suitable for narrow working width road surface. Ditching width and depth can be adjusted according to work requirements. The trench width is the narrowest 120mm, and the trench depth can reach 1500mm, which can replace manual and excavator operations and meet the needs of different working environments. The cutting chain is manufactured with special materials and technology, and the product has long service life. For narrow work width of the road work efficiency is very obvious (installation of pipes or cables and other operating environment), more efficient than the excavator.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

Availability:

Quantity:



Inquire

Model:
LKJ200 LKJ300 LKJ400 LKJ500 LKJ600 LKJ800 LKJ1000
Brand:
Eurostar or OEM
Code:
8432809000

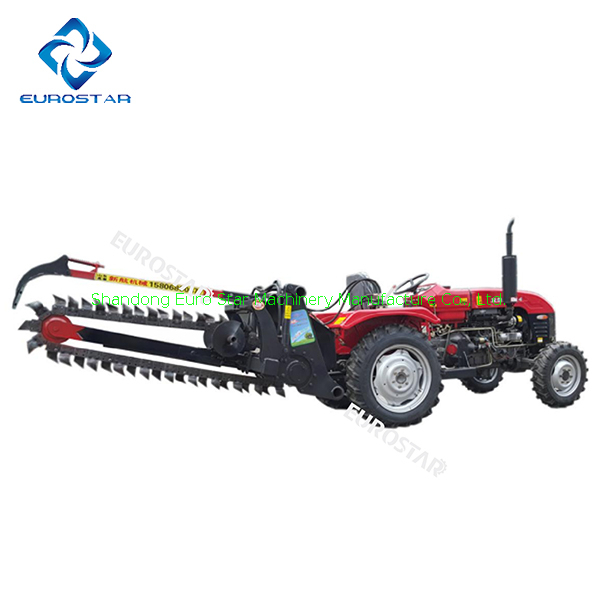

Chain trencher product description
^{LKJ series chain ditch digger operates flexibly and is suitable for narrow working width road surface. Ditching width and depth can be adjusted according to work requirements. The trench width is the narrowest 120mm, and the trench depth can reach 1500mm, which can replace manual and excavator operations and meet the needs of different working environments. The cutting chain is manufactured with special materials and technology, and the product has long service life. For narrow work width of the road work efficiency is very obvious (installation of pipes or cables and other operating environment), more efficient than the excavator.}^{Main sales territory:}^{regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.}
Chain trencher product selling points
^{The machine is of easy structure, easy-operating, easy maintenance. Note: the equipped tractor shall be with creeper gear and high speed hydraulic joint.
1. Remarkable economical benefit
One ditcher can equal to the work of dozens of persons, several small type excavators. It is the best choice of low investment and high efficiency. After departed, the tractor can do other farm work independently.
2. Good performance
The ditch was vertical and even, a lot better than human labor and excavators.
3. Good quality, long-life span
The blades and chain adopts special materials and good technique to assure long-life span.
4. High efficiency
The ditcher has high work efficiency (3-5 times to the excavator). It is specially suitable for digging deep and narrow ditch (for bury pipe or cable).}

Chain trencher product technical parameters

Model	LKJ200	LKJ250	LKJ300	LKJ350	LKJ400	LKJ500
Supporting power	50-80HP	50-80HP	50-80HP	50-80HP	50-80HP	50-80HP
PTO speed(r/min)	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000
Power speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed
structure type	Chain ditch, single chain, multi-chain
knife dish speed(r/min)	300-550	300-550	300-550	300-550	300-550	300-550
Number of Trenching knives	custom	custom	custom	custom	custom	custom
Trenching width(mm)	⩽150-200	⩽250	⩽300	⩽350	⩽400	⩽500
Trenching depth(mm)	⩽1500	⩽1200	⩽100	⩽800	⩽700	⩽500
work efficiency	120-500M/h	120-500M/h	120-500M/h	120-500M/h	120-500M/h	120-500M/h

Model	LKJ200K	LKJ250K	LKJ300K	LKJ350K	LKJ400K	LKJ500K	LKJ600K
Supporting power	90-110HP	90-110HP	90-110HP	90-110HP	90-110HP	90-110HP	90-110HP
PTO speed(r/min)	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000
Power speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed
structure type	Chain ditch, single chain, multi-chain			Chain ditch, single chain, multi-chain
knife dish speed(r/min)	300-550	300-550	300-550	300-550	300-550	300-550	300-550
Number of Trenching knives	custom	custom	custom	custom	custom	custom	custom
Trenching width(mm)	⩽150-200	⩽250	⩽300	⩽350	⩽400	⩽500	⩽600
Trenching depth(mm)	⩽1800	⩽1500	⩽1300	⩽1200	⩽1200	⩽1000	⩽800
work efficiency	120-500M/h	120-500M/h	120-500M/h	120-500M/h	120-500M/h	120-500M/h	120-500M/h

Model	LKJ200KD	LKJ250KD	LKJ300KD	LKJ350KD	LKJ400KD	LKJ500KD	LKJ600KD	LKJ800KD	LKJ1000KD
Supporting power	120-220HP	120-220HP	120-220HP	120-220HP	120-220HP	120-220HP	120-220HP	120-220HP	120-220HP
PTO speed(r/min)	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000
Power speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed
structure type	Chain ditch, single chain, multi-chain					Chain ditch, single chain, multi-chain
knife dish speed(r/min)	300-550	300-550	300-550	300-550	300-550	300-550	300-550	300-550	300-550
Number of Trenching knives	custom	custom	custom	custom	custom	custom	custom	custom	custom
Trenching width(mm)	⩽150-200	⩽250	⩽300	⩽350	⩽400	⩽500	⩽600	⩽800	⩽1000
Trenching depth(mm)	⩽2200	⩽2100	⩽2100	⩽2000	⩽2000	⩽2000	⩽1500	⩽1000	⩽1000
work efficiency	120-500M/h	120-500M/h	120-500M/h	120-500M/h	120-500M/h	120-500M/h	120-500M/h	120-500M/h	120-500M/h

Factory introduction
^{Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.}

Tractor production workshop display

^Service^{One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.}^{1) Market Service}^{Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified}^{2) Spare Parts Service}^{Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.}^{3) Training Service}^{Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;}

^{Remote online network training;}^{4) Technical Support}^{The whole process Technology support covers on sale and after-sale service}^.^{Terms of the deal:}^{1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight}

^{4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business}^{FAQ:
Why choose us?}^{1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.}^{How Shipment?}^{We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.}^{Contact us}^{Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com}

parameter	PKJ500	PKJ600	PKJ700	PKJ800	PKJ700K	PKJ800K	PKJ1000	PKJ1100	PKJ1200
Supporting power	50-90HP	50-90HP	50-90HP	50-90HP	100-220HP	100-220HP	100-220HP	100-220HP	100-220HP
PTO speed(r/min)	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000
Power speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed
structure type	Disc type	Disc type	Disc type	Disc type	Disc type	Disc type	Disc type	Disc type	Disc type
knife dish speed(r/min)	100~200	100~200	100~200	100~200	100~200	100~200	100~200	100~200	100~200
Number of Trenching knives	30-180 According to the size of the knife plate				30-180 According to the size of the knife plate
Trenching width(mm)	250-300	200-250	150-200	80-150	300-400	250-300	200-250	150-200	80-150
Trenching depth(mm)	⩽500	⩽600	⩽700	⩽800	⩽700	⩽800	⩽1000	⩽1100	⩽1200
Cement road work efficiency	50-100M/h	50-100M/h	50-100M/h	50-100M/h	50-150M/h	50-150M/h	50-150M/h	50-150M/h	50-150M/h
Asphalt work efficiency	120-200M/h	120-200M/h	120-200M/h	120-200M/h	120-200M/h	120-200M/h	120-200M/h	120-200M/h	120-200M/h
Brick pavement work efficiency	150-230M/h	150-230M/h	150-230M/h	150-230M/h	150-230M/h	150-230M/h	150-230M/h	150-230M/h	150-230M/h
Land work efficiency	180-300M/h	180-300M/h	180-300M/h	180-300M/h	180-300M/h	180-300M/h	180-300M/h	180-300M/h	180-300M/h

parameter	PKJ500	PKJ600	PKJ700	PKJ800	PKJ700K	PKJ800K	PKJ1000	PKJ1100	PKJ1200
Supporting power	50-90HP	50-90HP	50-90HP	50-90HP	100-220HP	100-220HP	100-220HP	100-220HP	100-220HP
PTO speed(r/min)	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000	500-1000
Power speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed	Low speed
structure type	Disc type	Disc type	Disc type	Disc type	Disc type	Disc type	Disc type	Disc type	Disc type
knife dish speed(r/min)	100~200	100~200	100~200	100~200	100~200	100~200	100~200	100~200	100~200
Number of Trenching knives	30-180 According to the size of the knife plate				30-180 According to the size of the knife plate
Trenching width(mm)	250-300	200-250	150-200	80-150	300-400	250-300	200-250	150-200	80-150
Trenching depth(mm)	⩽500	⩽600	⩽700	⩽800	⩽700	⩽800	⩽1000	⩽1100	⩽1200
Cement road work efficiency	50-100M/h	50-100M/h	50-100M/h	50-100M/h	50-150M/h	50-150M/h	50-150M/h	50-150M/h	50-150M/h
Asphalt work efficiency	120-200M/h	120-200M/h	120-200M/h	120-200M/h	120-200M/h	120-200M/h	120-200M/h	120-200M/h	120-200M/h
Brick pavement work efficiency	150-230M/h	150-230M/h	150-230M/h	150-230M/h	150-230M/h	150-230M/h	150-230M/h	150-230M/h	150-230M/h
Land work efficiency	180-300M/h	180-300M/h	180-300M/h	180-300M/h	180-300M/h	180-300M/h	180-300M/h	180-300M/h	180-300M/h
