Mini Backhoe Loader

LW series Backhoe
LW series Backhoe It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads,planting and relocating trees,Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:

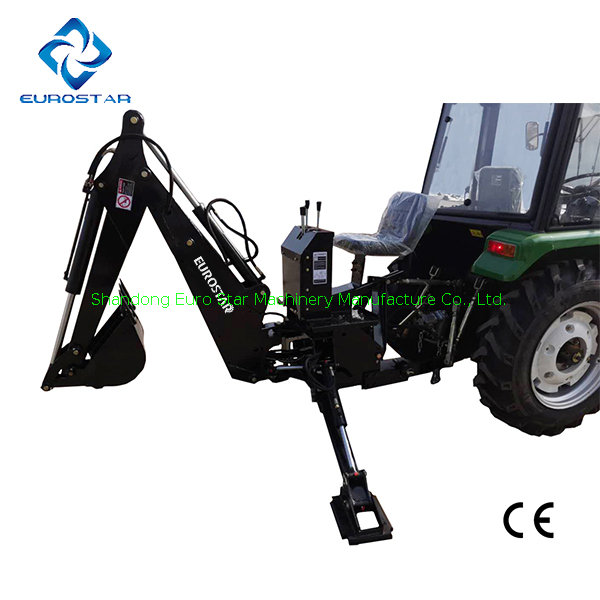

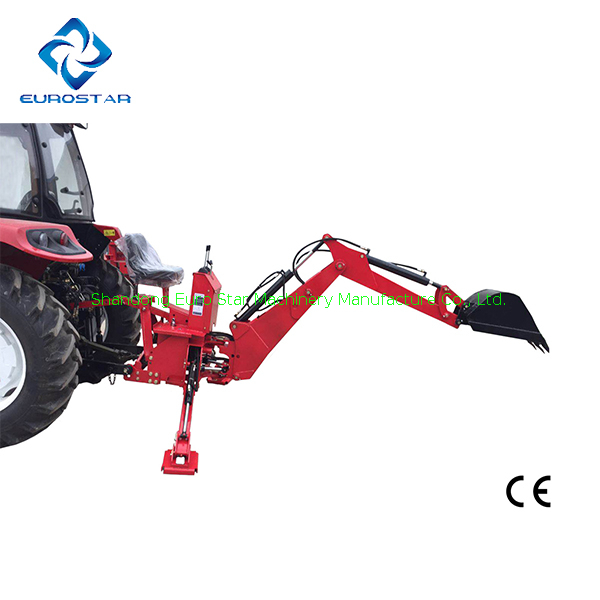

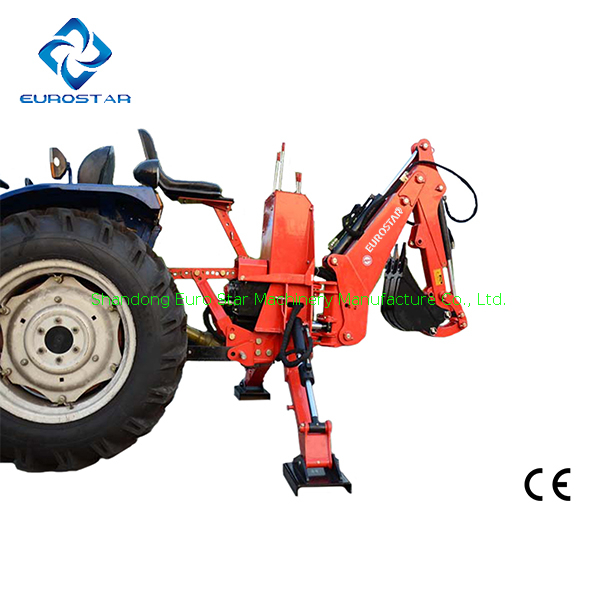

Mini Backhoe Loader
Mini Backhoe Loader
Mini Backhoe Loader
Mini Backhoe Loader
Mini Backhoe Loader
Mini Backhoe Loader
  • LW-4 LW-6 LW-7 LW-8 LW-9 LW-10 LW-12

  • EUROSTAR OEM

  • 8431410000

LW series Backhoe Product Description

LW series Backhoe It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads,planting and relocating trees,Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

LW series Backhoe Product Selling Points

1. match tractors from 20hp to 150hp

2. loading capacity 0.03m3 to 0.0666m3

3. Bucket sizes 10"-22"

4. 3 Point Hitch Backhoe Specification & Features & Options:

5. 3 Point fits most tractors with a Category 1 Hitch.

6. Optionable Bucket sizes 10"-22" are all interchangeable.

7. Options Reservoir Tank with Filter.

8. PTO Pump and gear box.

9. Use hydraulic transmission,Compact structure, Flexibility and convenient operation

10. Quick mounting and dismounting,Share hydraulic oil with tractor

11. Highly standardized hydraulic elements

12. Meets multi-working demands with different sizes buckets

LW series Backhoe product technical parameters

ModelLW-4 LW-6 LW-7 LW-8 LW-9
 SpecificationInchMetric Inch Metric Inch Metric Inch Metric Inch Metric
 Tractor HP20-30hp 30-40HP 30-45HP45-60HP 60-80HP
 3-point Linkage Cat-1 Cat-1Cat-1 CAT-1&2CAT-1&2
 Structure Weight771lb350kg 1060lb 480kg 1100lb  500kg1280lb 580kg 1370lb 620kg
 A Digging Depth(two foot flat bottom)4'1200mm 5.74' 1750mm 6.4' 1950mm7.38' 2250mm8.36' 2550mm
 B Reach from center line of Swing pivot7.55'2300mm 8.53' 2600mm 9.51' 2900mm10.5' 3200mm 11.8'3600mm
 C Loading Height(bucket at 60°)

 5.64' 1720mm 6.03' 1840mm  3.66' 1930mm 7.25' 2210mm
 D Transport Height(maximum)4.1'1250mm 6.03' 1840mm  6.75' 2060mm6.98'2130mm8.13' 2480mm
 E Extend Height4'1200mm 9.41' 2870mm 10.2' 3110mm10.62'3240mm 11.77'3590mm
 F Loading Reach(bucket at 60°)

 3.11' 950mm 3.87' 1180mm 3.74'1140mm  4.46' 1360mm
 G Transport Overhang

 3.54' 1080mm 3.64' 1110mm4'1220mm4.16'1270mm
 H Undercut

 2.4' 730mm 2.72' 830mm1.54'470mm1.7'520mm
 I  Bucket Rotation

 180° 180° 180° 180°
 J Stabilizer Spread(up position)

 4.3' 1310mm  4.3' 1310mm4.3' 1310mm  4.3' 1310mm
 K Stabilizer Spread(down position)6.23'1900mm 4.3' 2100mm 6.9' 2100mm7.67'2340m 7.67'2340mm
 L Swing Arc 180° 180° 180° 180° 180°
MBucket width250mm300mm400mm450mm500mm
NBucket cubage0.0280.0360.0450.0520.063
