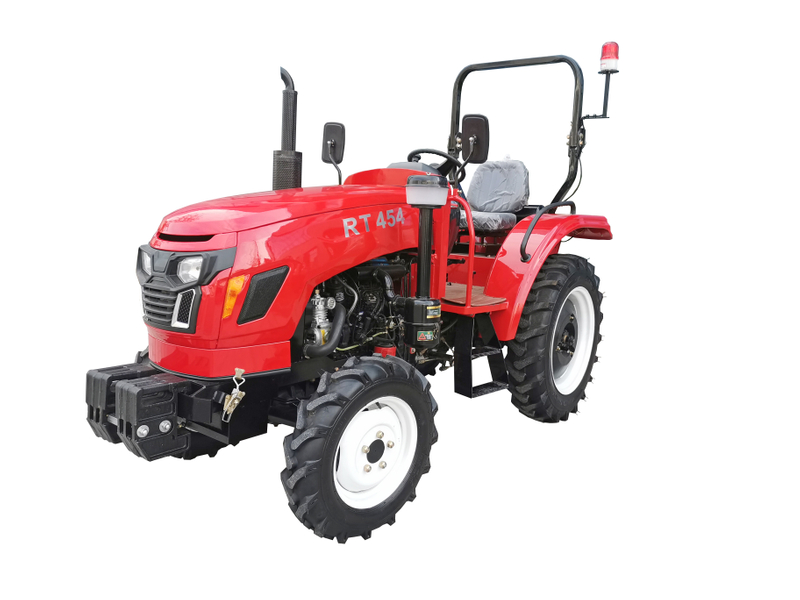

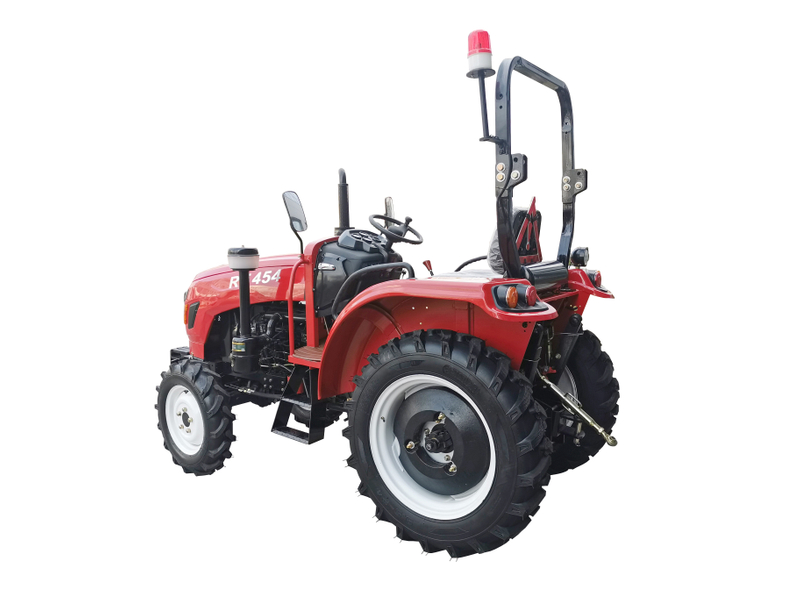

TY-P 25-50HP Flat floor Tractor

TY-P Series small tractor adopts Flat floor, has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.

Availability:

Quantity:



Inquire

Model:
TY254P TY304P TY354P TY404P TY454P TY500P TY504P
Brand:
EUROSTAR
Code:
8701911000

TY-P Series small Flat floor Tractor Product Description

^{TY-P Series small tractor adopts Flat floor}^{, has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations}
_{Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.}

TY-P Series small Flat floor Tractor Product Selling Points

^{1.TY-P series of multifunctional Flat floor tractors, its power cover 25-50 horsepower. Optional Rotary Tiller, Lawn Mower, Baler, Sprayer, etc farm implements.
2. Standard configuration: 8F+2R gears, optional: 8F+8R/16F+4R gears. Synchronizer shuttle-type gear is also an optional configuration which is energy saving, reliable and comfortable.}
^{3.Dry brake is the standard configuration, and oil bath type wet brake is optional which has great breaking force and long service life.}

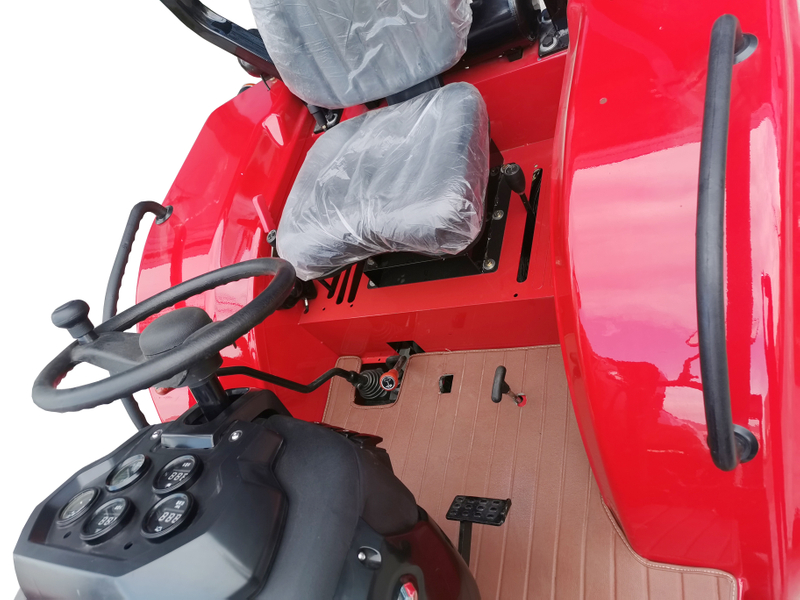

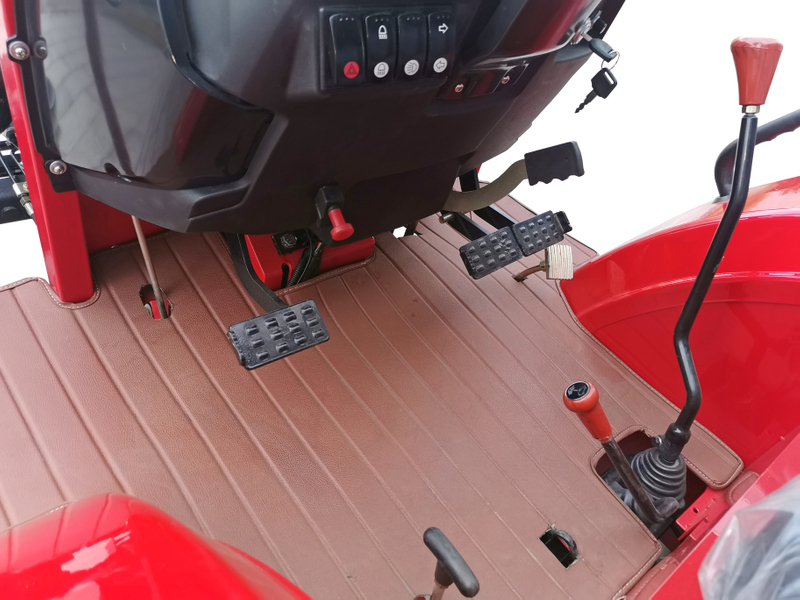

^{4.Flat floor structure and side-placed operating lever satisfy the man-machine engineering.}
^{5. Farmland tires, grassland tires and engineering tires are optional to satisfy various operations.
6.Four driving standard configuration mid steering cylinder front drive axle has the maximum gap from the ground of 335mm.}
^{7.Suspension seat is the standard configuration which can effectively reduce 40% of vibration.}

TY-P series smallFlat floor tractor product technical parameters

Model	TY254-P	TY304-P	TY354-P	TY404-P	TY454-P	TY504-P
engine power (HP)	25	30	35	40	45	50
Type	4WD；optional: 2WD
engine rate (r/min)	2350			2400
outline dimension (mm)	310013501670			310013501670
long (Front weight to suspension point)	3100mm			3100mm
wide(Drive shaft side)	1350mm			1350mm
High (Silencer top)	1670mm			1670mm
High (Steering wheel top)	1450mm			1450mm
wheel base (mm)	1820			1820
front wheel tread (mm)	1225–1425			1225–1425
rear wheel tread (mm)	1160–1300			1160–1300
Minimum ground gap (mm)	290-370			290-370
architecture weight (kg)	1200-1350			1200-1350
front wheel tyre(front/rear)	F600-16/R9.5-24，optional: F650-16/R11.2-24；F750-16/R11.2-28；F750-20/R13.6-28；
Gearbox	8F+2R，optional: 8F+8R/16F+4R gears
clutch	single piece,dry-type,single-action ,Constant combination
brake system	Mechanical shoe type
Central drive type (front/rear)	Spiral bevel gear pair/spiral bevel gear pair
Differential type (front/rear)	Two-planet gear closed/two-planet gear closed
differential lock	Tooth type
Final transmission type (front/rear)	Bevel gear/built-in single-stage straight cylindrical gear
Shunting box type	spur gear/Meshing sleeve shift
Steering type	Full hydraulic steering
Hydraulic system type	Semi-split type
（mpa)System relief valve adjustment pressure	（mpa)System relief valv22.5±0.5e adjustment pressure
traction	U type hook
PTO shaft type	Postposition non-independent type/ 35 Rectangular Splines/ 6 tooth
PTO Standard speed (r/min)	540/720
hydraulic out flow	33.6/min
hydraulic lift Systemmaximumlifting force (kn)	6.64
hydraulic lift system linkage hitch	I class of rear three point suspension
Optional configuration and price	2WD；Air brake；Safety rack awning；Detachable cab type；Flat bottom；Side joystick；Side fuel tank；double acting clutch；8F+8R；strong pressure lifter；Two way hydraulic output；Three way hydraulic output； F650-16/R11.2-24；F750-16/R11.2-28；F750-20/R13.6-28；SKD iron frame packaging.
