TY-C 25-50HP side fuel tank Tractor

TY-C Series small tractor adopts side fuel tank, the whole machine structure is more reasonable. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.
Availability:
Quantity:

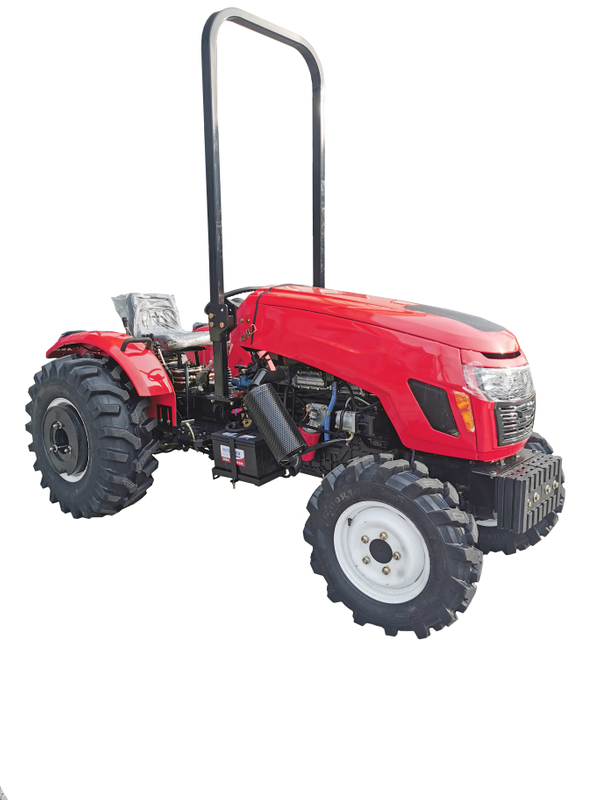

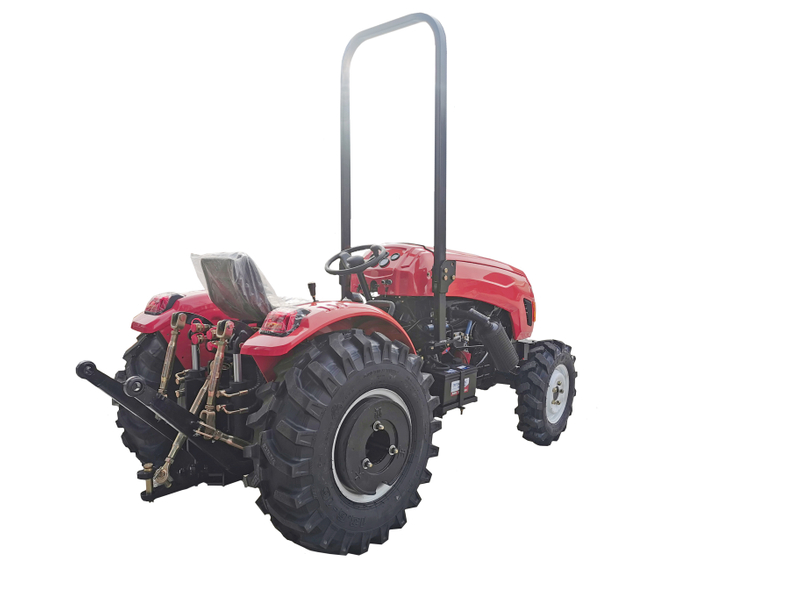

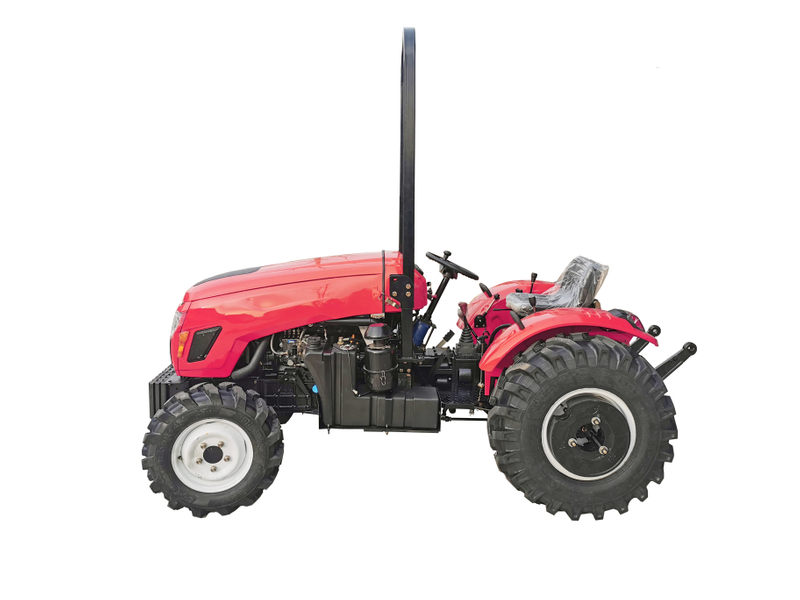

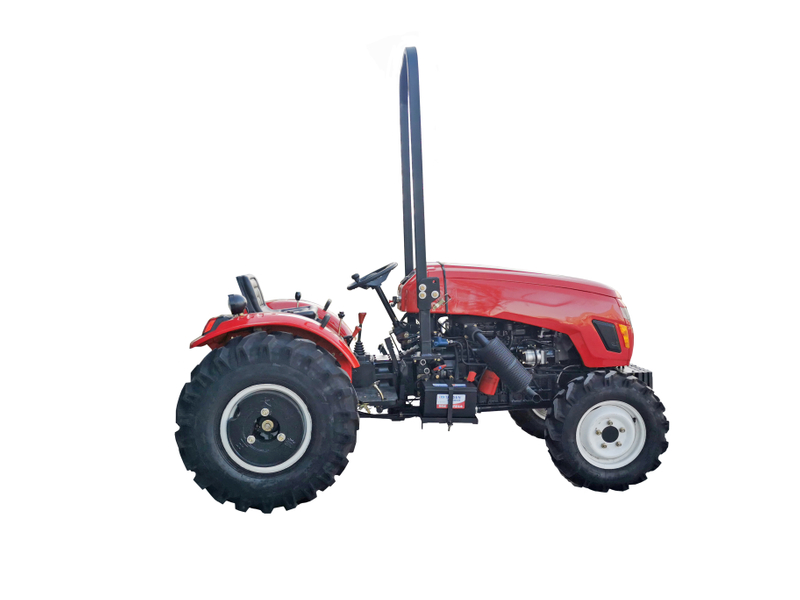

TY-C 25-50HP side fuel tank Tractor
TY-C 25-50HP side fuel tank Tractor
TY-C 25-50HP side fuel tank Tractor
TY-C 25-50HP side fuel tank Tractor
TY-C 25-50HP side fuel tank Tractor
TY-C 25-50HP side fuel tank Tractor
  • TY254C TY304C TY354C TY404C TY454C TY500C TY504C

  • EUROSTAR

  • 8701911000

TY-C series small  side fuel tank garden tractor

TY-C Series small  side fuel tank Tractor Product Description

TY-C Series small tractor adopts side fuel tank, the whole machine structure is more reasonable. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations, small farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: light farmland cultivating machines and tools like front loader, backhoe, trailer, hay mower, rake, spraying machine and rotary cultivator.


 TY-C Series small  side fuel tank Tractor Product Selling Points

1.TY-C series of multifunctional tractor adopts side fuel tank, its power cover 25-50 horsepower. Optional Rotary Tiller, Lawn Mower, Baler, Sprayer, etc farm implements.
 2. Standard configuration: 8F+2R gears, optional: 8F+8R/16F+4R gears. Synchronizer shuttle-type gear is also an optional configuration which is energy saving, reliable and comfortable.

3.Dry brake is the standard configuration, and oil bath type wet brake is optional which has great breaking force and long service life.
 4.Flat floor structure and side-placed operating lever satisfy the man-machine engineering.
5. Farmland tires, grassland tires and engineering tires are optional to satisfy various operations.
6.Four driving standard configuration mid steering cylinder front drive axle has the maximum gap from the ground of 335mm.

7.Suspension seat is the standard configuration which can effectively reduce 40% of vibration.

TY-C series small side fuel tank tractor product technical parameters

Model

TY254-C

TY304-C

TY354-C

TY404-C

TY454-C

TY504-C

engine power (HP)

25

30

35

40

45

50

Type

4WDoptional: 2WD

engine rate (r/min)

2350

2400

outline dimension (mm)

3100*1350*1670

3100*1350*1670

long                                         (Front weight to suspension point)

3100mm

3100mm

wide(Drive shaft side)

1350mm

1350mm

High (Silencer top)

1670mm

1670mm

High (Steering wheel top)

1450mm

1450mm

wheel base (mm)

1820

1820

front wheel tread (mm)

1225–1425

1225–1425

rear wheel tread (mm)

1160–1300

1160–1300

Minimum ground gap (mm)

290-370

290-370

architecture weight (kg)

1200-1350

1200-1350

front wheel tyre(front/rear)

F600-16/R9.5-24optional: F650-16/R11.2-24F750-16/R11.2-28F750-20/R13.6-28

Gearbox

8F+2Roptional: 8F+8R/16F+4R gears

clutch

single piece,dry-type,single-action ,Constant combination

brake system

Mechanical shoe type

Central drive type (front/rear)

Spiral bevel gear pair/spiral bevel gear pair

Differential type (front/rear)

Two-planet gear closed/two-planet gear closed

differential lock

Tooth type

Final transmission type (front/rear)

Bevel gear/built-in single-stage straight cylindrical gear

Shunting box type

spur gear/Meshing sleeve shift

Steering type

Full hydraulic steering

 Hydraulic system type

Semi-split type

mpa)System relief valve adjustment pressure

mpa)System relief valv22.5±0.5e adjustment pressure

traction

U type hook

PTO shaft type

Postposition non-independent type/ 35 Rectangular Splines/ 6 tooth

PTO Standard speed (r/min)

540/720

hydraulic out flow

33.6/min

hydraulic lift Systemmaximumlifting force (kn)

6.64

hydraulic lift system linkage hitch

I class of rear three point suspension

Optional configuration and price

2WDAir brakeSafety rack awningDetachable cab typeFlat bottomSide joystickSide fuel tankdouble acting clutch8F+8Rstrong pressure lifterTwo way hydraulic outputThree way hydraulic output F650-16/R11.2-24F750-16/R11.2-28F750-20/R13.6-28SKD iron frame packaging.



TY-C series small side fuel tank tractor on display

7

TY-P series small Flat floortractor details show

4

TY series small tractor on display
5

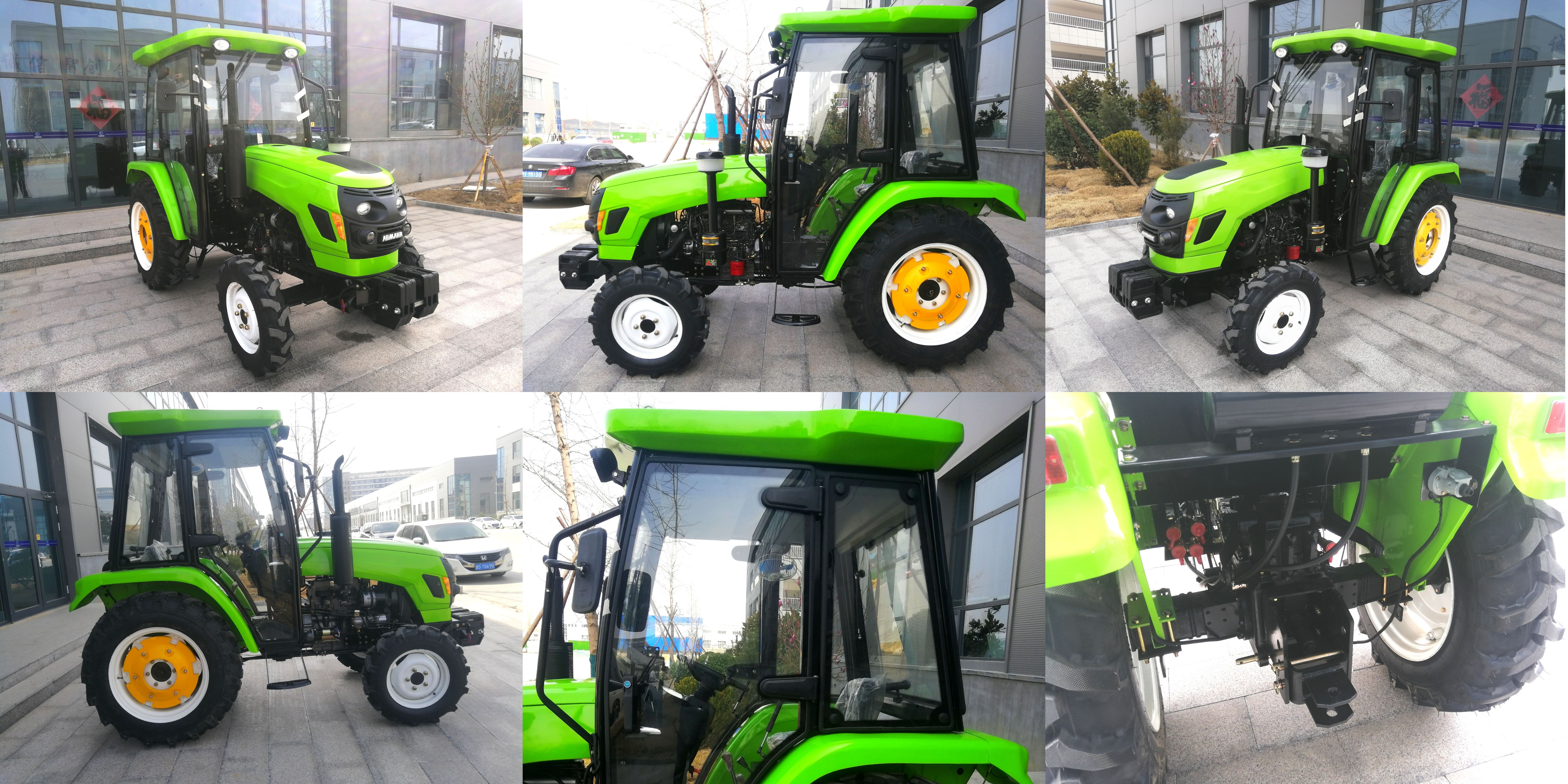

TY-J series small Cab type tractor details show
1TY series smalltractor SKD packaging and CBU packaging display
8TY Series smallTractor Container Display
9

Factory introduction

Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional agricultural machinery manufacturer integrating R&D, design, manufacturing, sales and service. The company products cover road transport machinery, harvest machinery, equipment for plant protection, agricultural implements and agricultural unmanned machinery.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has worked out comprehensive quality manual and quality control procedure files at all levels based on ISO9001:2000, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 50 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end
machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
