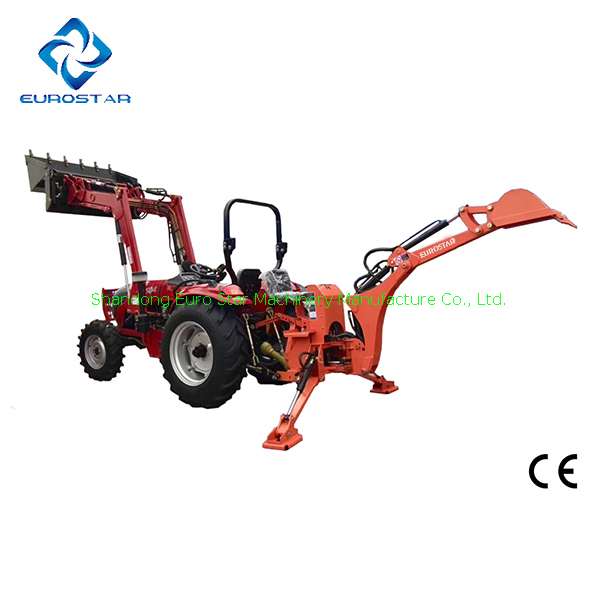

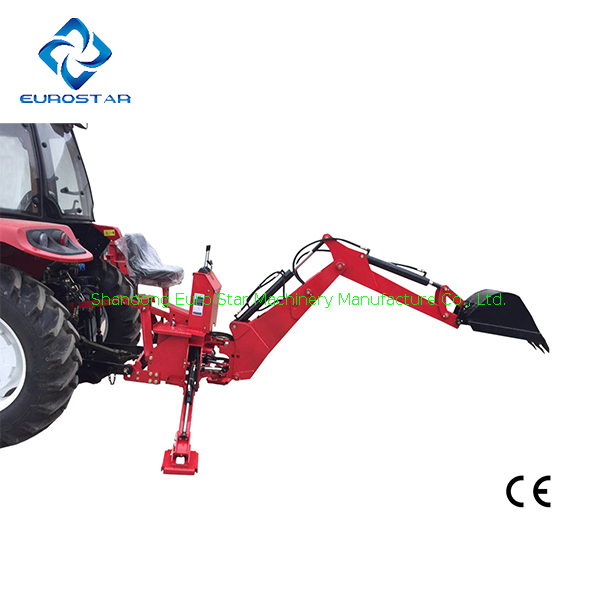

LW series Backhoe with 20-80HP tractor

LW series Backhoe
LW series Backhoe It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads,planting and relocating trees,Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
LW series Backhoe with 20-80HP tractor
LW series Backhoe with 20-80HP tractor
LW series Backhoe with 20-80HP tractor
LW series Backhoe with 20-80HP tractor
LW series Backhoe with 20-80HP tractor
LW series Backhoe with 20-80HP tractor
  • LW-4 LW-6 LW-7 LW-8 LW-9 LW-10 LW-12

  • EUROSTAR OEM

  • 8431410000

LW series Backhoe Product Description

LW series Backhoe It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads,planting and relocating trees,Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

LW series Backhoe Product Selling Points

1. match tractors from 20hp to 150hp

2. loading capacity 0.03m3 to 0.0666m3

3. Bucket sizes 10"-22"

4. 3 Point Hitch Backhoe Specification & Features & Options:

5. 3 Point fits most tractors with a Category 1 Hitch.

6. Optionable Bucket sizes 10"-22" are all interchangeable.

7. Options Reservoir Tank with Filter.

8. PTO Pump and gear box.

9. Use hydraulic transmission,Compact structure, Flexibility and convenient operation

10. Quick mounting and dismounting,Share hydraulic oil with tractor

11. Highly standardized hydraulic elements

12. Meets multi-working demands with different sizes buckets

LW series Backhoe product technical parameters

ModelLW-4 LW-6 LW-7 LW-8 LW-9
 SpecificationInchMetric Inch Metric Inch Metric Inch Metric Inch Metric
 Tractor HP20-30hp 30-40HP 30-45HP45-60HP 60-80HP
 3-point Linkage Cat-1 Cat-1Cat-1 CAT-1&2CAT-1&2
 Structure Weight771lb350kg 1060lb 480kg 1100lb  500kg1280lb 580kg 1370lb 620kg
 A Digging Depth(two foot flat bottom)4'1200mm 5.74' 1750mm 6.4' 1950mm7.38' 2250mm8.36' 2550mm
 B Reach from center line of Swing pivot7.55'2300mm 8.53' 2600mm 9.51' 2900mm10.5' 3200mm 11.8'3600mm
 C Loading Height(bucket at 60°)

 5.64' 1720mm 6.03' 1840mm  3.66' 1930mm 7.25' 2210mm
 D Transport Height(maximum)4.1'1250mm 6.03' 1840mm  6.75' 2060mm6.98'2130mm8.13' 2480mm
 E Extend Height4'1200mm 9.41' 2870mm 10.2' 3110mm10.62'3240mm 11.77'3590mm
 F Loading Reach(bucket at 60°)

 3.11' 950mm 3.87' 1180mm 3.74'1140mm  4.46' 1360mm
 G Transport Overhang

 3.54' 1080mm 3.64' 1110mm4'1220mm4.16'1270mm
 H Undercut

 2.4' 730mm 2.72' 830mm1.54'470mm1.7'520mm
 I  Bucket Rotation

 180° 180° 180° 180°
 J Stabilizer Spread(up position)

 4.3' 1310mm  4.3' 1310mm4.3' 1310mm  4.3' 1310mm
 K Stabilizer Spread(down position)6.23'1900mm 4.3' 2100mm 6.9' 2100mm7.67'2340m 7.67'2340mm
 L Swing Arc 180° 180° 180° 180° 180°
MBucket width250mm300mm400mm450mm500mm
NBucket cubage0.0280.0360.0450.0520.063

Rotary Tiller details picture display

Rotary Tiller details picture display

Farm tool production workshop display

Farm tool production workshop display

Rotary Tiller packing and shipping link display

Rotary Tiller packing and shipping link display

Picture display of tractors produced by our company

Picture display of tractors produced by our company

Picture display of tractors produced by our company2

Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional agricultural machinery manufacturer integrating R&D, design, manufacturing, sales and service. The company products cover road transport machinery, harvest machinery, equipment for plant protection, agricultural implements and agricultural unmanned machinery.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has worked out comprehensive quality manual and quality control procedure files at all levels based on ISO9001:2000, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 50 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end
machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.

Agricultural machinery factory production equipment display

Agricultural machinery factory production equipment displayService
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified

2) Spare Parts Service

Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.

3) Training Service

Characteristic Training Mode: invite the technicians of dealers to factory for training, send  engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;

4) Technical Support

The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business

FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.

How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
