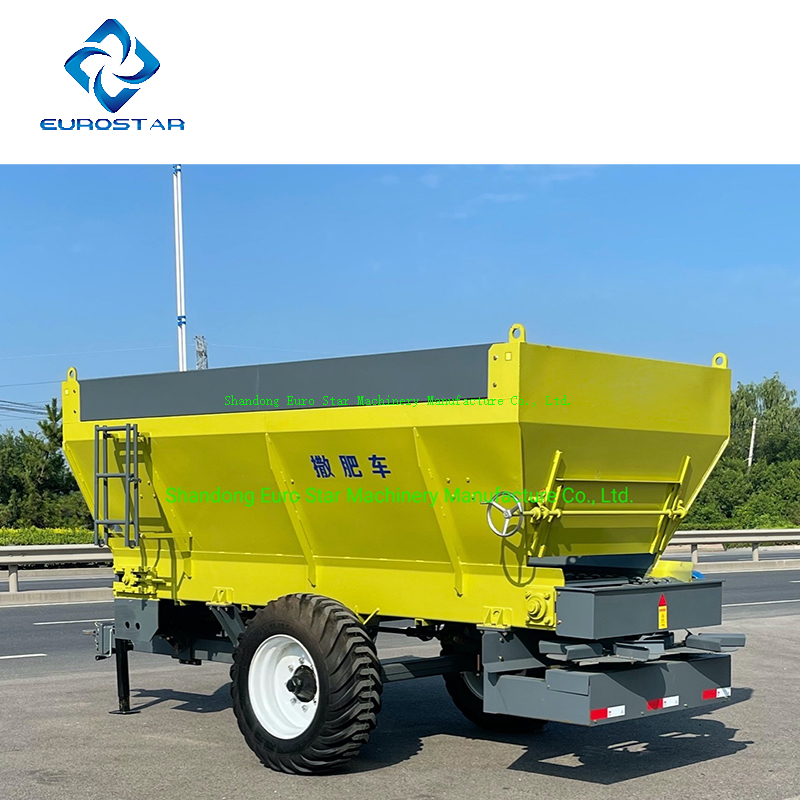

Compound Fertilizer Applying Machine

2FGH-10 double-shaft vertical auger fertilizer thrower (fertilizer spreader / manure spreader) is powered by a tractor, and is used for farming and animal husbandry to return livestock manure, fermented organic fertilizer, and manure (including compost) to the fields. Vertical twisted-dragon crushing blade selection of high quality spring manganese steel, high hardness, good wear resistance, corrosion resistance, long service life, strong crushing ability, can effectively break the scattered organic materials, the livestock feces effectively scattered to the field, evenly distributed. It can improve the availability of soil nutrients, improve soil structure, improve soil fertility and water retention, and reduce fecal pollution.
Availability:
Quantity:
  • 2FS-3 2FS-6 2FS-9 2FGH-10H 2FGH-10

  • EUROSTAR OEM

  • 8428909090

2FGH series Fertilizer Applicator Product introduction

2FGH-10 Double vertical auger manure spreader
2FGH-10 double-shaft vertical auger fertilizer thrower (fertilizer spreader / manure spreader) is powered by a tractor, and is used for farming and animal husbandry to return livestock manure, fermented organic fertilizer, and manure (including compost) to the fields. Vertical twisted-dragon crushing blade selection of high quality spring manganese steel, high hardness, good wear resistance, corrosion resistance, long service life, strong crushing ability, can effectively break the scattered organic materials, the livestock feces effectively scattered to the field, evenly distributed. It can improve the availability of soil nutrients, improve soil structure, improve soil fertility and water retention, and reduce fecal pollution.
2FGH-10H Horizontal Auger Manure Spreader
2FGH-10H horizontal auger manure spreader is mainly used for the throwing operation of various sticky and wet manure, livestock manure, etc. with high moisture content. Stranding blade is made of high quality spring manganese steel, with high hardness, good wear resistance, corrosion resistance, long service life and strong crushing ability. Powered by a tractor, through the high-speed rotation of the crushing wheel to effectively break the scattered organic materials, the livestock excrement effectively scattered to the field, evenly scattered. Suitable for large-scale farming and pasture use, improve fertilization efficiency, improve the effectiveness of soil nutrients, reduce fecal pollution, improve soil fertility and water retention, improve soil structure.

Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia Australia and New Zealand.


2FGH series Fertilizer Applicator Product Selling Points
1. The auger blades are made of NM wear-resistant steel plate, which is more wear-resistant and lasts longer. The double vertical auger can smash lump manure, and both dry and wet manure can be spread evenly.
2. The whole vehicle adopts high-strength carbon steel of 4-6 mm, which is stronger and more suitable for throwing various materials.
3. Adopt Italian Adel axles, with good braking performance, accurate and sensitive automatic steering system, safe and durable.
4. In the spraying process of the whole machine, five consecutive sand blasting and shot blasting processes are effective in corrosion resistance and prolong the service life for more than five years.
5. The whole vehicle transmission system adopts the patented bearing structure, no need to inject butter, and the maintenance is simpler.
6. The conveying chain row is made of high-strength mining circular chain material, and the chain row is a floating knot structure, which protects the chain row and better adapts to the throwing of complex materials.
7. Using European standard agricultural tires, the tire width is increased, the bearing capacity is strong, and it is not easy to trap the car.
8. Imported Ximai reducer is more stable, precise and reliable.
9. With its own precision speed regulating valve (1-10 gears), it can adjust the speed of the fertilizer feeding chain and control the amount of fertilizer.
10. The hydraulic fertilizer gate can effectively control the amount of fertilizer, and the hydraulic lifting is more convenient.
11. Equipped with an overload protection system to prevent debris such as stones in the manure from jamming the chain row.

2FGH series Fertilizer Applicator Product Technical Parameters
Model2FGH-10H2FGH-10
Volume capacity(m³)≥10≥10
Maximum deadweight(kg)95009500
Machine weight(KG)38003800
Spreading width(M)3-83-8
Machine size (mm) L*W*H5530*2900*25605530*2900*2560
Hopper size (mm) L*W*H4350*209016204600*20901620
Fertilizing formSingle twisted dragons are thrown backwardsVertical twisted-pair dragon is thrown backwards
Number of blades per unit1427
Diameter of twisted Dragon (mm)500760
installation directionHorizontal levelVertical installation
Traction length (mm)13451530
Minimum height from ground (mm)400300
Conveyor chain width (mm)13001300
Center distance of tire (mm)23002300
Tires600/50-26.5600/50-26.5
Drive wayPTOPTO
PTO speed(rpm)540540
work efficiency (m³/h )≥20≥25
Required tractor power(hp)90-16090-180
Conveying control modehydraulichydraulic
Hydraulic system pressure16Mpa16Mpa
Hydraulic system flow rate≥60LPM≥60LPM
Driving speed (km/h)3-203-20
Working speed (km/h)≤10≤10
40 HQ container2pcs+1pcs2pcs+1pcs

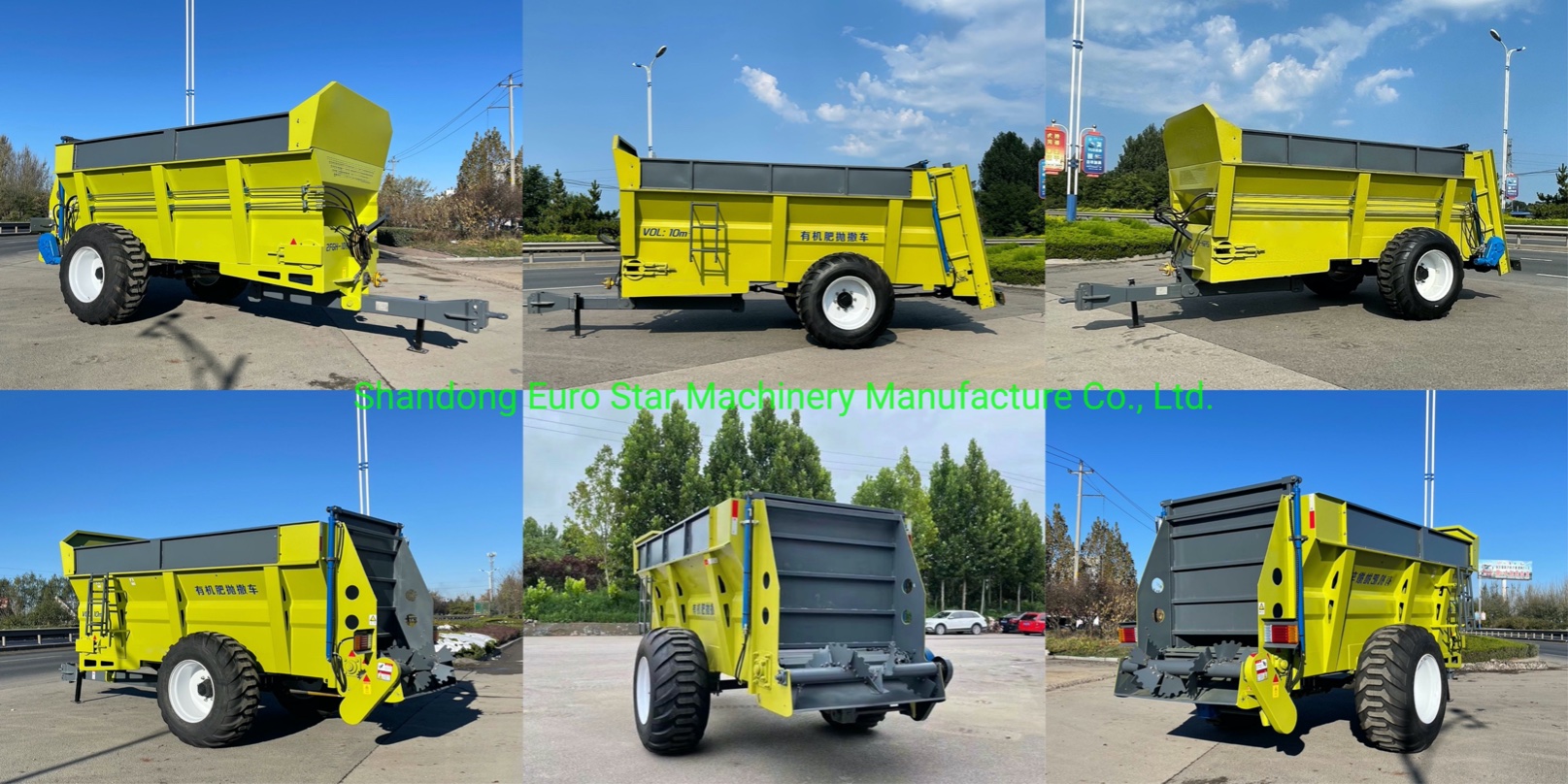

2FGH-10H Series manure fertilizer truck picture displayimage

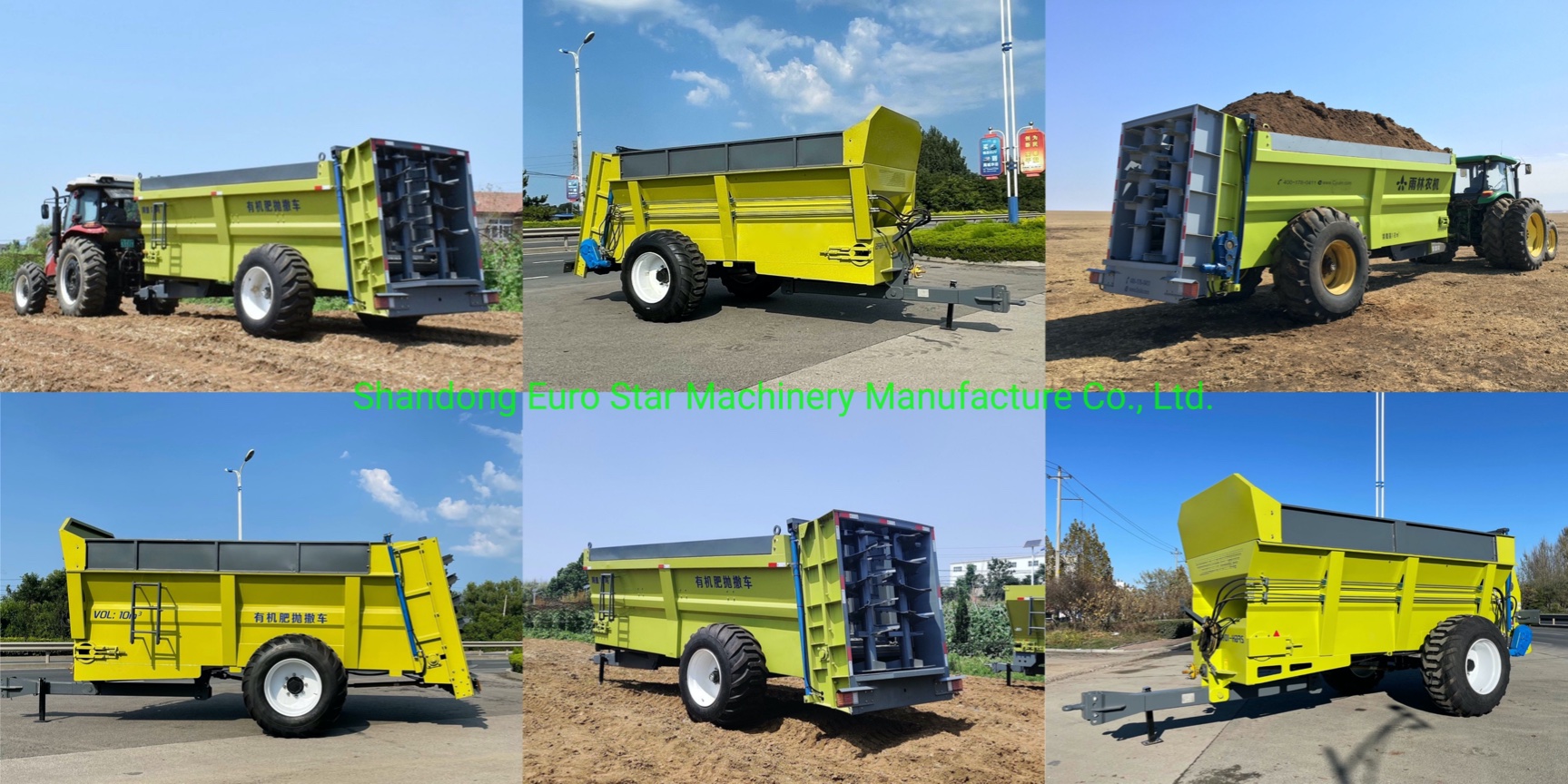

2FGH-10 Series manure fertilizer truck picture display

image (1)

2FS series double-disc solid organic fertilizer spreading vehicle Product Technical Parameters

Model 2FS-3 2FS-6 2FS-9
Volume capacity(m³) ≥3 ≥6 ≥8
Maximum deadweight(kg) 3000 6000 7200
Machine weight(KG) 1600 2200 2450
Spreading width(M) 6-14 6-14 6-14
Machine size (mm) L*W*H 4100*2010*1900 4510*2200*2290 5500*2250*2480
Hopper size (mm) L*W*H 2600*1795*1290 3130*2000*1795 4000*2000*1640
Fertilizing form Horizontal double discs are thrown backward
Number of disc blades 3 3 5
Maximum diameter of disk (mm) 640 640 620
Traction length (mm) 1210 1210 1235
Minimum height from ground (mm) 380 380 370
Conveyor chain width (mm) 405(double row) 405(double row) 990
Center distance of tire (mm) 1700 1850 1850
Tires 12.5/80-15.3 14-17.5 400/55-22.5-18PR
Drive way PTO PTO PTO
PTO speed(rpm) 540 540 540
work efficiency (m³/h ) ≥10 ≥10 ≥10
Required tractor power(hp) 50-70 60-80 80-140
Conveying control mode hydraulic hydraulic hydraulic
Hydraulic system pressure 16Mpa 16Mpa 16Mpa
Hydraulic system flow rate ≥30LPM ≥30LPM ≥30LPM
Driving speed (km/h) 3-20 3-20 3-20
Working speed (km/h) ≤10 ≤10 ≤10
40 HQ container 4pcs(8pcs) 3pcs 2pcs+1pcs

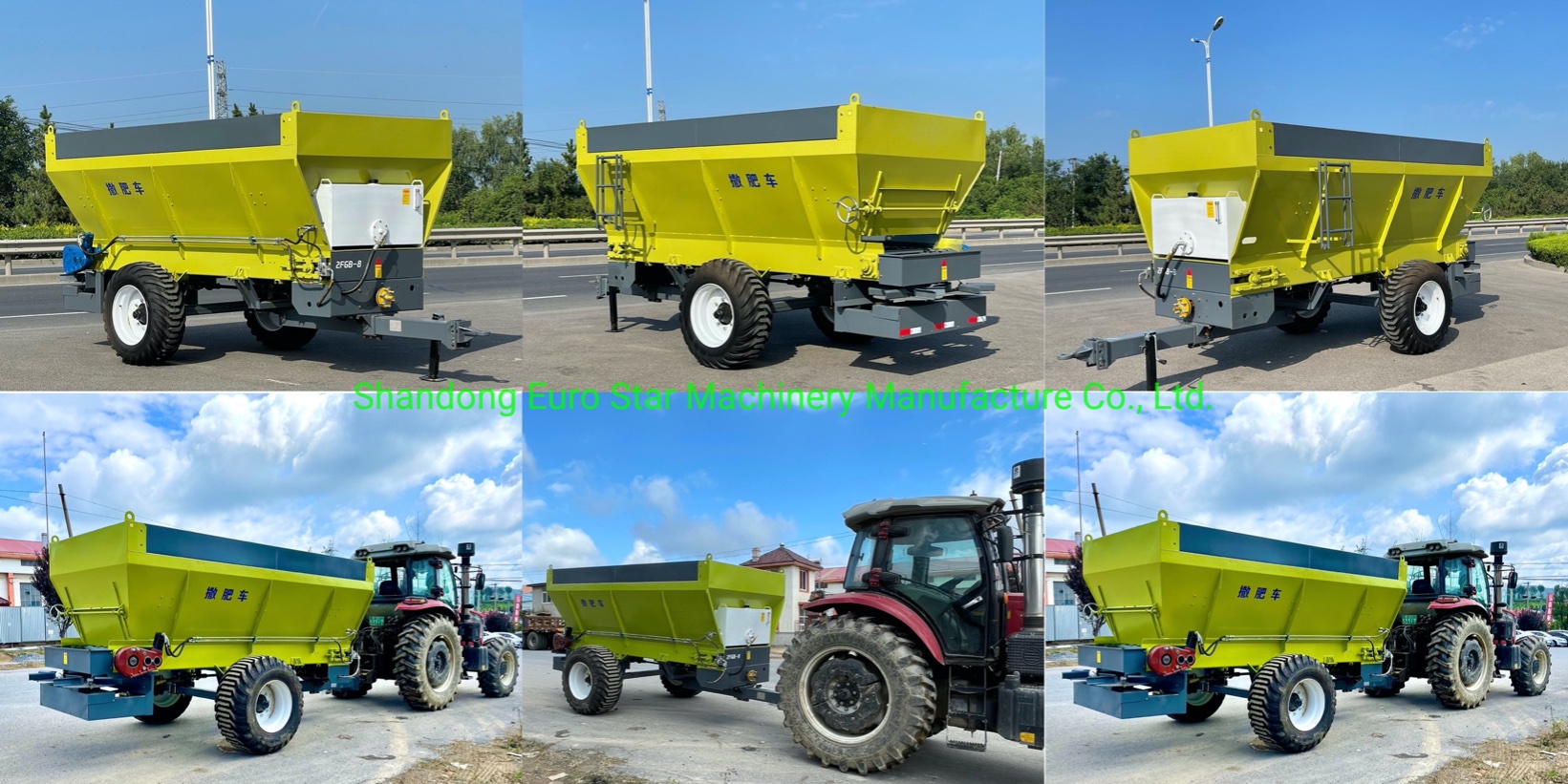

2FS Series manure fertilizer truck picture display

image (2)

2FGH series manure spreader details display

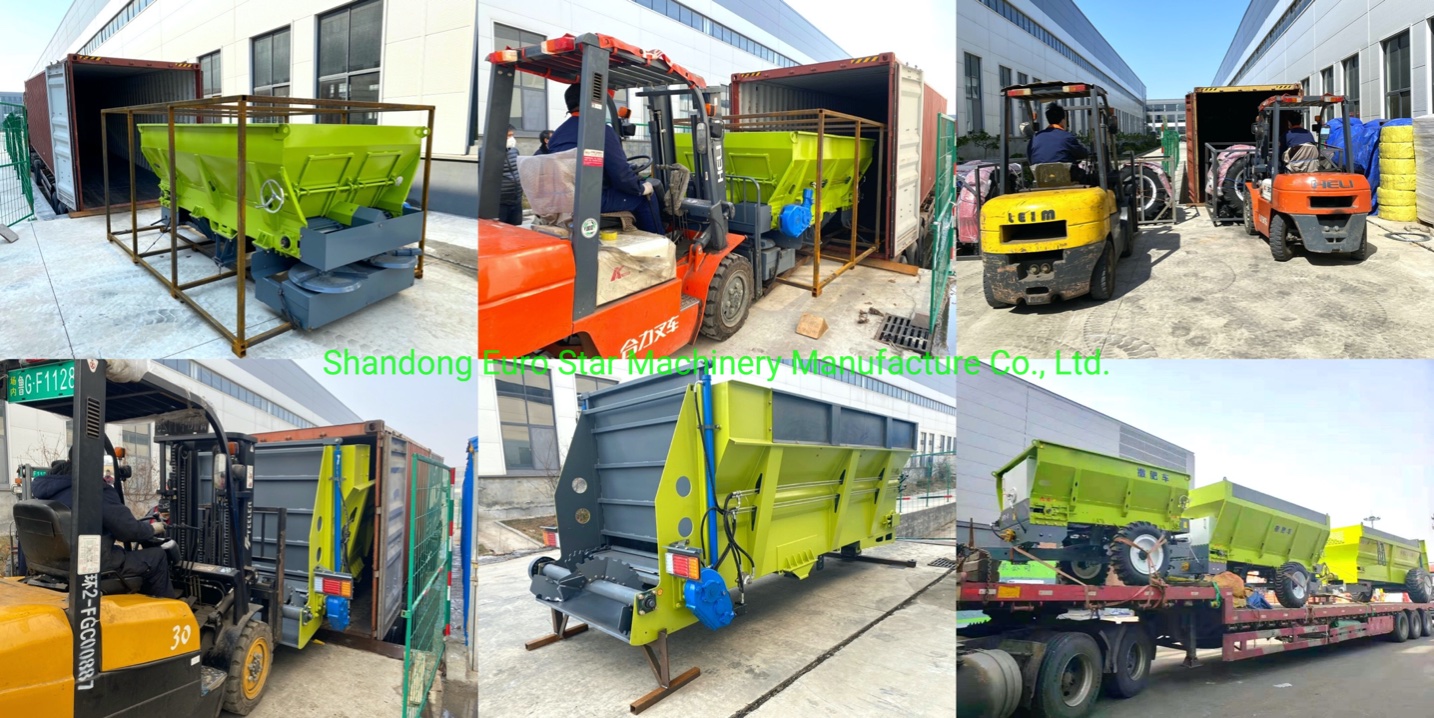

image (3)Manure Spreader Packaging and Shipping Site Demonstration

image (4)

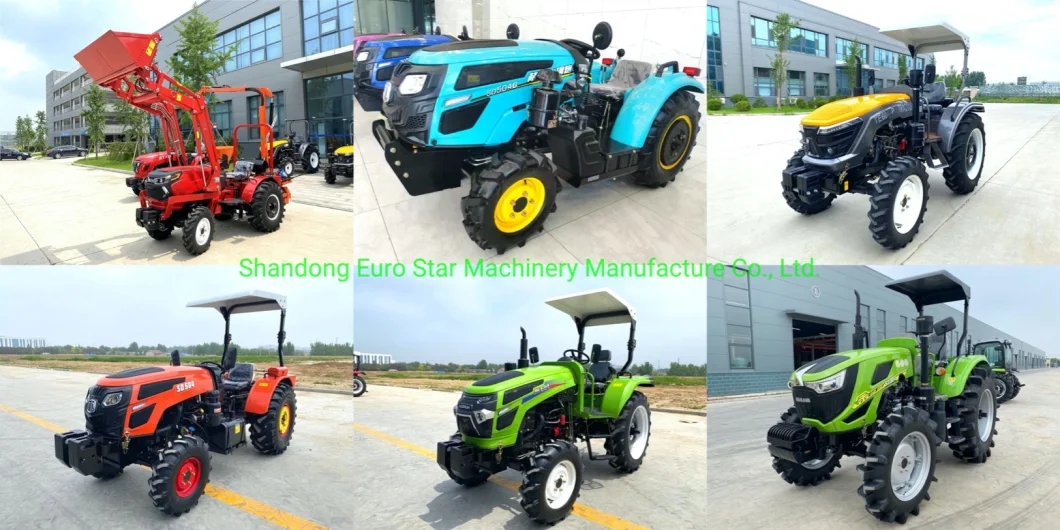

Full range of tractor products display

Width123cm-Tractor-Front-End-Loader-Farm-Catch-Forklift-Grass-Timber-Grab-China-Agricultural-Machinery-Pallet-Forks-for-Manufacturer-Bale-Blade-Bulldozer-Grader.webp (9)

Picture display of tractors produced by our company2
