Availability: | |
---|---|
Quantity: | |
EL-5 EL-7 EL-9 ETL-12 ETL-12 EW-5 EW-7 EW-9
Eurostar or OEM
8436100000
Feed mixer product description
EL and EW series feed mixing machine is designed by the nutritional needs of cattle's different growth and development and lactation stage, combined with the local's specific grass resource through an advanced feed processing technology to stir, cut, knead and mix grasses. Correctly usage will reduce the subclinical mastitis of cows and increase milk quality, reduce bacteria content,which can improve work efficiency and reduce labor intensity.
EL and EW series feeder mixer applies to cow,cattle,sheep and goat farm. Available on a variety of grass, straw and silage crops such as fibrous feeds chopped and mixed with fine material mix treatment. Mixing and feeding operations once completed, to reduce intermediate links reared and improve efficiency. Reduce labor cost, save feed costs and improve economic efficiency.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia,New Zealand.
Feed mixer product selling points
1. It can be directly silage and a variety of straw, straw and other fiber-based feed into the mixer chopped, mixed, stirring speed, each batch of feed cutting mixing time of 30 minutes, according to the different tank volume, each feed The mixer can feed 200-2000 cows per day, which can replace more than 20 workers to reduce the labor intensity and improve the feeding efficiency.
2. Every feeding can take appropriate amount and balance all kinds of elements and nutrientions, effectively avoid the unequal nutrient intake caused by the cow's picky food, and reduce feed waste.
3. Prolong feeding time, can increase feed intake, increase lactation amount, and prevent the drop of milk fat.
4. It is beneficial to reduce the postpartum disease, the ruminant function is stable, PH change is small,can improve the digestibility, good to maintain the health of the dairy cows.
5. feeder mixer is allowed to feed raw material with poor palatability. Mixing with silage can conceal its odor and reduce the cost of feeding.
6. It can make the formula, feeding, management and library more accurate, and it is easier to mechanization than personnel management.
7. In the place where the roughage is limited, the feed mixer can reduce the amount of coarse feed in the diet and replace the non roughage fiber.
EL series feed mixer product technical parameters
Model | EL-5 | EL-7 | EL-9 |
Capacity(m³) | 5 | 7 | 9 |
work efficiency(T/H) | 3 | 3-5 | 5-12 |
Dimensions(mm)L*W*H | 3100*2030*2400 | 3400*2200*2400 | 3900*2300*2500 |
Hopper size(L*W)mm | 2700*2000 | 2700*2030 | 3150*2300 |
Weight(kg) | 2100 | 2300 | 2850 |
transmission shaft | 20*8 | 20*8 | 20*8 |
Speed(r/min) | 23 | 23 | 23 |
blade material | Material Tungsten carbide | Material Tungsten carbide | Material Tungsten carbide |
blade number | large triangular knife 6pcs, small triangular knife 5pcs | large triangular knife 7pcs, small triangular knife 11pcs | large triangular knife 7pcs, small triangular knife 6pcs |
Load cell | 4pcs | 4pcs | 4pcs |
Power(HP) | 40-60 | 50-70 | 70-90 |
Feed mixer product description
EL and EW series feed mixing machine is designed by the nutritional needs of cattle's different growth and development and lactation stage, combined with the local's specific grass resource through an advanced feed processing technology to stir, cut, knead and mix grasses. Correctly usage will reduce the subclinical mastitis of cows and increase milk quality, reduce bacteria content,which can improve work efficiency and reduce labor intensity.
EL and EW series feeder mixer applies to cow,cattle,sheep and goat farm. Available on a variety of grass, straw and silage crops such as fibrous feeds chopped and mixed with fine material mix treatment. Mixing and feeding operations once completed, to reduce intermediate links reared and improve efficiency. Reduce labor cost, save feed costs and improve economic efficiency.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia,New Zealand.
Feed mixer product selling points
1. It can be directly silage and a variety of straw, straw and other fiber-based feed into the mixer chopped, mixed, stirring speed, each batch of feed cutting mixing time of 30 minutes, according to the different tank volume, each feed The mixer can feed 200-2000 cows per day, which can replace more than 20 workers to reduce the labor intensity and improve the feeding efficiency.
2. Every feeding can take appropriate amount and balance all kinds of elements and nutrientions, effectively avoid the unequal nutrient intake caused by the cow's picky food, and reduce feed waste.
3. Prolong feeding time, can increase feed intake, increase lactation amount, and prevent the drop of milk fat.
4. It is beneficial to reduce the postpartum disease, the ruminant function is stable, PH change is small,can improve the digestibility, good to maintain the health of the dairy cows.
5. feeder mixer is allowed to feed raw material with poor palatability. Mixing with silage can conceal its odor and reduce the cost of feeding.
6. It can make the formula, feeding, management and library more accurate, and it is easier to mechanization than personnel management.
7. In the place where the roughage is limited, the feed mixer can reduce the amount of coarse feed in the diet and replace the non roughage fiber.
EL series feed mixer product technical parameters
Model | EL-5 | EL-7 | EL-9 |
Capacity(m³) | 5 | 7 | 9 |
work efficiency(T/H) | 3 | 3-5 | 5-12 |
Dimensions(mm)L*W*H | 3100*2030*2400 | 3400*2200*2400 | 3900*2300*2500 |
Hopper size(L*W)mm | 2700*2000 | 2700*2030 | 3150*2300 |
Weight(kg) | 2100 | 2300 | 2850 |
transmission shaft | 20*8 | 20*8 | 20*8 |
Speed(r/min) | 23 | 23 | 23 |
blade material | Material Tungsten carbide | Material Tungsten carbide | Material Tungsten carbide |
blade number | large triangular knife 6pcs, small triangular knife 5pcs | large triangular knife 7pcs, small triangular knife 11pcs | large triangular knife 7pcs, small triangular knife 6pcs |
Load cell | 4pcs | 4pcs | 4pcs |
Power(HP) | 40-60 | 50-70 | 70-90 |

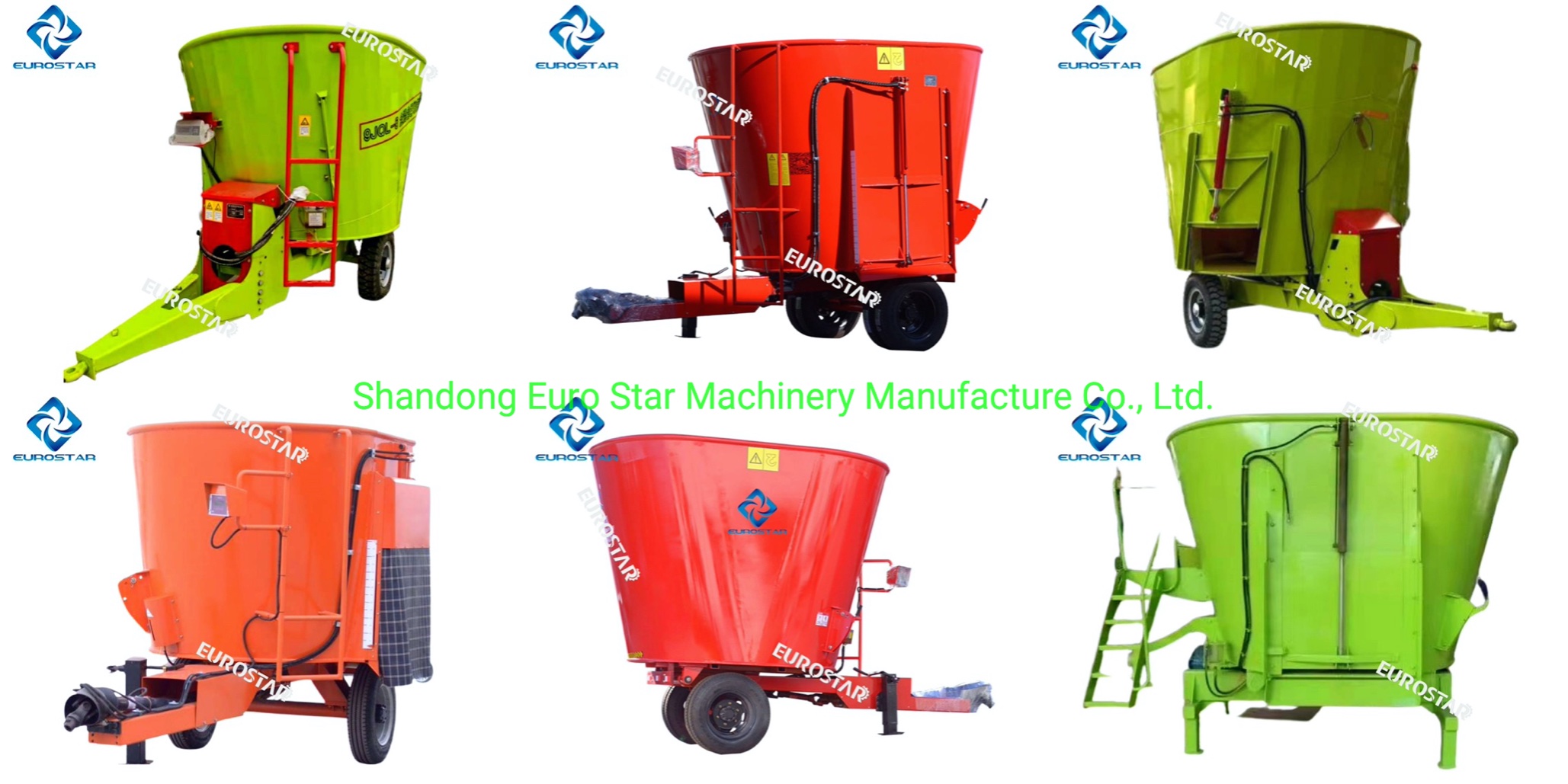

EL series feed mixer details picture display
EW series feed mixer(Tractor PTO and motor two working modes)product technical parameters
Model | EW-5 | EW-7 | EW-9 |
Capacity(m³) | 5 | 7 | 9 |
work efficiency(T/H) | 3-5 | 3-5 | 3-5 |
Dimensions(mm)L*W*H | 4000*1650*2100 | 5000*2000*2400 | 4600*2000*2500 |
Hopper length(mm) | 2800 | 3000 | 3300 |
Weight(kg) | 2000 | 3000 | 3200 |
Knife shaft number | Large knife body 4pcs, knife body 5pcs | Large knife body 6pcs, knife body 5pcs | Large knife body 7pcs, knife body 5pcs |
Blade number | Crescent Knife 9pcs, Oval Knife 31pcs | Crescent Knife 11pcs, Oval Knife 39pcs | Crescent Knife 12pcs, Oval Knife 43pcs |
Length of reducer and motor(mm) | 1300 | 1300 | 1300 |
Reducer power(KW) | 15KW | 22KW | 22KW |
Speed(r/min) | 20 | 18 | 18 |
Hydraulic pump motor power | 1.5kw-4-B35 | 1.5kw-4-B35 | 1.5kw-4-B35 |
Power(HP) | 40-60 | 50-70 | 70-90 |
Start the way | (Tractor PTO and motor two working modes) |

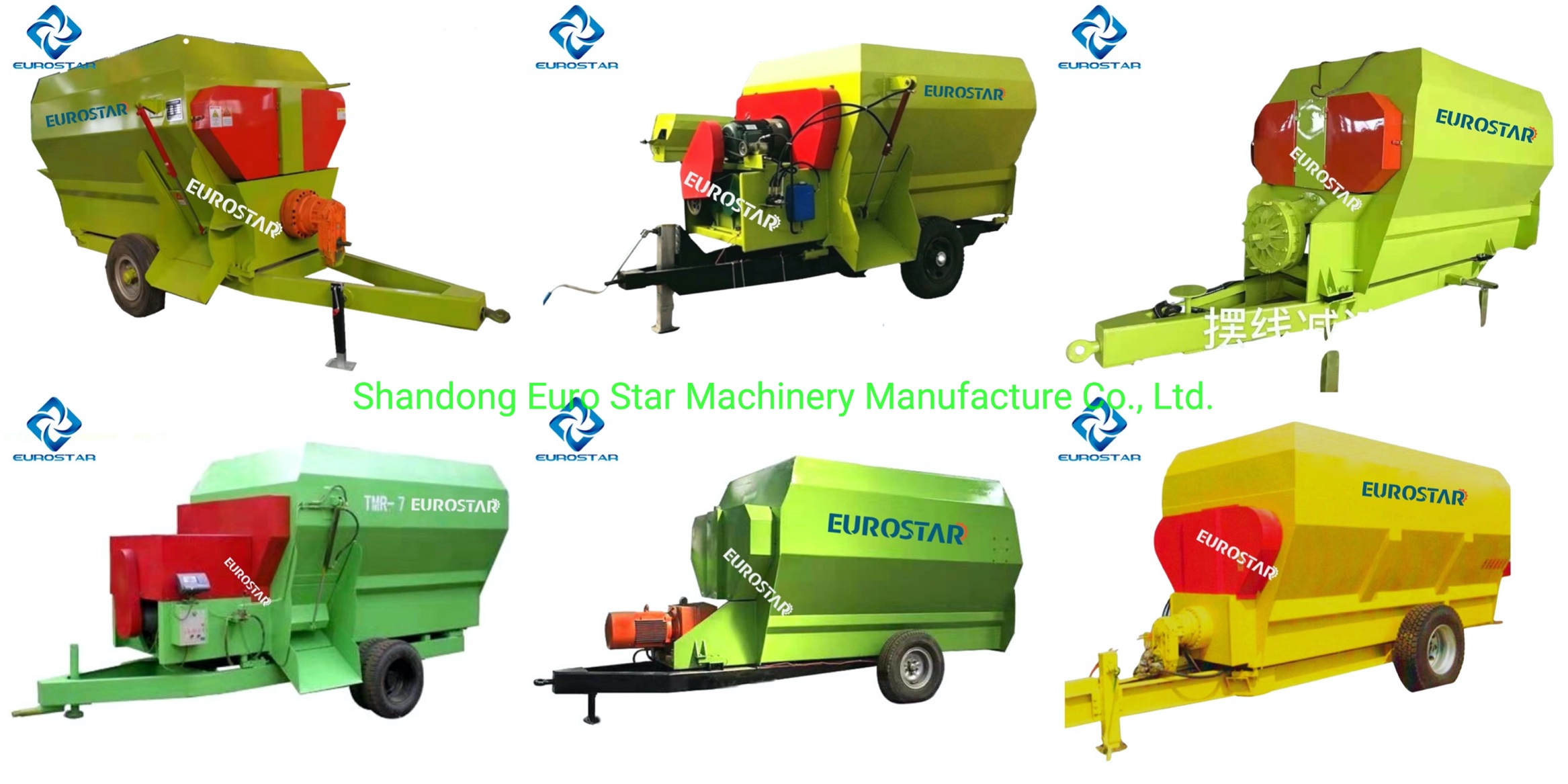

EW series feed mixer(Tractor PTO and motor two working modes)details picture display
ETL series feed mixer(Tractor PTO and motor two working modes)product technical parameters
Model | ETL-12 | ETL-16 |
Capacity(m³) | 12 | 16 |
work efficiency(T/H) | 4-10 | 6-12 |
Dimensions(mm)L*W*H | 4800*2350*2800 | 6500*2200*2600 |
Hopper size(L*W)mm | 4800*2050 | 5500*2050 |
Weight(kg) | 3300 | 5000 |
transmission shaft | 8*20 | 8*20 |
Speed(r/min) | 23 | 23 |
blade material | Material Tungsten carbide | Material Tungsten carbide |
blade number | Triangular blade 8pcs, oval blade 12pcs | Triangular blade 16pcs, oval blade 14pcs |
Load cell | 4pcs | 4pcs |
Tire | 750-16/4pcs | 750-16/4pcs |
Power(HP) | 70-100 | 80-120 |
motor | / | 220KW*2pcs |
Start the way | Tractor PTO | Automatic, tractor and motor two ways to use |

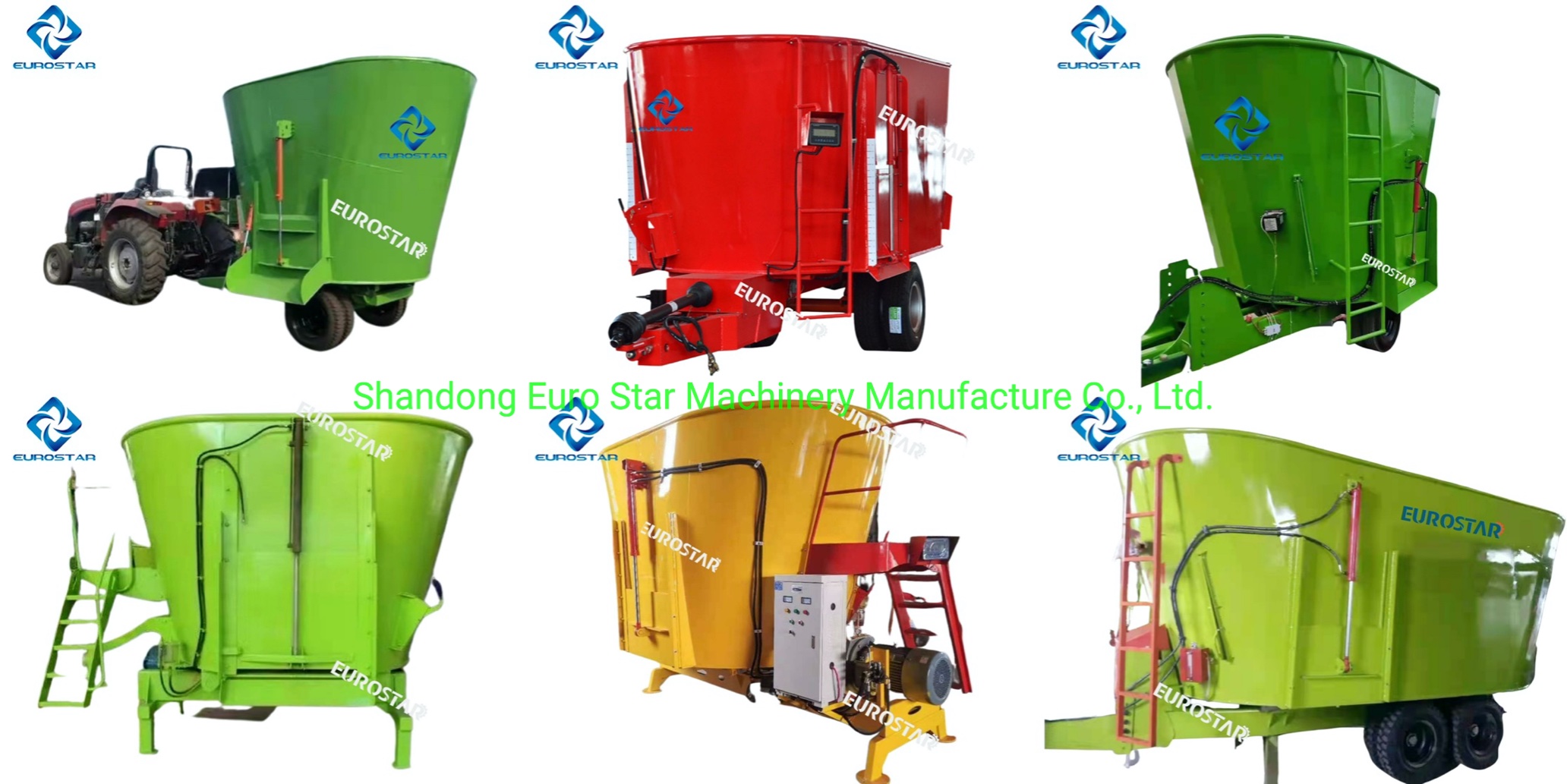

ETL series feed mixer(Tractor PTO and motor two working modes)details picture display
Feed mixer packing and shipping link display

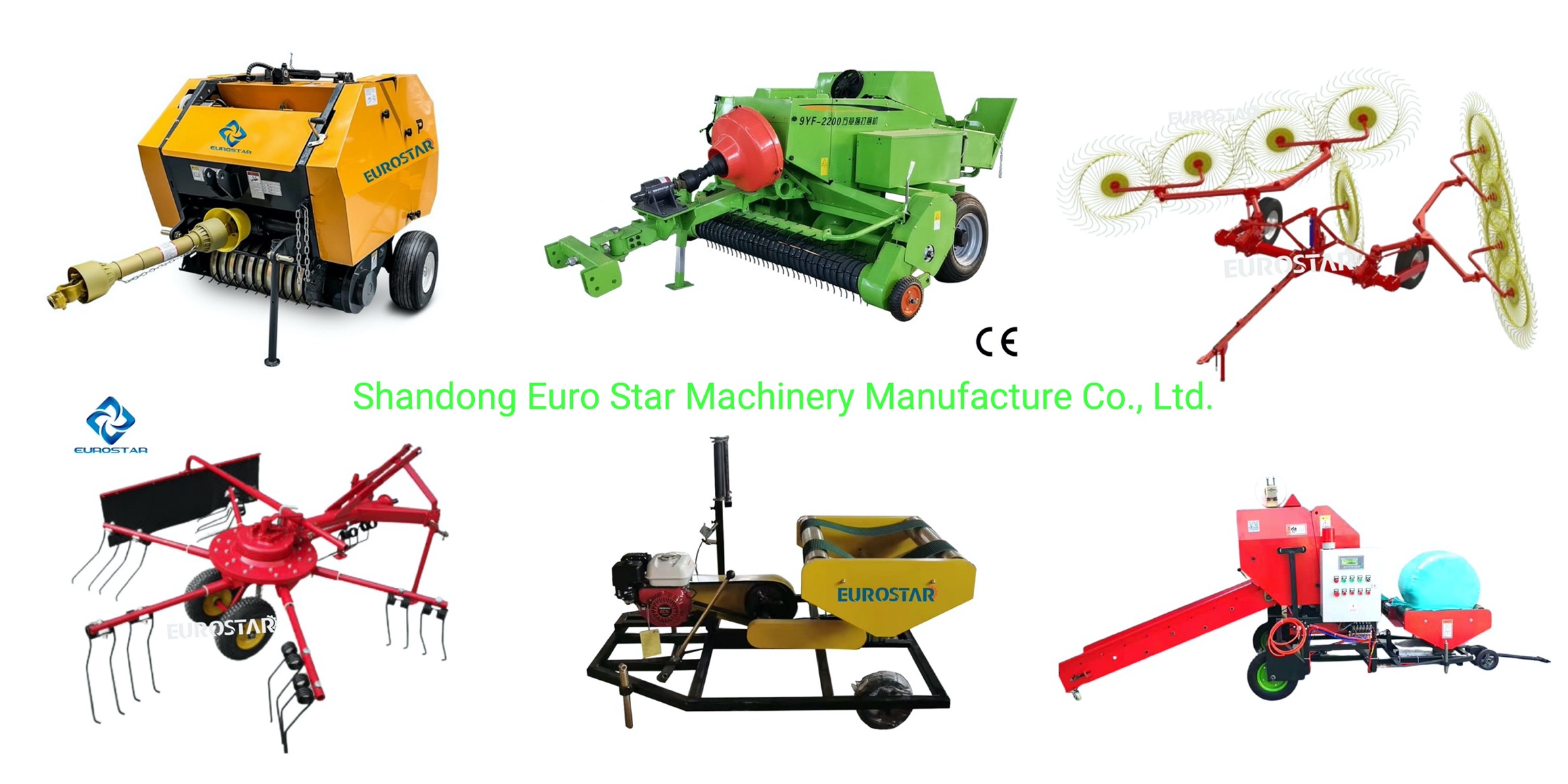

Baler, rake and envelope machine product portfolio
Full range of tractor products display
EL series feed mixer details picture display
EW series feed mixer(Tractor PTO and motor two working modes)product technical parameters
Model | EW-5 | EW-7 | EW-9 |
Capacity(m³) | 5 | 7 | 9 |
work efficiency(T/H) | 3-5 | 3-5 | 3-5 |
Dimensions(mm)L*W*H | 4000*1650*2100 | 5000*2000*2400 | 4600*2000*2500 |
Hopper length(mm) | 2800 | 3000 | 3300 |
Weight(kg) | 2000 | 3000 | 3200 |
Knife shaft number | Large knife body 4pcs, knife body 5pcs | Large knife body 6pcs, knife body 5pcs | Large knife body 7pcs, knife body 5pcs |
Blade number | Crescent Knife 9pcs, Oval Knife 31pcs | Crescent Knife 11pcs, Oval Knife 39pcs | Crescent Knife 12pcs, Oval Knife 43pcs |
Length of reducer and motor(mm) | 1300 | 1300 | 1300 |
Reducer power(KW) | 15KW | 22KW | 22KW |
Speed(r/min) | 20 | 18 | 18 |
Hydraulic pump motor power | 1.5kw-4-B35 | 1.5kw-4-B35 | 1.5kw-4-B35 |
Power(HP) | 40-60 | 50-70 | 70-90 |
Start the way | (Tractor PTO and motor two working modes) |
EW series feed mixer(Tractor PTO and motor two working modes)details picture display
ETL series feed mixer(Tractor PTO and motor two working modes)product technical parameters
Model | ETL-12 | ETL-16 |
Capacity(m³) | 12 | 16 |
work efficiency(T/H) | 4-10 | 6-12 |
Dimensions(mm)L*W*H | 4800*2350*2800 | 6500*2200*2600 |
Hopper size(L*W)mm | 4800*2050 | 5500*2050 |
Weight(kg) | 3300 | 5000 |
transmission shaft | 8*20 | 8*20 |
Speed(r/min) | 23 | 23 |
blade material | Material Tungsten carbide | Material Tungsten carbide |
blade number | Triangular blade 8pcs, oval blade 12pcs | Triangular blade 16pcs, oval blade 14pcs |
Load cell | 4pcs | 4pcs |
Tire | 750-16/4pcs | 750-16/4pcs |
Power(HP) | 70-100 | 80-120 |
motor | / | 220KW*2pcs |
Start the way | Tractor PTO | Automatic, tractor and motor two ways to use |
ETL series feed mixer(Tractor PTO and motor two working modes)details picture display
Feed mixer packing and shipping link display
Baler, rake and envelope machine product portfolio
Full range of tractor products display
Our company produces other agricultural machinery display
Our company produces other agricultural machinery display
Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
