ES-120 Self-Propelled Multifunctional Reaper

ES Series Mini Self-Walking Reaper is mainly used to harvest the paddy and wheat. It could also be used to harvest the soybeans, hot pepper and reeds. It is applicable in the plain, hills, slopes, small field, etc. In addition, it is with the advantages of small volume, small weight, flexible performance and simple operation.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Availability:
Quantity:
ES-120 Self-Propelled Multifunctional Reaper
ES-120 Self-Propelled Multifunctional Reaper
ES-120 Self-Propelled Multifunctional Reaper
ES-120 Self-Propelled Multifunctional Reaper
ES-120 Self-Propelled Multifunctional Reaper
ES-120 Self-Propelled Multifunctional Reaper
  • ES-80 ES-100 ES-120 ES-150

  • EUROSTAR OEM

  • 8433599090

ES series mini self-walking reaper description

ES Series Mini Self-Walking Reaper is mainly used to harvest the paddy and wheat. It could also be used to harvest the soybeans, hot pepper and reeds. It is applicable in the plain, hills, slopes, small field, etc. In addition, it is with the advantages of small volume, small weight, flexible performance and simple operation.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.

ES series mini self-walking reaper product selling points
1. Except the upstanding crops, It can also reap fallen crops(lodging crops).
2.The handle can be adjusted upward or downward, with 180° rotation, more safe and suitable for different heights people.
3. It's with widen wheels, there is inner tube which are inflatable. There is differential gear, which can turn around freely.
4.This wheat/rice reaper binder adopts shaft drive, with bigger torque and high efficiency.
5. This wheat/rice reaper binder is made of high quality materials and components.
6. Small volume, compact structure, complete harvesting, low stubble, reaping&binding&putting aside at one time, more convenient and high efficiency, high quality, and long service life.

ES series mini self-walking reaper technical parameters

ES Series Mini Self- Walking Reaper
ModelES-80ES-100ES-120ES-150
Cutting Width (mm)800100012001500
Stubble Height (mm)≥50
Laying Angle (Degree)90 ± 20
Laying TypeSide Direction
Productivity (acre/h)2.0-3.02.5-43.0-5.03.5-5.5
Engine (hp)JF168 (Gasoline) 4.5hp170F (Gasoline) 5.5hp177F (Gasoline) 6hpR175 (Diesel) 8hp
Damage Rate≤1 %

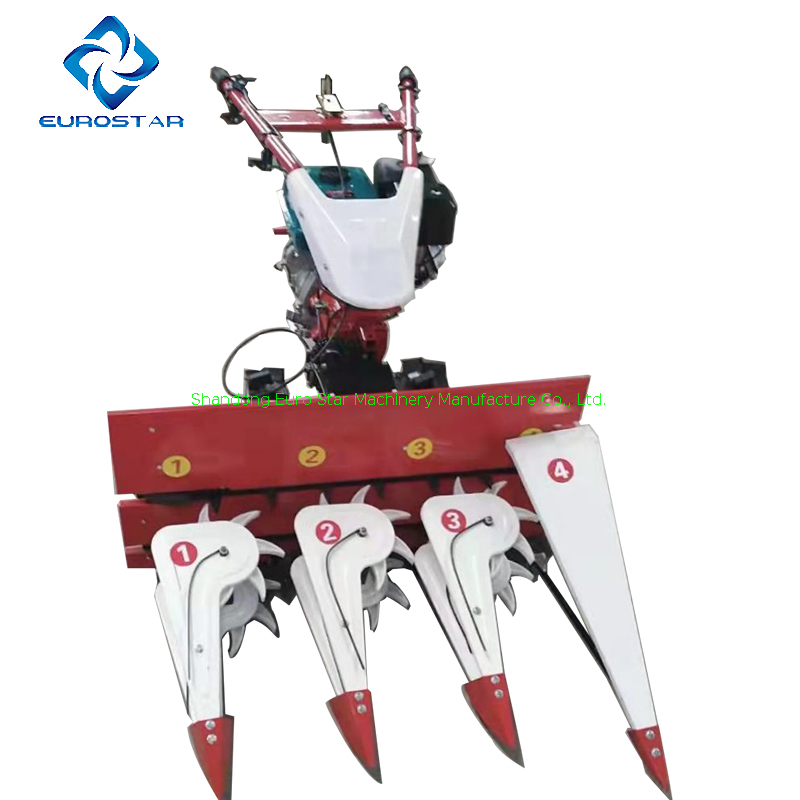

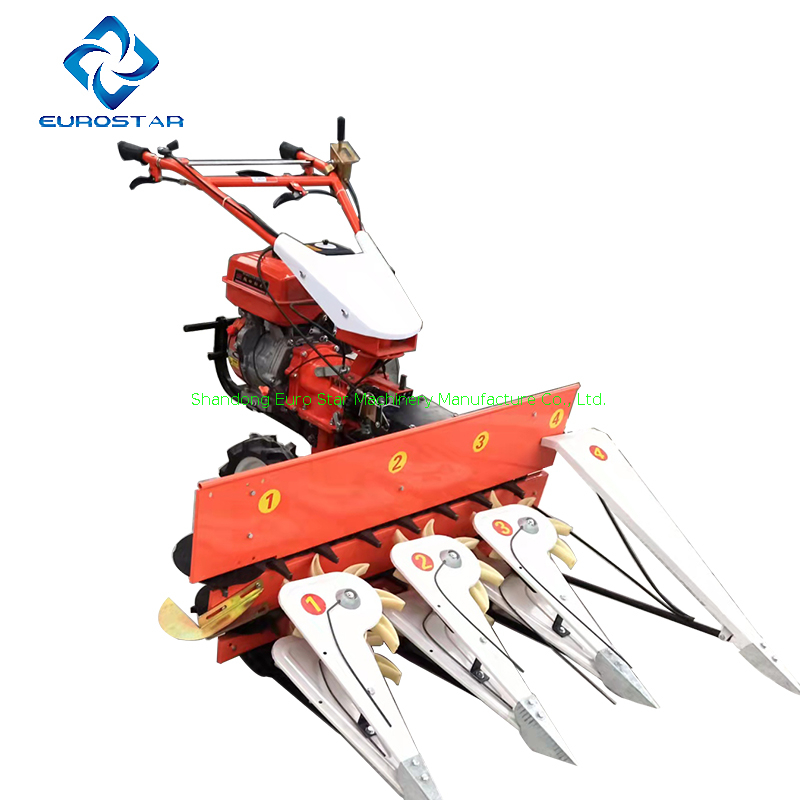

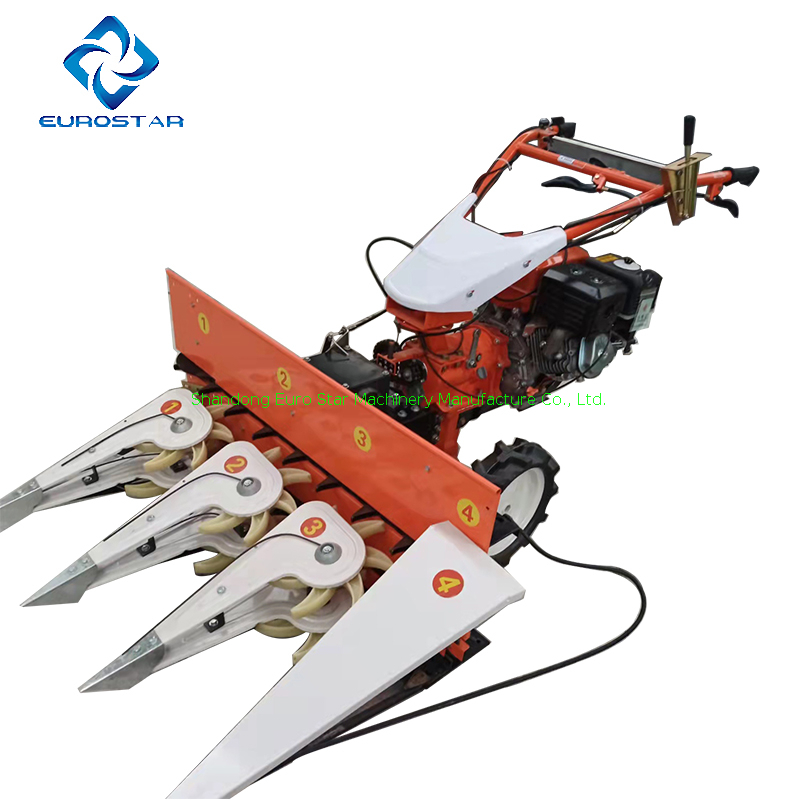

ES series mini self-walking reaper display

Walking Small Cutter Windrower Swather display

ES series rear tine tiller with belt technical parameters

ES Series Rear tine tiller  (belt)
model ES680 ES680-D1 ES700-D1 ES700-D2
body size 1680*730*1000 1700*730*1150 1720*730*1150 1750*730*1150
weight(kg) 85 96 96 96
Engine 170 petrol 173 diesel 178 diesel 186 diesel
rated power(kw) 4 4.05 4.4 6.5
engine model 170P 173FS 178FS 186FS
gears  shifting walking gearbox H,0,L,R H,0,L,R H,0,L,R H,0,L,R
Tilling gearbox ditching,0, tilling ditching,0, tilling ditching,0, tilling ditching,0, tilling
transmission way Belt drive Belt drive Belt drive Belt drive
tillage depth(mm) 100-300 100-300 100-300 100-300
working width(mm) 440-720 440-720 800-1000 800-1350
ditching depthing(mm) 200-300 200-300 200-300 200-300
ditching width(mm) 250 250 250 250
tyre 350-6 solid tyre 400-8 solid tyre 400-8 solid tyre 400-8 solid tyre
standar equipment 3pcs 3 group rotary blade, ditching blade 3pcs 3 group rotary blade, ditching blade 3pcs 4 group rotary blade, ditching blade 4pcs 4group rotary blade, ditching blade
Packaging Dimension(mm) 1300×550×680 1300×550×680 1300×550×680 1400×550×680
40HQ(set)Certificates 108 108 108 98

ES series rear tine tiller with belt display

ES Series Rear Tine Tiller with Belt DisplayGW Series Rear tine tiller (gear) technical parameters

GW Series Rear tine tiller (gear)
model GW-4G01 GW-4G02 GW-4D03 GW-4D04 GW-4D05
body size 1720*730*1000 1750*730*1000 1750*730*1150 1800*730*1150 1850*730*1150
weight(kg)
87 96 96 96
Engine 170 petrol 177 petrol 173 diesel 178 diesel 186 diesel
rated power(kw) 4 5.1 4.05 4.4 6.5
engine model 170P 177P 173FS 178FS 186FS
gears
shifting
walking gearbox H,0,L,R H,0,L,R H,0,L,R H,0,L,R H,0,L,R
Tilling gearbox ditching,0, tilling ditching,0, tilling ditching,0, tilling ditching,0, tilling ditching,0, tilling
transmission way gear gear gear gear gear
tillage depth(mm) 100-300 100-300 100-300 100-300 100-300
working width(mm) 440-720 800-1000 440-720 800-1000 800-1350
ditching depthing(mm) 200-300 200-300 200-300 200-300 200-300
ditching width(mm) 250 250 250 250 250
tyre 350-6 solid tyre 400-8 solid tyre 400-8 solid tyre 400-8 solid tyre 400-8 solid tyre
standar equipment 3pcs 3 group rotary blade, ditching blade 3pcs 4group rotary blade, ditching blade 3pcs 3 group rotary blade, ditching blade 3pcs 4 group rotary blade, ditching blade 4pcs 4group rotary blade, ditching blade
Packaging Dimension(mm) 1300×550×680 1300×550×680 1300×550×680 1300×550×680 1400×550×680
40HQ(set)Certificates 108 108 108 108 98

GW Series Rear tine tiller (gear) Display

GW Series Rear tine tiller (gear) DisplayES Series tiller technical parameters

ES Series tiller
model ES-1000 ES-1100A ES-1000D ES-1100B ES-1100C ES-720
body size 1630×1000×1020 1750×1100×940 1630×1000×1020 1750×1100×940 1750×1100×940 1680×660×930
weight(kg) 70 83 85 115 135 75+40
Engine 170 petrol 177 petrol 173 diesel 178 diesel 186 diesel 178 diesel
rated power(kw) 4 5.1 4.05 4.4 6.5 4.4
engine model YH170F YH177F YH173FS YH178FS YH186FS zongshen
gears shifting 2,0,1,-1 2,0,1,-1 2,0,1,-1 2,0,1,-1 2,0,1,-1 3,2,1,
0,-1,-2
Driving model gear gear gear gear gear gear
Tilling depth(mm) ≥100mm ≥100mm ≥100mm 100-300 100-300 150-250
Tilling scope(mm) 1000 800-1000 1000 800-1000 800-1350 600
tyre 350-6 solid tyre 400-8 solid tyre 350-6 solid tyre 400-8 solid tyre 400-8 solid tyre 400-8 solid tyre
standar equipment 3pcs 3 group rotary blade 3+1 blades 3pcs 4 group rotary blade 3+1 blades 3+1 blades 10pcs 3 group rotary blade
Packaging Dimension(mm) 850×730×700 1050*570*780 850×730×700 1050*570*780 1050*570*780 850×720×600+
720×550×450
40HQ(set)Certificates 144 108 144 108 108 112

ES Series Tiller Display

S Series tiller displayRear Tine Tiller packing and shipping link display
packing and shipping link display
