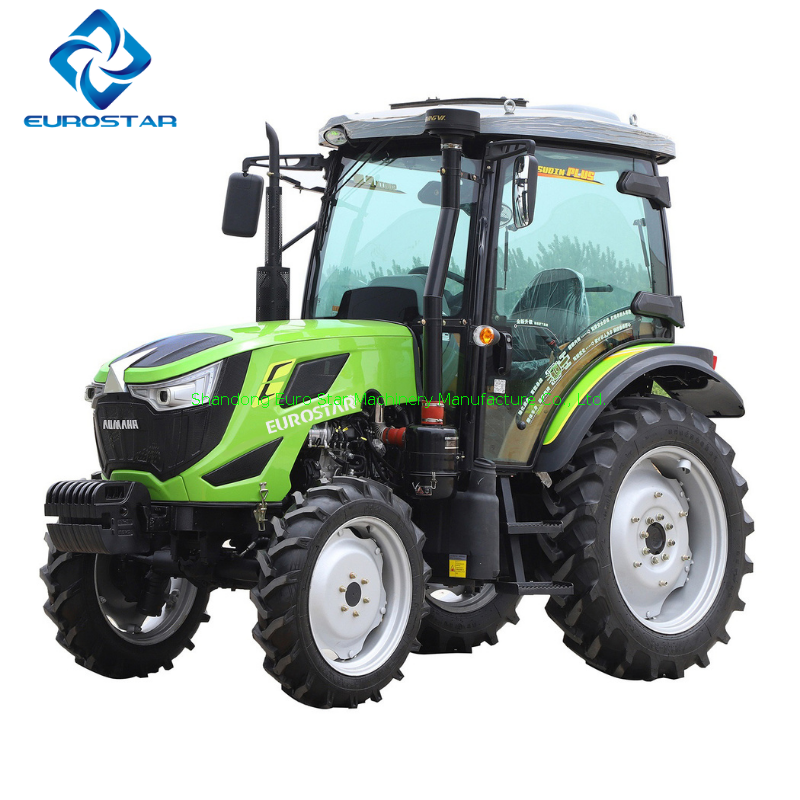

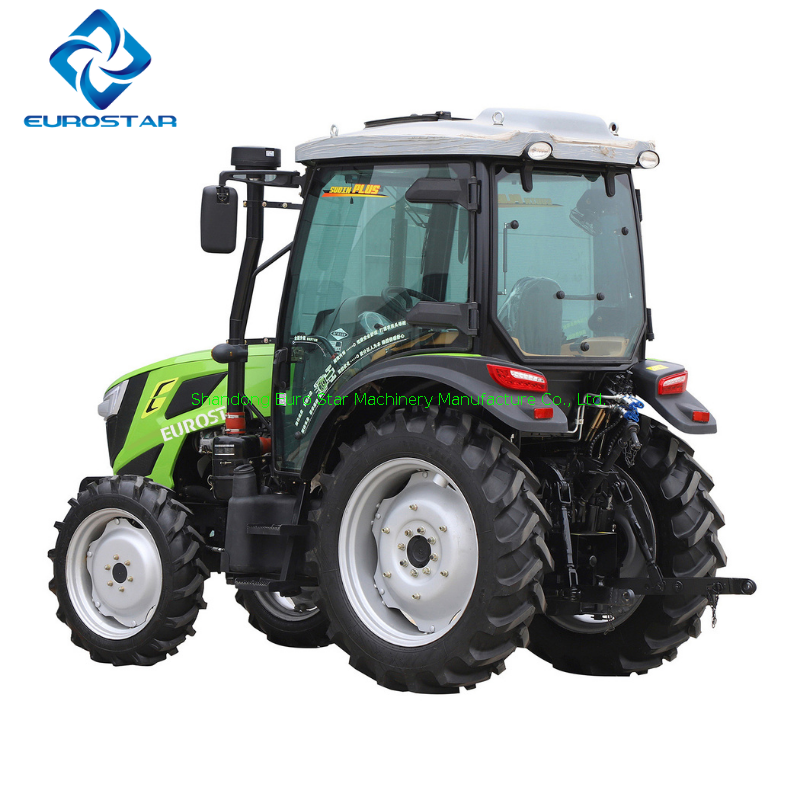

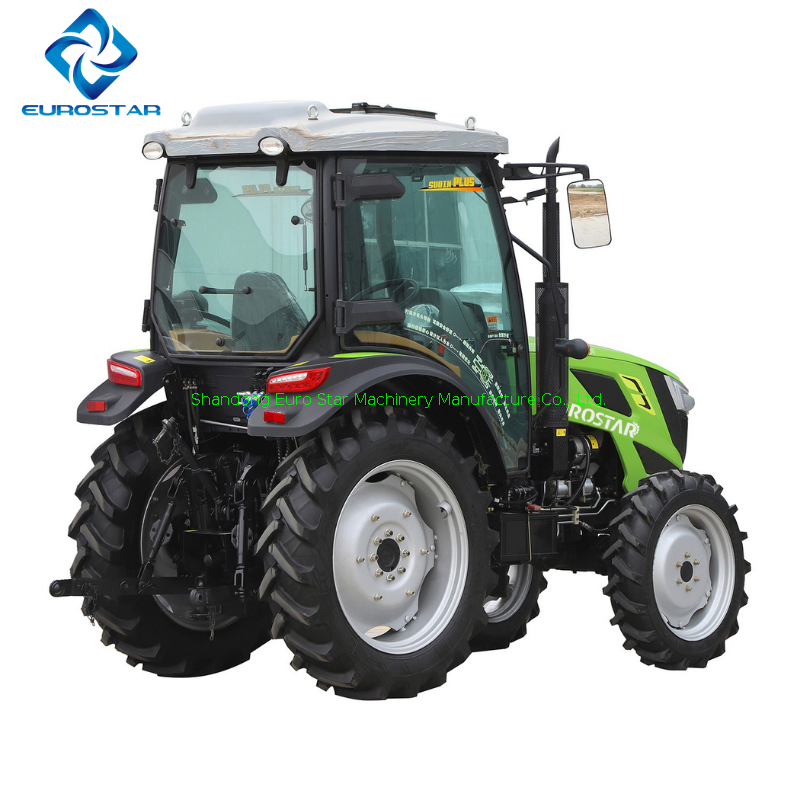

B 60-90HP Small Farm Crawler China Tractor

B Series tractor has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations,farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.
regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: farmland cultivating machines and tools like front loader, backhoe, trailer, lawn mower,baler, Disc plough, disc rake, rotary tiller, spraying machine and rotary cultivator.
B Series wheel Tractor Product Selling Points
1. Standard configuration: 12F+12R gears, has the features like energy saving, reliable and comfortable.
2. Complete damping floor, and flat floor, side-placed operating lever and suspension pedal are optional, which improve manipulation comfort.
3. newest body shape makes it fashionable and dynamic. The one-piece design of its floor and cabin frame guarantees a safe carrying performance and good seal. The hood, with a wide front and a narrow back, provides good visibility.
4. Based on the optimized man-machine engineering, it features good control layout, differentiated colors, a right-hand console, suspending gas and clutch pedals, and a steering wheel below the hand throttle and shuttle. The steering gear is adjustable both forward and backward.
5. air intake and exhaust pipes are hidden behind the A column in the cab, thus providing a better view.
6. A larger fuel tank capacity makes longer operation possible.
7. it's equipped with LED daytime running lamps and convex headlights of separated far and near lights. Overall chrome decorated light boxes look beautiful and luxury. Tail lights use U-shape view LED lamps and LED stop lamps, combined with streamline modeling.
8. whole vehicle is equipped with waterproof plugs and high-standard and reliable insurance. With high-temperature resistant engine lines, its electrical safety and reliability are greatly improved.
9. new cab also boasts the following features that enhance its comfortableness in addition to its better compliance with ergonomic principles.
1) A larger driving space
2)  A three-tier roof with excellent thermal insulation; a front window that enables good ventilation; a transparent skylight with good visibility; and an adjustable sliding window guard.
3)  Car air conditioning that defrosts and demists the front windshield; a circular air vent layout; a warming and cooling system integrated together; a temperature range of 24 ºC ~ 27 ºC.
4) The foaming steering wheel in a new style that looks more beautiful and feels more comfortable.
5) A Grammer-styled luxury seat, compression molded, with its front and back, top and bottom as well as its height adjustable; a file box attached for the seat.
6)  Doors and windows use new cross-section sealing strips which guarantee a more reliable seal. Clearance holes between the floor and the outside are covered with caps, effectively preventing dust, reducing noise and improving the cab's seal.
Availability:
Quantity:
B 60-90HP Small Farm Crawler China Tractor
B 60-90HP Small Farm Crawler China Tractor
B 60-90HP Small Farm Crawler China Tractor
B 60-90HP Small Farm Crawler China Tractor
B 60-90HP Small Farm Crawler China Tractor
B 60-90HP Small Farm Crawler China Tractor
  • ES6048B ES7048B ES8048B ES9048B

  • EUROSTAR

  • 8701911000

B Series Wheel Tractor Product Description

B Series tractor has been adjusted for the overall configuration. Its function and comfortness have been upgraded to meet the requirements of lawn maintenance, engineering operations,farm works,gardening, greenhouse and other operations. In addition, the man-machine engineering has been greatly upgraded so as to make your operation more comfortable and convenient, and make the maintenance easier.Product's applicable working condition: multifunction, gardening, transportation, orchard, greenhouse and farmland operations.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Matching machines and tools: farmland cultivating machines and tools like front loader, backhoe, trailer, lawn mower,baler, Disc plough, disc rake, rotary tiller, spraying machine and rotary cultivator.

B Series Wheel Tractor Product Selling Points
1. Standard configuration: 12F+12R gears, has the features like energy saving, reliable and comfortable.
2. Complete damping floor, and flat floor, side-placed operating lever and suspension pedal are optional, which improve manipulation comfort.
3. newest body shape makes it fashionable and dynamic. The one-piece design of its floor and cabin frame guarantees a safe carrying performance and good seal. The hood, with a wide front and a narrow back, provides good visibility.
4. Based on the optimized man-machine engineering, it features good control layout, differentiated colors, a right-hand console, suspending gas and clutch pedals, and a steering wheel below the hand throttle and shuttle. The steering gear is adjustable both forward and backward.
5. air intake and exhaust pipes are hidden behind the A column in the cab, thus providing a better view.
6. A larger fuel tank capacity makes longer operation possible.
7. it's equipped with LED daytime running lamps and convex headlights of separated far and near lights. Overall chrome decorated light boxes look beautiful and luxury. Tail lights use U-shape view LED lamps and LED stop lamps, combined with streamline modeling.
8. whole vehicle is equipped with waterproof plugs and high-standard and reliable insurance. With high-temperature resistant engine lines, its electrical safety and reliability are greatly improved.
9. new cab also boasts the following features that enhance its comfortableness in addition to its better compliance with ergonomic principles.
1) A larger driving space
2)  A three-tier roof with excellent thermal insulation; a front window that enables good ventilation; a transparent skylight with good visibility; and an adjustable sliding window guard.
3)  Car air conditioning that defrosts and demists the front windshield; a circular air vent layout; a warming and cooling system integrated together; a temperature range of 24 ºC ~ 27 ºC.
4) The foaming steering wheel in a new style that looks more beautiful and feels more comfortable.
5) A Grammer-styled luxury seat, compression molded, with its front and back, top and bottom as well as its height adjustable; a file box attached for the seat.
6)  Doors and windows use new cross-section sealing strips which guarantee a more reliable seal. Clearance holes between the floor and the outside are covered with caps, effectively preventing dust, reducing noise and improving the cab's seal.

B Series Wheel Tractor Product Technical Parameters
ModelES6048BES7048BES8048BES9048B
Engine power (HP)60HP70HP80HP90HP
Driven model4WD4WD4WD4WD
EngineLAIDONG KM490ZT2LAIDONG KM4100LAIDONG KM4100YCD4T22T-90
Emission StandardsII stagesII stagesII stagesII stages
Engine Ratial Speed(r/min)2400240024002400
Engine type4-cylinder, diesel4-cylinder, diesel4-cylinder, diesel4-cylinder, diesel
Clutch Double-stage typeDouble-stage typeDouble-stage typeDouble-stage type
PTO speed 540/760rpm540/760rpm540/760rpm540/1000rpm
PTO spline number6666
Max.rated drawing power  KN≥15.5KN≥16.5KN≥18KN≥22.1KN
Weight (kg)2700kg2740kg2600kg2600kg
Steeringhydraulic steeringhydraulic steeringhydraulic steeringhydraulic steering
Gears 12F+12R12F+12R12F+12R12F+12R
Speed(km/h)F 1.78-26.93
R  2.41-11.6
F 1.78-26.93
R  2.41-11.6
F 1.78-26.93
R  2.41-11.6
F 1.78-26.93
R  2.41-11.6
Tires sizeF 8.3-24/R 12.4-32F 8.3-24/R 12.4-32F 8.3-24/R 12.4-32F 8.3-24/R 12.4-32
Wheel Base (mm)2010mm2010mm2050mm2050mm
Front/ Rear Wheel1300mm1300mm1300mm1300mm
Overall dimension(L*W*H)mm 4050×1795×26304050×1795×26304050×1820×27004050×1830×2660
LifterForced pressure lifterForced pressure lifterForced pressure lifterForced pressure lifter
Optional equipment:
Front ballast 144KGOptionalOptionalOptionalOptional
Rear ballast(one layer)OptionalOptionalOptionalOptional
RopsOptionalOptionalOptionalOptional
SunshadeOptionalOptionalOptionalOptional
Fan cabOptionalOptionalOptionalOptional
Heating cabOptionalOptionalOptionalOptional
AC cabOptionalOptionalOptionalOptional
2 groups of hydraulic outputOptionalOptionalOptionalOptional
Air brakeOptionalOptionalOptionalOptional
Swing tractionOptionalOptionalOptionalOptional
Tires 8.3-24/14.9-30OptionalOptionalOptionalOptional
Replacement of simulation wheels for cab model packingOptionalOptionalOptionalOptional
Packingone 40 HQ in 3setsone 40 HQ in 3setsone 40 HQ in 3setsone 40 HQ in 3sets
